XK / XKR ( X150 ) 2006 - 2014

Door Panel Wiring Harness Replacement

Thread Tools

Search this Thread

Old Dec 4, 2025 | 10:09 PM
  #1
BLD's Avatar
BLD
Thread Starter
|
Member
Joined: Aug 2023
Posts: 41
Likes: 7
From: Colorado & Arizona USA
Default Door Panel Wiring Harness Replacement

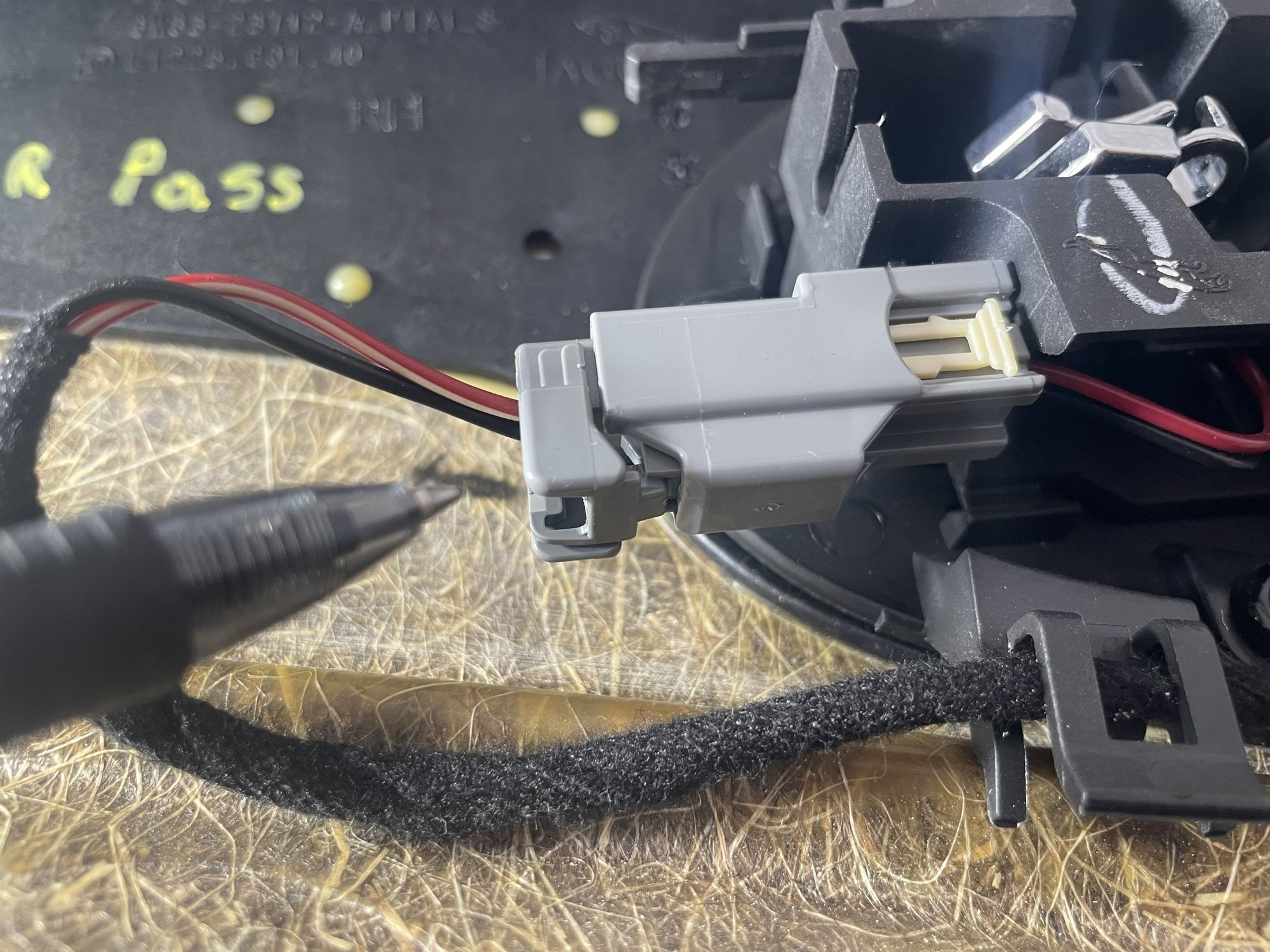

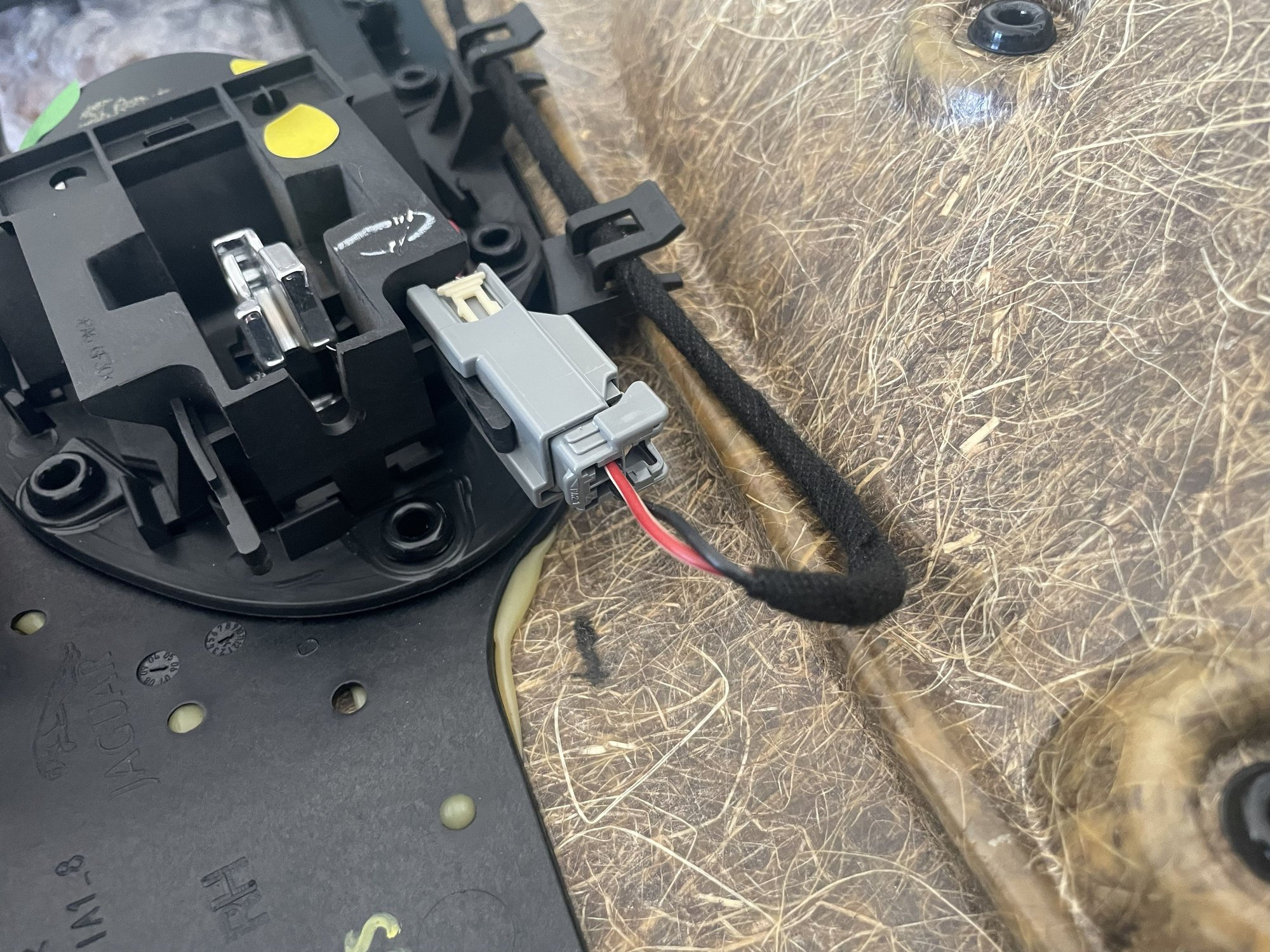

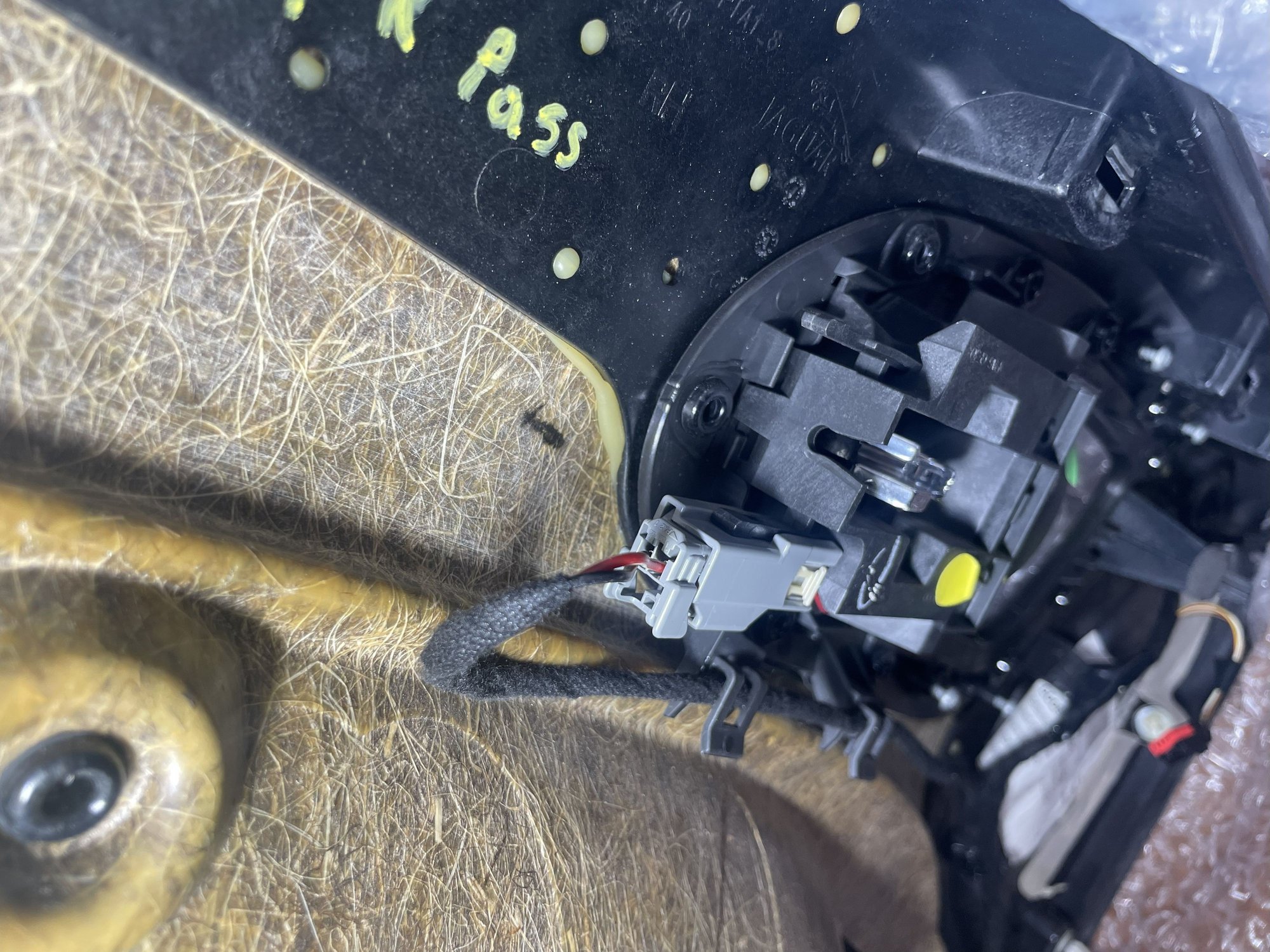

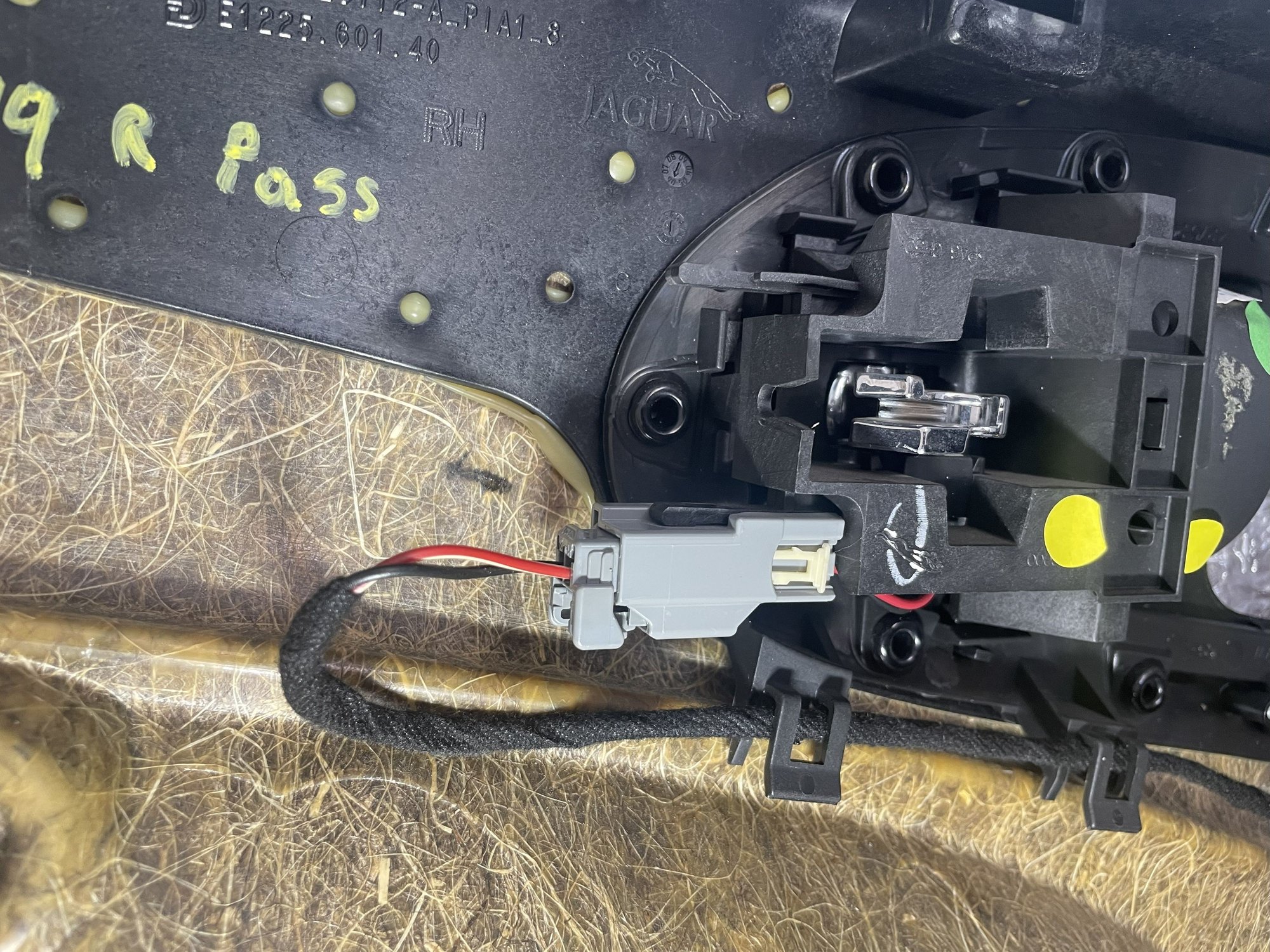

I am replacing the passengers side door panel (door card) wiring harness on my 2008 XKR convertible. I am having trouble disconnecting one of the connectors on the harness. The connector goes to the door latch handle (to operate the power door lock I suspect) . Attached are photos of the plug I am struggling with. I fear I may break the connector if I do it wrong or force it. Can anybody on the forum give me some guidance on disconnecting it? Is there a locking tab or something like that that needs to be depressed to release the connector?
Thanks for the help.
BD






Reply
Old Dec 4, 2025 | 10:23 PM
  #2
McJag222's Avatar
Veteran Member
5 Year Member
Liked
Loved
Community Favorite
Joined: Jul 2016
Posts: 1,451
Likes: 857
From: Vancouver BC
Default

Does the white tab push back to release the plug?

Reply
Old Dec 6, 2025 | 12:53 PM
  #3
Sean W's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2013
Posts: 8,937
Likes: 4,744
From: USA
Default

Originally Posted by McJag222
Does the white tab push back to release the plug?
and is there one on the other side as well?

Reply
Old Dec 6, 2025 | 08:51 PM
  #4
BLD's Avatar
BLD
Thread Starter
|
Member
Joined: Aug 2023
Posts: 41
Likes: 7
From: Colorado & Arizona USA
Default

Originally Posted by Sean W
and is there one on the other side as well?

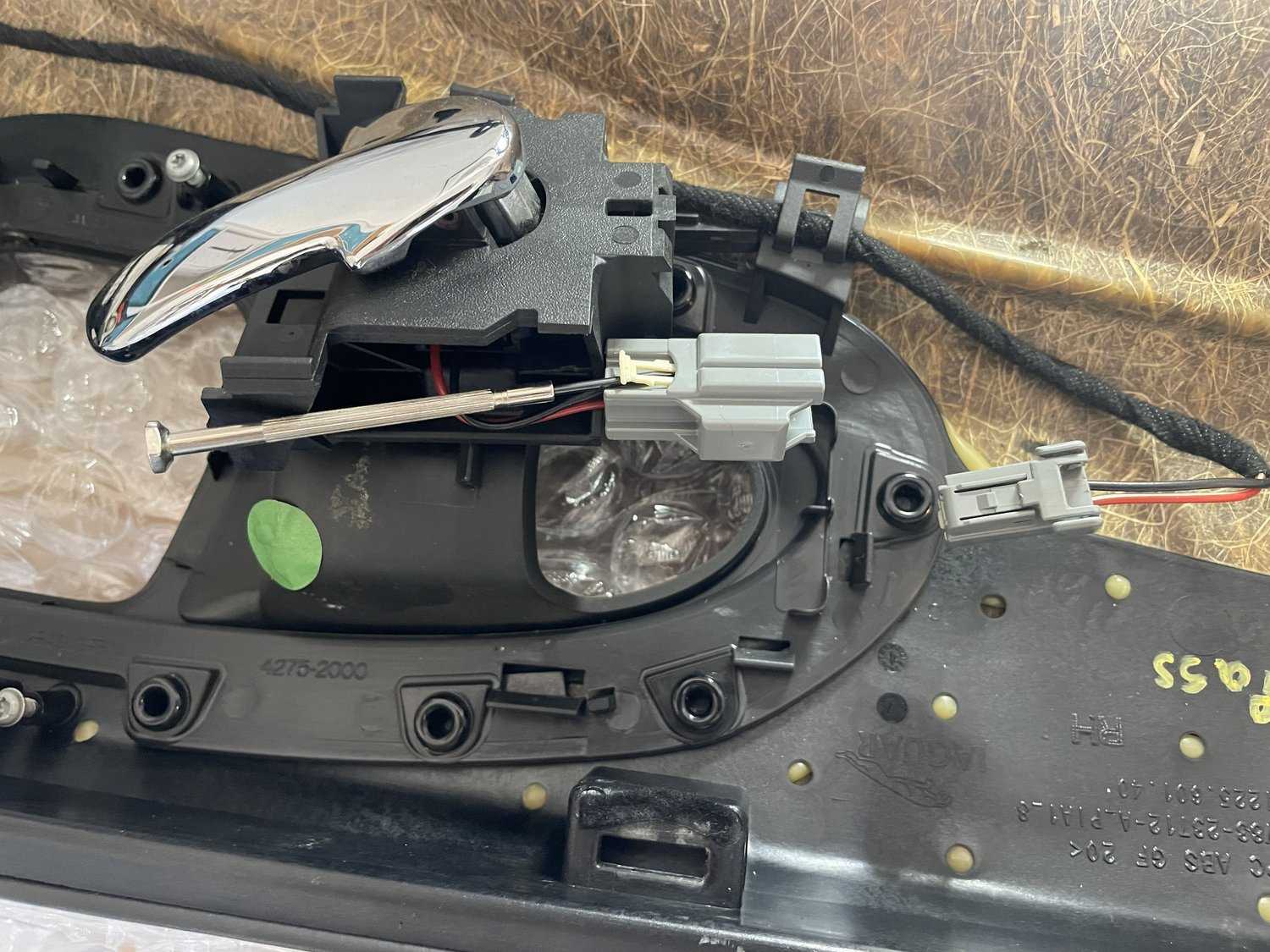

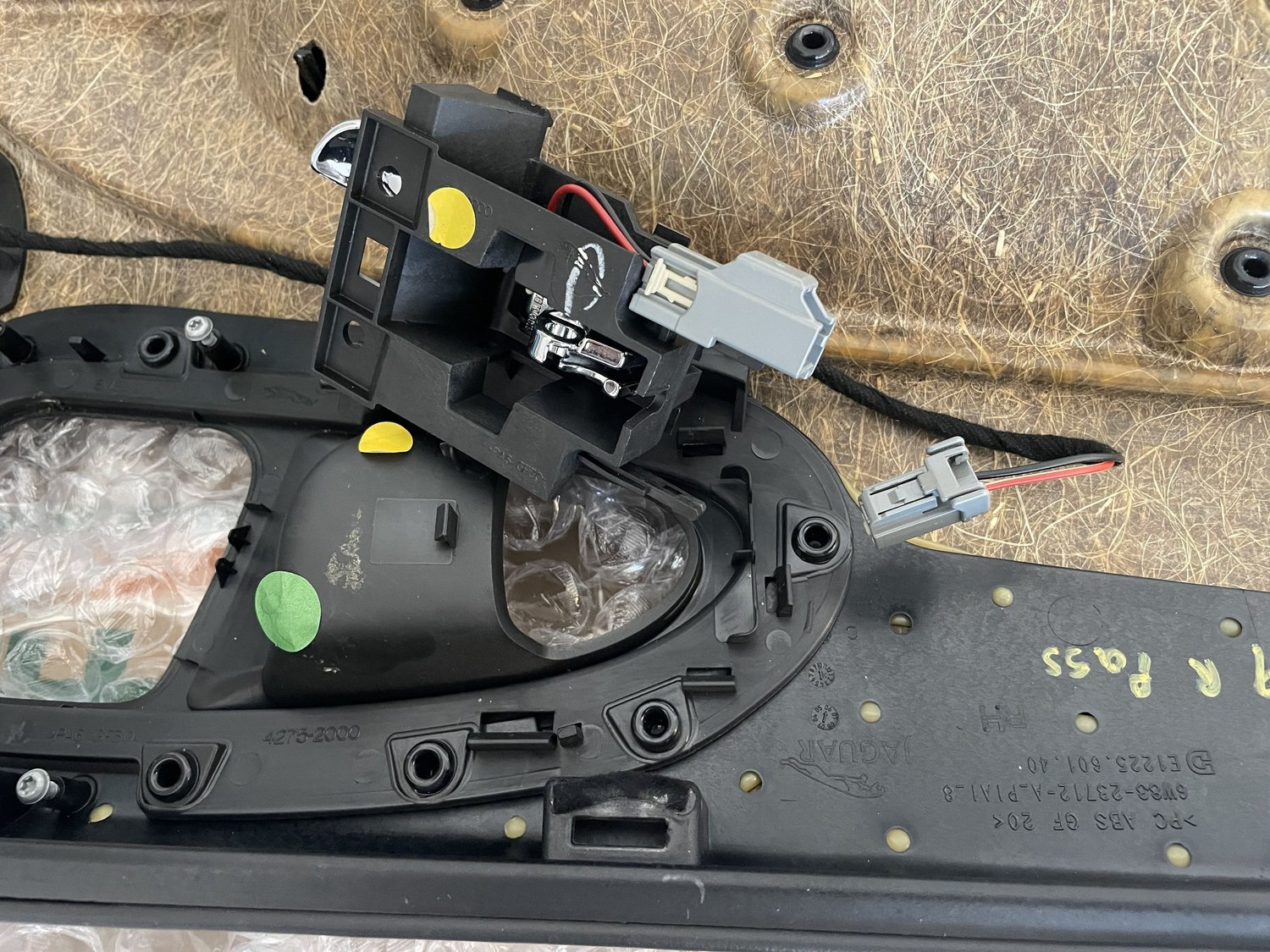

There is indeed one on the other side but the only way to get to it was to disconnect/remove the door handle from the door panel. The door handle is attached to the door panel by 5 small catch hooks on the panel. I was able to disconnect the plug by slipping small jewelers screw drivers under the white tabs as shown in the first photo below. Once I achieved all this I realized it was unnecessary. I could have just removed the door handle with the cable harness still attached. The reason for this whole exercise is my door panel on my car had a hole punched into when the door was closed with the seat belt buckle laying in the door jamb. I am replacing it with a salvage yard panel bought off of EBay.
Thanks for your help and suggestion.
BD




Reply
Old Dec 7, 2025 | 04:09 AM
  #5
Cee Jay's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Apr 2013
Posts: 11,890
Likes: 6,401
From: Kaysville, Utah, US
Default

..... and now we all know...

Reply
Old Dec 7, 2025 | 07:39 AM
  #6
kj07xk's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2015
Posts: 5,315
Likes: 2,589
From: Naperville, Illinois USA
Default

Pry this, push that, pinch here, twist that… just another connector from those sadistic connector designers. How many different connector types can one car have?

Reply
Old Dec 7, 2025 | 09:00 AM
  #7
guy's Avatar
guy
Veteran Member
15 Year Member
Liked
Loved
Community Favorite
Joined: Apr 2008
Posts: 3,683
Likes: 1,679
From: Ottawa, Ontario, Canada
Default

Originally Posted by kj07xk
Pry this, push that, pinch here, twist that… just another connector from those sadistic connector designers. How many different connector types can one car have?
Or, thank goodness the connectors are actually locked in place so that they don’t wiggle loose at the most inopportune time… perspectives.

Reply
Old Dec 7, 2025 | 10:37 AM
  #8
kj07xk's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2015
Posts: 5,315
Likes: 2,589
From: Naperville, Illinois USA
Default

Originally Posted by guy
Or, thank goodness the connectors are actually locked in place so that they don’t wiggle loose at the most inopportune time… perspectives.
Agreed, but do we need 37,000 ways to hold a connection together?

Reply
Old Dec 7, 2025 | 11:10 AM
  #9
Sean W's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2013
Posts: 8,937
Likes: 4,744
From: USA
Default

Originally Posted by kj07xk
Agreed, but do we need 37,000 ways to hold a connection together?
Yep. Find the engineer with the fattest finger and thumb in the building and then he, and only he, is allowed to design tool-less quick release connectors.
