XK / XKR ( X150 ) 2006 - 2014

help identifying this connector in trunk

Thread Tools

Search this Thread

Old May 21, 2018 | 02:02 PM
  #1
Peter Ucinski's Avatar
Thread Starter
|
Member
Joined: Apr 2018
Posts: 62
Likes: 26
From: Chicago
Default help identifying this connector in trunk

So replaced battery ( what a pain in an ***) in my 2011 XKR Vert, and noticed a cable with two wires Brown and black with white connector.

does anyone knows where it should be plugged in?

another issue is that my licence plate lights are not working...




Reply
Old May 21, 2018 | 03:03 PM
  #2
pwpacp's Avatar
Veteran Member
5 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2016
Posts: 1,336
Likes: 551
From: Georgia
Default

Not to worry, it is not used, it was there on my previous and current vert. I don't remember exactly what it was meant for, perhaps a test point for something on the nav/entertainment systems.

Reply
Old May 21, 2018 | 03:18 PM
  #3
Cee Jay's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Apr 2013
Posts: 11,889
Likes: 6,399
From: Kaysville, Utah, US
Default

Isn't that the Delivery Relay connector? Turns off all the extraneous stuff during shipping, IIRC.

Reply
Old May 21, 2018 | 04:09 PM
  #4
pwpacp's Avatar
Veteran Member
5 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2016
Posts: 1,336
Likes: 551
From: Georgia
Default

I think you are correct.

Reply
Old May 21, 2018 | 09:37 PM
  #5
dsd's Avatar
dsd
Veteran Member
10 Year Member
Liked
Loved
Top Answer: 1
Joined: Jul 2013
Posts: 1,105
Likes: 328
From: Northern Virginia
Default

Interesting seeing your layout. It’s different than my 2007. My BT module is under the DVD player and flipped.

Reply
Old May 22, 2018 | 03:21 AM
  #6
JagV8's Avatar
Veteran Member
15 Year Member
Liked
Loved
Community Favorite
Joined: May 2009
Posts: 27,518
Likes: 4,909
From: Yorkshire, England
Default

For transit isolation relay I'd say. Just make sure it can't short out.

Reply
Old May 22, 2018 | 04:00 AM
  #7
GGG's Avatar
GGG
10 Year Member
Liked
Loved
Community Favorite
Joined: Dec 2011
Posts: 120,439
Likes: 17,005
From: Durham, UK
Default

The Transit Relay and harness connector.

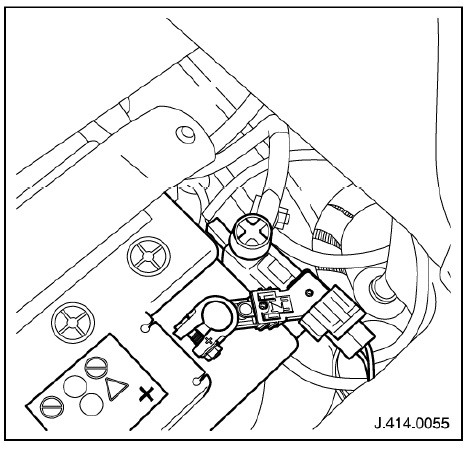

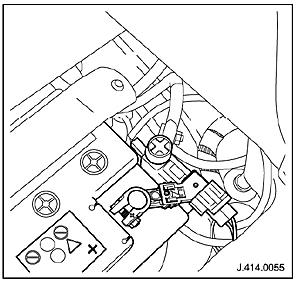

help identifying this connector in trunk-transit-relay.jpg

Removed and discarded during PDI.

The harness connector is tucked out of the way but is still subsequently found by hundreds of inquisitive owners of all Jaguar models.

Graham


Last edited by GGG; May 22, 2018 at 04:03 AM.
Reply
Old May 22, 2018 | 04:19 AM
  #8
Ter11's Avatar
Senior Member
5 Year Member
Liked
Loved
Community Favorite
Joined: Feb 2018
Posts: 350
Likes: 42
From: Switzerland
Default

I can confirm: same situation in my Xk 2011 coupe.

br
trr

Reply
Old May 22, 2018 | 07:15 AM
  #9
peterv8's Avatar
Senior Member
Joined: Aug 2017
Posts: 988
Likes: 380
From: Södra Sandby, Sweden
Default

My 2006 has it too so good to know what it is.:-)

Reply
