Help in locating A/C low side charge port 2009 XKR- have looked on the web endlessly. High side I found quickly up top but I cannot find low....not in drivers wheel well as so many indicate, your help greatly appreciated.



This question should be posted in the X150 forum if the vehicle is a 2009 MY XKR.

Refer to page fifty and onward of the Electrical Guide:

https://www.dropbox.com/s/0872e68rft...rical.pdf?dl=0



I've moved to the appropriate forum.



Thank you gentlemen



Did you find it?

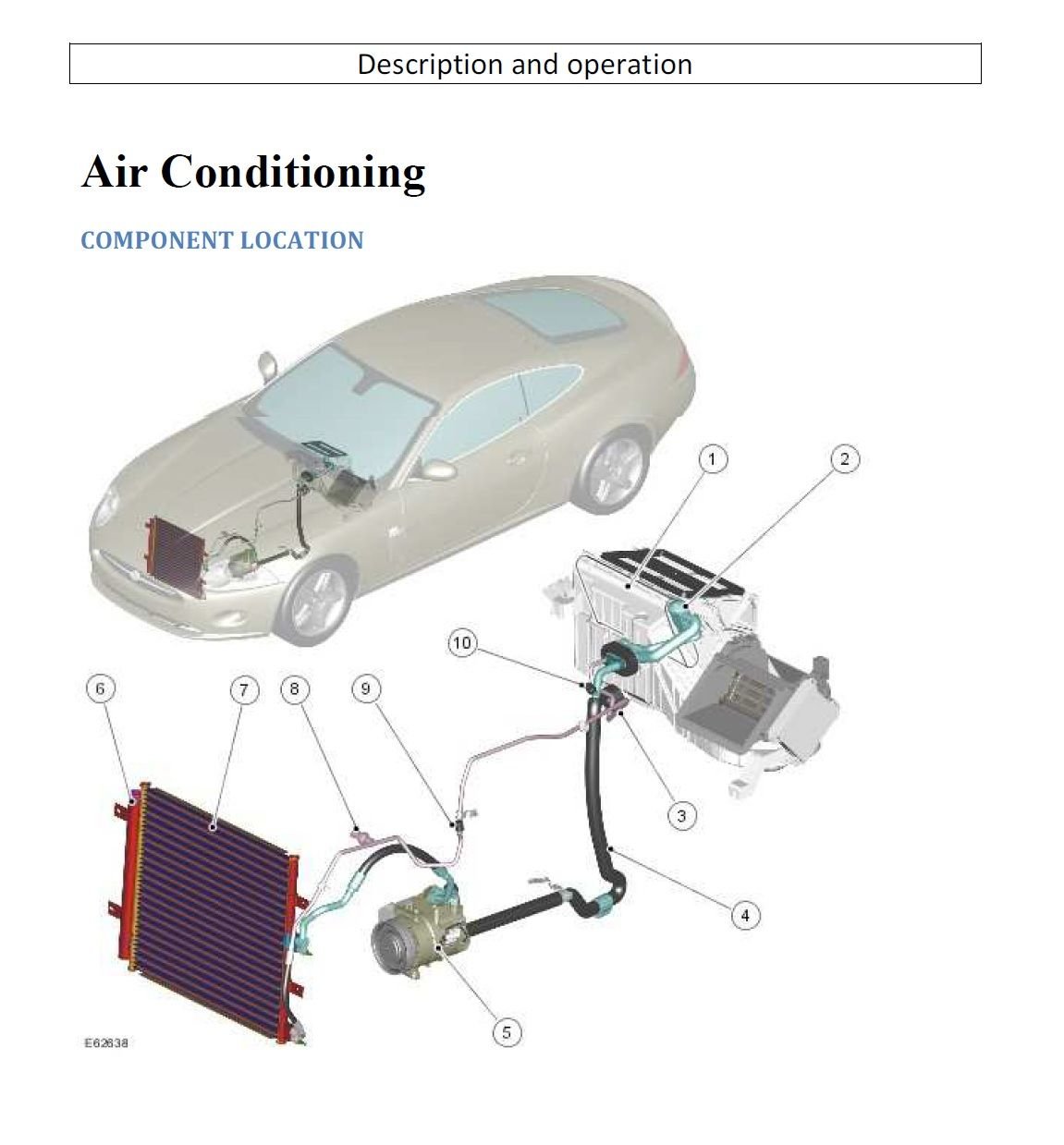

Item 9 = High pressure servicing connection
Item 10 = Low pressure servicing connection




Graham



Ditto. For the low pressure you remove the left side air intake. High side is next to the PS reservoir.

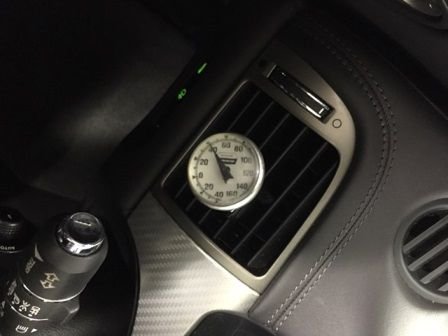

Yes I did. Have to remove drivers side intake tube to connect gauges, reinstall to start engine, charge and repeat the intake dance. Lovely place for the jag engineers to put it but all ended well at 42 degrees with a 88 ambient. I posted some pics to make it easier for the next searcher. Thank you gentlemen for your help


Low side port at screw drivers tip


reinstall intake to charge


low side port location


for central Texas this is like 10 below
