Intermittent MAF Fault. Cleaned the MAF and de-engineer my stock airboxes

Thread Tools

Search this Thread

Old Jul 8, 2016 | 01:22 AM
  #1
AlexJag's Avatar
Thread Starter
|
Sponsor
10 Year Member
Liked
Loved
Community Favorite
Joined: Apr 2016
Posts: 1,341
Likes: 453
From: San Diego CA
Default Intermittent MAF Fault. Cleaned the MAF and de-engineered my stock airboxes

So after getting an Intermittent MAF code for a few month. Mainly the code came on when cruising at longer distances in a freeway and would disappear in city driving.

The sensors definitely looked dirty, the resistor wire parts were black , now they are nice and shiny hope there is no more code..

Also I noticed that the airbox design is a little interesting with the plastic squares all over the downstream part of the air filter which would cause a restriction. I though that the plastic was there to hold the filter in place but after examining a little more I realized that the plastic does not even come with contact with the air filter and does not strengthen the airbox.
So I decided, with my engennering background , which is none, that manufacturer added the plastic to provide restriction to the airflow. So I took action and here is the outcome

Initial results after driving are good, car pulls strong, will have to confirm at the strip. Also I noticed by monitoring with Torque app that the AFR now appears to be on the richer side at WOT. Before it would always flatline at 12.5
now it flatlines lower at 11.7, so something definitely changed, and hopefully for the better.

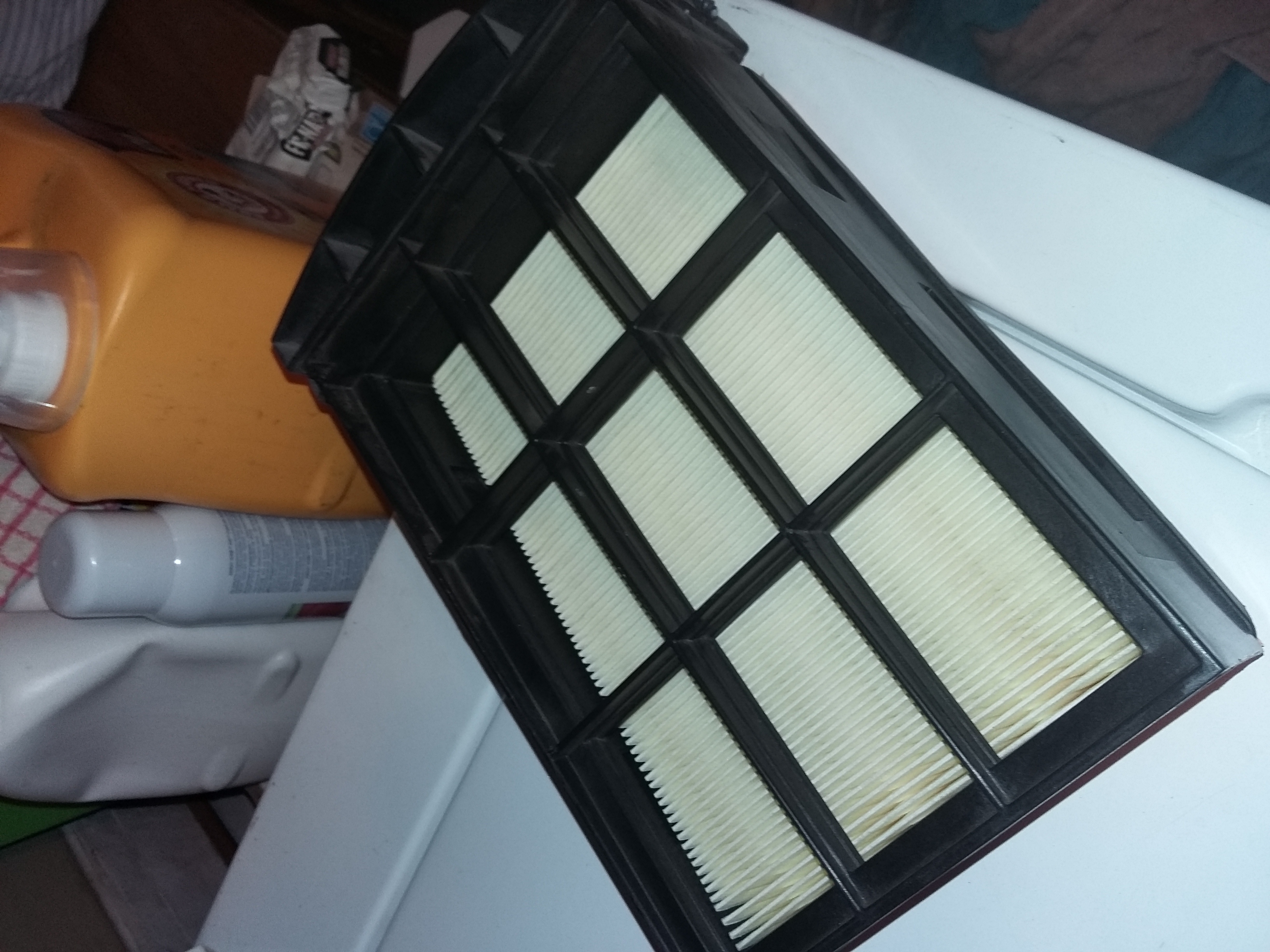

Attached Thumbnails Intermittent MAF Fault. Cleaned the MAF and de-engineer my stock airboxes-20160707_200146.jpg   Intermittent MAF Fault. Cleaned the MAF and de-engineer my stock airboxes-20160707_184018.jpg
Reply
Old Jul 8, 2016 | 07:19 AM
  #2
jagtoes's Avatar
Veteran Member
Joined: Sep 2013
Posts: 5,209
Likes: 1,847
From: NY
Default

It looks like the ribs were required to support the frame during and after the mold process. The design is not done to restrict air flow mot likely channels the air without creating a problem. Removing them will provide some additional area but I would not believe it will result in any performance gain. The air flow restriction is usually caused by the weave and material of the filter media. You may want to periodically check to make sure that the filter does not cave in due to lack of support that the ribs provided. There is a reason it was in the design.

Reply
Old Jul 8, 2016 | 02:05 PM
  #3
AlexJag's Avatar
Thread Starter
|
Sponsor
10 Year Member
Liked
Loved
Community Favorite
Joined: Apr 2016
Posts: 1,341
Likes: 453
From: San Diego CA
Default

Originally Posted by jagtoes
It looks like the ribs were required to support the frame during and after the mold process. The design is not done to restrict air flow mot likely channels the air without creating a problem. Removing them will provide some additional area but I would not believe it will result in any performance gain. The air flow restriction is usually caused by the weave and material of the filter media. You may want to periodically check to make sure that the filter does not cave in due to lack of support that the ribs provided. There is a reason it was in the design.
I though it was there to support the filter but the ribs are 7mm away from the filter and do not touch it, So other possibly they are there to support the entire airbox from caving in since filter/box is laying on its side..
This is a dual intake setup so with 2 airboxes trimmed there is a good amount of restriction removed... Drag strip will tell

Reply
Old Mar 22, 2017 | 01:41 PM
  #4
Ranchero50's Avatar
Veteran Member
Joined: Mar 2017
Posts: 2,936
Likes: 978
From: Hagerstown MD
Default

They are there to keep a clogged filter from collapsing. It happens in the wild often on neglected stuff.
