Where is the low oil pressure
#1
Where is the low oil pressure
I assume there is a low oil pressure warning sensor so does anyone know where it is located on the 5.0L engine. Has anyone mounted an aftermarket sending unit and installed a gauge in the engine compartment.Also with all of the technology out there I have yet to find a BT oil pressure sending unit and Gauge which would allow for wireless installation. Just thinking out loud here.
#3
#4

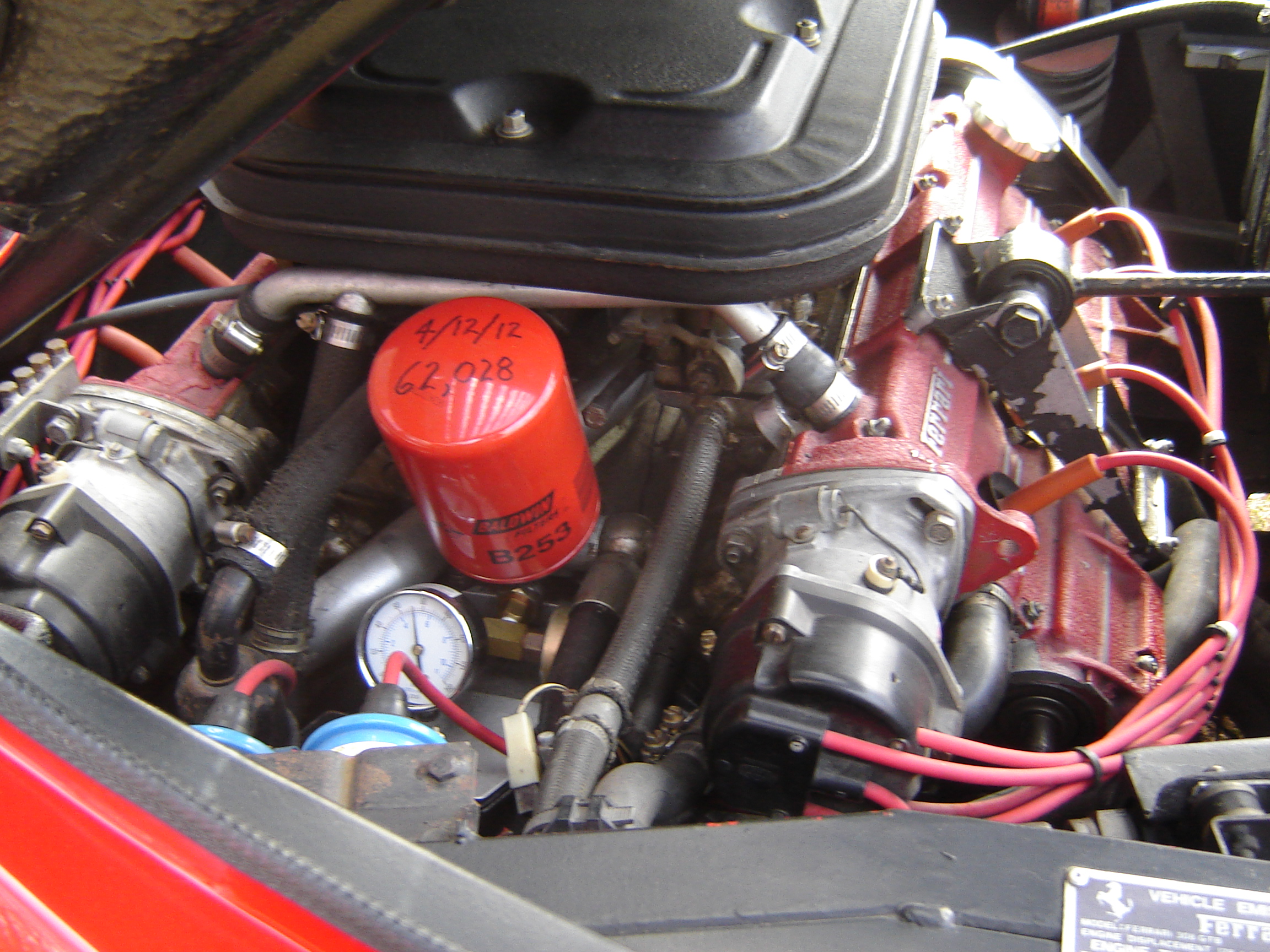

OK , thanks and makes sense in determining the quantity of oil in the sump. I was assuming there would be a low oil pressure switch somewhere which would trigger a warning light when oil pressure was below say 5-8 psi. I don't know if Jag uses this type of switch but I would have assumed that there was something similar in the system. In most cars it is located either in the block near the oil filter or in the oil filter housing. In my old Ferrari it was in the oil filter mount and I had to modify some fittings to place a gauge to verify the accuracy of my electric gauge (see Pic.). I was considering doing the same on the Jag.
#5
The way the workshop manual says to measure the oil pressure is to remove the oil filter and add a special tool (Oil filter adapter number 303-1451), which looks like a standard oil filter cover but has a threaded extension for a pressure gauge. Perhaps you could fit one of those permanently.
#6
The way the workshop manual says to measure the oil pressure is to remove the oil filter and add a special tool (Oil filter adapter number 303-1451), which looks like a standard oil filter cover but has a threaded extension for a pressure gauge. Perhaps you could fit one of those permanently.
#7
Trending Topics
#9
#10
I cannot see anything on the 5.0 wiring diagrams, nor in the workshop manual, relating to oil pressure sensing. There's an oil pressure sensor on the 4.2 engines, but not the 5.0. Here's a picture of the special filter housing - I believe it takes the normal filter element:
Attachment 108530
Attachment 108530
#11
I think the adapter does take the filter, otherwise the pressure would be different than with the filter in place. Here are the steps:
- Disconnect the battery ground cable
- Remove the engine oil filter element
- Install the oil filter element into special tool (Oil filter adapter number 303-1451)
- Install the special tool (Oil filter adapter number 303-1451) to the engine. Torque: 25 Nm
- Install the special tool (Oil pressure testing gauge, 303-871) and tighten the union
- Connect the battery ground cable
- Check and top-up the engine oil if required
- Start and run the engine
- ...
The following users liked this post:
jagtoes (03-23-2015)
#12
#13
#14
The truly informed Jaguar aficionado would have read the post from last year. An MIT engineer installed an avionics oil pressure transducer that transmitted via telemetry to a OBD link MX bluetooth. This allowed real time oil pressure readings
The transducer was placed in one of 2 access ports on the back of the engine, on the bottom on either side. either port can be drilled and tapped. My car, 2013xkr is tapped on the passenger's side.
Raytheon and a host of other companies make this tranducer at a variety of prices. Informed individuals can find these products in any aviation magazine that sells avioncs bay equipment.
ANd btw the oil sensor on the back right of the engine can't be tapped for pressure readings,
Last edited by Idontweardepends; 03-23-2015 at 09:07 PM.
#15
Join Date: Mar 2015
Location: Enumclaw, Washington U.S.A.
Posts: 678
Likes: 0
Received 103 Likes
on
79 Posts
the truly informed jaguar aficionado would have read the post from last year. An mit engineer installed an avionics oil pressure transducer that transmitted via telemetry to a obd link mx bluetooth. This allowed real time oil pressure readings
the transducer was placed in one of 2 access ports on the back of the engine, on the bottom on either side. Either port can be drilled and tapped. My car is tapped on the passenger's side.
Raytheon and a host of other companies make this tranducer at a variety of prices. Informed individuals can find these products in any aviation magazine that sells avioncs bay equipment.
And btw the oil sensor on the back right of the engine can't be tapped for pressure readings,
the transducer was placed in one of 2 access ports on the back of the engine, on the bottom on either side. Either port can be drilled and tapped. My car is tapped on the passenger's side.
Raytheon and a host of other companies make this tranducer at a variety of prices. Informed individuals can find these products in any aviation magazine that sells avioncs bay equipment.
And btw the oil sensor on the back right of the engine can't be tapped for pressure readings,
#16
I cannot see anything on the 5.0 wiring diagrams, nor in the workshop manual, relating to oil pressure sensing. There's an oil pressure sensor on the 4.2 engines, but not the 5.0. Here's a picture of the special filter housing - I believe it takes the normal filter element:
Attachment 108530
Attachment 108530
oil sensing unit on the back passengers side for 5.0 s/c
#17
The truly informed Jaguar aficionado would have read the post from last year. An MIT engineer installed an avionics oil pressure transducer that transmitted via telemetry to a OBD link MX bluetooth. This allowed real time oil pressure readings
The transducer was placed in one of 2 access ports on the back of the engine, on the bottom on either side. either port can be drilled and tapped. My car, 2013xkr is tapped on the passenger's side.
Raytheon and a host of other companies make this tranducer at a variety of prices. Informed individuals can find these products in any aviation magazine that sells avioncs bay equipment.
ANd btw the oil sensor on the back right of the engine can't be tapped for pressure readings,
The transducer was placed in one of 2 access ports on the back of the engine, on the bottom on either side. either port can be drilled and tapped. My car, 2013xkr is tapped on the passenger's side.
Raytheon and a host of other companies make this tranducer at a variety of prices. Informed individuals can find these products in any aviation magazine that sells avioncs bay equipment.
ANd btw the oil sensor on the back right of the engine can't be tapped for pressure readings,
#18
Maybe you are, or you're still trying to find your nirvana
from https://www.jaguarforums.com/forum/x...ttings-138846/
I noticed that no one has responded. is their a chat room or site that has drivers/ mechanics that work on their vehicles and understand subtle nuances of owning a car?
An MIT engineer installed an avionics oil pressure transducer that transmitted via telemetry to a OBD link MX bluetooth. This allowed real time oil pressure readings
without some fancy footwork.
And if an avionics transducer can be fitted, so can a conventional automotive
transducer.
#19
He didn't want to share which tunes did not work for him either.
However, he did want to be told which tune would work.
Seems like Quid Pro Quo is not part of contemporary mores.
No matter, we have Moscow Leaper on the case.
Last edited by plums; 03-23-2015 at 09:50 PM.
The following users liked this post:
jagtoes (03-24-2015)
#20
The only oil sensor of any kind shown in the workshop manual & electrical diagrams is the oil temperature and level sensor, which is located in the sump on both NA & SC engines. Obviously, as the sump isn't pressurised, that area is of no value for obtaining a pressure reading.
If you have knowledge of another sensor and its location, can you provide further detail or a picture?
If you have knowledge of another sensor and its location, can you provide further detail or a picture?
