charge bulb out
#2
01-07-2014, 05:23 PM
Dennis,
The centre veneer panel has to be removed. It's secured with four spring clips:
(click on the image to enlarge it)
JTIS suggests these clips should be replaced every time but I've never had problems re-using them.
With the panel removed, the Minor Instrument Pack (item 3) is secured with four self tapping screws (item 6):
(click on the image to enlarge it)
After removing the self tappers, unplug the harness connector to remove the Minor Instrument Pack and access the bulbs from the rear.
Graham
The centre veneer panel has to be removed. It's secured with four spring clips:
(click on the image to enlarge it)
JTIS suggests these clips should be replaced every time but I've never had problems re-using them.
With the panel removed, the Minor Instrument Pack (item 3) is secured with four self tapping screws (item 6):
(click on the image to enlarge it)
After removing the self tappers, unplug the harness connector to remove the Minor Instrument Pack and access the bulbs from the rear.
Graham
The following users liked this post:
dennisw (01-09-2014)
#3
01-09-2014, 07:26 AM
Dennis,

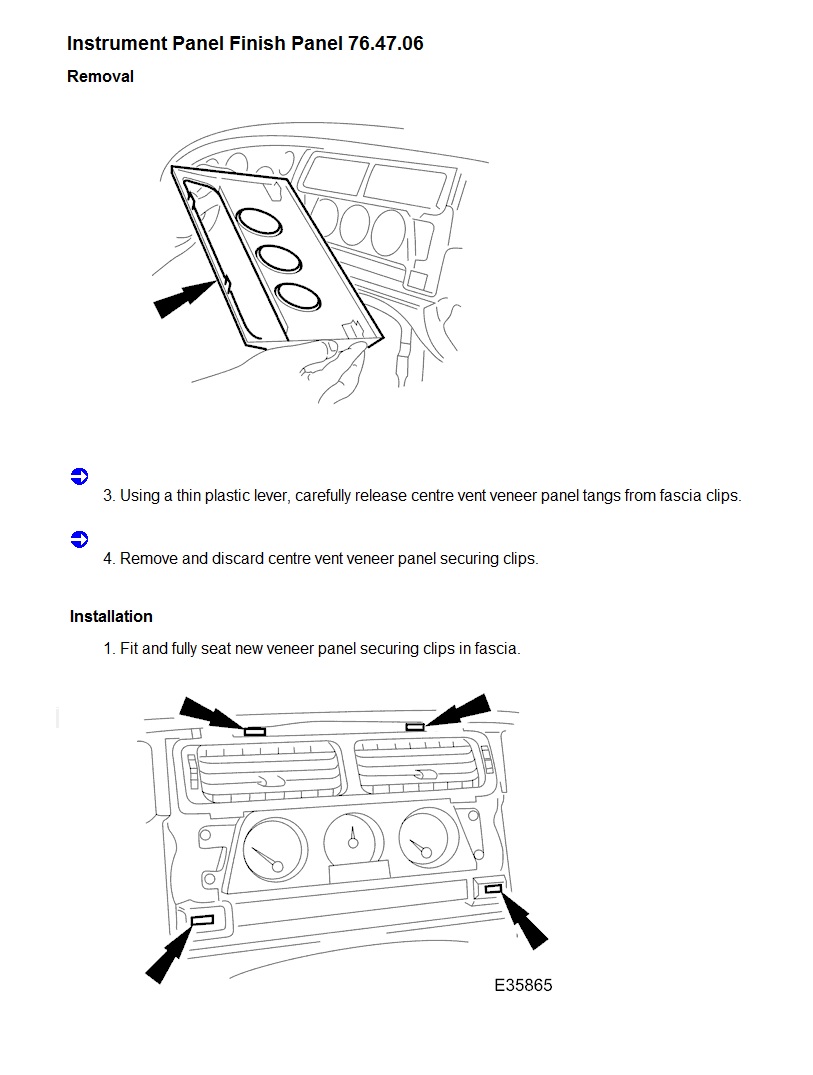

The centre veneer panel has to be removed. It's secured with four spring clips:
Attachment 67495
(click on the image to enlarge it)
JTIS suggests these clips should be replaced every time but I've never had problems re-using them.

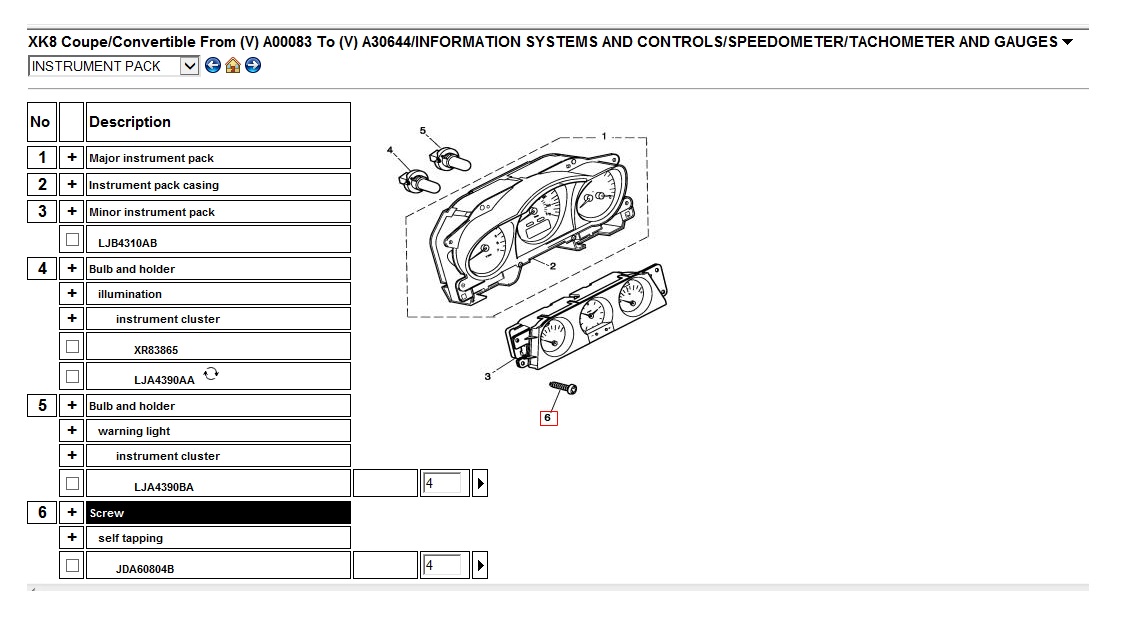

With the panel removed, the Minor Instrument Pack (item 3) is secured with four self tapping screws (item 6):
Attachment 67496
(click on the image to enlarge it)
After removing the self tappers, unplug the harness connector to remove the Minor Instrument Pack and access the bulbs from the rear.
Graham
The centre veneer panel has to be removed. It's secured with four spring clips:
Attachment 67495
(click on the image to enlarge it)
JTIS suggests these clips should be replaced every time but I've never had problems re-using them.
With the panel removed, the Minor Instrument Pack (item 3) is secured with four self tapping screws (item 6):
Attachment 67496
(click on the image to enlarge it)
After removing the self tappers, unplug the harness connector to remove the Minor Instrument Pack and access the bulbs from the rear.
Graham
Thanks for the reply and info about removing front, it wont budge, managed to scratch the wood,when you think about it all i need to do is replace a bulb.I have now given up and i will live with it
thanks again gra
cheers
Last edited by dennisw; 01-09-2014 at 11:29 AM.
