Hi,

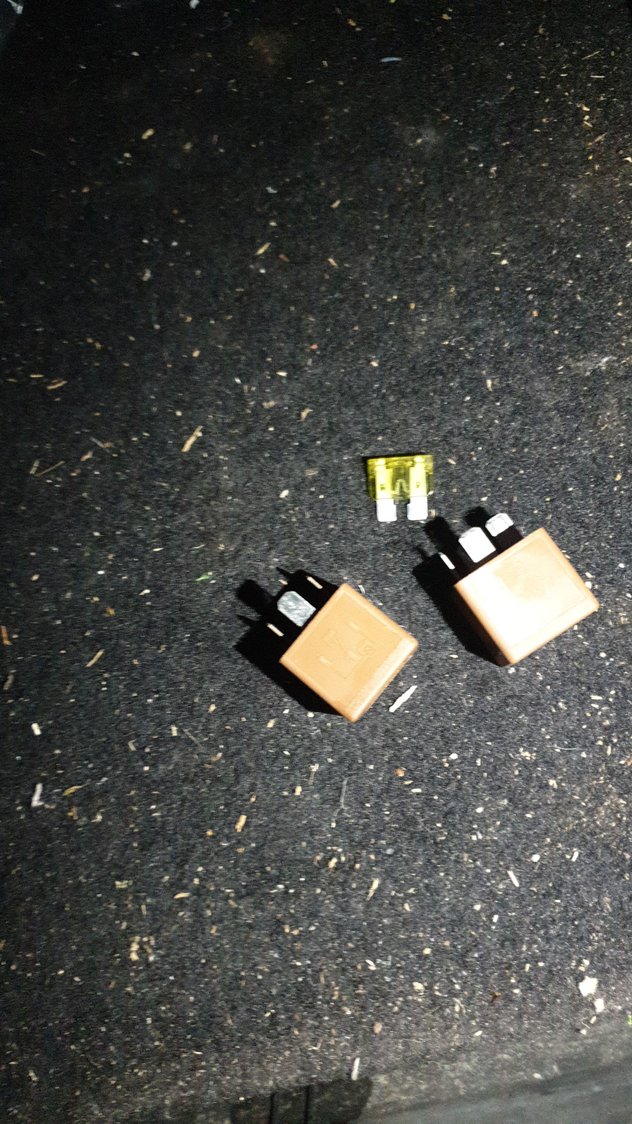

I had a compression test run but the garage kindly forgot to put the fuse and relays back, I have attach a pic of the "spare" relays and fuse along with a pic of the fuse box.

I would really appreciate some input on to which one to put where?

I don't have a diagram on the front of the fuse box cover.



thanks in advance.



Make, Model Year?

The Fuel pump relay goes in the spot 4th from the right.
The electrical guide for the MY XK you have will list the relay locations in the FRONT MATTER section.



Sorry it might help.

1999 XKR convertible.

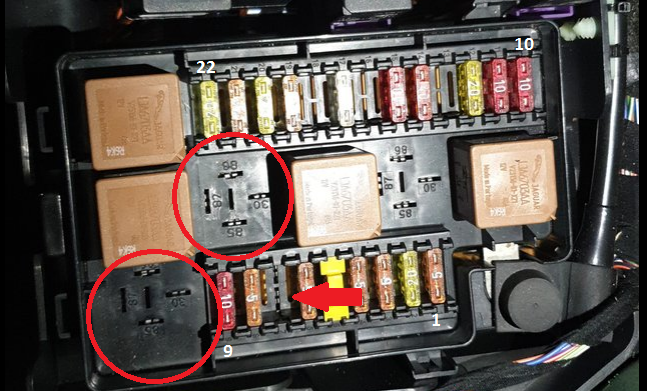

Relays go here:



...not sure why they pulled the fog lamp relay

From JTIS:



the 20A fuse goes in position 7 (arrowed)

Here's a snip from the 99 Vehicle Care booklet, which you can download from the stickies:


Note the obtuse numbering in the fusebox



Michael you are a star.

Thanks very much.
