Protection box
Thread Starter
|
Junior Member
Joined: May 2025
Posts: 25
Likes: 17
From: San Antonio
Protection box

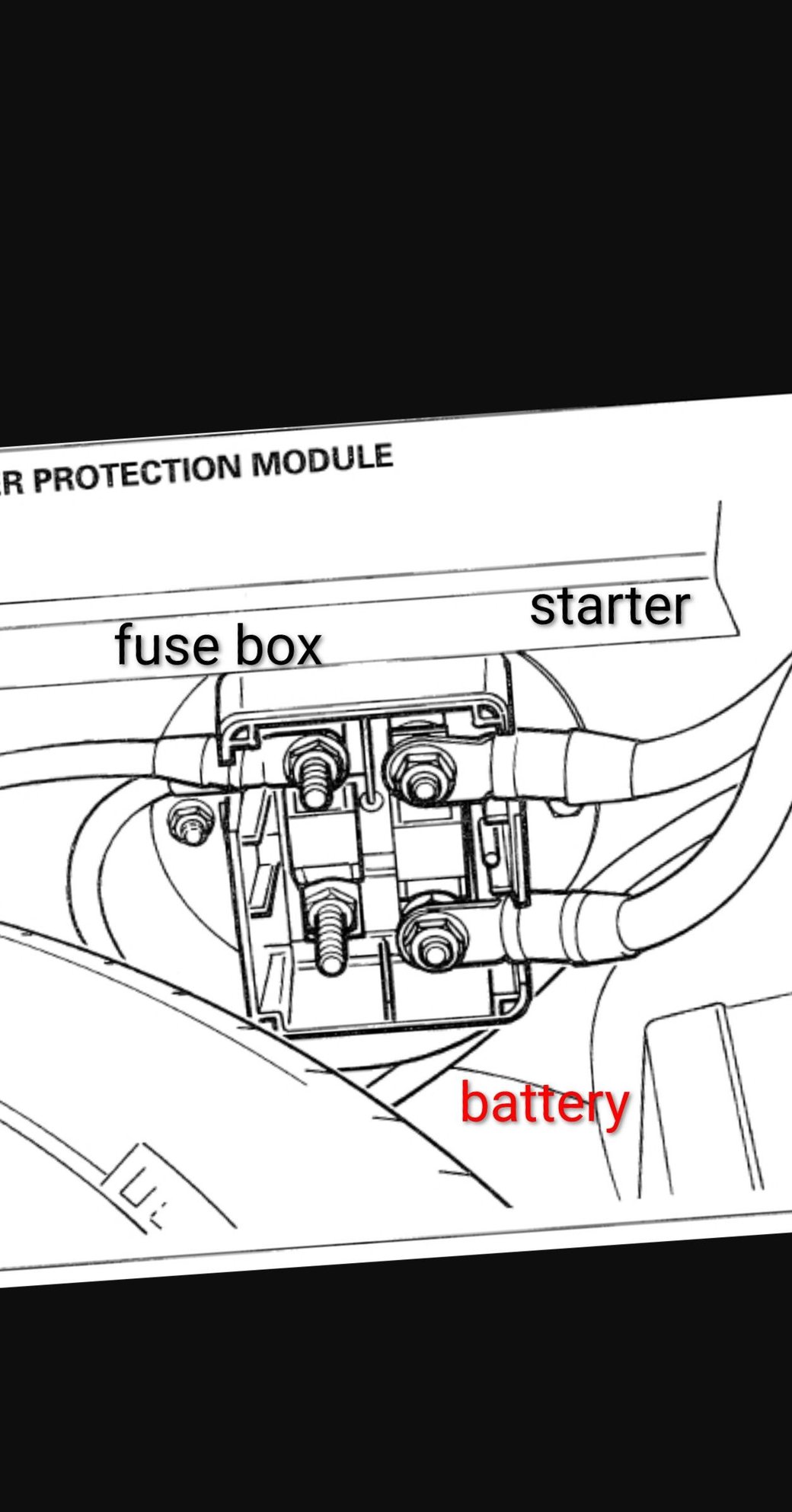

Just making sure im wired correctly...
starter is top right
battery below it on the same fuse different terminal
Then on the left side
Is the 2 connections on the bridge (bottom left)
or are they top left?
Thank you
starter is top right
battery below it on the same fuse different terminal
Then on the left side
Is the 2 connections on the bridge (bottom left)
or are they top left?
Thank you
Veteran Member
Joined: Oct 2010
Posts: 2,063
Likes: 1,024
From: Spain
It should look like this:-
http://jagrepair.com/images/AutoRepa...tionModule.jpg
The cables going out of the box should be on the fuse side of the incoming battery connection - i.e. top.
http://jagrepair.com/images/AutoRepa...tionModule.jpg
The cables going out of the box should be on the fuse side of the incoming battery connection - i.e. top.
Thread Starter
|
Junior Member
Joined: May 2025
Posts: 25
Likes: 17
From: San Antonio
the battery and starter are on one side ... and the fuse box (ignition) is on the other fuse. Right?
Thread Starter
|
Junior Member
Joined: May 2025
Posts: 25
Likes: 17
From: San Antonio
Thread
Thread Starter
Forum
Replies
Last Post
Roman the Austrian Swede
XJ XJ8 / XJR ( X308 )
3
Sep 18, 2018 03:47 AM
