Where is the Body Processor Module located in my car, 1997 XK8? Can you provide photos of location

Thanks

Reply Like
  #2
Old 01-16-2019, 02:27 PM
fmertz's Avatar
Veteran Member
Join Date: Nov 2014
Location: Eastern USA
Posts: 2,603
Received 1,487 Likes on 1,043 Posts
Default
All module locations should be listed in here: jagxk1997.pdf

Reply Like
The following users liked this post:
Felipe Pr (01-16-2019)
  #3
Old 01-16-2019, 02:42 PM
avern1's Avatar
Veteran Member
Join Date: May 2012
Location: Winchester, CA
Posts: 3,290
Received 1,317 Likes on 1,004 Posts
Default
Page 20 shows the module locations. The BPM is mounted on the front bulkhead behind the glove box.

Reply Like
The following users liked this post:
Felipe Pr (01-16-2019)
  #4
Old 01-17-2019, 06:16 AM
GGG's Avatar
GGG
GGG is offline
Join Date: Dec 2011
Location: Durham, UK
Posts: 120,406
Received 16,766 Likes on 12,154 Posts
Default

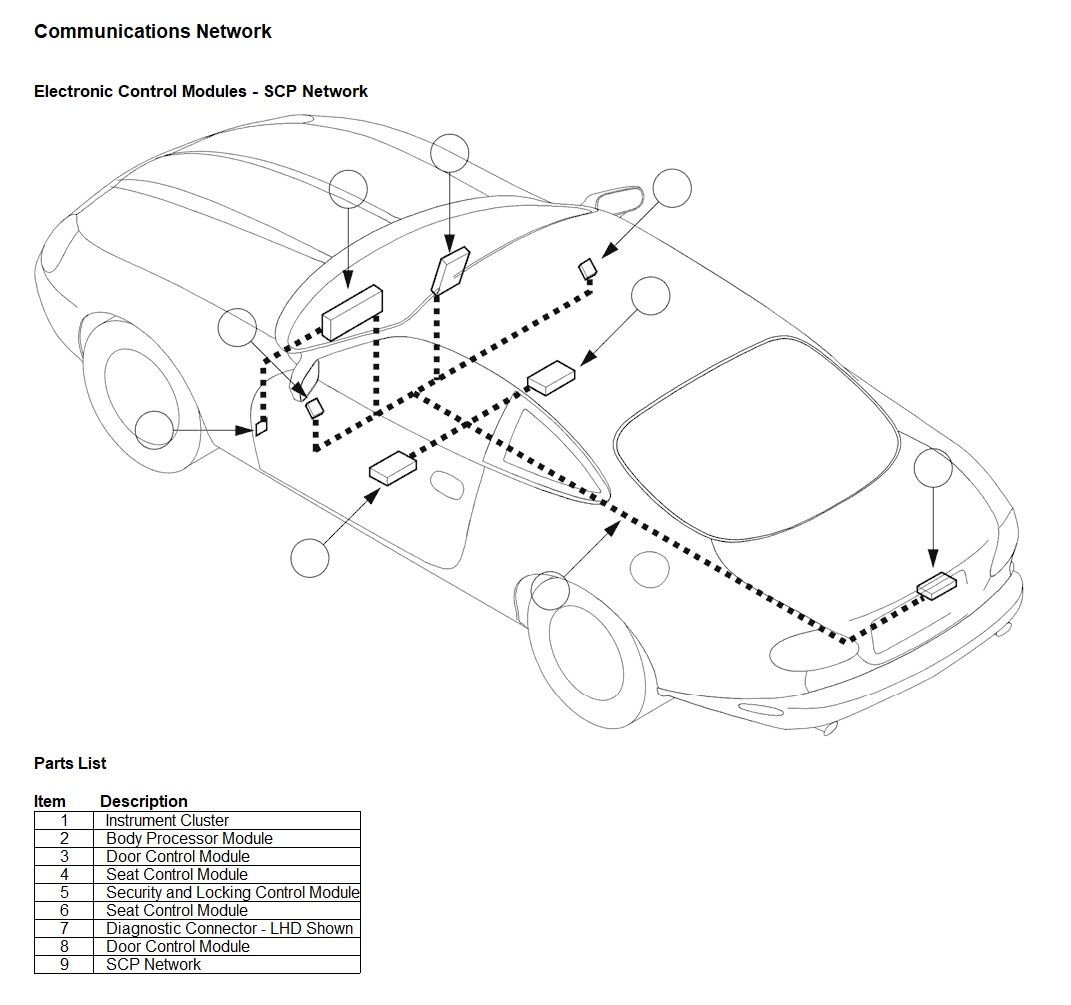

I just had to post this extract from JTIS for the 1997 Model Year XK8/XKR. A wonderful diagram showing the locations of the modules ........




........... it would even be useful if the technical author had remembered to include the numbers.

The BPM is the one to the right of the Instrument Cluster.

Graham

Reply Like
The following 3 users liked this post by GGG:
Felipe Pr (01-18-2019), Johnken (01-17-2019), michaelh (05-06-2023)
