My homebrew D2B aux input adapter

  #1
Old 06-30-2014, 04:26 AM
Senior Member
Thread Starter
Join Date: May 2008
Location: Orange County, CA
Posts: 708
Thanked 107 Times in 86 Posts
Smile My homebrew D2B aux input adapter

Early stage, I'm able to play music via the aux in. The control is via PC at the moment, once I iron-out the issues would move it to a standalone micro-controller.

It should work with my Jag setup as well. I'll try it in the next few days.

https://drive.google.com/folderview?...2s&usp=sharing

The Following User Says Thank You to veffremov For This Useful Post:
anindyam (07-03-2014)
  #2
Old 07-03-2014, 08:20 PM
Join Date: Apr 2010
Location: Austin, TX USA
Posts: 781
Thanked 82 Times in 75 Posts
Default

Sweet! When are you gonna sell me one so I can get away from the FM modulator I have in the car now? ;-)

The Following User Says Thank You to anindyam For This Useful Post:
bdboyle (10-22-2014)
  #3
Old 07-04-2014, 04:45 PM
Senior Member
Thread Starter
Join Date: May 2008
Location: Orange County, CA
Posts: 708
Thanked 107 Times in 86 Posts
Default

In a few months maybe. For the Jag the most difficult part to obtain is the optical connector. It's made by TYCO/AMP, but it's practically unobtainium as it's covered by some weird licensing restrictions.

I'm working on a model that can be 3d printed. I have some success, however I put that on hold until I finish the software for the device.

For the next version the plan it to be able to connect your phone via bluetooth; those are only plans though ;-)


Last edited by veffremov; 07-04-2014 at 04:55 PM.
  #4
Old 10-19-2014, 12:08 AM
Senior Member
Thread Starter
Join Date: May 2008
Location: Orange County, CA
Posts: 708
Thanked 107 Times in 86 Posts
Default

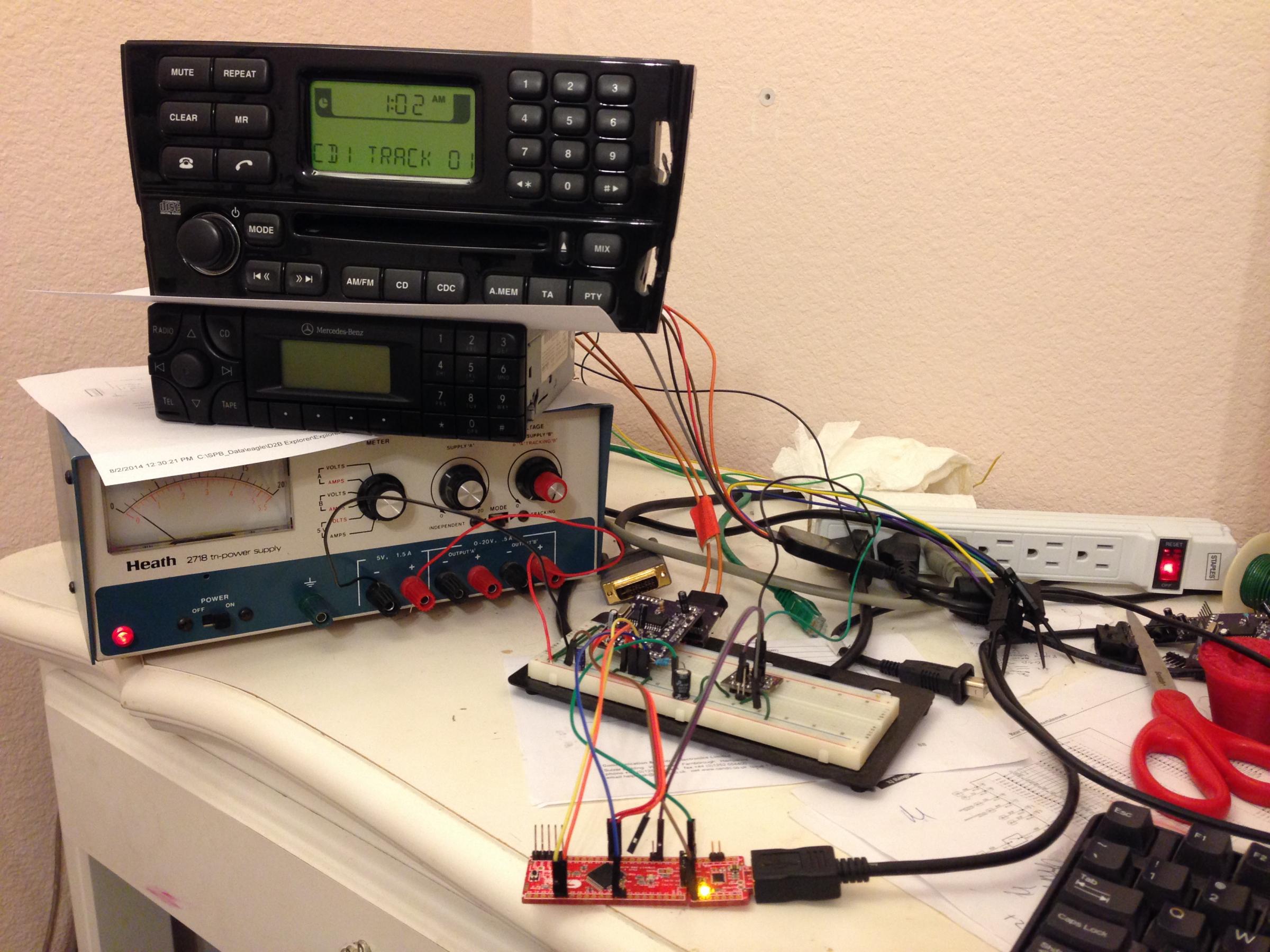

I finally got it working with a Jag radio. Here is a pic of the radio playing CD1 from the phantom cd changer device.

Attached Thumbnails My homebrew D2B aux input adapter-img_1097.jpg
  #5
Old 10-20-2014, 01:57 PM
Join Date: Apr 2010
Location: Austin, TX USA
Posts: 781
Thanked 82 Times in 75 Posts
Default

That's great! Put it in a box and sell it to me!

  #6
Old 10-21-2014, 02:27 PM
bucktooth's Avatar
Junior Member
Join Date: Feb 2012
Location: SF BAY AREA
Posts: 22
Thanks: 0
Thanked 5 Times in 4 Posts
Default

Congratulations, maybe eventually you can write up a HOW TO sticky

  #7
Old 12-26-2014, 06:36 AM
Senior Member
Thread Starter
Join Date: May 2008
Location: Orange County, CA
Posts: 708
Thanked 107 Times in 86 Posts
Default

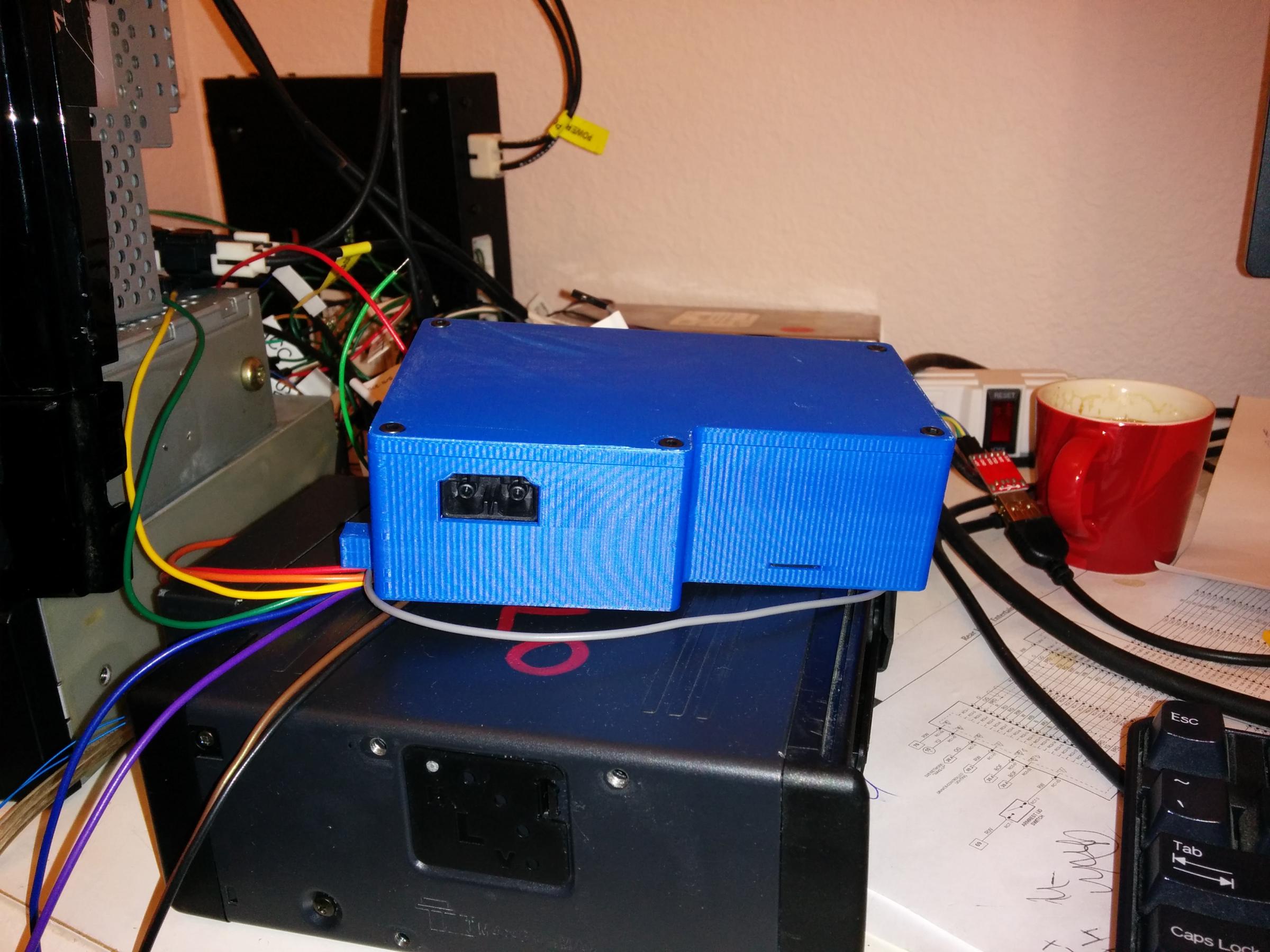

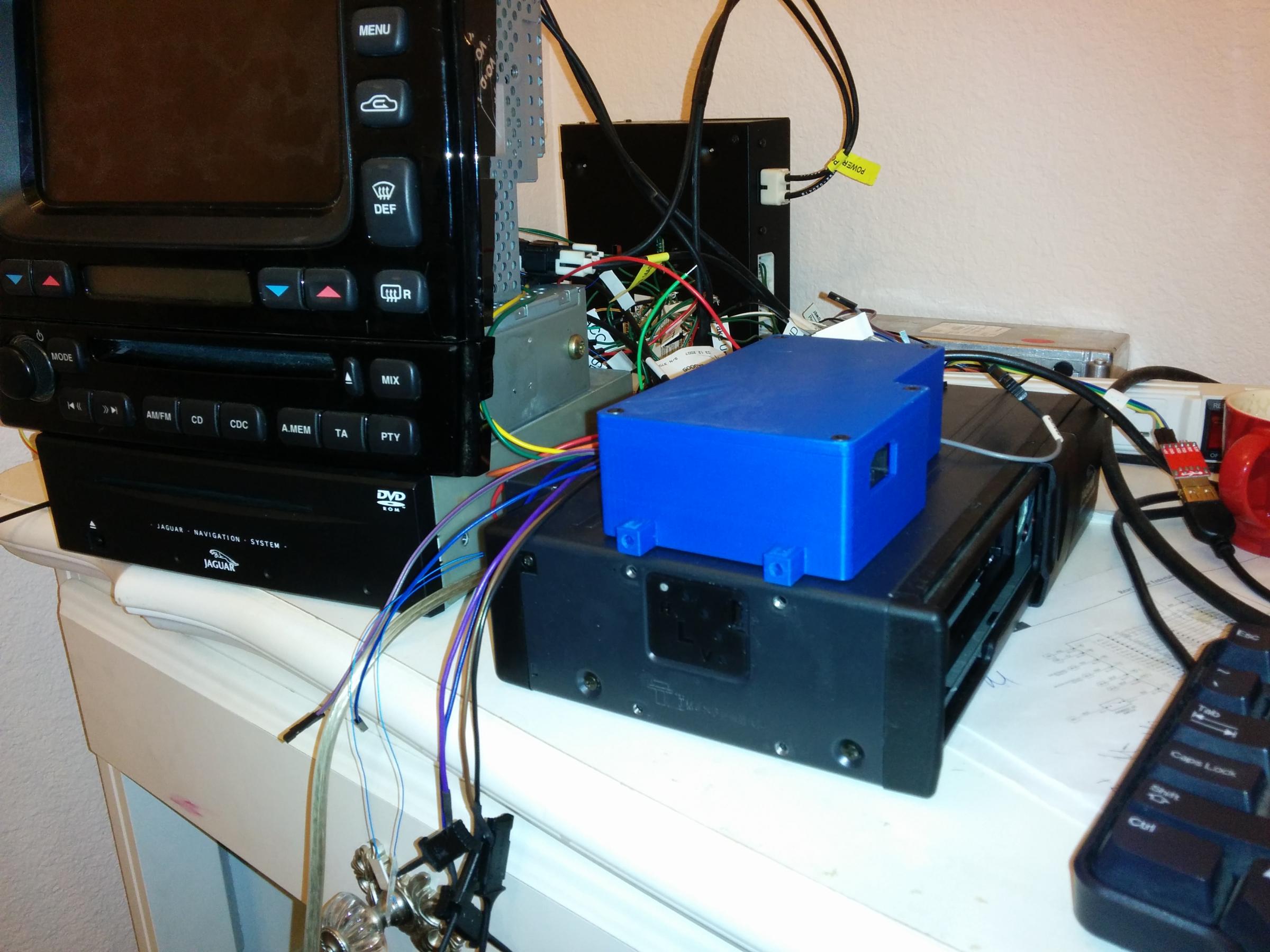

After about 6 months the project is finally ready for prime time. I got a nice 3D printed blue box.

Somewhere along the way it gained Bluetooth audio streaming, so I can finally listen to pandora in my jag.

Attached Thumbnails My homebrew D2B aux input adapter-img_20141215_221142.jpg   My homebrew D2B aux input adapter-img_20141226_032401.jpg   My homebrew D2B aux input adapter-img_20141226_032417.jpg   My homebrew D2B aux input adapter-img_20141226_032448.jpg
The Following 6 Users Say Thank You to veffremov For This Useful Post:
anindyam (01-20-2015), fullitorrrrrrr (02-05-2015), magmedia (12-29-2014), sicelo (03-20-2015), sklimii (12-26-2014), trosty (01-21-2015)
  #8
Old 12-30-2014, 05:15 PM
bucktooth's Avatar
Junior Member
Join Date: Feb 2012
Location: SF BAY AREA
Posts: 22
Thanks: 0
Thanked 5 Times in 4 Posts
Default

Looking good veffremov, are you ready for install? "Luv that box"

  #9
Old 12-31-2014, 10:45 AM
Senior Member
Thread Starter
Join Date: May 2008
Location: Orange County, CA
Posts: 708
Thanked 107 Times in 86 Posts

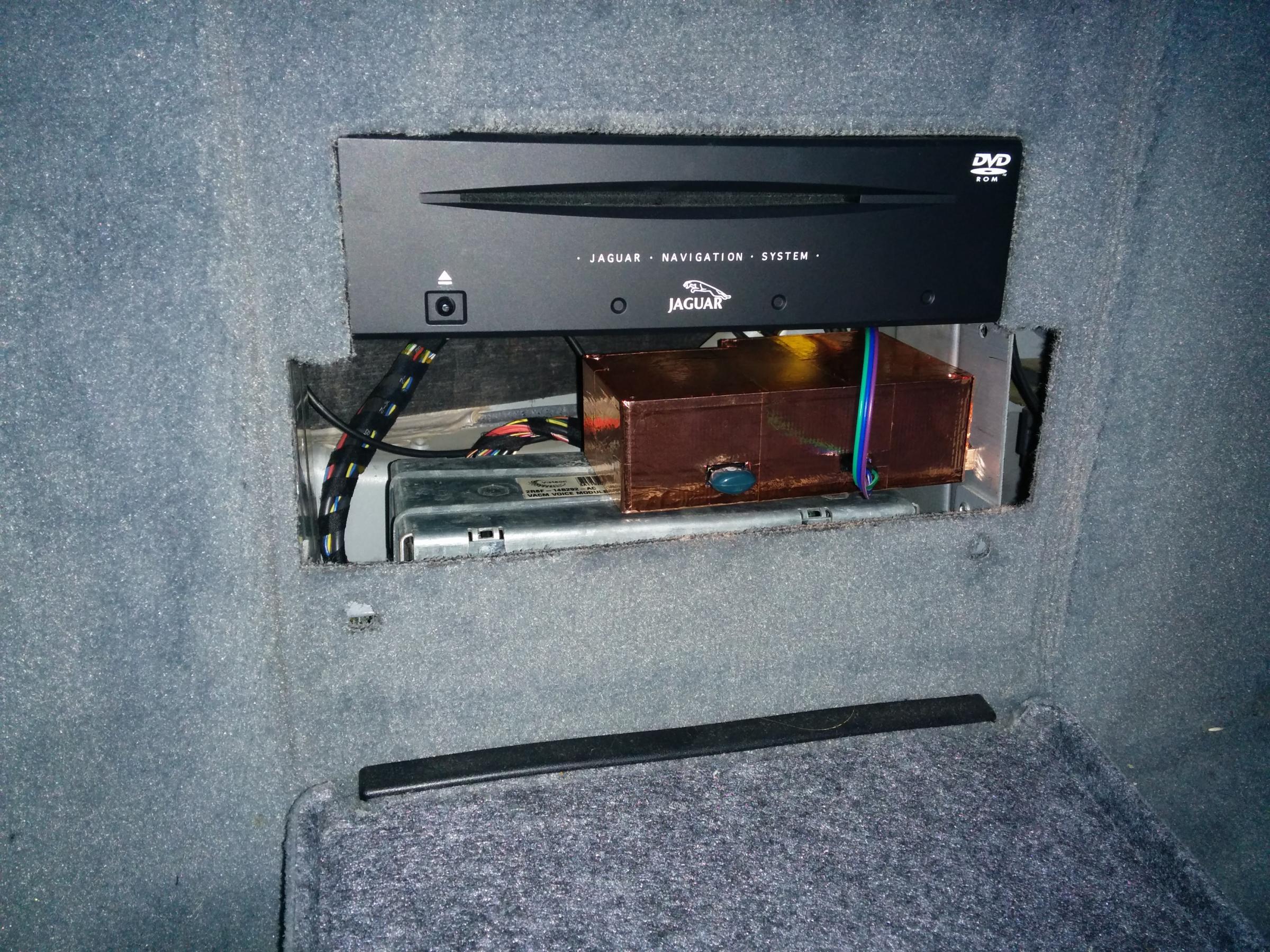

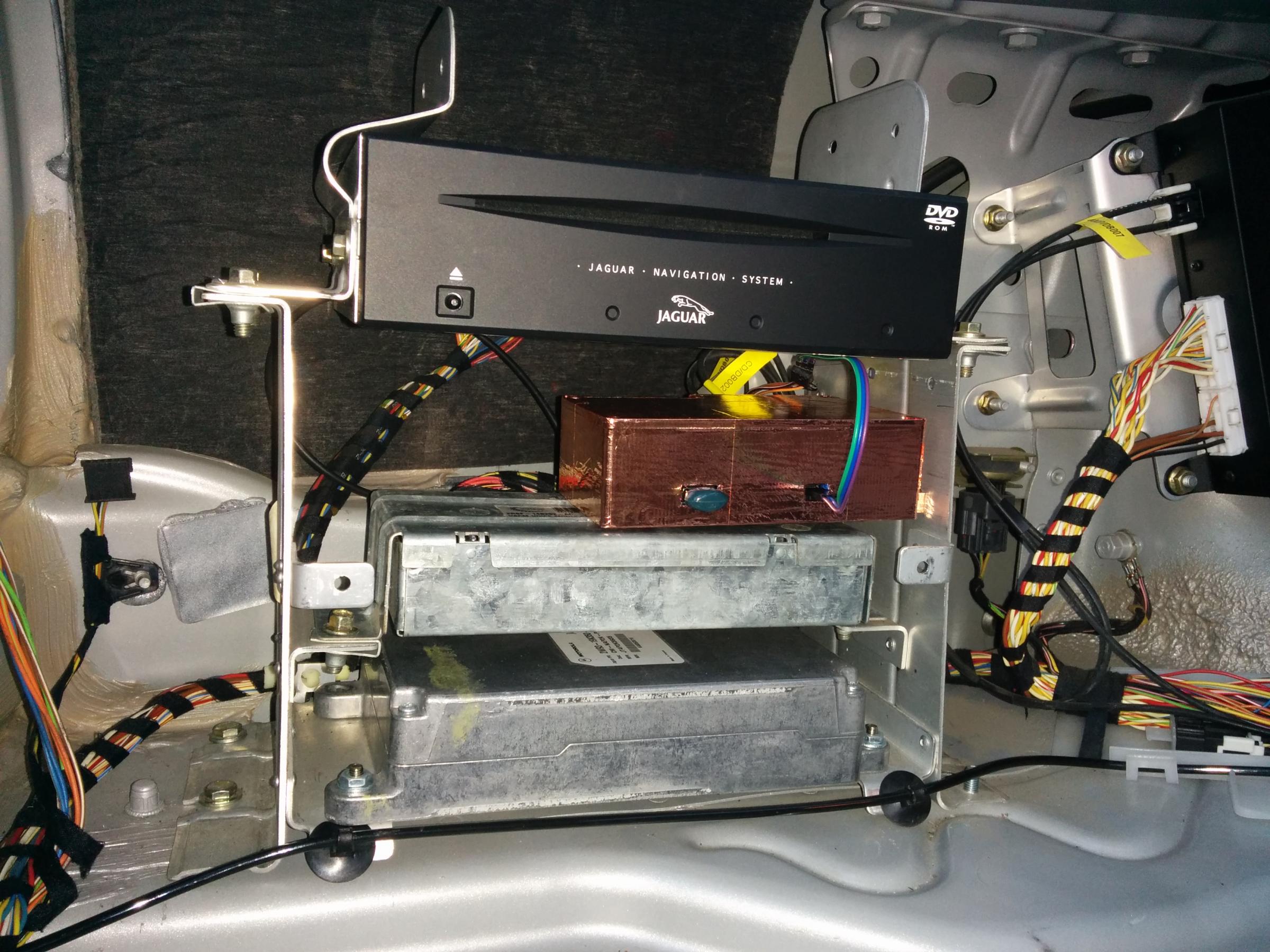

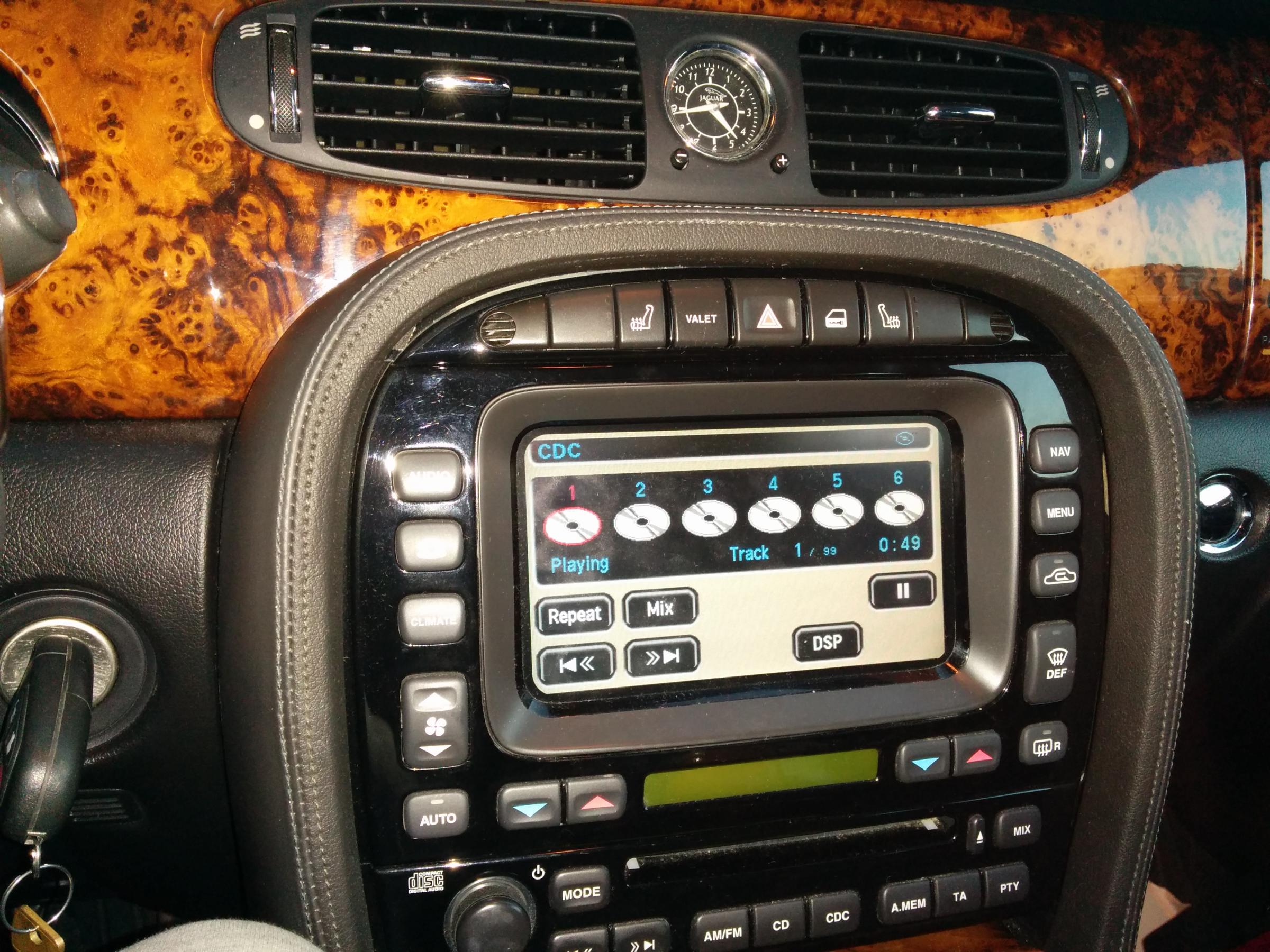

Default Here it is installed.

The bluetooth dongle is not very happy in the trunk. The phone works great if I put it in the passenger seat, but starts to hickup if I get it in the drivers seat.

I'll get a USB extension cable and put the bluetooth dongle on the back shelf, hopefully that would help.

PS: the box is covered in copper tape, not painted "gold" ;-)

Attached Thumbnails My homebrew D2B aux input adapter-img_20141226_164206.jpg   My homebrew D2B aux input adapter-img_20141226_165135.jpg   My homebrew D2B aux input adapter-img_20141226_164328.jpg
  #10
Old 12-31-2014, 04:16 PM
bucktooth's Avatar
Junior Member
Join Date: Feb 2012
Location: SF BAY AREA
Posts: 22
Thanks: 0
Thanked 5 Times in 4 Posts
Default

Hows your USB interface working out. Sound quality? Just put it in CDC mode?

  #11
Old 12-31-2014, 08:21 PM
Senior Member
Thread Starter
Join Date: May 2008
Location: Orange County, CA
Posts: 708
Thanked 107 Times in 86 Posts
Default

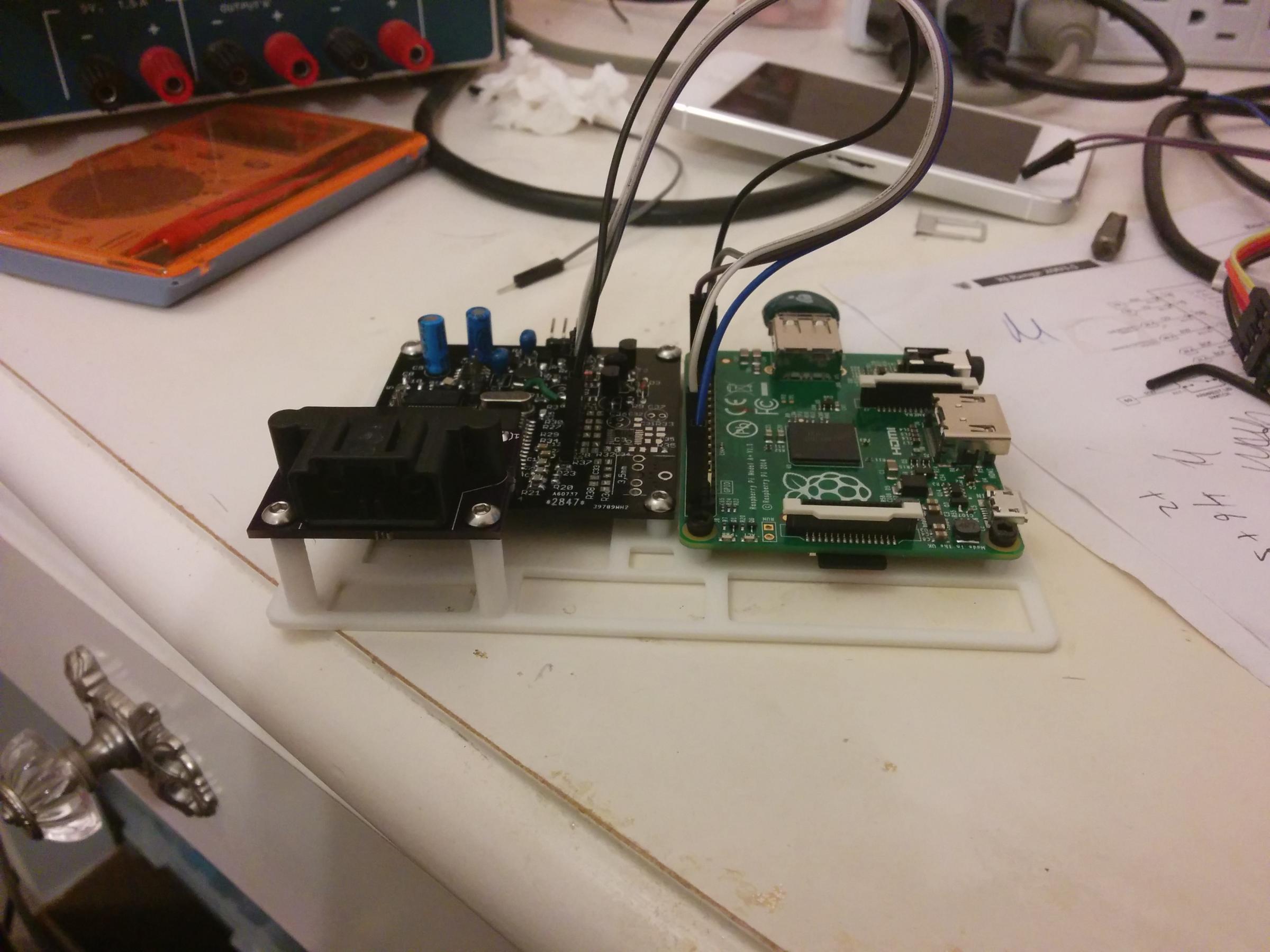

If you look at the first picture in post #7, the device contains 2 boards. The green board is a raspberry pi A+, which handles the bluetooth streaming with a little software that I wrote. From the PI the audio goes over the second board that does the D2B protocol handling. The second board is all my contraption. The audio is digital all the way. The only quality loss is the bluetooth encoding, but that is unavoidable.

  #12
Old 01-04-2015, 11:20 AM
Junior Member
Join Date: Jan 2015
Location: UK
Posts: 13
Thanked 1 Time in 1 Post
Default

Really interested in doing something similar - can you share anything regarding the D2B protocol handling? - I was hoping to manage most of this through the Pi - bespoke boards is over my head. BTW I though I'd salvage optical connector from an existing CD changer - is that going to work? - cheers in advance for any pointers / advice you can share

The Following User Says Thank You to sfletc For This Useful Post:
sicelo (03-20-2015)
  #13
Old 01-04-2015, 05:13 PM
Senior Member
Thread Starter
Join Date: May 2008
Location: Orange County, CA
Posts: 708
Thanked 107 Times in 86 Posts
Default

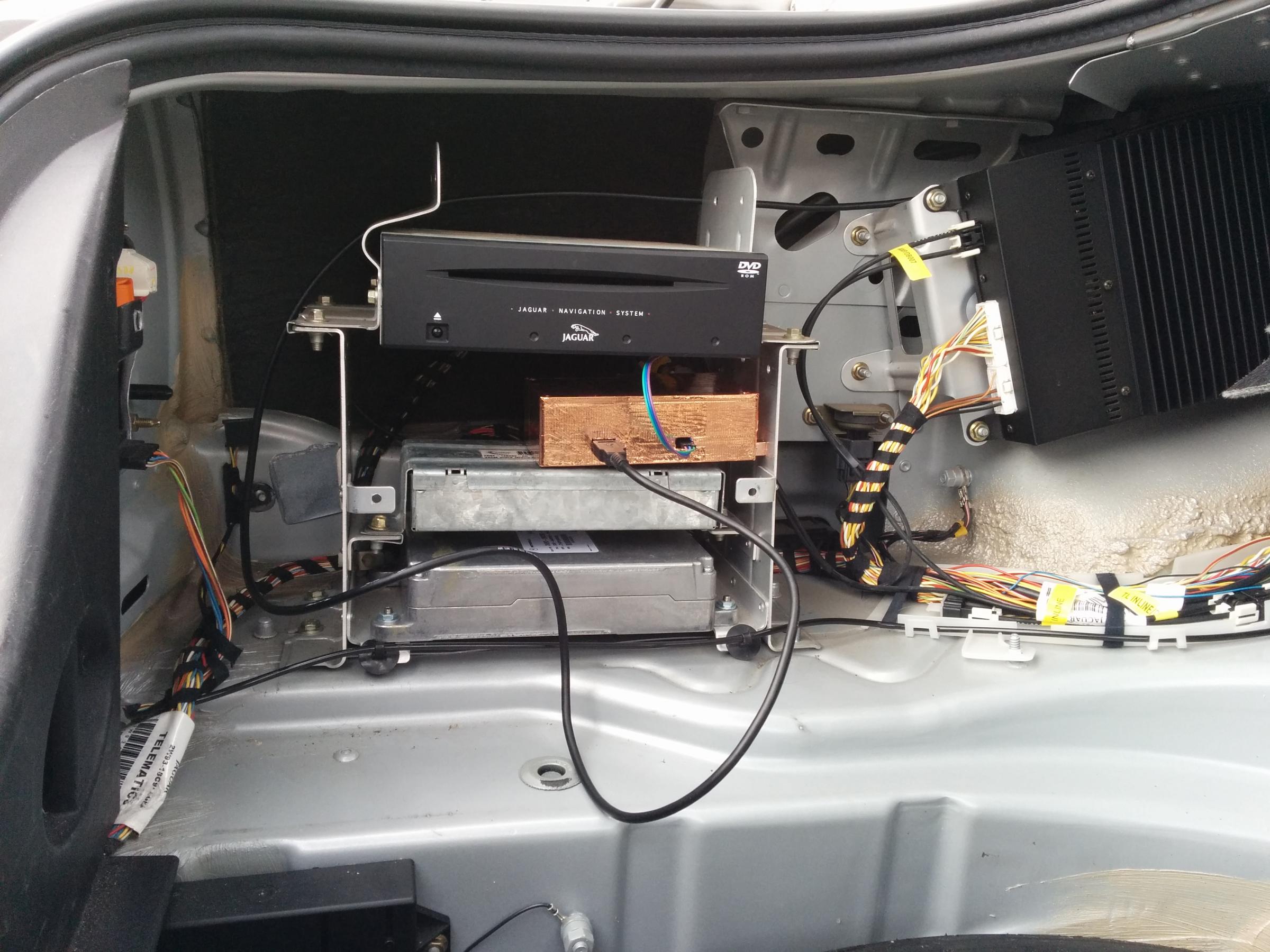

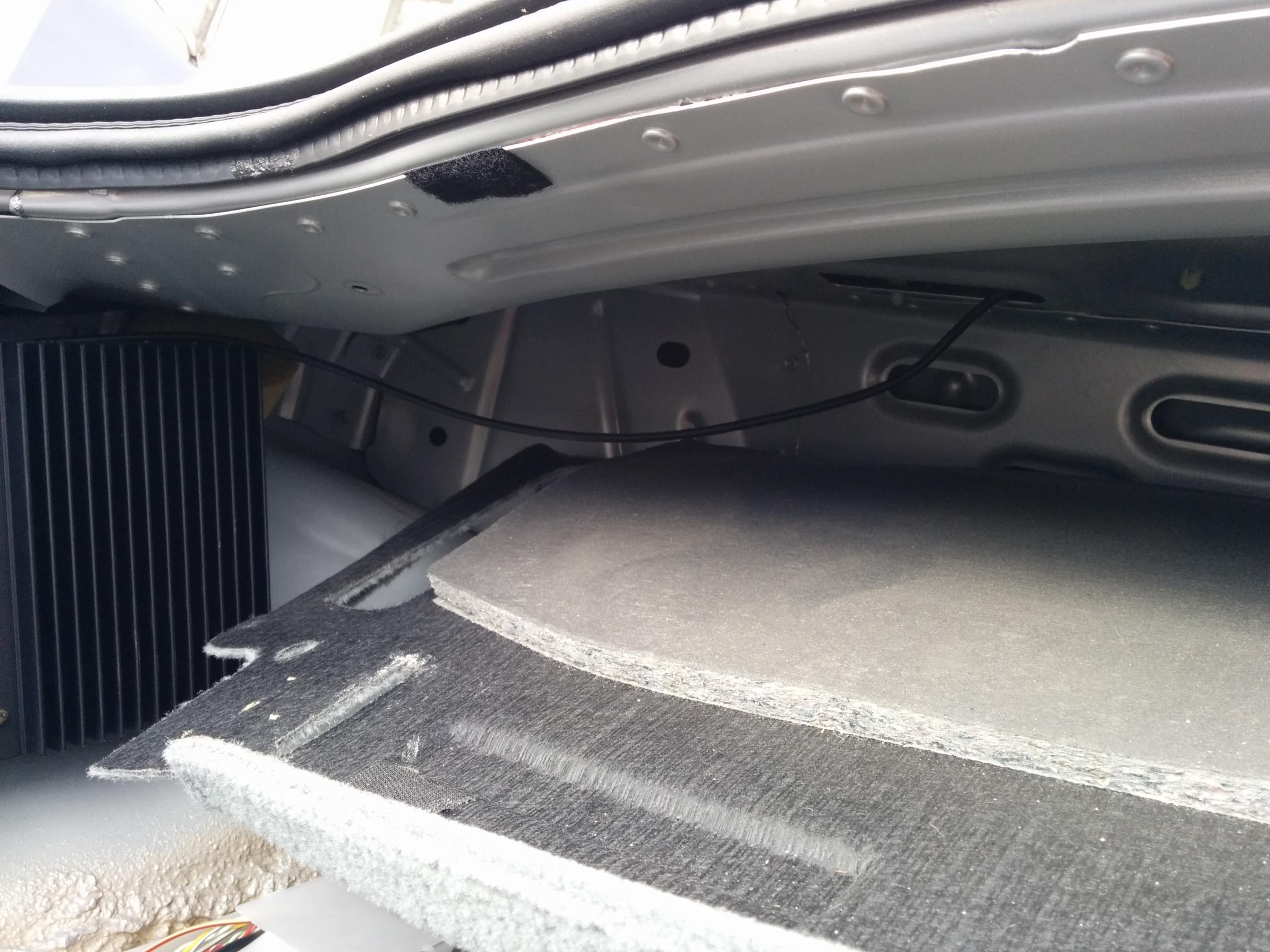

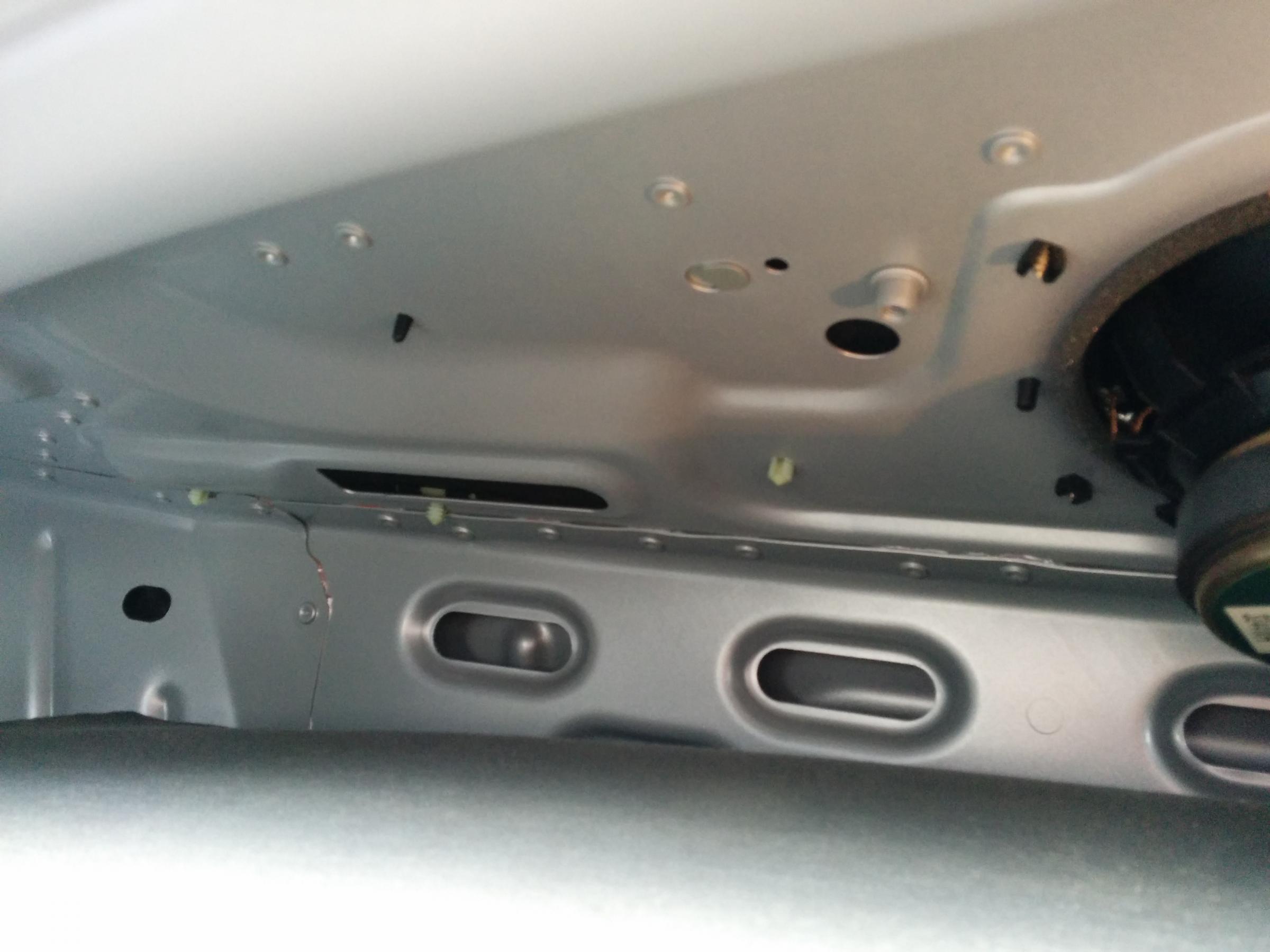

USB dongle found a new home - on the back shelf. So far reception is good, we'll see how it fares in the commute tomorrow morning.

Attached Thumbnails My homebrew D2B aux input adapter-img_20150104_135018.jpg   My homebrew D2B aux input adapter-img_20150104_135154.jpg   My homebrew D2B aux input adapter-img_20150104_135220.jpg
The Following User Says Thank You to veffremov For This Useful Post:
trosty (01-21-2015)
  #14
Old 01-04-2015, 05:24 PM
Senior Member
Thread Starter
Join Date: May 2008
Location: Orange County, CA
Posts: 708
Thanked 107 Times in 86 Posts
Default

@sfletc PM me I'll send you the pinout for the CD changer optical board.

  #15
Old 01-07-2015, 02:54 PM
Junior Member
Join Date: Jan 2015
Location: UK
Posts: 13
Thanked 1 Time in 1 Post
Default

veffremov, thanks - I can't send you a PM at the moment as I'm still 'restricted' having only just joined! Hadn't realised there was a 10 post rule, not to worry...I'll drop you a PM as soon as I can.

  #16
Old 01-21-2015, 10:50 PM
Senior Member
Thread Starter
Join Date: May 2008
Location: Orange County, CA
Posts: 708
Thanked 107 Times in 86 Posts
Default

The chip that handles the optical bus is OCC8001 codename Conan. To get information how to hook it up google for "be3300 schematics" - this is a head unit for Mercedes Benz. It uses the same optical bus, just different optical connectors.

I'm attaching the pinout of the flat cable of the cd-changer optical board. It it she same cable for Mercedes or Jaguar - again the optical board only difference is the fiber optic connector.

Attached Files
File Type: txt
changer io board.txt (401 Bytes, 428 views)
The Following User Says Thank You to veffremov For This Useful Post:
sicelo (03-20-2015)
  #17
Old 02-05-2015, 08:13 PM
Junior Member
Join Date: Nov 2012
Location: Columbus, OH
Posts: 9
Thanked 2 Times in 1 Post
Default

this is a fantastic project you're working on there, and I'm extremely interested (2004 VDP), keep up the good work!

  #18
Old 03-02-2015, 06:20 AM
Junior Member
Join Date: Mar 2015
Location: netherlands
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Nice work veffremov,

Could i get a how to guide from you? You can pm.

Thnx, cheers

  #19
Old 09-03-2015, 06:07 PM
Junior Member
Join Date: Sep 2015
Location: Virginia
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Default

veffremov,

Wow - You are a patient person, that's great. I just picked up a 2008 Xj8-L, and am frustrated by the lack of reasonably priced options. While I am not certain what market demand might be, there is a demand, and while I speak for myself, I could see spending $500 for kit to connect usb, and bluetooth to my factory controls....

Great project, wish I had your knowledge and patience, but I do not ...

Do you have any plans to sell a kit?

  #20
Old 09-03-2015, 09:30 PM
Senior Member
Thread Starter
Join Date: May 2008
Location: Orange County, CA
Posts: 708
Thanked 107 Times in 86 Posts
Default

Here it is:
https://www.jaguarforums.com/forum/a...3/#post1231364

No USB or Aux-in, just bluetooth and music only.
