coil wiring et al

  #1
Old 01-08-2019, 08:44 PM
jagstuart's Avatar
Senior Member
Thread Starter
Join Date: Dec 2016
Location: sahuarita az
Posts: 227
Thanked 11 Times in 9 Posts
Angry coil wiring et al



the question i have is the terminus of the green/black wire. can't seem to find it on the wiring diagram, which shows the SW being the feed to coil and black being the CB side, but no green/black any where near the coil. As is it's not correct i believe. i'll be converting the car to neg. ground to accommodate a radio, FYI . ps the white wire seems to go to the sender on the thermostat housing and then back again on same color wire into harness (which BTW is wrapped in electrical tape before entering the trunk harness (wrapped in cloth).

  #2
Old 01-08-2019, 10:21 PM
Glyn M Ruck's Avatar
Senior Member
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 291
Thanked 53 Times in 46 Posts
Default

Point out where on the wiring diagram you have a problem. There are sometimes a number of jump points on the way to a device but the diagram is generally correct in my finding with my re-harness.

Sorry ~ having attachment problems ~ go here ~ Can't reload/upload pdf.

https://www.jaguarforums.com/forum/m...8/#post1971413


https://www.jaguarforums.com/forum/a...ram-hi-res.pdf


Last edited by Glyn M Ruck; 01-08-2019 at 11:29 PM.
  #3
Old 01-08-2019, 10:58 PM
Glyn M Ruck's Avatar
Senior Member
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 291
Thanked 53 Times in 46 Posts
Default

BTW ~ If a radio is your only concern you don't have to change the car to negative earth. You can simply use a polarity inverter if the radio is not switchable polarity.


Last edited by Glyn M Ruck; 01-08-2019 at 11:18 PM.
  #4
Old 01-08-2019, 11:16 PM
jagstuart's Avatar
Senior Member
Thread Starter
Join Date: Dec 2016
Location: sahuarita az
Posts: 227
Thanked 11 Times in 9 Posts
Default

thanks glyn - that's the diagram i'm using. have a pdf that i can zoom on, well i might consider the inverter. i have a few wires dangling in the bay. i'll review the diagram again and see if i can spot that green/black attaching to anything in the bay. - stu

  #5
Old 01-08-2019, 11:43 PM
Glyn M Ruck's Avatar
Senior Member
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 291
Thanked 53 Times in 46 Posts
Default

The green/black wire goes to the choke (enrichment carb) Otter switch on the diagram.

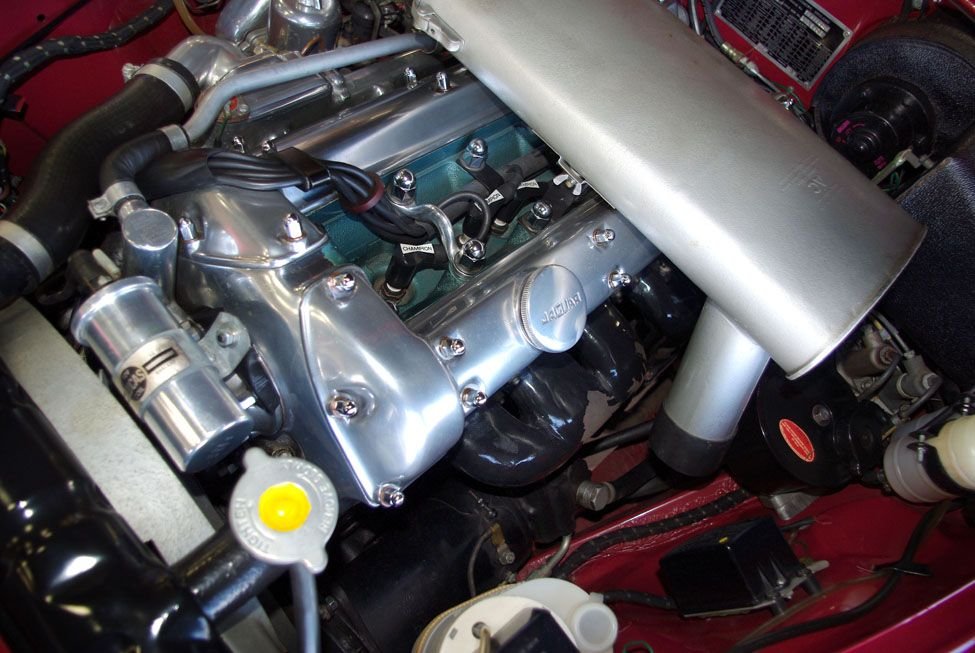

As it does here if you download & zoom this pic.











Last edited by Glyn M Ruck; 01-08-2019 at 11:54 PM.
  #6
Old 01-09-2019, 12:08 AM
Glyn M Ruck's Avatar
Senior Member
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 291
Thanked 53 Times in 46 Posts
Default

Tired old original car. Green & Black wire to Otter switch.






The Following User Says Thank You to Glyn M Ruck For This Useful Post:
jagstuart (01-09-2019)
  #7
Old 01-09-2019, 06:20 AM
Join Date: Aug 2018
Posts: 131
Thanks: 0
Thanked 37 Times in 17 Posts
Default

Gley you may use an inverter but most radios use the chassis as earth. If this is the case thr radio chassis must be isolated which of course would eliminate the need for an inverter.

  #8
Old 01-09-2019, 10:05 AM
Glyn M Ruck's Avatar
Senior Member
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 291
Thanked 53 Times in 46 Posts
Default

Originally Posted by Coventry Foundation View Post
Gley you may use an inverter but most radios use the chassis as earth. If this is the case thr radio chassis must be isolated which of course would eliminate the need for an inverter.
Not so. You have to consider that the antenna has to be grounded to the car body. Etc.

A little edification from our friends at the MG Forum saves me the job.

https://mgaguru.com/mgtech/electric/et207.htm


Last edited by Glyn M Ruck; 01-09-2019 at 10:26 AM.
  #9
Old 01-09-2019, 11:41 AM
Join Date: Aug 2018
Posts: 131
Thanks: 0
Thanked 37 Times in 17 Posts
Default

Nice article and the only pare is the "possible" with the antenna or the keys etc hitting. There are many Jaguars (+earth) that have isolated radios and have not switched polarity. However the best solution is to find a switchable radio. Sorry the little edification was little and does not match actual applications.

  #10
Old 01-09-2019, 12:03 PM
Glyn M Ruck's Avatar
Senior Member
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 291
Thanked 53 Times in 46 Posts
Default

The "little" edification is very good & it is plain that you have not fully understood it. It is the right & safe way & what many of us do. It exactly matches actual applications. In fact I have a hybrid of switchable radio but modern amplified hidden antenna with a voltage/polarity inverter.


Last edited by Glyn M Ruck; 01-09-2019 at 11:45 PM.
  #11
Old 01-09-2019, 01:21 PM
Glyn M Ruck's Avatar
Senior Member
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 291
Thanked 53 Times in 46 Posts
Default

Please also understand that for a monopole antenna, as most use on classic cars, that such an antenna requires a "ground plane" for maximum efficiency. Having a ground plane effectively gives you a dipole that potentially doubles the antenna output/effective length. Isolating things effectively hobbles antenna performance.


Last edited by Glyn M Ruck; 01-09-2019 at 01:34 PM.
  #12
Old 01-09-2019, 02:20 PM
Veteran Member
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

Originally Posted by Coventry Foundation View Post
Nice article and the only pare is the "possible" with the antenna or the keys etc hitting. There are many Jaguars (+earth) that have isolated radios and have not switched polarity. However the best solution is to find a switchable radio.
The article is completely correct George, and is the correct solution to this problem, if you don't think it matches actual applications then you do not understand the basic principles of electrical circuits, or the potential risks of getting it wrong.

Isolating a radio from the chassis carries far more potential risk and also a dead short through the aerial is this is not dealt with properly, the voltage converter is a good solution for those that do not wish to change polarity from original and change the clock polarity

Originally Posted by Coventry Foundation View Post
Sorry the little edification was little and does not match actual applications.
I guess if you don't understand the article at all then it would not be edifying for you George, and your comments are certainly not edifying.


Last edited by TilleyJon; 01-09-2019 at 04:00 PM.
  #13
Old 01-14-2019, 02:25 PM
Senior Member
Join Date: Jan 2013
Location: Chester UK
Posts: 727
Thanked 72 Times in 58 Posts
Default

Would such a voltage inverter be suitable for a Sat-Nav, which are of course negative earth, as are assorted players.

  #14
Old 01-14-2019, 02:55 PM
Veteran Member
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

If the Sat Nav you mention is a stand alone unit (the type you stick on the window of the car) then it has no chassis ground and you can simply wire up the plug the opposite way. If you are using the Cigar lighter to power it, you connect the positive to the outside connection and the negative to the centre pin and it will work on a positive ground Cigar lighter socket (make sure you mark up the plug so it does not get used on a Negative earth car).

If you want to use a built in Sat Nav with a grounded chassis then the inverter will work for that.

The Following User Says Thank You to TilleyJon For This Useful Post:
littlelic69 (01-16-2019)
  #15
Old 01-14-2019, 05:45 PM
Glyn M Ruck's Avatar
Senior Member
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 291
Thanked 53 Times in 46 Posts
Thumbs up

Well said Sir!
