ignition coil wiring
#1
ignition coil wiring
92 xj6 sovereign with 94k
I need the wiring for the ignition coil. The old one was removed and I have a new one to replace it.
I have attached several pictures for reference. I believe I have the negative side wired correctly based on the diagrams on the forum/haynes manual but just want to make sure about the positive side which has two wires.
There are two black wires that I need specific help with: one is coming from the same harness at the wire that is already on the positive terminal (pic 1) and the other wire is coming from a capacitor? mounted to the frame just below the coil (pic 3). Does one of these go to the positive terminal the other get screwed to the frame with a mounting bolt for the coil?
Separately, there is a hard line with a flare fitting in pic 2 that is just hanging there... Any thoughts on what this is and where it goes?
thanks
I need the wiring for the ignition coil. The old one was removed and I have a new one to replace it.
I have attached several pictures for reference. I believe I have the negative side wired correctly based on the diagrams on the forum/haynes manual but just want to make sure about the positive side which has two wires.
There are two black wires that I need specific help with: one is coming from the same harness at the wire that is already on the positive terminal (pic 1) and the other wire is coming from a capacitor? mounted to the frame just below the coil (pic 3). Does one of these go to the positive terminal the other get screwed to the frame with a mounting bolt for the coil?
Separately, there is a hard line with a flare fitting in pic 2 that is just hanging there... Any thoughts on what this is and where it goes?
thanks
#3
#4

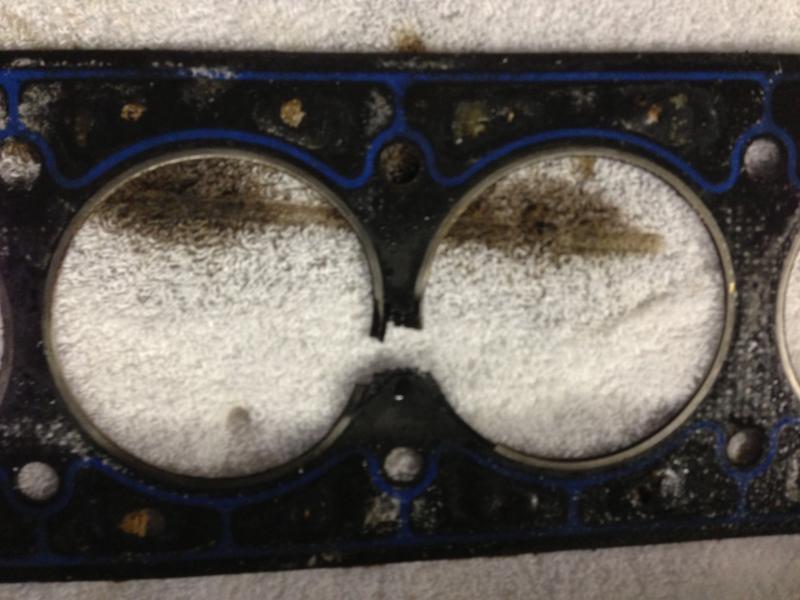

compression test
Did a compression test today.
Engine was cold (did not want it to run it any longer than I had to). Compression readings are as follows:
188 - 188 - 189 - 0 - 0 - 187
I'm hoping that it's a head gasket. Haynes Manual says to put some oil in the plug holes and retest. If the compression is higher, it says the piston rings are worn. Otherwise it's likely a valve or head gasket issue.
My thoughts were head gasket since the two cylinders with no compression are next to each other.
Any thoughts?
Engine was cold (did not want it to run it any longer than I had to). Compression readings are as follows:
188 - 188 - 189 - 0 - 0 - 187
I'm hoping that it's a head gasket. Haynes Manual says to put some oil in the plug holes and retest. If the compression is higher, it says the piston rings are worn. Otherwise it's likely a valve or head gasket issue.
My thoughts were head gasket since the two cylinders with no compression are next to each other.
Any thoughts?
#6
I hear you... I'll probably tackle it over the holidays. While I have the head off, should I be doing anything else? I'm thinking about:
1. doing or having the valves done
2. timing chain/tensioner
3. new shims
I've already looked over the gasket kit (manifolds, head, valve cover, etc.) and new bolts for the head - I've seen some conflicting views on whether they need to be replaced but I thought I'd be safe.
Not sure what specialty tools would be necessary. I found in the past that sometimes they are nearly the cost of the local machine shop that would do the job for you...
I searched for a write up on the valve job but didn't find one - only references to a manual (I have the Haynes manual). If there is one, I would appreciate someone sending it my way.
thanks
1. doing or having the valves done
2. timing chain/tensioner
3. new shims
I've already looked over the gasket kit (manifolds, head, valve cover, etc.) and new bolts for the head - I've seen some conflicting views on whether they need to be replaced but I thought I'd be safe.
Not sure what specialty tools would be necessary. I found in the past that sometimes they are nearly the cost of the local machine shop that would do the job for you...
I searched for a write up on the valve job but didn't find one - only references to a manual (I have the Haynes manual). If there is one, I would appreciate someone sending it my way.
thanks
#7
Good tools are a must. Depending on what brand you like, get the best you can afford. Like breaker bars, don't skimp on those. Get plenty of penetrating lubricant. Soak those exhaust manifold bolts at least a day before you start the job. Removing the timing cover chain is tricky, take your time, take lots of pictures or video, so you can review your work. Time has a way of creeping in, and what was fresh in our memory today is foggy tomorrow.
Trending Topics
#10
#11

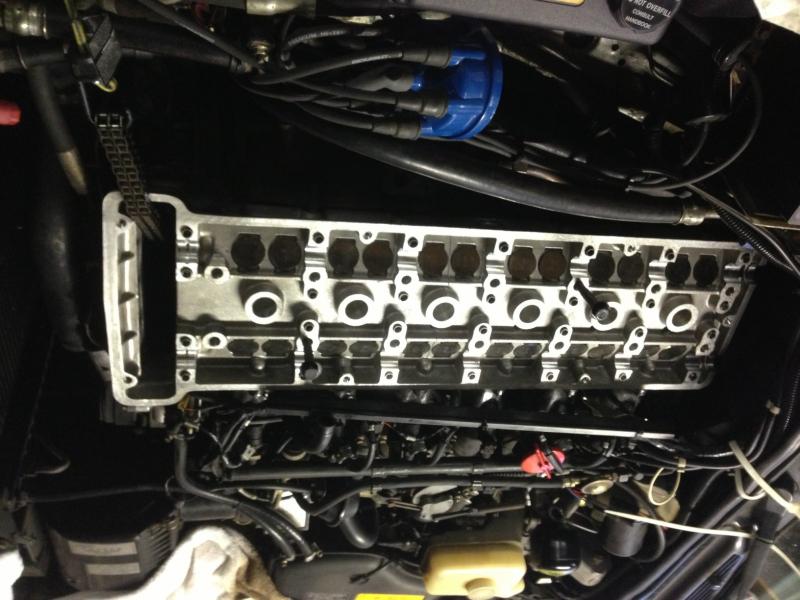

cylinder head returned
Got the head back this week. Needed to be machined (planed flat) from where the gasket went bad. They stripped it down, cleaned it, machined it and put everything back together. Then they tested it to ensure the valves were sealing properly. Looks like brand new...
I need to get the studs for the EGR valve and would like to get one bolt for the intake manifold. I can't seem to find them online - any thoughts? I will call the dealer on Monday if they aren't available anywhere else.
The other thing I had a question about was the coolant housing. There appeared to be an RTV type sealant on the mating surfaces as a gasket. I didn't see anything in the cylinder head gasket set for this purpose. Any suggestions on what to use or is there a separate gasket that I should purchase?
thanks
sorry the pic is upside down - I saved it right side up and upside down and they both showed up upside down when I uploaded them.
I need to get the studs for the EGR valve and would like to get one bolt for the intake manifold. I can't seem to find them online - any thoughts? I will call the dealer on Monday if they aren't available anywhere else.
The other thing I had a question about was the coolant housing. There appeared to be an RTV type sealant on the mating surfaces as a gasket. I didn't see anything in the cylinder head gasket set for this purpose. Any suggestions on what to use or is there a separate gasket that I should purchase?
thanks
sorry the pic is upside down - I saved it right side up and upside down and they both showed up upside down when I uploaded them.
#13
#14
#15
#17
