S-type supercharger removal (with pics)


  #1
Old 01-03-2014, 07:16 PM
Thread Starter
Join Date: Sep 2010
Location: Miami
Posts: 361
Received 208 Likes on 96 Posts
Default S-type supercharger removal (with pics)

Sooooo the title says it all I took a supercharger out (doesn;t happen every day customer's don't like spending that kinda money) and I took pics along the way, specially because the only thread I found similar to this one kinda had limited pics (great info though) but you can't never have too much info and too many pics.

Here is the link: jaghelp.com: 2006 S-type supercharger removal

Any comments to improve the article will be appreciated. I will be putting it back together hopefully on Monday (if I get the parts) and posting the pics of putting it back together. I worked hard on this so moderators pls faq

The following 13 users liked this post by daxter1987:
Bad Cattitude (01-04-2014), bluenoserules (01-07-2014), Cambo (01-04-2014), Carlg07 (01-10-2016), Doryphoros86 (01-06-2014), joycesjag (01-05-2014), Michael Star (01-03-2014), ONEsicJAG (01-06-2014), orlee (01-05-2014), Panthro (01-09-2016), Robinb (01-04-2014), Tijoe (02-13-2014), TomSTR05 (02-13-2014)
  #2
Old 01-04-2014, 12:59 AM
Robinb's Avatar
Senior Member
Join Date: Jan 2012
Location: BC Canada
Posts: 880
Received 178 Likes on 138 Posts
Default

Great set of pictures, daxter, thank you. I now have a much better idea of the steps involved and the complexity of this job. Short of a video showing your every action, this has to be as good as it gets.

Not having the experience that you and other forum members have, the only improvement that I can imagine would be labelled arrows identifying some of the bolt positions, hoses and other bits and pieces that you mention in each pic.

But that would double your work, and what is here already is much appreciated.

  #3
Old 01-04-2014, 08:24 AM
Michael Star's Avatar
Veteran member
Join Date: Sep 2010
Location: Bowling Green, KY
Posts: 2,327
Received 244 Likes on 215 Posts
Default

It looks like a daunting task, but if you take your time and label things, it can be done in a day.

  #4
Old 01-04-2014, 12:34 PM
Thread Starter
Join Date: Sep 2010
Location: Miami
Posts: 361
Received 208 Likes on 96 Posts
Default

Depends on what you mean by day. As I put the pics together and described what I did I thought, damn it sounds much easier than it is. Specially the 5th bolt in the supercharger, I have small hands and thin arms, I don't see how anybody that's "average" would've done it... It took me about 4 hours to take it apart, but I was also taking pics and going slow to make sure I didn''t miss anything, and I am a professional mechanic with every tool available. All I'm trying to say is tht it looks easier than it is

  #5
Old 01-04-2014, 12:44 PM
Michael Star's Avatar
Veteran member
Join Date: Sep 2010
Location: Bowling Green, KY
Posts: 2,327
Received 244 Likes on 215 Posts
Default

Did you do the cut on the back bolt hold for the supercharger? That made install much easier. The bolts that I hated the most were the two below the elbow that you have to contort to get to

  #6
Old 01-04-2014, 08:19 PM
Thread Starter
Join Date: Sep 2010
Location: Miami
Posts: 361
Received 208 Likes on 96 Posts
Default

Those weren't that bad. No I did not cut any bolts, the one that was a pain in the *** was the center one (you can see it on the last supercharger pics). the only other pain in the *** was the egr valve, I tried many was before figuring out the way I described. If I ever take one apart again it'll take me much less. Taking the EGR completely out makes it easy to access the side bolts.

  #7
Old 01-05-2014, 09:36 AM
Veteran Member
Join Date: May 2009
Location: Yorkshire, England
Posts: 23,306
Received 3,436 Likes on 3,044 Posts
Default

I'm impressed. waaayyyy beyond my abilities.

  #8
Old 01-05-2014, 07:12 PM
Veteran Member
Join Date: May 2009
Location: home
Posts: 3,356
Received 598 Likes on 495 Posts
Default

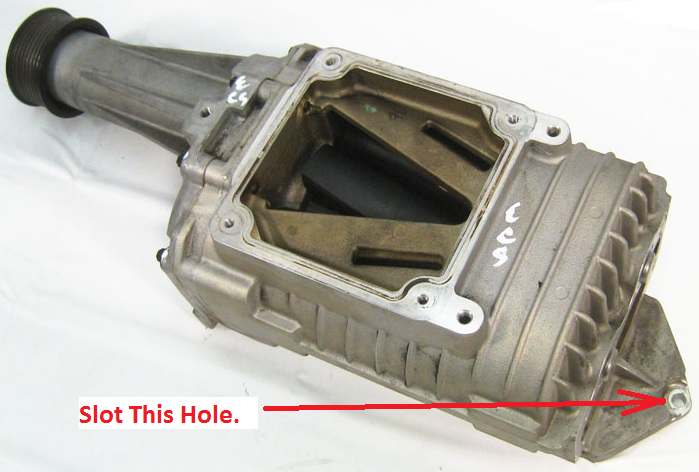

For people who are interested this is a very good suggestion from Brutal.

See picture below:


.
.
.

Attached Thumbnails S-type supercharger removal (with pics)-super-charger.png
The following users liked this post:
Michael Star (01-06-2014)
  #9
Old 01-05-2014, 07:18 PM
Veteran Member
Join Date: May 2009
Location: home
Posts: 3,356
Received 598 Likes on 495 Posts
Default

Very Interesting! The 2006 inter-coolers have raised fins. Maybe for extra cooling? Much different than the earlier inter-coolers.


.
.
.

Attached Thumbnails S-type supercharger removal (with pics)-2006-str-intercoolers.jpg
  #10
Old 01-05-2014, 07:44 PM
Join Date: Nov 2006
Location: Glasgow, Scotland UK
Posts: 47,344
Received 8,896 Likes on 4,091 Posts
Default

FAQ'd Daxter, thanks for taking the time to make this
post, appreciated by all.......

The following users liked this post:
daxter1987 (01-06-2014)
  #11
Old 01-05-2014, 07:51 PM
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,361
Received 3,775 Likes on 2,215 Posts
Default

Originally Posted by clubairth1 View Post
Very Interesting! The 2006 inter-coolers have raised fins. Maybe for extra cooling? Much different than the earlier inter-coolers.
.
.
.
Those are the same intercoolers as used on the Range Rover 4.2's (since the beginning) & were also fitted to the XF's, and a few of the later S-Types.

Not sure about any extra cooling effect from the increased surface area, maybe...?

The Range Rover intake tube was also finned like that, but you couldn't see it under the engine cover, so the S-Type & XF kept the smooth tube I guess for aesthetic reasons.

Could be that JLR just ran out of the plain intercoolers, but had plenty of the finned ones left in stock?

  #12
Old 01-06-2014, 08:39 AM
Michael Star's Avatar
Veteran member
Join Date: Sep 2010
Location: Bowling Green, KY
Posts: 2,327
Received 244 Likes on 215 Posts
Default

Originally Posted by daxter1987 View Post
Those weren't that bad. No I did not cut any bolts, the one that was a pain in the *** was the center one (you can see it on the last supercharger pics). the only other pain in the *** was the egr valve, I tried many was before figuring out the way I described. If I ever take one apart again it'll take me much less. Taking the EGR completely out makes it easy to access the side bolts.
The older I get, the more I realize it is just easier to take everything out instead of trying to work around it! I was really worried I was going to snap one of those small EGR bolts so I was hitting them with penetrating oil a few days in advance.

  #13
Old 01-06-2014, 08:43 AM
Michael Star's Avatar
Veteran member
Join Date: Sep 2010
Location: Bowling Green, KY
Posts: 2,327
Received 244 Likes on 215 Posts
Default

Originally Posted by JagV8 View Post
I'm impressed. waaayyyy beyond my abilities.
You would be surprised what you can do! This site (and members) are a great support if you want to jump into most any repair job on your car. The trick is to go slow, label everything, and have a tool store close by.

  #14
Old 01-06-2014, 04:38 PM
Doryphoros86's Avatar
Senior Member
Join Date: Jun 2009
Location: Minneapolis
Posts: 159
Received 24 Likes on 19 Posts
Default

Wow, what a write-up! Thank you for posting. Jaghelp.com bookmarked for future repairs!

The following users liked this post:
daxter1987 (01-09-2014)
  #15
Old 01-06-2014, 09:48 PM
Senior Member
Join Date: Aug 2013
Location: San Francisco
Posts: 105
Received 17 Likes on 13 Posts
Default

Would be nice to hot tank those intercoolers, get some efficiency and power back.

  #16
Old 01-07-2014, 01:23 AM
Veteran Member
Join Date: May 2009
Location: Yorkshire, England
Posts: 23,306
Received 3,436 Likes on 3,044 Posts
Default

Just need more flow, cooler flow, bigger intercoolers or better yet less heat due to SC.

  #17
Old 01-07-2014, 01:50 AM
Senior Member
Join Date: Aug 2013
Location: San Francisco
Posts: 105
Received 17 Likes on 13 Posts
Default

That oil film reduces intercooler efficiency quite a bit not to mention the blow-by oil mixing with the intake charge reduces effective octane and encourages det.

  #18
Old 01-07-2014, 06:41 AM
Veteran Member
Join Date: May 2009
Location: Yorkshire, England
Posts: 23,306
Received 3,436 Likes on 3,044 Posts
Default

There's hardly any oil so it's hard to see it affecting octane in any way that matters. Do you have evidence?

It's also hard to see you being right about the thermal issue as oil is quite good at heat conductance - it's actually used to cool the engine. Again, evidence for it being an effect big enough to matter?

  #19
Old 01-07-2014, 10:29 AM
Senior Member
Join Date: Aug 2013
Location: San Francisco
Posts: 105
Received 17 Likes on 13 Posts
Default

Water is used to cool the engine through the cooling system. Oils thermal transfer properties are poor compared to bare aluminum. It forms a barrier that slows heat transfer. As far as charge contamination anything that acts to affect the ratio of the air fuel mix is going to cause power loss. But with that said you're only going to experience problems with these effects at the higher end of the performance envelope.


Last edited by just rob; 01-07-2014 at 11:10 AM.
  #20
Old 01-07-2014, 11:21 AM
Veteran Member
Join Date: May 2009
Location: Yorkshire, England
Posts: 23,306
Received 3,436 Likes on 3,044 Posts
Default

Maybe but overall is there any effect that actually matters? I really doubt it. Especially since we know the same basic engine can do 600HP with a TS. That means there's no big issue here surely.
