Default Replacing aj813865 Pipe

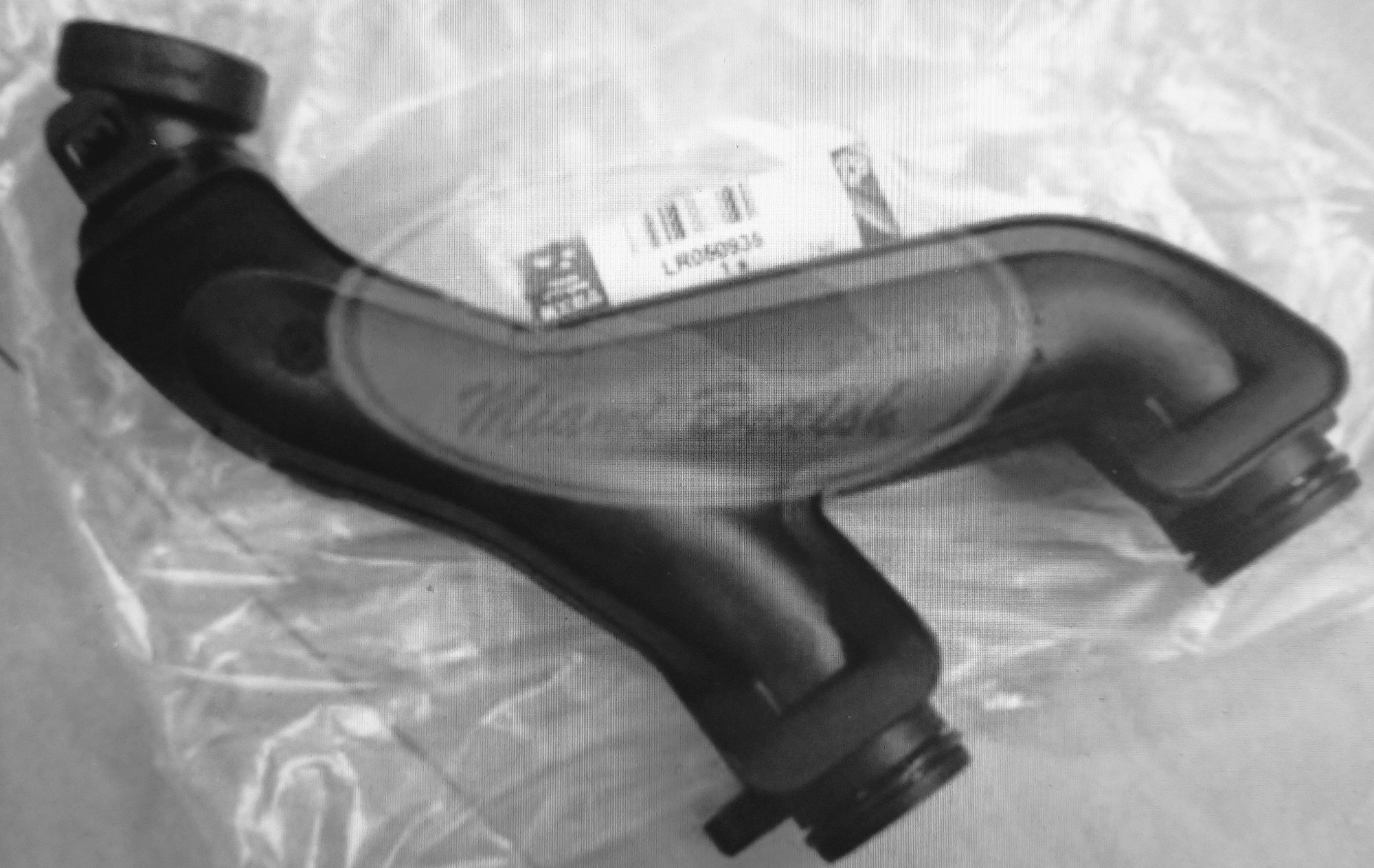

THIS has a leak on the seam and I need to replace it on a 2013 Jaguar 3.0 supercharged AWD. Does anyone know how to replace it? I have the upgrade p/n AJ813865. What do I need to remove on the motor to get to the 2 bolts on the base to the block?








Last edited by GGG; 01-26-2019 at 03:45 AM. Reason: Emphasise Model & Year
  #2
Old 01-25-2019, 06:36 PM
Junior Member
Thread Starter
Join Date: Jan 2019
Location: Nowaresville
Posts: 9
Received 0 Likes on 0 Posts
Default

Crickets! I guess this is a secret on repairing these. I have worked on cars for 43 years and these are one of the worst engines to get info on repairing. Lots of problems with them, I guess everyone just dumps them when they have problems.

  #3
Old 01-25-2019, 08:28 PM
Join Date: Dec 2009
Location: Decatur,TX
Posts: 7,857
Received 4,120 Likes on 2,698 Posts
Default


I quit the dealer in 2006 so I don't like working on cars later than around 2006!!
My brother bought a 2014 F-Type 3.0. A year later he called me about a coolant leak. I told him I really did not want to mess with it but……………….. He’s my brother.

I looked at the car and it seemed like a water pump leak because the coolant was running down the front of the engine behind the water pump pulley.
I replaced the coolant pump and the leak was EXACTLY the same. ($H!T)

I called my buddy that I thought still worked at the dealer (he has been there for almost 30 years).
He said he quit a few weeks ago (to work for an aviation manufacturer) but advised that the plastic 'Y' pipe was a common source for coolant leaks and that there was an updated 2 piece part to replace the 4 piece assembly you have pictured. The engine oil cooler is less likely to leak but he said he had to replace one once due to corrosion.

I knew that there was something under the SuperCharger leaking and dumping coolant from the valley out next to the water pump so I started to remove the entire intake assy.
I told him I had all the bolts loose but it still would not do anything but rock back and forth. He told me that the 2 'locator' mount pegs under the SC were steel dowels in aluminum (dis-similar metal corrosion) and you need 2 people to rock it back and forth while prying UP. I put a cross brace between the fenders and hooked a chain to the back of the supercharger. I used pry bar to pull up on the chain and a pry bar on the SC 'snout to pry up and rock the intake until it broke loose. (yay)

I called my buddies at the parts dept and verified that the plastic coolant pipes were changed to a 2 piece unit instead of the 4 piece assembly. Next day the parts were delivered and installed. I coated the SC locator dowels with anti-seize compound (the next guy will thank me!!). I bolted everything back in place with new plastic pipe assy and lower intake gaskets. (I reused the top intake cover pliable gasket as the car has 40,000 miles) Pressure tested and NO LEAKS!!!!

The top cover that holds the water to air heat exchangers needs to come off with the dozens of fasteners and then the 6 intake manifold 10mm head bolts can be removed. The high pressure fuel line that crosses over is easily remove with 17mm wrenches/crow feet. The SuperCharger and intake manifolds are a single unit in terms of removal!!!!You can separate after the part is removed as there are fasteners on each side that are not accessible from the top. There is no need to disassemble for this operation. Leave it as a unit!!

It took a learning experience that also took research. I really want to stick to Jaguars from the 1950s to about 2006 from now on!!!!!


Last edited by motorcarman; 01-26-2019 at 08:19 AM.
The following users liked this post:
daveinliberty (02-02-2019)
  #4
Old 01-25-2019, 09:44 PM
Junior Member
Thread Starter
Join Date: Jan 2019
Location: Nowaresville
Posts: 9
Received 0 Likes on 0 Posts
Default

Originally Posted by motorcarman View Post
I quit the dealer in 2006 so I don't like working on cars later than around 2006!!
My brother bought a 2014 F-Type 3.0. A year later he called me about a coolant leak. I told him I really did not want to mess with it but……………….. He’s my brother.

I looked at the car and it seemed like a water pump leak because the coolant was running down the front of the engine behind the water pump pulley.
I replaced the coolant pump and the leak was EXACTLY the same. ($H!T)

I called my buddy that I thought still worked at the dealer (he has been there for almost 30 years).
He said he quit a few weeks ago (to work for an aviation manufacturer) but advised that the plastic 'Y' pipe was a common source for coolant leaks and that there was an updated 2 piece part to replace the 4 piece assembly you have pictured. The engine oil cooler is less likely to leak but he said he had to replace one once due to corrosion.

I knew that there was something under the SuperCharger leaking and dumping coolant from the valley out next to the water pump so I started to remove the entire intake assy.
I told him I had all the bolts loose but it still would not do anything but rock back and forth. He told me that the 2 'locator' mount pegs under the SC were steel dowels in aluminum (dis-similar metal corrosion) and you need 2 people to rock it back and forth while prying UP. I put a cross brace between the fenders and hooked a chain to the back of the supercharger. I used pry bar to pull up on the chain and a pry bar on the SC 'snout to pry up and rock the intake until it broke loose. (yay)

I called my buddies at the parts dept and verified that the plastic coolant pipes were changed to a 2 piece unit instead of the 4 piece assembly. Next day the parts were delivered and installed. I coated the SC locator dowels with anti-seize compound (the next guy will thank me!!). I bolted everything back in place with new plastic pipe assy and lower intake gaskets. (I reused the top intake cover pliable gasket as the car has 40,000 miles) Pressure tested and NO LEAKS!!!!

The top cover that holds the water to air heat exchangers needs to come off with the dozens of fasteners and then the 6 intake manifold 10mm head bolts can be removed. The high pressure fuel line that crosses over is easily remove with 17mm wrenches/crow feet. The SuperCharger and intake manifolds are a single unit in terms of removal!!!!You can separate after the part is removed as there are fasteners on each side that are not accessible from the top. There is no need to disassemble for this operation. Leave it as a unit!!

It took a learning experience that also took research. I really want to stick to Jaguars from the 1950s to about 2006 from now on!!!!!
thank you for your help, I will start on it when I get the rest of the parts in!




  #5
Old 01-25-2019, 09:45 PM
Junior Member
Thread Starter
Join Date: Jan 2019
Location: Nowaresville
Posts: 9
Received 0 Likes on 0 Posts
Default

And it's ridiculous that you have to pull the whole topside apart just to replace the tube!

  #6
Old 01-26-2019, 03:46 AM
GGG's Avatar
GGG
GGG is offline
Join Date: Dec 2011
Location: Durham, UK
Posts: 108,882
Received 10,247 Likes on 8,424 Posts
Default

Welcome to the forum daveinliberty,

I've moved your question from General Tech Help to X250 forum. I've also deleted two other versions of it and a further post in an existing thread in X260 forum. Do NOT multiple post on the same topic.

Please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some information about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.

Graham

The following users liked this post:
daveinliberty (01-27-2019)
  #7
Old 01-27-2019, 08:33 PM
lotusespritse's Avatar
Veteran Member
Join Date: Jan 2012
Location: Houston
Posts: 1,124
Received 168 Likes on 134 Posts
Default

Originally Posted by daveinliberty View Post
Crickets! I guess this is a secret on repairing these. I have worked on cars for 43 years and these are one of the worst engines to get info on repairing. Lots of problems with them, I guess everyone just dumps them when they have problems.
No, it's just that you are not good at searching. There are a couple of DIY's on these plastic pipes posted here.

  #8
Old 01-27-2019, 08:58 PM
Junior Member
Thread Starter
Join Date: Jan 2019
Location: Nowaresville
Posts: 9
Received 0 Likes on 0 Posts
Default

I have searched on this site, and the entire internet, have found nothing. If you have the links to the how to videos I would greatly appreciate it. Thank you.

  #9
Old 01-29-2019, 12:24 PM
Junior Member
Thread Starter
Join Date: Jan 2019
Location: Nowaresville
Posts: 9
Received 0 Likes on 0 Posts
Default

I repeat my earlier response, CRICKETS! I guess you would rather give a smart *** remark the just copy and paste the links to help me out.SMH!

  #10
Old 01-31-2019, 01:39 PM
Join Date: Dec 2009
Location: Decatur,TX
Posts: 7,857
Received 4,120 Likes on 2,698 Posts
Default

I thought I gave a good description of what was involved in POST #3?

Start taking things off like I did. The SC is the hardest to remove because of the 2 dowels corroding and holding it to the top of the block.

A forum member Bigg Will did a write up on the 5.0 that is basically the same procedure.

https://www.jaguarforums.com/forum/x...-187802/page2/

Stop complaining and get busy!!

bob

  #11
