XJ XJ6 / XJR6 ( X300 ) 1995-1997

Knock Sensor 1997 XJ6 Location


  #1
Old 04-23-2019, 12:54 PM
Junior Member
Thread Starter
Join Date: Apr 2019
Location: Brooksville Florida
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Default Knock Sensor 1997 XJ6 Location

Anyone know the location or have a photo of the knock sensor on a 1997 XJ6 4.0 in-line 6cyl?

  #2
Old 04-23-2019, 02:11 PM
Join Date: Dec 2009
Location: Decatur,TX
Posts: 7,867
Received 4,126 Likes on 2,703 Posts
Default

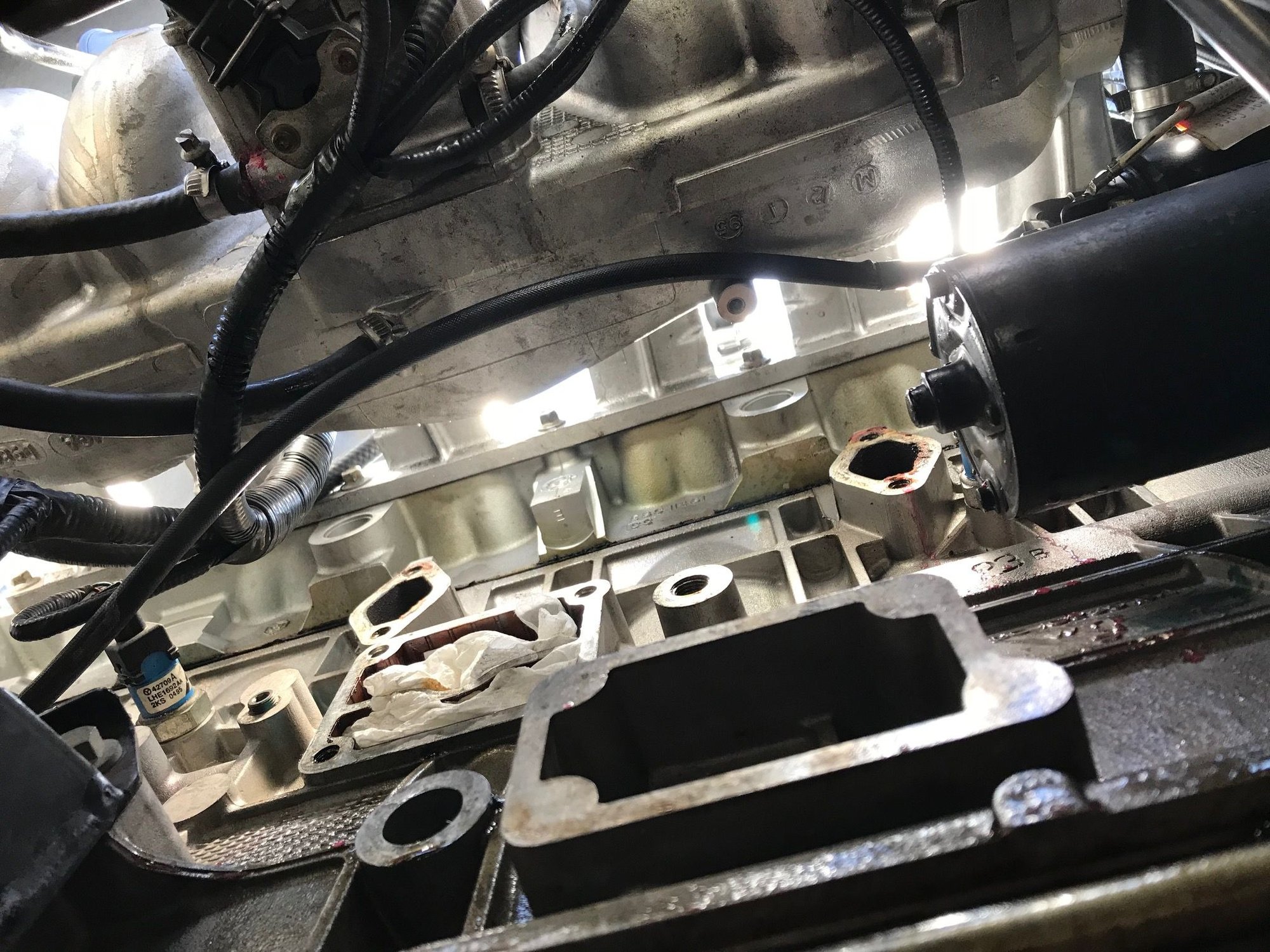

They are bolted to the left side of the block.

bob

The following users liked this post:
Don B (04-23-2019)
  #3
Old 04-23-2019, 03:14 PM
Junior Member
Thread Starter
Join Date: Apr 2019
Location: Brooksville Florida
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Default

Thank you Bob. I am assuming Drivers side? Is there two? a front and rear? Do you know of and documentation, picture views or service bulletins? I am new to Jaguars and still awaiting service manuals to aid me.

  #4
Old 04-23-2019, 06:14 PM
Vee
Vee is online now
Veteran Member
Join Date: May 2010
Location: Arlington, VA
Posts: 2,722
Received 611 Likes on 508 Posts
Default

https://www.jaguarforums.com/forum/x...diagram-45150/

this is should answer your question

  #5
Old 04-23-2019, 08:35 PM
Join Date: Feb 2014
Location: The Beautiful Mid-South, U.S.A.
Posts: 16,615
Received 7,689 Likes on 4,287 Posts
Default

Hi Phdruss,

Just to try to complete the picture, this diagram may help. It only shows one knock sensor (part 17), but there are two, one for the front group of three cylinders (Bank A), mounted between cylinders 1 & 2, and one for the rear three cylinders (Bank B), mounted between cylinders 5 & 6. The sensors are well hidden by the intake manifold.



They are on the left side of the engine as viewed from the driver's seat (driver's side for LHD cars, passenger side for RHD cars).

The electrical connectors are the same type as on the fuel injectors. Here's a photo courtesy of our forum sponsor SNG Barratt (the plastic portion of your sensors may be a different color).




Cheers,

Don


Last edited by Don B; 04-23-2019 at 08:48 PM.
  #6
Old 04-24-2019, 05:42 AM
Junior Member
Thread Starter
Join Date: Apr 2019
Location: Brooksville Florida
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Default

Thank you very much!

  #7
Old 04-24-2019, 07:09 PM
Join Date: Dec 2009
Location: Decatur,TX
Posts: 7,867
Received 4,126 Likes on 2,703 Posts
Default

Originally Posted by Phdruss View Post
Thank you Bob. I am assuming Drivers side? Is there two? a front and rear? Do you know of and documentation, picture views or service bulletins? I am new to Jaguars and still awaiting service manuals to aid me.
DRIVER'S side and PASSENGER'S side is a rather pointless description due to the fact that these cars are commonly manufactured as RHD and LHD.
Which driver's side???????? The right or the left??

I learned long ago to state RIGHT or LEFT to be absolutely sure of the location on the car.

bob

The following users liked this post:
Grant Francis (04-25-2019)
