Has anyone seen this before or is this one off? None of the other XJ6 had this.



That is a work around instead of replacing the spring inside the throttle butterfly shaft tower

The original internal spring has been superseded by a stronger internal spring by a TSB

This ensures the TPS comes back to idle stop for proper idle and not be high

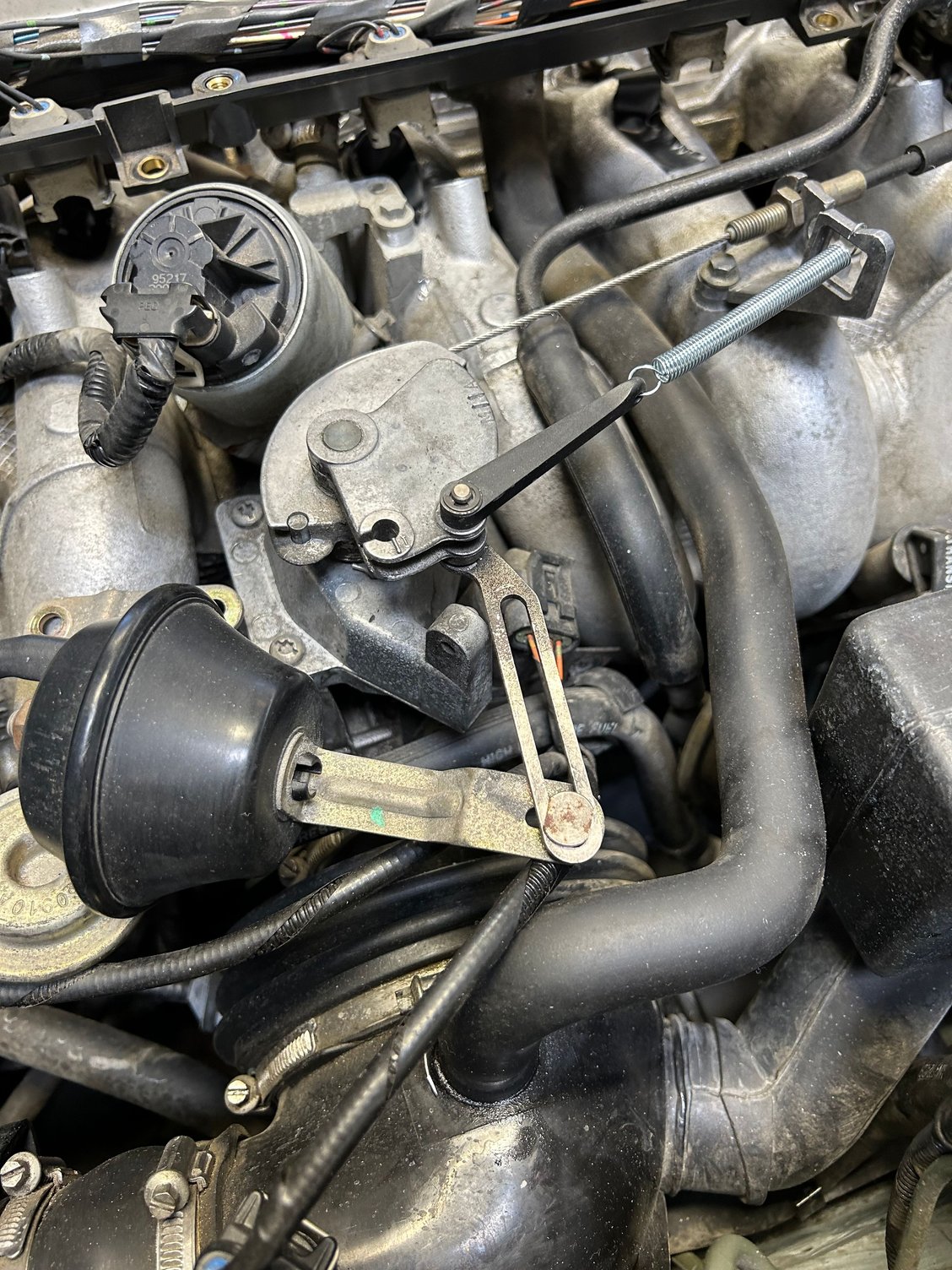

Does the cruise control work as the linkage looks wonky ?



Took off the fuel rail to get the injectors rebuilt. But it does work



I did that on a few cars while I was at the dealer when the replacement spring was back ordered.(my own cure)
Jaguar issued a TSB for intermittent high idle. (stiffer spring)
The spring setup (shown) is for the AJ6 throttle.
It is easily adapted to the AJ16.



Is there anyway to take this apart? I have a spring that’s broken on the upper part.



See page 11 , Issue # 3

05-1-26am5 1995 MYRecall R493.pdf (jagrepair.com)

You will probably have to buy the while TB assembly.

To know if you have the upgrade spring you can compare spring thickness with a micrometer

To know the donor car has be done there will be a sticker on the radiator area , if they followed instructions completely

You can always replace the existing spring with a stronger one if you have a present idle issue

Spring thickness is not the only variable for the spring strength



I guess it does not come off. Anyone have a top of a throttle body they want to sell? My pick and pull does not have any xj6



There was someone with pics and instructions as he removed and reclocked / repositioned tighter the original shaft spring

I won't be back for a couple of hours and find it



Ding



And more

Thanks Motorcarman ( Bob )

No-Cost Solution to Sticky Throttle Return Spring; H/T to Motorcarman! - Jaguar Forums - Jaguar Enthusiasts Forum



Cat on keyboard

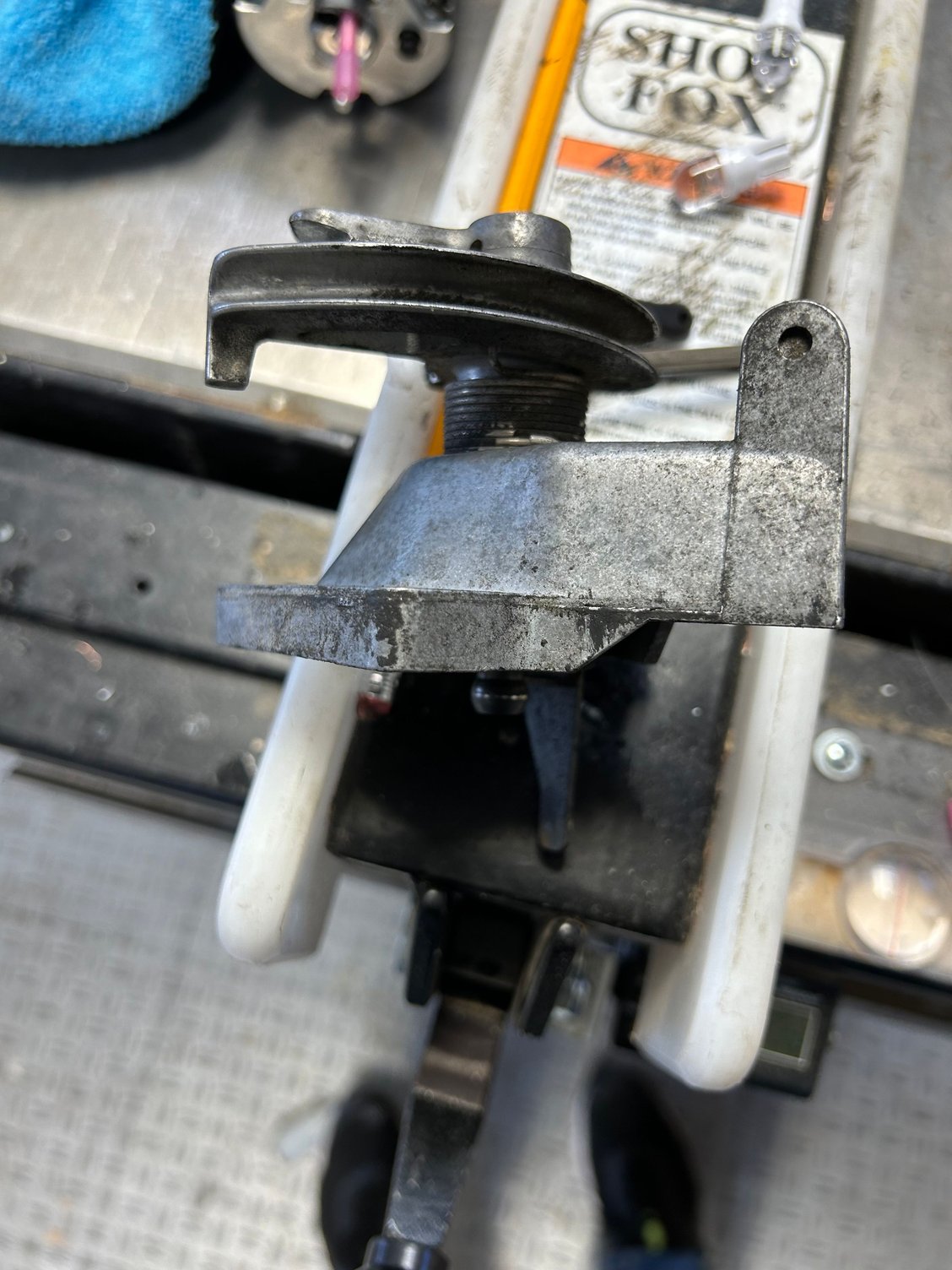

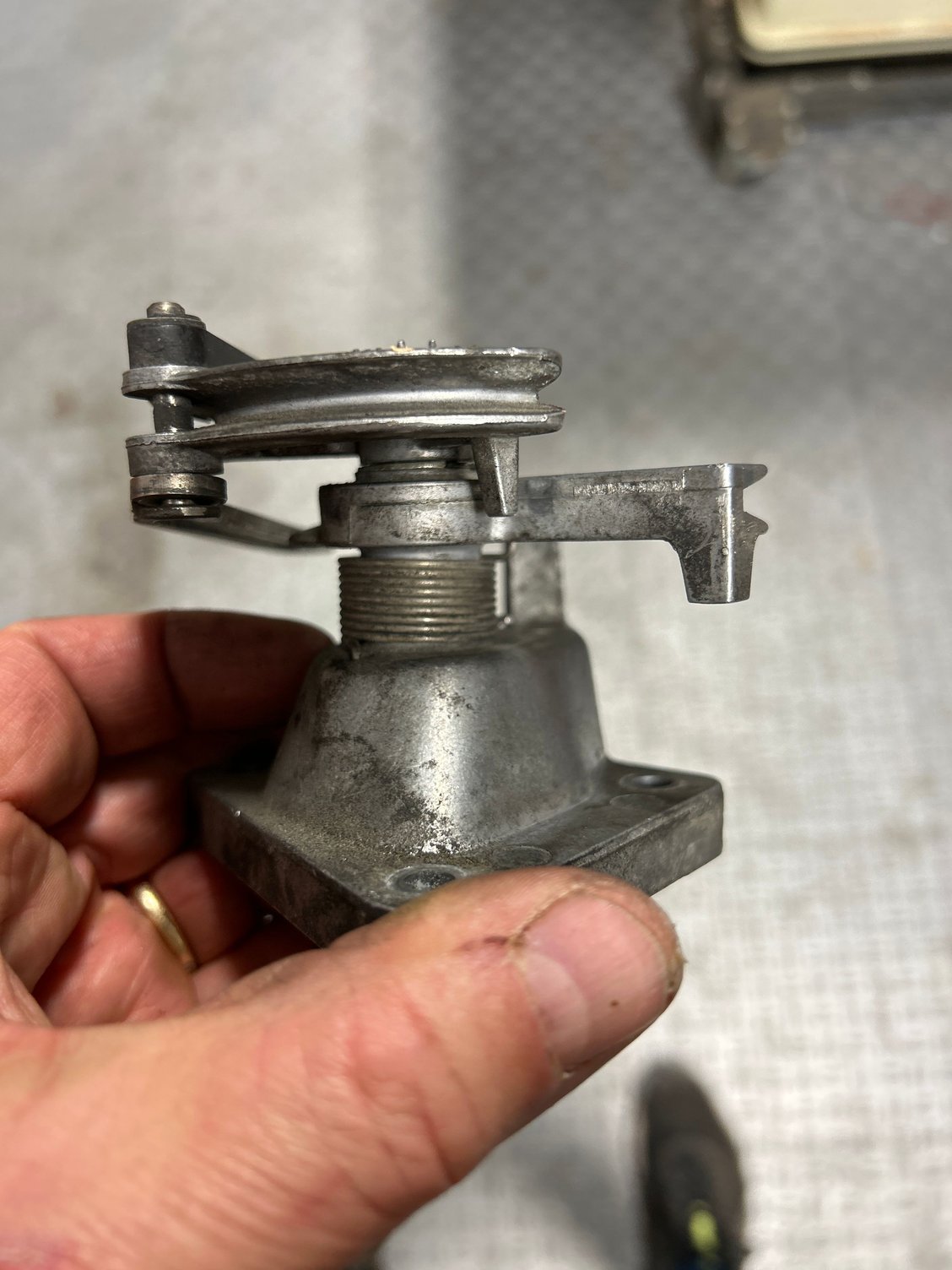

It is the upper spring that is broken. I need to figure out how to take the “top hat” off. But even if I do I will need to find a spring which I will have to find another complete top hat anyways. That is why I think I just need another one



Anyone have one that they could part with
