XJ XJ6 / XJR6 ( X300 ) 1995-1997

valve timing tool


  #1
Old 12-29-2018, 05:26 PM
Member
Thread Starter
Join Date: Dec 2015
Location: Narangba Queensland
Posts: 36
Received 11 Likes on 8 Posts
Default valve timing tool

Hi, I need to re-do the valve timing on my 96 XJR6 as I am replacing the chains and guides. Accordingly I need the factory tool 18G 1433/A to ensure that the cams are in the right place. I just read about somebody who didn't and bent four valves!
I am hoping somebody has one and can scan it so I have a template to make one. The cost of buying a new one is ridiculous as I will only use it once....I hope!
thanks for reading
Charlie

  #2
Old 12-29-2018, 11:08 PM
Lady Penelope's Avatar
Veteran Member
Join Date: Apr 2017
Location: Kansas City USA
Posts: 3,775
Received 1,213 Likes on 965 Posts
Default

XJREngineer had a different way of determining TDC for the #1 cylinder with a mark different then the open tooth on the crankshaft sensor target

He had a way of seeing the position of the X valve with the cam chain and valve cover still installed ( not your situation )

Keeping in mind the crankshaft will rotate around 2 turns for each camshaft rotation

The following 2 users liked this post by Lady Penelope:
charlie.p (12-30-2018), XJRengineer (12-30-2018)
  #3
Old 12-30-2018, 10:50 AM
Senior Member
Join Date: Jan 2012
Location: UK
Posts: 704
Received 419 Likes on 222 Posts
Default

Lady Penelope is referring to the process of distinguishing TDC firing cyl No.1 from TDC non-firing on Cyl No. 1 by checking the inlet cam positions.

However, your requirement is for a camshaft setting tool. You can buy a reproduction part in the US on ebay for $40 and get it shipped to Australia. You would struggle to get one made for that price.

The following 2 users liked this post by XJRengineer:
charlie.p (12-30-2018), Lady Penelope (12-30-2018)
  #4
Old 12-30-2018, 11:27 AM
Lady Penelope's Avatar
Veteran Member
Join Date: Apr 2017
Location: Kansas City USA
Posts: 3,775
Received 1,213 Likes on 965 Posts
Default

Thanks XJREngineer ,

I thought you had a different timing mark around the crankshaft geared ring

I have not looked for it myself

  #5
Old 12-30-2018, 05:31 PM
Member
Thread Starter
Join Date: Dec 2015
Location: Narangba Queensland
Posts: 36
Received 11 Likes on 8 Posts
Default

Thanks Lady Penelope and XJR engineer for all your prompt help. I purchased the tool on Ebay as suggested.

  #6
Old 12-31-2018, 10:21 PM
Senior Member
Join Date: Sep 2013
Location: NE Ohio, USA
Posts: 152
Received 28 Likes on 22 Posts
Default

Can someone please tell me what search terms I might use on ebay to find this tool?
Is it as simple as "Jaguar timing chain tool" ?

  #7
Old 01-01-2019, 08:53 AM
Senior Member
Join Date: Jan 2012
Location: UK
Posts: 704
Received 419 Likes on 222 Posts
Default

I think that I used a similar combination of words in my search . Just be sure not to get any tools for an XK engine by mistake.

  #8
Old 01-01-2019, 09:32 AM
Lady Penelope's Avatar
Veteran Member
Join Date: Apr 2017
Location: Kansas City USA
Posts: 3,775
Received 1,213 Likes on 965 Posts
Default

XJREngineer ,

You are the best man for this question asked last week by JensenHealey if the AJ16 engine is a valve to piston head interference engine when the mechanical timing is off

He just purchased a X300 with 45 K miles with a " broken timing chain "

The further question is on putting it all back and the correct timing

In his pics the upper chain does not look bunched up

Could it have been the case that someone tinkered with the cam timing and was off shearing the woodruff key on the lower 2nd chain on the crankshaft and the solution in a best case is replacing the valves , stem seals , and woodruff key after cleaning the old key debris

The harmonic balancer is already removed

The important part is the timing as the Jaguar doc just says # 1 TDC

This can easily be done as both valves on the #1 are closed but I thought you mentioned a different mark other then the missing tooth on the crankshaft position sensor target ( your bracket Mod excluded ( brilliant ) )





Editing

i once tinkered with an engine ( Honda ) that was placed 30 degrees off by a previous mechanic on a timing belt change


Last edited by Lady Penelope; 01-01-2019 at 10:22 AM.
  #9
Old 01-01-2019, 07:53 PM
Senior Member
Join Date: Sep 2013
Location: NE Ohio, USA
Posts: 152
Received 28 Likes on 22 Posts
Default

Originally Posted by XJRengineer View Post
I think that I used a similar combination of words in my search . Just be sure not to get any tools for an XK engine by mistake.
I have searched on ebay for "jaguar timing tool" and it seems the only things listed there are for the 4.0L & 4.2L V8 motors and occasionally for some 2.7L diesel motor.
I do not see anything at all listed for the AJ6 or AJ16 engines.

  #10
Old 01-02-2019, 02:45 AM
Member
Join Date: Jul 2015
Location: Retford
Posts: 91
Received 22 Likes on 14 Posts
The following users liked this post:
Lady Penelope (01-02-2019)
  #11
Old 01-02-2019, 06:55 AM
Member
Join Date: Nov 2015
Location: Helsinki
Posts: 41
Received 11 Likes on 7 Posts
Default

[disregard as the op had the correct tool number on the first post based on TSB 12-57 ( [url]http://www.jagrepair.com/images/TSB/TSB2/XJS_XJ40/12Engine/12-57%20Poor%20Idle%20Quality.pdf ) the tool part nmber is 18G-1433/A , the tsb also specifies the procedure for resetting the timing]


_looks_ like the linked ebay item is the correct one

  #12
Old 01-02-2019, 09:40 AM
Join Date: Aug 2018
Posts: 187
Likes: 0
Received 56 Likes on 31 Posts
Default

You may find this tool as well as virtually any other factory tool along with holdings and policy at WWW.JCNA.COM and visit the tool loan program. We seem to have 8 of those at this time.

  #13
Old 01-06-2019, 05:28 PM
Join Date: Aug 2018
Posts: 187
Likes: 0
Received 56 Likes on 31 Posts
Default

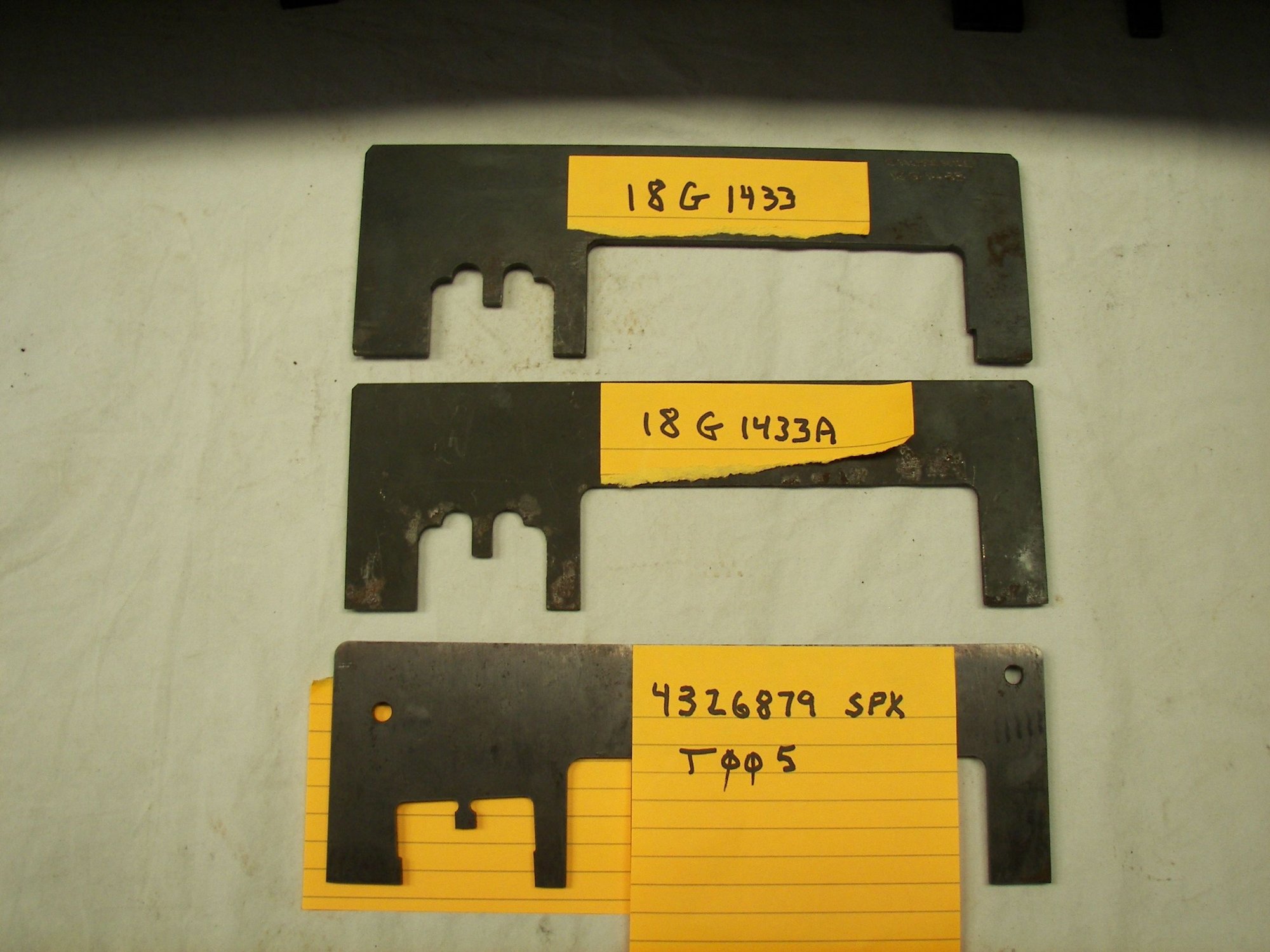

If there is real interest we may place some of these on the Foundations E bay site--we have a few extra. The 18G-1433A and 18G-1433 may be used. Here are pics--the last tool is a mystery to us and we have searched!

The following users liked this post:
Lady Penelope (01-06-2019)
  #14
Old 01-07-2019, 10:19 AM
Senior Member
Join Date: Sep 2013
Location: NE Ohio, USA
Posts: 152
Received 28 Likes on 22 Posts
Default

Originally Posted by Coventry Foundation View Post
If there is real interest we may place some of these on the Foundations E bay site--we have a few extra. The 18G-1433A and 18G-1433 may be used. Here are pics--the last tool is a mystery to us and we have searched!
I would definitely bid on one of them if the link to the ebay auctions were posted here when they were placed.
--
Steve

  #15
Old 01-07-2019, 01:06 PM
Join Date: Aug 2018
Posts: 187
Likes: 0
Received 56 Likes on 31 Posts
Default

Steve Jaguar Forums have been kind to the Foundation so we do not want to clutter things with with links to one time auctions. Further we do not auction we just post for sale and do take counter offers. If you are interested just E mail the Foundation and make a reasonable offer.
WWW.COVENTRYFOUNDATION.org.

  #16
Old 01-08-2019, 08:17 AM
Senior Member
Join Date: Sep 2013
Location: NE Ohio, USA
Posts: 152
Received 28 Likes on 22 Posts
Default

Originally Posted by Coventry Foundation View Post
Steve Jaguar Forums have been kind to the Foundation so we do not want to clutter things with with links to one time auctions. Further we do not auction we just post for sale and do take counter offers. If you are interested just E mail the Foundation and make a reasonable offer.
WWW.COVENTRYFOUNDATION.org.
I would like to do that but "WWW.COVENTRYFOUNDATION.org" is not a vaild email address.

  #17
Old 01-08-2019, 08:55 AM
Join Date: Aug 2018
Posts: 187
Likes: 0
Received 56 Likes on 31 Posts
Default

You are correct--it is the web site where as in most sites you will find a "contact us" tab --which is in the form of an E mail! I should have explained it better I guess.
