Odd lighting question
#1
Odd lighting question
I was pulled over the other night because my rear lights were out. Not just a bulb but all the rear lights. Brakes lights and flashers worked but no taillights.
The following morning I went to check and they all worked. I pulled a bulb and the bulb integrity light came on as normal but it did not indicate an issue when I was stopped.
A few days ago a co-worker pulled in behind me and said the same thing no taillights but when I check the lights, I had already turned off the car they were working.
This AM the same thing happened and I had gotten in the habit of checking them when I leave. They were on when I left the house but about 30 min later when I stopped at work I had no exterior lighting EXCEPT the headlights.
The dash lighting and the interior lighting was all fine and there was no indication of a failure via the bulb integrity system.
I was thinking the switch but I haven't had a chance to look at the schematics and see where a possible failure might be but thought I would toss this out to see if anyone has had or seen this issue in the past.
Thanks ahead and when I figure it out Ill post up.
I just found this..
https://www.jaguarforums.com/forum/x...m-fixed-28813/
so its a place to start
The following morning I went to check and they all worked. I pulled a bulb and the bulb integrity light came on as normal but it did not indicate an issue when I was stopped.
A few days ago a co-worker pulled in behind me and said the same thing no taillights but when I check the lights, I had already turned off the car they were working.
This AM the same thing happened and I had gotten in the habit of checking them when I leave. They were on when I left the house but about 30 min later when I stopped at work I had no exterior lighting EXCEPT the headlights.
The dash lighting and the interior lighting was all fine and there was no indication of a failure via the bulb integrity system.
I was thinking the switch but I haven't had a chance to look at the schematics and see where a possible failure might be but thought I would toss this out to see if anyone has had or seen this issue in the past.
Thanks ahead and when I figure it out Ill post up.
I just found this..
https://www.jaguarforums.com/forum/x...m-fixed-28813/
so its a place to start
Last edited by Jeh; 04-20-2016 at 08:45 PM.
#2
Join Date: Feb 2014
Location: Crossroads of America
Posts: 19,389
Received 12,734 Likes
on
6,378 Posts
Hi Jeh,
I haven't checked the schematics either, but I do know that each tail lamp assembly has its own Bulb Failure Module (BFM) and ground point, so your problem must be upstream of both BFMs since all the tail lamps are out. I think I recall that the lamp assemblies are controlled by relays inside the BFMs, which are in turn powered by a main relay somewhere upstream. Perhaps that relay is failing or its socket is corroded. I believe the brake lamps are controlled by a separate relay, so they can work independently of the tail lamps.
Please let us know what you find.
Cheers,
Don
I haven't checked the schematics either, but I do know that each tail lamp assembly has its own Bulb Failure Module (BFM) and ground point, so your problem must be upstream of both BFMs since all the tail lamps are out. I think I recall that the lamp assemblies are controlled by relays inside the BFMs, which are in turn powered by a main relay somewhere upstream. Perhaps that relay is failing or its socket is corroded. I believe the brake lamps are controlled by a separate relay, so they can work independently of the tail lamps.
Please let us know what you find.
Cheers,
Don
The following users liked this post:
93SB (05-01-2016)
#3
Hi Don
I am looking at the schematic (what a disaster BTW) and from the other post it seems as if the front and rear lights are on different circuits and not controlled by the same relay.

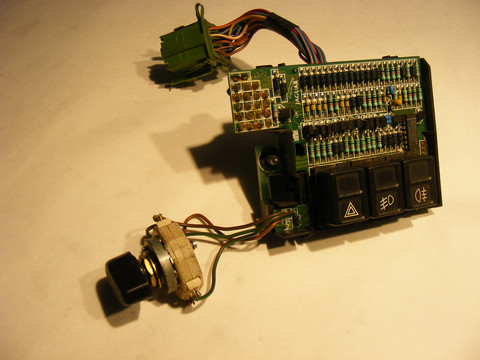

If this is the case this leads me back to the switch. I was staring at the schematic looking for "the switch" then discovered why I couldn't find it... I was looking for a switch not this..
Still working at it....
So after staring at the schematic for a while the only common denominator is the headlight switch or the H module relay. Since it seems to be a "time" issue as the lights need to be on a while Im thinking its probably the relay. Ill check it in the AM by trying to give it a "whack" in the general area and see if they come back on.
At 5:30 in the morning thats about as much science as im going to get.
I am looking at the schematic (what a disaster BTW) and from the other post it seems as if the front and rear lights are on different circuits and not controlled by the same relay.
If this is the case this leads me back to the switch. I was staring at the schematic looking for "the switch" then discovered why I couldn't find it... I was looking for a switch not this..
Still working at it....
So after staring at the schematic for a while the only common denominator is the headlight switch or the H module relay. Since it seems to be a "time" issue as the lights need to be on a while Im thinking its probably the relay. Ill check it in the AM by trying to give it a "whack" in the general area and see if they come back on.
At 5:30 in the morning thats about as much science as im going to get.
Last edited by Jeh; 04-20-2016 at 10:34 PM.
#4
#5
This seems to have fixed it. All it took was a little solder on the joints and in most of them it was just a matter f heating it up and letting it reflow.
The relay in question is the one on the left.
Here are a few shots of the opened relay. I just hit all the joints. It was literally a15 min fix.
A few don't look so hot as my arthritis causes some shaking but so far no issues.
The relay in question is the one on the left.
Here are a few shots of the opened relay. I just hit all the joints. It was literally a15 min fix.
A few don't look so hot as my arthritis causes some shaking but so far no issues.
Last edited by Jeh; 04-23-2016 at 12:19 AM.
