After some frustration, I am attaching the correct wiring for the "hazard warning switch" for the Series III XJ6. For some reason, my broken switch had incorrect wiring! Hope this helps someone!
Terminal Wiring:
Terminal 1 - Light Green/Blue stripe Terminal 2 - Dark Green/White stripe Terminal 3 - Light Green/RED stripe Terminal 4 - Dark Green/Light Green stripe Terminal 5 - (nothing) Terminal 6 - Light Green/Pink stripe Terminal 7 - Dark Green Terminal 8 - Brown/Orange stripe

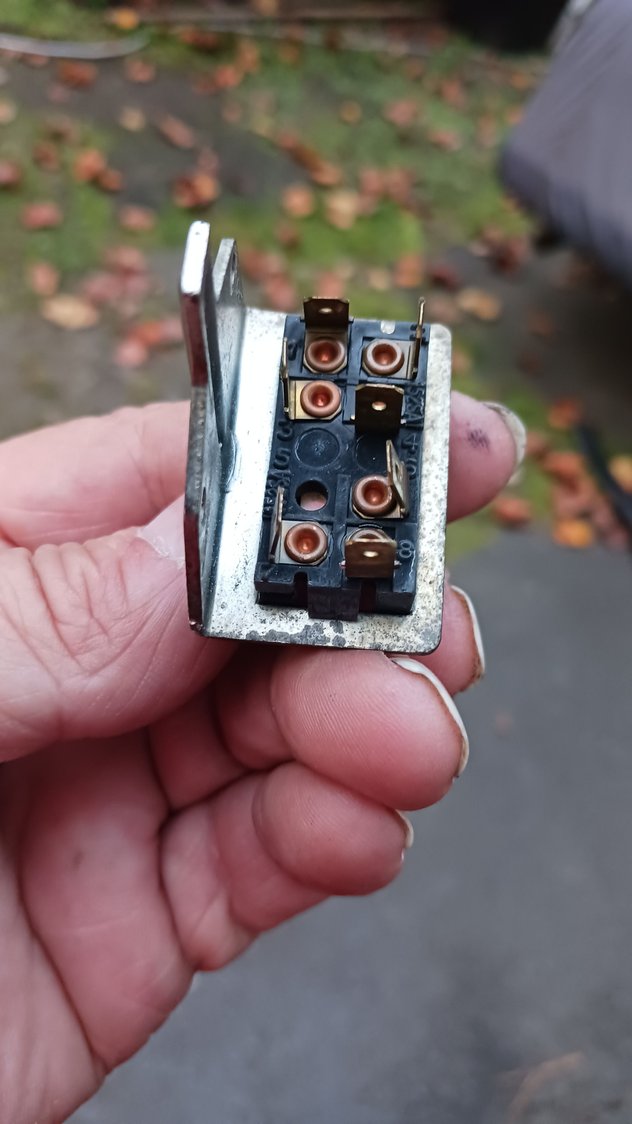

PICS of switch with labeled terminals:
Last edited by benzjag; Oct 29, 2023 at 09:38 PM.
Reason: Spelling
CORRECT: Hazard Warning Switch WIRING
