XJ6 & XJ12 Series I, II & III 1968-1992

Delanair A/C Amp Connector Plug

Thread Tools

Search this Thread

Old Sep 2, 2024 | 01:49 PM
  #21
jal1234's Avatar
Veteran Member
10 Year Member
Liked
Loved
Joined: Sep 2015
Posts: 1,148
Likes: 746
From: Northern Alabama
Default

Originally Posted by Andy T.
Yes I have made a batch of repro AC amps using a solid state chip instead of the original pair of relays to drive the servo.
Does your amp replicate the functionality of the original with thermostatic control, or does it convert to a manual system?
Jon

Reply
Old Sep 2, 2024 | 09:14 PM
  #22
Andy T.'s Avatar
Thread Starter
|
Senior Member
5 Year Member
Liked
Joined: Jun 2019
Posts: 283
Likes: 265
From: Khon Kaen, Thailand
Default

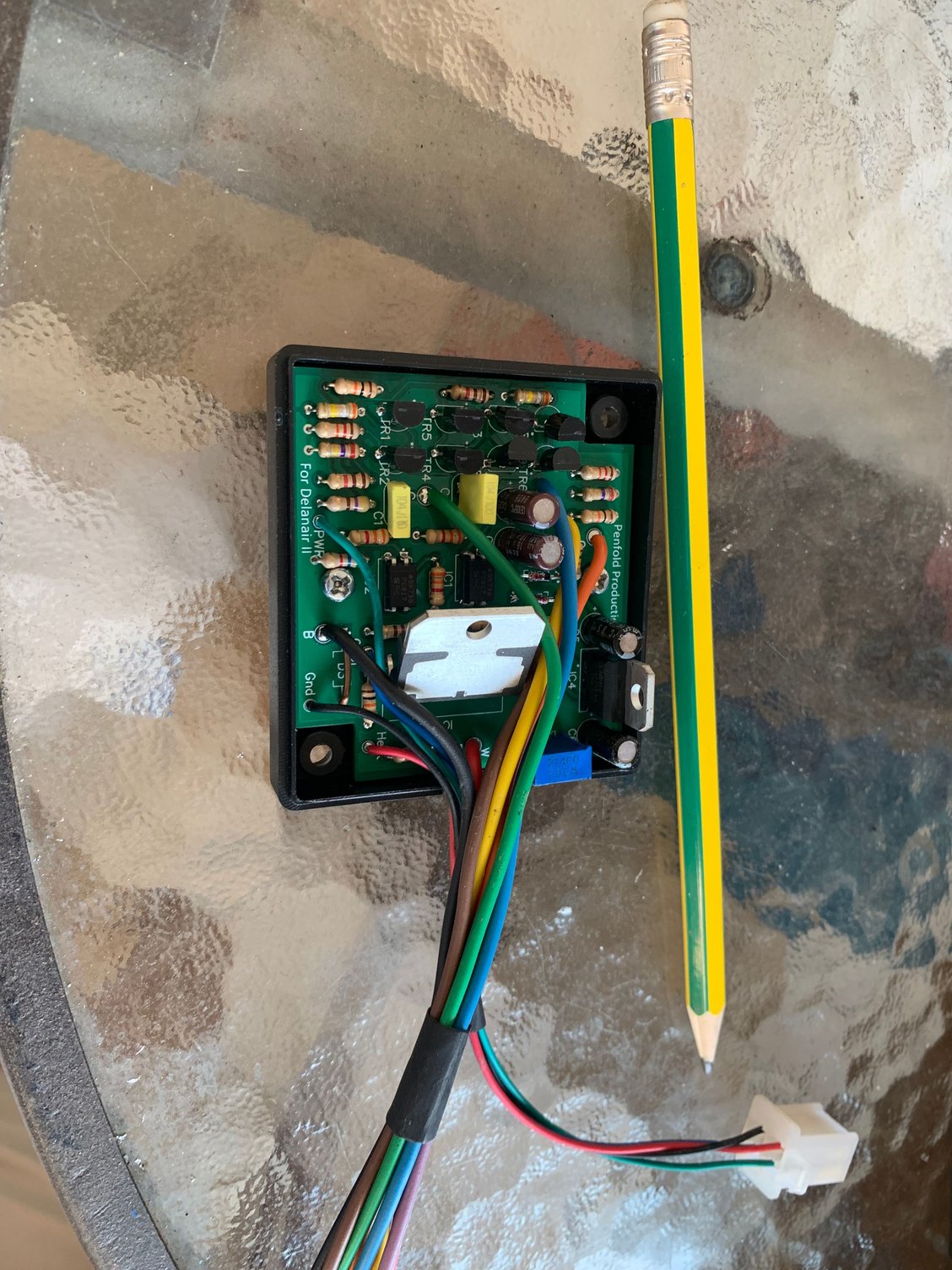

My repro amp duplicates the original functions of the amp, so fully automatic climate control is provided. The analogue control circuity is the same as the original, the difference is in using a solid state motor controller chip instead of the two relays.

The optional LEDs indicate power on, system demanding more cooling, system demanding more heating.

I could not source the multi-pin connector plugs, so the repro amp is supplied with flying leads for the user to splice the original plug onto.




Last edited by Andy T.; Sep 2, 2024 at 09:17 PM.
Reply
Old Sep 3, 2024 | 03:02 AM
  #23
Scaphan's Avatar
Member
5 Year Member
Joined: Jan 2019
Posts: 61
Likes: 12
Default

Great. In the manual it says to test the 3 diodes if the purple and red wires don’t respond to changes in temp.

My AC works intermittently (sometimes ambient air with low fans and sometimes responsive and working well). I suspect the amplifier but want to confirm it.

Where do I find the 3 diodes?? Are they the ones you reference in the thread above?

Reply
Old Sep 3, 2024 | 09:27 AM
  #24
Andy T.'s Avatar
Thread Starter
|
Senior Member
5 Year Member
Liked
Joined: Jun 2019
Posts: 283
Likes: 265
From: Khon Kaen, Thailand
Default

Yes the three diodes are hidden in the wiring of the servo itself. They are relatively unlikely to have failed, but could have dry solder joints to the little circuit board onto which they are mounted.

Your symptoms sound fairly typical of a flaky amp. The contacts in the relays can fail after 40 odd years of service and they cannot be replaced as the whole amp is encased in resin. To end up with this working design of replacement amp, I spent ages melting and picking off the resin from an old unit and then reverse-engineering the circuit. The amp uses 8 transistors, whereas the circuit diagram I worked form originally, which was in the Delanair service book, used only 6. I found out that this is because they were the very old style germanium transistors with different characteristics to silicon ones. The germanium trasistors were phased out in the 1970's. Suffice it to say, I ended up putting in a lot of research time to get to a working unit!

Here is a page from my notes on checking the system with the amp removed. Note that, if the servo is fully driven to one end or the other, it will trigger the limit switches and so you will only see continuity in one direction with a multimeter due to the diodes. This means you might need to reverse the multimeter leads when testing depending which end the servo has driven to.



Reply
Old Sep 3, 2024 | 09:56 AM
  #25
Scaphan's Avatar
Member
5 Year Member
Joined: Jan 2019
Posts: 61
Likes: 12
Default

Amazing. Thank you. Will test. If I need an amp will definately buy from you. Is this your listing too? https://www.ebay.co.uk/itm/166757701...mis&media=COPY

Reply
Old Sep 3, 2024 | 09:59 AM
  #26
Andy T.'s Avatar
Thread Starter
|
Senior Member
5 Year Member
Liked
Joined: Jun 2019
Posts: 283
Likes: 265
From: Khon Kaen, Thailand
Default

Yes that’s my eBay listing.

Reply
Old Sep 20, 2024 | 12:35 AM
  #27
LilyDavis's Avatar
Junior Member
Joined: Aug 2024
Posts: 1
Likes: 0
Default

Originally Posted by Andy T.
Yes the three diodes are hidden in the wiring of the servo itself. They are relatively unlikely to have failed, but could have dry solder joints to the little circuit board onto which they are mounted.

Your symptoms sound fairly typical of a flaky amp. The contacts in the relays can fail after 40 odd years of service and they cannot be replaced as the whole amp is encased in resin. To end up with this working design of replacement amp, I spent ages melting and picking off the resin from an old unit and then reverse-engineering the circuit. The amp uses 8 transistors, whereas the circuit diagram I worked form originally, which was in the Delanair service book, used only 6. I found out that this is because they were the very old style germanium transistors with different characteristics to silicon ones. The germanium trasistors were phased out in the 1970's. Suffice it to say, I ended up putting in a lot of research time to get to a working unit!

Here is a page from my notes on checking the system with the amp removed. Note that, if the servo is fully driven to one end or the other, it will trigger the limit switches and so you will only see continuity in one direction with a multimeter due to the diodes. This means you might need to reverse the multimeter leads when testing depending which end the servo has driven to.
Spoiler

Thank you so much for sharing.

Reply
