Hi
I am stripping down my XJ12C. Now the time has come for the AC / heater unit but I dont get how its is mounted… As I understand it must be possible to remove as one complete unit?
The 2x top bolts inside + the 2x nuts from the fire wall (accessed from engine bay) are loosened. Water connections are removed. Still working on the gas lines but will get to that tomorrow...
The unit is still 100% stuck, I have looked as well as I can for more fixation points. What am I missing?

Thanks
Marcus



Hello, Marcus,

I tried removing the whole Matrix once, from a Series 3 in a wrecking yard, where one was required to pack every tool about half a mile from the front gate to the car.

I got about as far as you have, and I think I would have succeeded but for the windshield in the way (it was a Perfect S3 windshield and I didn't want to break it or take the time to remove it), blocking access to the cross-head screws through the sheet metal around the evaporator. They were embedded in a tar substance, which completely filled the cross heads making it impossible for me to remove them. As I remember there were about 12 of them but it's been 5 or 6 years so I might not be remembering totally correctly.
(';')



Hi
Do you think those small cross-head screws have to be removed to get the complete unit out?? They are really a pain to get out... Lost my nerves on them tonight,,, Will try again tomorrow =)
thanks
Marcus



I was quite sure at the time that the screws were the ONLY thing keeping the Matrix from falling out in my lap.
I agree, they are a Royal Pain!
I think this is why some say the factory started with the Matrix and built the car around it, slathering it with that tar sealant first.
(';')



If it is like the XJS they do. Take a pozi bit, like that used in an electric drill holder, place that in the screw head and use a 1/4 inch open-ended spanner to turn the screw, with your finger on the top of the bit to hold it into the screw.
There is a square hole in the firewall through which the evaporator valve will come, so you only need to remove the hoses from it, not the entire valve. Do not forget the water heater hoses! Also even when undone, the unit will need a bit of a shove to loosen it.

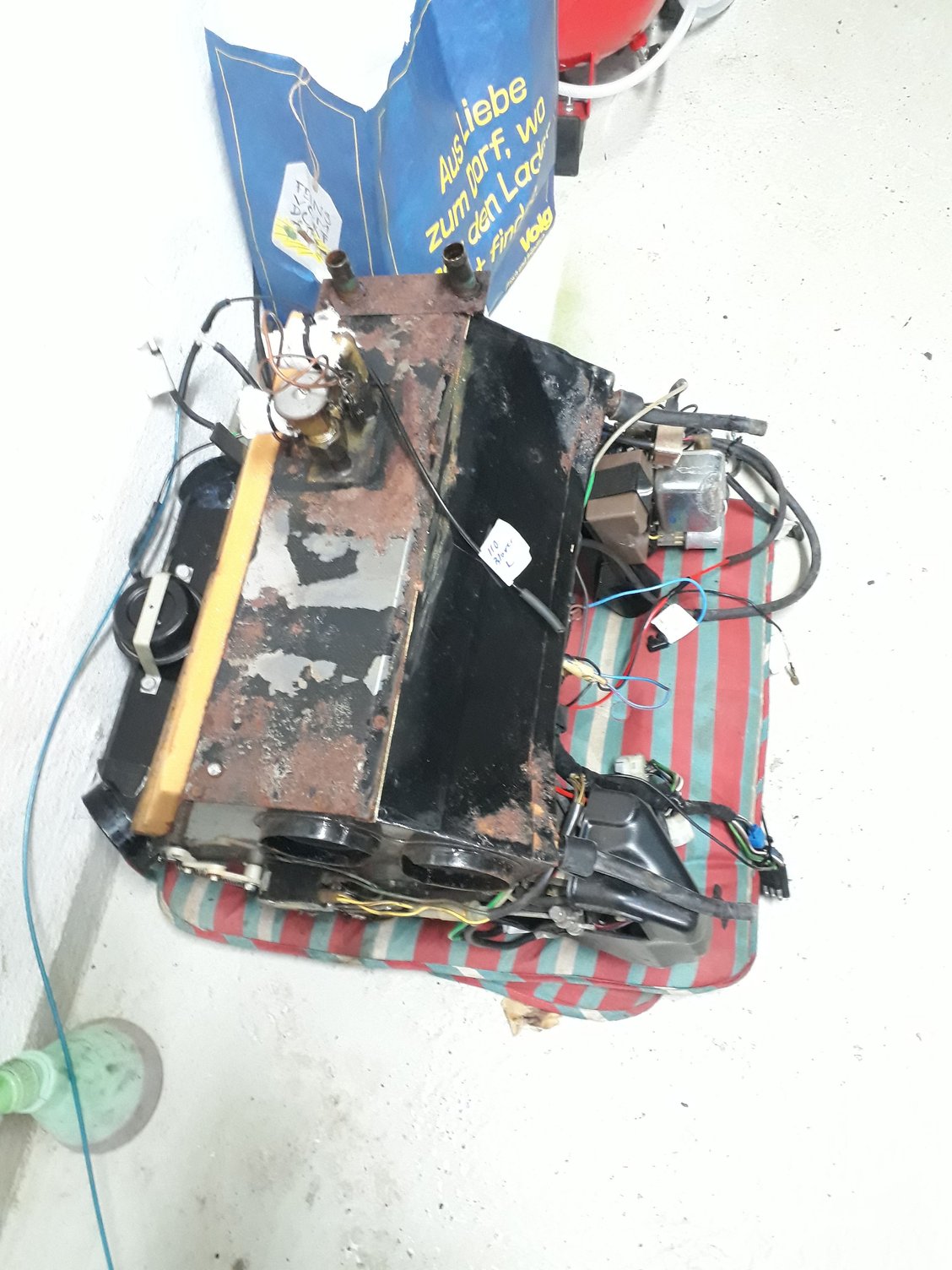

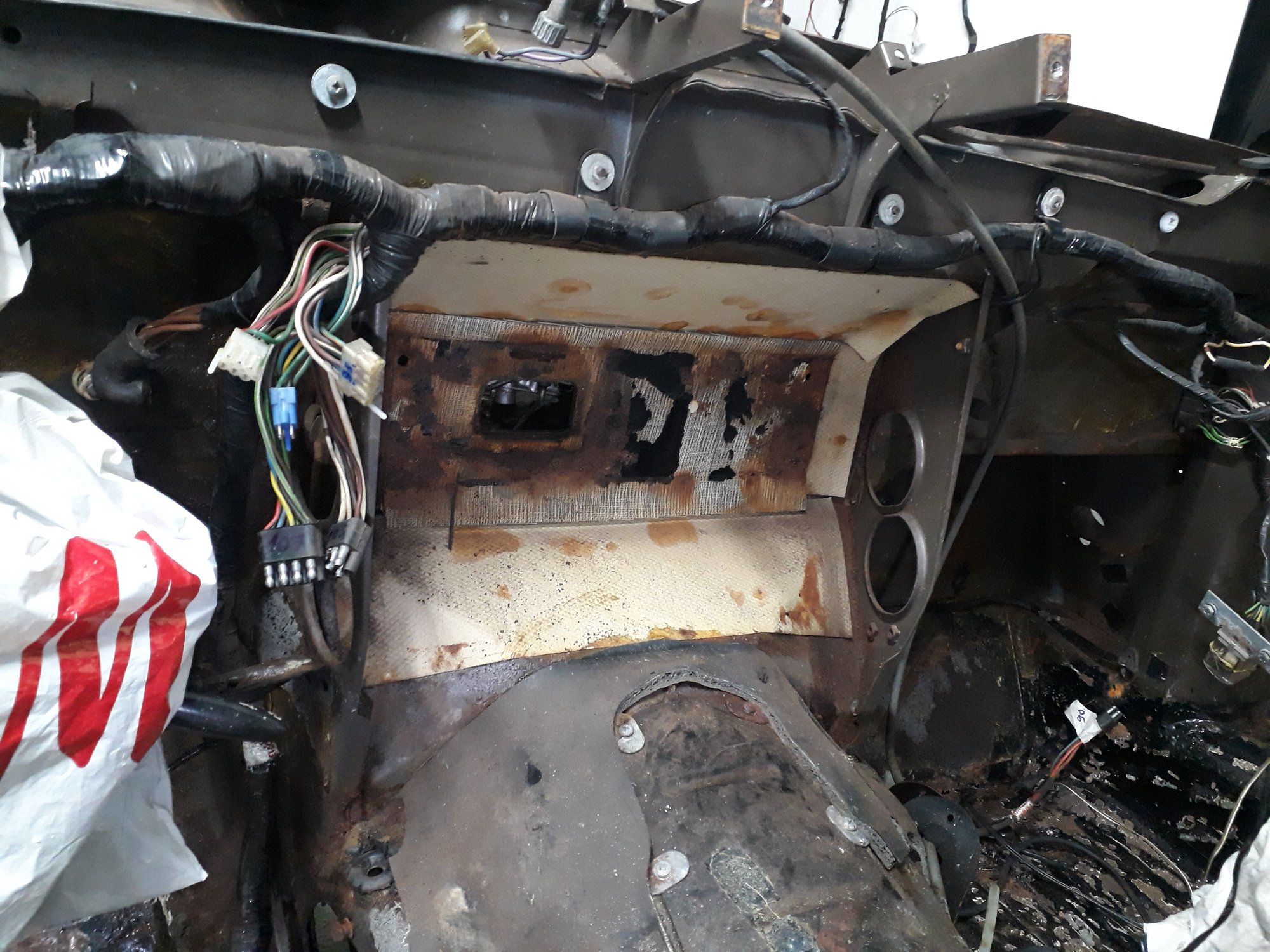

Finally got it out. Was no need to remove the cross-head screws. Only fixed with the 2x top bolts inside + the 2x nuts from the fire wall (accessed from engine bay). It was simply glued stuck due to old isolation mat… I took out the windscreen and used some gentle violence from the top and finally it gave up =)
(I anyway had to take out the windscreen)



"Gentle violence." I love it!
Congratulations!!
Only well stuck, eh? If only I had known....
(';')



Gentle violence for a gentlemans car… =)
My old Volvos I would have treated different...



Hi all,
heater and cooling systems are the bane of my life.
We look after our cars and are generally rewarded with high mileage. I think I have had more trouble with heaters than any other aspect of cars ( perhaps our XK8 computers are as troublesome). As cars get more complex the problems only grow in frequency, complexity and magnitude.
i looked at your photos and shuddered!
Are you wrecking the car or just giving it a major restoration. If so I am in awe
it does seem that cars are built around their heaters and they must be the hardest item to remove.
My HSE Rangey has faulty blend motors in it's climate control and I am dreading launching in to fix it.
Come to think of it any work under the dash is always awkward
regards
Al

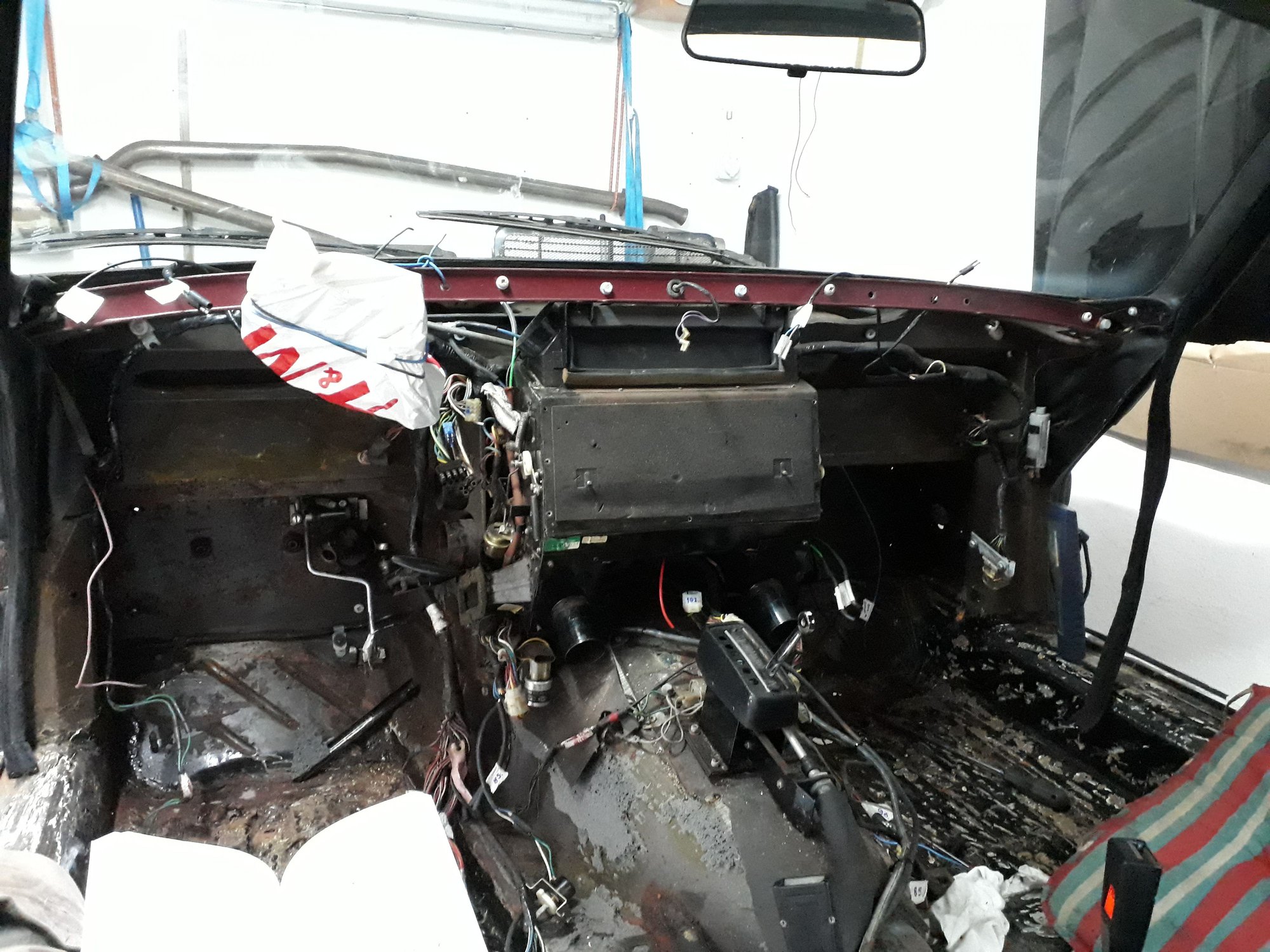

I am disassembling all I can (everything except engine/gear box & front suspension) in the limited space available. Still not sure if I will scrape of the vinyl rood myself. Afterwards the rusty body will go to a jaguar specialist who can do the welding & paint job. The climate control unit is, as you wrote, somehow the centre of chaos… vacuum hoses, cabling, piping...
