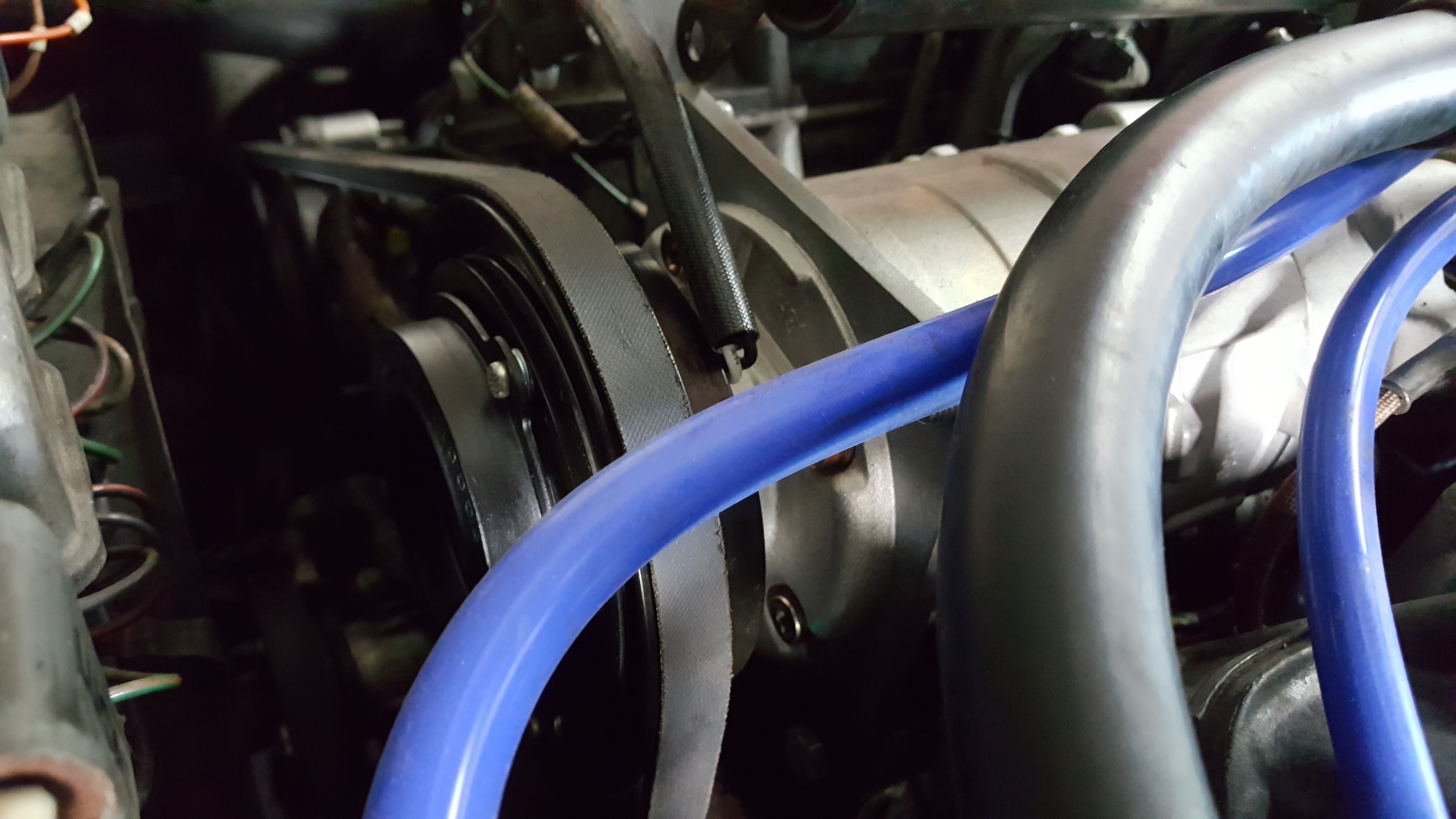

This weekend was A/C.......
We have the dual gauges, and a vacuum pump so it was a case of flush, pump down, check for vacuum, fill, freeze.
Actually smgdata did all the hard work, I fixed the fence and cooked dinner, but it was a team effort all the way.
We fitted an aluminum compressor which is lighter and a bit smaller than the original.
After some research (again, not by me) we will change the expansion valve to get max performance out of our r134 conversion.
We have the dual gauges, and a vacuum pump so it was a case of flush, pump down, check for vacuum, fill, freeze.
Actually smgdata did all the hard work, I fixed the fence and cooked dinner, but it was a team effort all the way.
We fitted an aluminum compressor which is lighter and a bit smaller than the original.
After some research (again, not by me) we will change the expansion valve to get max performance out of our r134 conversion.
#86
In other news...... we replaced the electronic fuel pressure gauges with mechanical ones as we were having problems getting the electronic ones to read. I have the same gauge on my XJS and its fine, but it's fitted inline. The set up on the coupe uses the cold start injector lines, so the sender is effectively on a dead end, which doesn't seem to make the electronic senders happy. The small mechanical gauges fitted in the same space and allowed us to easily dial in 29psi per side. Performance is excellent.... Better pick up than my XJS for sure.
These are the gauges we are using.
https://www.amazon.com/dp/B00TYY3OBK..._gjW7wb7DFK1N0
These are the gauges we are using.
https://www.amazon.com/dp/B00TYY3OBK..._gjW7wb7DFK1N0
Last edited by Sarc; 03-20-2016 at 03:05 PM.
The following users liked this post:
Rhett (03-21-2016)
#87
In even more news we started the conversion from 5" to 7" headlights.
I was a bit puzzled about what parts I needed. The reality is you need 3 parts per side.
1. 7" headlight. I got a simple sealed beam unit but of course you can go for a halogen upgrade or anything else you feel like here, as long as its 7"
Sealed Beam Halogen Headlight , Sprite , Mg Midget
2. 7" buckets.
Universal Plastic 7 Headlight Bucket Assembly , Sp
3. The 7" chrome rings. This is the only Jaguar specific part. I got a set second hand off ebay. They are scarce but they do come up now and again.

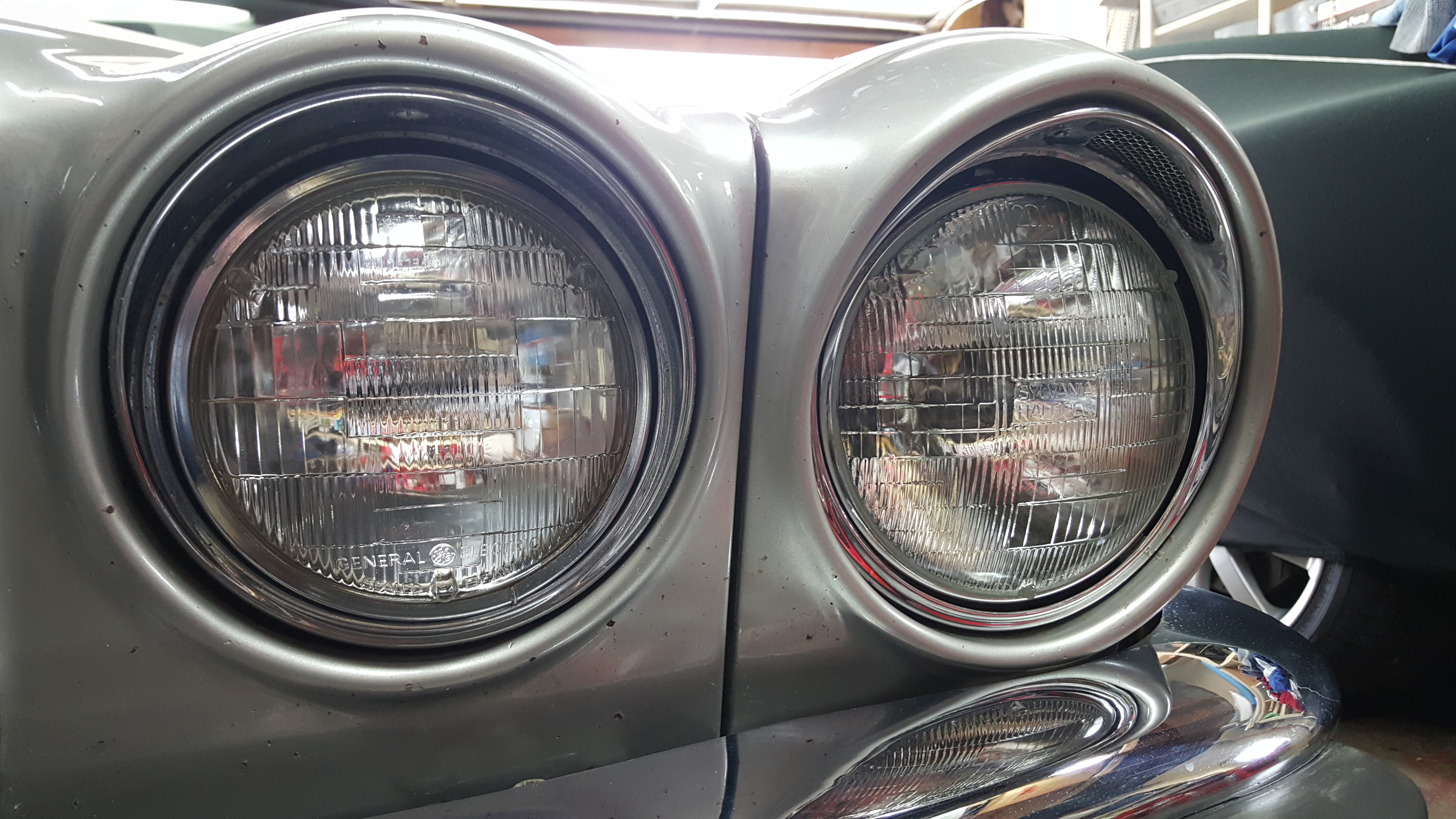

The buckets I got fit in perfectly with no cutting or drilling required. Attached a comparison of the rings
I was a bit puzzled about what parts I needed. The reality is you need 3 parts per side.
1. 7" headlight. I got a simple sealed beam unit but of course you can go for a halogen upgrade or anything else you feel like here, as long as its 7"
Sealed Beam Halogen Headlight , Sprite , Mg Midget
2. 7" buckets.
Universal Plastic 7 Headlight Bucket Assembly , Sp
3. The 7" chrome rings. This is the only Jaguar specific part. I got a set second hand off ebay. They are scarce but they do come up now and again.
The buckets I got fit in perfectly with no cutting or drilling required. Attached a comparison of the rings
Last edited by Sarc; 03-20-2016 at 11:03 PM.
The following users liked this post:
Rhett (03-21-2016)
#90
Join Date: Mar 2014
Location: Tehama County, California, USA
Posts: 25,191
Received 8,955 Likes
on
5,298 Posts
The following users liked this post:
Sarc (03-23-2016)
#92
You'll have to do it in two year's time anyway. I just compared this year's smog report for the series 3 with what SARC did when he transferred custody 18 months ago and it's oddly (and unsatisfyingly) both higher and lower, depending on which value you look at. Still, a pass is a pass.
#93
We are currently off the road (despite nice new shiny license plates) because the fuel lines that run from the trunk, over the rear mufflers and into the tanks are shot. I found them in a very sorry state last night while I was removing the tank cover for some remedial painting.
Full fuel line replacement was on the job card, but it's now came to the top of the priority list. I intend to replace every line with Stainless Steel Braided line. I think I can reduce the number of joins significantly by doing this. The way the car is set up is crazy. For example, from the fuel return valve we have valve --> hose --> metal piece --> hose --> tank. 3 joins within 2 foot of each other. Using steel braided line this will become fuel return valve --> tank (1 join)
The only issue I have found is that I couldn't find a 3 way fuel return valve (as is fitted in the coupes) I could only find a 3 way fuel feed valve. I bought 2 of the fuel feed valves thinking that would be the end of it, but unfortunately I failed to notice the fuel feed valve is 1/2" pipe and the fuel return valve is 3/8" pipe. So, I will have to have joins and and adapters to convert the hose sizes. Not ideal, but as those fittings will be the AN type, it should be ok.
Would love to hear if anyone knows where to get the 3 way RETURN valve (meaning 3/8 pipe size)
Another possibility is to try and revive the existing valve once I remove it.... we'll see.
Full fuel line replacement was on the job card, but it's now came to the top of the priority list. I intend to replace every line with Stainless Steel Braided line. I think I can reduce the number of joins significantly by doing this. The way the car is set up is crazy. For example, from the fuel return valve we have valve --> hose --> metal piece --> hose --> tank. 3 joins within 2 foot of each other. Using steel braided line this will become fuel return valve --> tank (1 join)
The only issue I have found is that I couldn't find a 3 way fuel return valve (as is fitted in the coupes) I could only find a 3 way fuel feed valve. I bought 2 of the fuel feed valves thinking that would be the end of it, but unfortunately I failed to notice the fuel feed valve is 1/2" pipe and the fuel return valve is 3/8" pipe. So, I will have to have joins and and adapters to convert the hose sizes. Not ideal, but as those fittings will be the AN type, it should be ok.
Would love to hear if anyone knows where to get the 3 way RETURN valve (meaning 3/8 pipe size)
Another possibility is to try and revive the existing valve once I remove it.... we'll see.
Last edited by Sarc; 03-25-2016 at 10:23 AM.
The following users liked this post:
Rhett (03-25-2016)
The following users liked this post:
ronbros (04-09-2016)
#96
Progress on the fuel line rebuild in the trunk.....
We removed both tank covers to gain access to the connections (feed and return) that come out of the bottom of each tank. We drained the right hand tank, which so far we haven't used because the change over valves are shot. There was smelly gas came out, but no particles or rust........ and the outside of the tank looks great, so I think we will get away with not dropping or swapping the tanks.
We started to disassemble the fuel lines in the trunk. As we speculated before, the metal lines running to the tanks were in really bad condition on one side of the car. There is a picture of the remains of the pipe, which literally came apart as we tried to pull it through the cut out in the body. I would estimate the metal wall thickness is less than one third of the original thickness. Feels a whole lot better having this out of the car.
Everything else came ut of the trunk pretty easily. We got left with a nasty pile of rotten and mangled pipes, which will be going straight in the garbage.
Tomorrow we will scrub and paint the trunk with rust proofing paint then start reassembly.
We removed both tank covers to gain access to the connections (feed and return) that come out of the bottom of each tank. We drained the right hand tank, which so far we haven't used because the change over valves are shot. There was smelly gas came out, but no particles or rust........ and the outside of the tank looks great, so I think we will get away with not dropping or swapping the tanks.
We started to disassemble the fuel lines in the trunk. As we speculated before, the metal lines running to the tanks were in really bad condition on one side of the car. There is a picture of the remains of the pipe, which literally came apart as we tried to pull it through the cut out in the body. I would estimate the metal wall thickness is less than one third of the original thickness. Feels a whole lot better having this out of the car.
Everything else came ut of the trunk pretty easily. We got left with a nasty pile of rotten and mangled pipes, which will be going straight in the garbage.
Tomorrow we will scrub and paint the trunk with rust proofing paint then start reassembly.
The following users liked this post:
Rhett (04-02-2016)
#98
Have a look at the pictures of both fuel senders we removed. So, you don't need to ask what the tanks look like or why the contract has been set back a few weeks.
I was on the fence about new tanks, but the car has removed the debate.
Trying to find something positive out of the weekend to post.....
1. I cleaned and painted the trunk cavity in semi flat black rust proofing paint, so that will look really good with the steel braided fuel lines.
2. We made a nifty tool for removing the gas caps from the top of the tank. This job we had feared, but thanks to the forums we knew NOT to try levering it in any way, because paint damage was assured using that method. We got a straight piece of exhaust pipe and cut 4 slots in it. These slots matched up with the fins inside the filler cap..We drilled a hole through the pipe so we could get a bar on it. With one of us pushing down on the pipe and the other providing turning force, the caps freed up pretty easily. Once they were moving it was easy to wiggle them upwards and out of the car with no paint damage. See attached pictures of the tool. Not exactly snap-on quality, but it did the trick.
I was on the fence about new tanks, but the car has removed the debate.
Trying to find something positive out of the weekend to post.....
1. I cleaned and painted the trunk cavity in semi flat black rust proofing paint, so that will look really good with the steel braided fuel lines.
2. We made a nifty tool for removing the gas caps from the top of the tank. This job we had feared, but thanks to the forums we knew NOT to try levering it in any way, because paint damage was assured using that method. We got a straight piece of exhaust pipe and cut 4 slots in it. These slots matched up with the fins inside the filler cap..We drilled a hole through the pipe so we could get a bar on it. With one of us pushing down on the pipe and the other providing turning force, the caps freed up pretty easily. Once they were moving it was easy to wiggle them upwards and out of the car with no paint damage. See attached pictures of the tool. Not exactly snap-on quality, but it did the trick.
Last edited by Sarc; 04-03-2016 at 12:16 PM.
#99
#100
Join Date: Jul 2010
Location: Austin tx and Daytona FL.
Posts: 7,362
Received 1,231 Likes
on
939 Posts

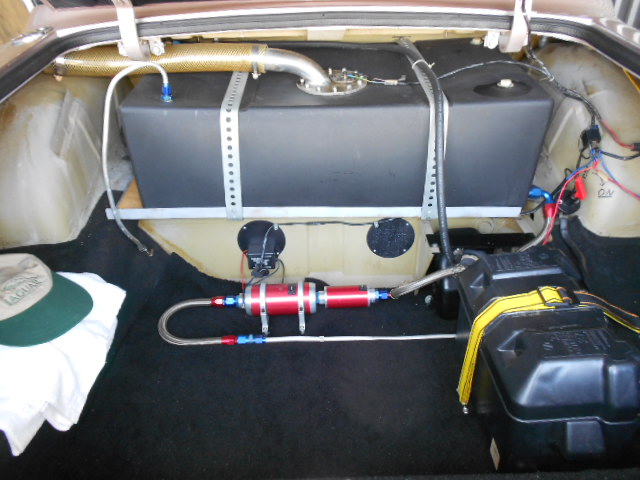

yes! i went the same route with the original Jag fuel system.
Nascar plastic fuel cell(so long rusty tank), all aluminum lines and AERO-QUIP, stainless lines, blue red colors, SX adjustable FPR.
filter and pump as shown, custom fuel rails(NO rubber hoses) hi pressure O-rings top and bottom
