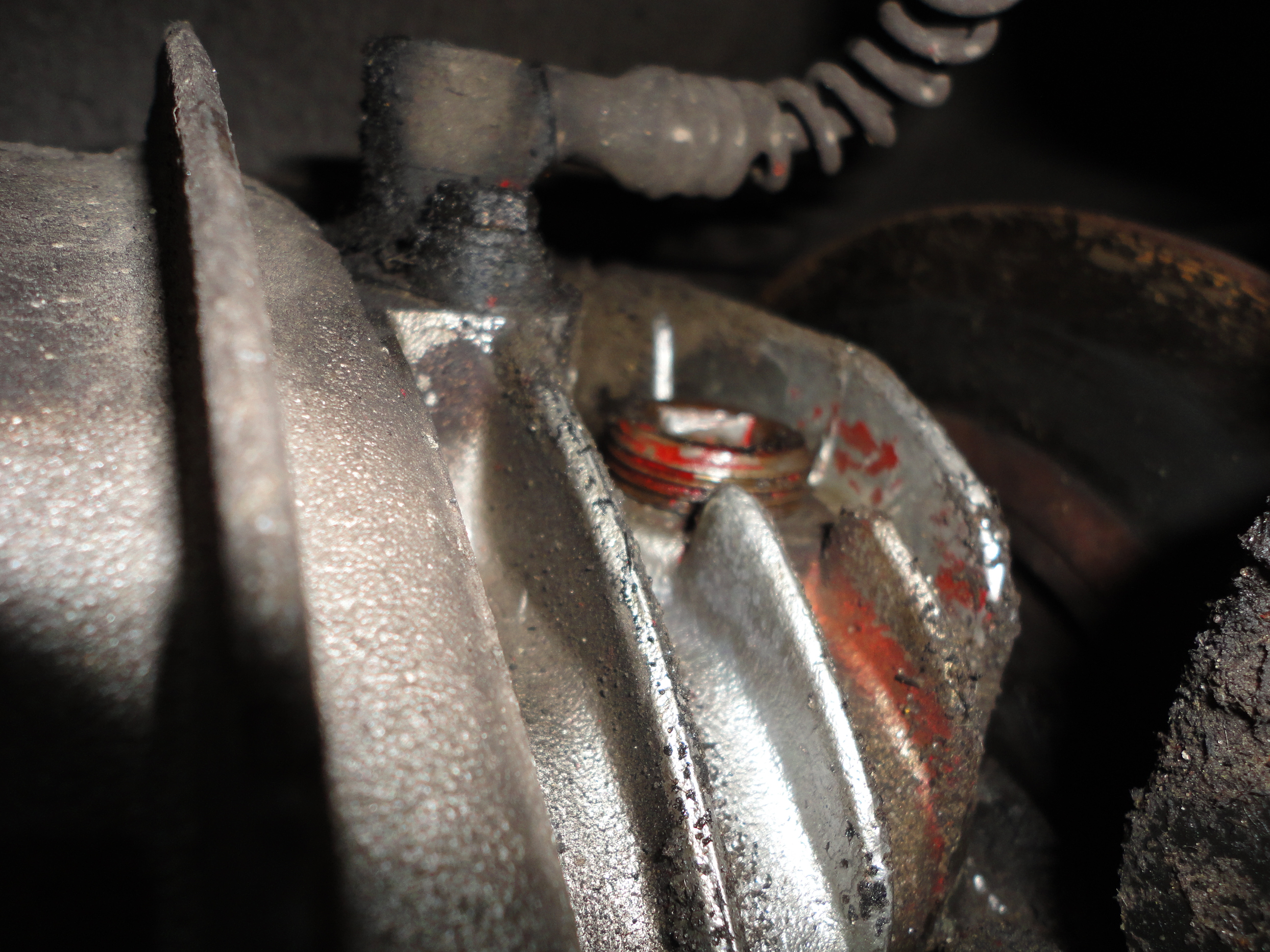

1990 Speedo Transducer Location
#21
Join Date: Nov 2013
Location: Breaux Bridge, Louisiana, US
Posts: 656
Received 169 Likes
on
133 Posts
The following users liked this post:
orangeblossom (06-15-2018)
#22
The following 2 users liked this post by Jagboi64:
Greg in France (06-15-2018),
orangeblossom (06-15-2018)
#23
Hi Kariblay
I am not an Auto Electrician or an electrical Genius like 'Warrjon' so there could be a number of reasons why your Speedo isn't working and mine decided to suddenly drop out
So faced with the choice of paying a 'Shop' to fix it, where they could charge you 'megabucks' I decided to try and fix it myself
There are 3 Main places where there could be a fault but that is not exhaustive, as you could have a faulty component or maybe a bad earth or it could be something else entirely different
So I decided to tackle what I considered to be the easiest first (others may have a different view) but I decided to take the Instrument Binnacle out
I was a little bit scared of doing this, as I have heard horror stories of those who have damaged something to such an extent that the Speedo will never work again
So you have to be REALLY CAREFUL not to damage the printed circuit because you cannot but another one
This is not a 'Big Hammer Job' you need to be as Careful as a 'Watchmaker'
You don't have much slack on those Multiplug Leads and its quite hard to see what you're doing
But basically there are 2 Multiplugs that plug into the back of the Printed Circuit which is attached to the back of the Instrument Binnacle
So once you've undone the Screws that hold the Instrument Binnacle in. you then have to VERY CAREFULLY ease it out of the dash as much as you dare
And then reach in with your hand in order to CAREFULLY disconnect (ie pull out) the 2 Multiplugs that are plugged in to the Printed Circuit
After which you can Pull the Instrument Binnacle out and then once having done so you can CAREFULLY clean the Multiplugs and Sockets
There is a Step by Step Guide of how I did this including Photos on my 'Cherry Blossom' restoration thread
And here is a link to that Page https://www.jaguarforums.com/forum/x...122634/page76/
This is Not a guaranteed fix but it worked for me and now my Speedo is working as it should be
But you could equally have a fault with the Transducer or the little Black Box in the Boot/Trunk which is tucked under the Wing/Fender
I didn't go near either of these because I decided to have a look at the Instrument Binnacle First and although this fixed it for me, it might equally not fix it for you
If you are still unsure about this I would get some advice from 'Warrjon' and 'Jay Jag Jay' has also done the fix from the Transducer
At the end of the day its really you're call which way you want to go but if you decide that you want to pull the Instrument Binnacle out be VERY, VERY, CAREFUL, not to damage that Printed Circuit!
I am not an Auto Electrician or an electrical Genius like 'Warrjon' so there could be a number of reasons why your Speedo isn't working and mine decided to suddenly drop out
So faced with the choice of paying a 'Shop' to fix it, where they could charge you 'megabucks' I decided to try and fix it myself
There are 3 Main places where there could be a fault but that is not exhaustive, as you could have a faulty component or maybe a bad earth or it could be something else entirely different
So I decided to tackle what I considered to be the easiest first (others may have a different view) but I decided to take the Instrument Binnacle out
I was a little bit scared of doing this, as I have heard horror stories of those who have damaged something to such an extent that the Speedo will never work again
So you have to be REALLY CAREFUL not to damage the printed circuit because you cannot but another one
This is not a 'Big Hammer Job' you need to be as Careful as a 'Watchmaker'
You don't have much slack on those Multiplug Leads and its quite hard to see what you're doing
But basically there are 2 Multiplugs that plug into the back of the Printed Circuit which is attached to the back of the Instrument Binnacle
So once you've undone the Screws that hold the Instrument Binnacle in. you then have to VERY CAREFULLY ease it out of the dash as much as you dare
And then reach in with your hand in order to CAREFULLY disconnect (ie pull out) the 2 Multiplugs that are plugged in to the Printed Circuit
After which you can Pull the Instrument Binnacle out and then once having done so you can CAREFULLY clean the Multiplugs and Sockets
There is a Step by Step Guide of how I did this including Photos on my 'Cherry Blossom' restoration thread
And here is a link to that Page https://www.jaguarforums.com/forum/x...122634/page76/
This is Not a guaranteed fix but it worked for me and now my Speedo is working as it should be
But you could equally have a fault with the Transducer or the little Black Box in the Boot/Trunk which is tucked under the Wing/Fender
I didn't go near either of these because I decided to have a look at the Instrument Binnacle First and although this fixed it for me, it might equally not fix it for you
If you are still unsure about this I would get some advice from 'Warrjon' and 'Jay Jag Jay' has also done the fix from the Transducer
At the end of the day its really you're call which way you want to go but if you decide that you want to pull the Instrument Binnacle out be VERY, VERY, CAREFUL, not to damage that Printed Circuit!
I cleaned things per your description and now my speedo works. Thanks!
Karl
The following users liked this post:
orangeblossom (06-29-2018)
#24
#25
#26
Ok, cleaned the binnacle tangs per orangeblossum, just swapped out the speedo transducer on the diff....and the speedo still bounces around...then drops to zero.
Suggestions?
thanks...Karl
