Default 1996 XJS 4.0 I6 - Ignition Coil Wire Colors

Ignition Coil Wire Colors. My XJS 4.0 I6 had very brittle and bad ignition coil wires. I got new pigtail connectors and rewired. I'm now getting the following fault codes: P0300 Random Misfire, P0303 Cylinder 3 Misfire, P1313 Catalyst Damage Misfire Bank 1, and P1314 Catalyst Damage Misfire Bank 2. I have switched ignition coils around reset the faults and still get the same faults showing up when I start the engine. I have all new spark plugs. Although I thought I was very careful, one thought is that I got wires mixed up when rewiring the pigtails. Below are the wire colors as I currently have them. Can someone confirm this? Any thoughts on what I should check next?



Last edited by Bret; May 17, 2025 at 01:38 PM.
Reply
Old May 19, 2025 | 12:29 PM
  #2
Vee's Avatar
Vee
Veteran Member
15 Year Member
Liked
Loved
Community Favorite
Joined: May 2010
Posts: 5,350
Likes: 1,749
From: Arlington, VA
Default

Can you tell me more about the rewiring process? I would like to know specifically what you replaced, and how you did it?

Reply
Old May 19, 2025 | 08:18 PM
  #3
Bret's Avatar
Thread Starter
|
Junior Member
Joined: May 2025
Posts: 8
Likes: 2
From: Vienna, VA
Default

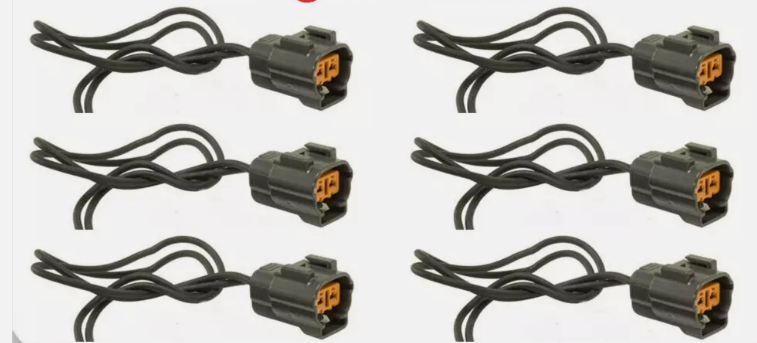

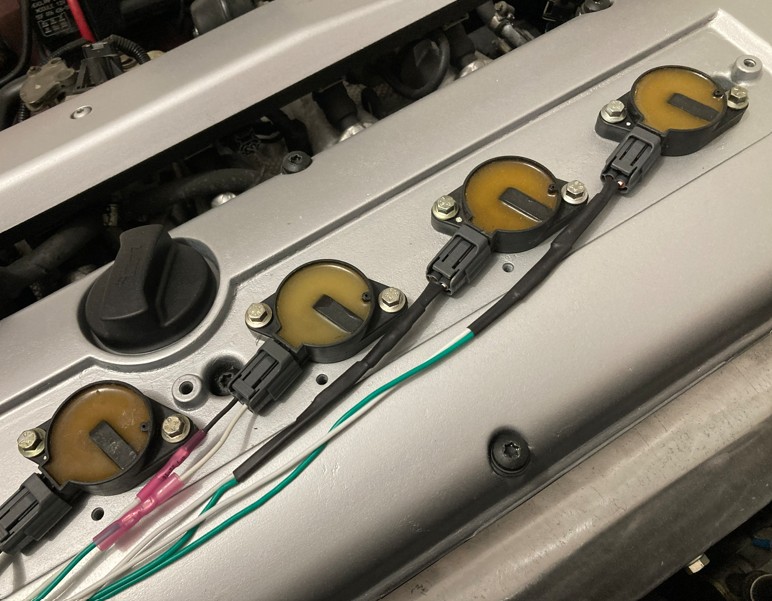

Vee, I got a set of 6 new ignition coil pigtails, then starting with cylinder 1 would clip off the old connector and splice in the new connector with crip on and heat shrink connectors. Worked front to back so I pretty sure I didn't cross the wires up. These are the pigtails and end result.


Reply
Old May 19, 2025 | 11:32 PM
  #4
Greg in France's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2012
Posts: 14,600
Likes: 10,795
From: France
Default

Arebtose connections crimped or soldered?

Reply
Old May 20, 2025 | 08:56 AM
  #5
Vee's Avatar
Vee
Veteran Member
15 Year Member
Liked
Loved
Community Favorite
Joined: May 2010
Posts: 5,350
Likes: 1,749
From: Arlington, VA
Default

Connections are crimped, which I don't have a problem with, if done correctly, however, you're assuming the problem with the wire was at the pigtail, which I can't be sure is true. Maybe you'll want to reconsider your splice? Sitting on top of the engine like that, it will vibrate for the rest of its life. Not a great condition for a crimp. Maybe use a solder seal wire connector?
Amazon Amazon

Personally, I would have run a new wire all the way back to the ECU, using GXL wire. You can get new terminal ends and extract the terminals without replacing the plastic plug itself!

Anyways, at this point, I would inspect those crimps, then inspect the rest of the wires all the way back to the ECU. THEN, I'd inspect all of the White wires, because all six come together at one point, then they again come together picking up five more wires (all four oxygen sensors and the air injection pump). All of that then goes back to the Multi-Function Relay. Of course, it could be a problem with that relay, not particularly common, but it's known to be the point of failure on a couple of posts in the past.

THEN I'd check the other wire that comes off of each coil. Those go directly back to the ECU.

When I say check, I mean look for brittleness, melty insulation, etc. Check the ECU contacts for corrosion, very common problem.

I assume you made sure to maintain the right wire at the right terminal when you replaced the pigtails?

I'm also assuming you had previously inspected the coils? Oil in the wells? These coils do not last forever.


Last edited by Vee; May 20, 2025 at 08:57 AM.
Reply
Old May 20, 2025 | 08:59 AM
  #6
Vee's Avatar
Vee
Veteran Member
15 Year Member
Liked
Loved
Community Favorite
Joined: May 2010
Posts: 5,350
Likes: 1,749
From: Arlington, VA
Default

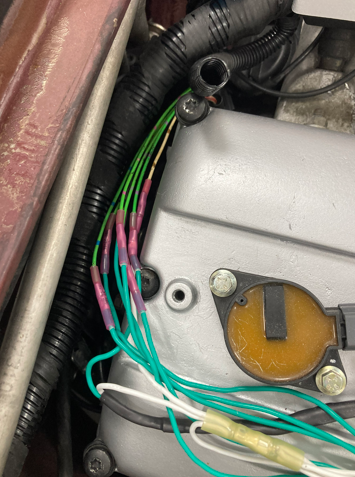

Wait, why are all the crimped wires coming off the pigtails green? Are those original?

Have you checked the wiring diagrams at jagrepair.com

Reply
Old May 20, 2025 | 11:10 AM
  #7
Bret's Avatar
Thread Starter
|
Junior Member
Joined: May 2025
Posts: 8
Likes: 2
From: Vienna, VA
Default

I replace all the wire that is on top of the valve cover back to behind the valve cover where I felt the wire was no longer brittle and cracking. I used 18 AWG Stranded Wire with Silicone sheathing to take the heat. (photo below) There was oil in the injector coil wells. That has all been cleaned up and I've replace all the valve cover seals. No more oil problems. The coil maybe original. Hard to tell. However, when I switched coils around to different cylinders, I still get the fault code on cylinder #3. So, as you suggested in your post above, maybe I need to replace all the wire back to the ECU. Was originally trying to keep the rewiring project contained to just the wire under the injector coil cover.

Reply
Old May 20, 2025 | 11:16 AM
  #8
Greg in France's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2012
Posts: 14,600
Likes: 10,795
From: France
Default

Solder the connection for cylinder 3 and test then, I suggest. I am nearly ready to update my thread on building an injector loom and refurbing the injectors. My first effort used crimped connections and the loom performed erratically. I suspected the crimps and have rebuilt the loom using soldered connections and am about to test it. If, big if, the new loom works, then I suspect that soldered connections are not quite goood enough for short-duration pulses to things like coils and injectors.


Last edited by Greg in France; May 21, 2025 at 03:33 AM.
Reply
Old May 20, 2025 | 08:44 PM
  #9
Bret's Avatar
Thread Starter
|
Junior Member
Joined: May 2025
Posts: 8
Likes: 2
From: Vienna, VA
Default

Vee, Greg, Thanks for your comments and suggestions. I'll go back and redo connections starting with Cylinder 3. Won't be able to get to it until the weekend. Will let you know how it goes. Cheers.

Reply
Old May 21, 2025 | 06:55 PM
  #10
Vee's Avatar
Vee
Veteran Member
15 Year Member
Liked
Loved
Community Favorite
Joined: May 2010
Posts: 5,350
Likes: 1,749
From: Arlington, VA
Default

I believe the connectors are Sumitomo 6195-0003

You can buy the pieces here to rebuild it. I don’t know how to release the metal contacts from the housing.

https://www.corsa-technic.com/item.php?item_id=654&srsltid=AfmBOoqQDoG4OmsO0M76j mBMwFpTx1wO0ZAKVrqFgPpjAeHMtDw-7qjX



Last edited by Vee; May 21, 2025 at 07:00 PM.
Reply
Old May 22, 2025 | 01:03 AM
  #11
Greg in France's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2012
Posts: 14,600
Likes: 10,795
From: France
Default

The pins have a barb in the flat side. You have to push a thin flat screwdriver down the pin from the connecting (open) end of the connector; this fallens the barb and with the scewdriver still in place, the pin can then be easily withdrawn.

Reply
