5.3L power steering hose - Where?
#1
5.3L Coupe power steering hose replacement - Use OEM HOSES ONLY!
I found what LOOKS like the correct part here:
SNG Barratt - The Ultimate Jaguar Parts Specialist
and here:
Terry's Jaguar Parts: Mhe3985ba

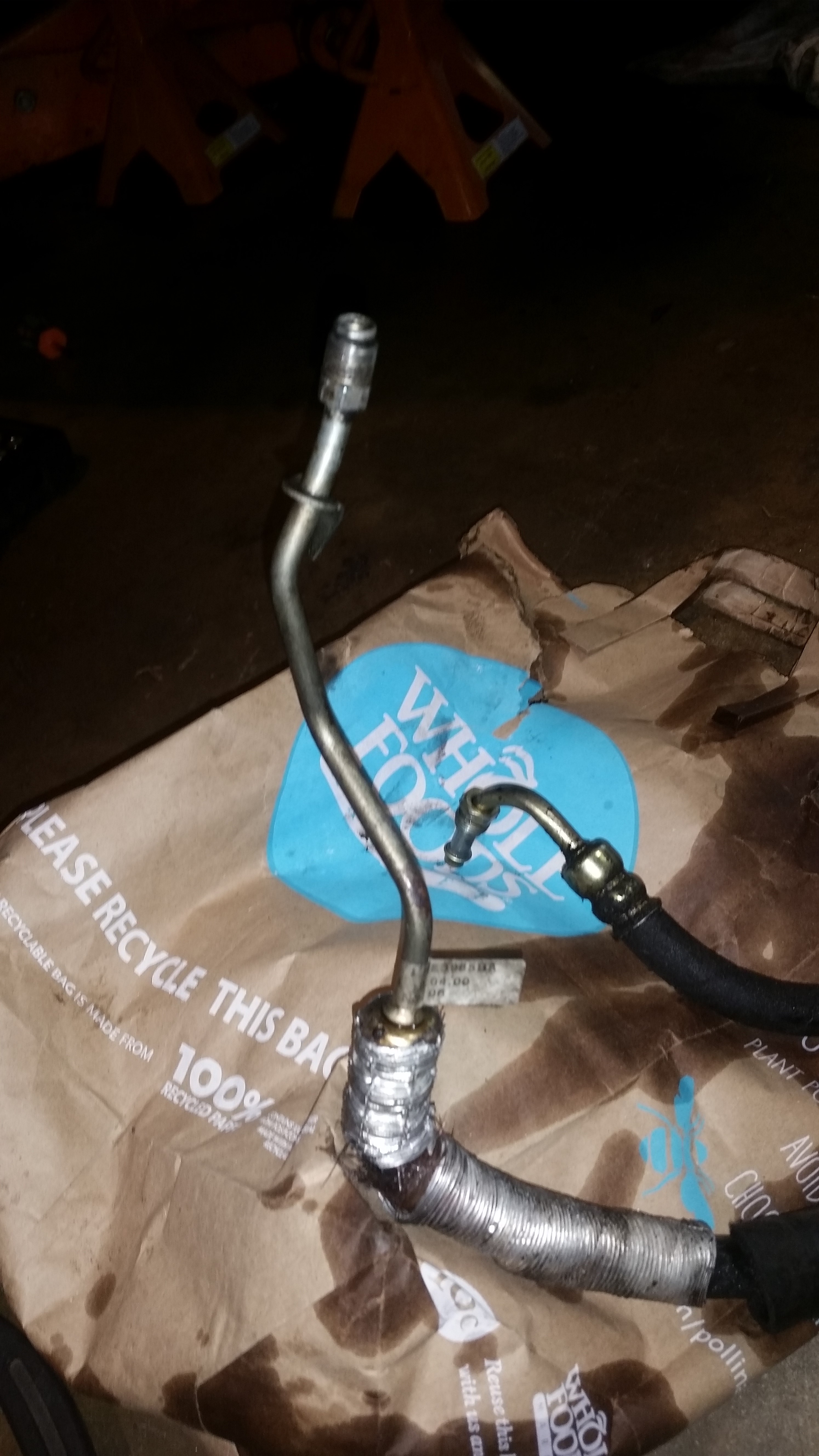

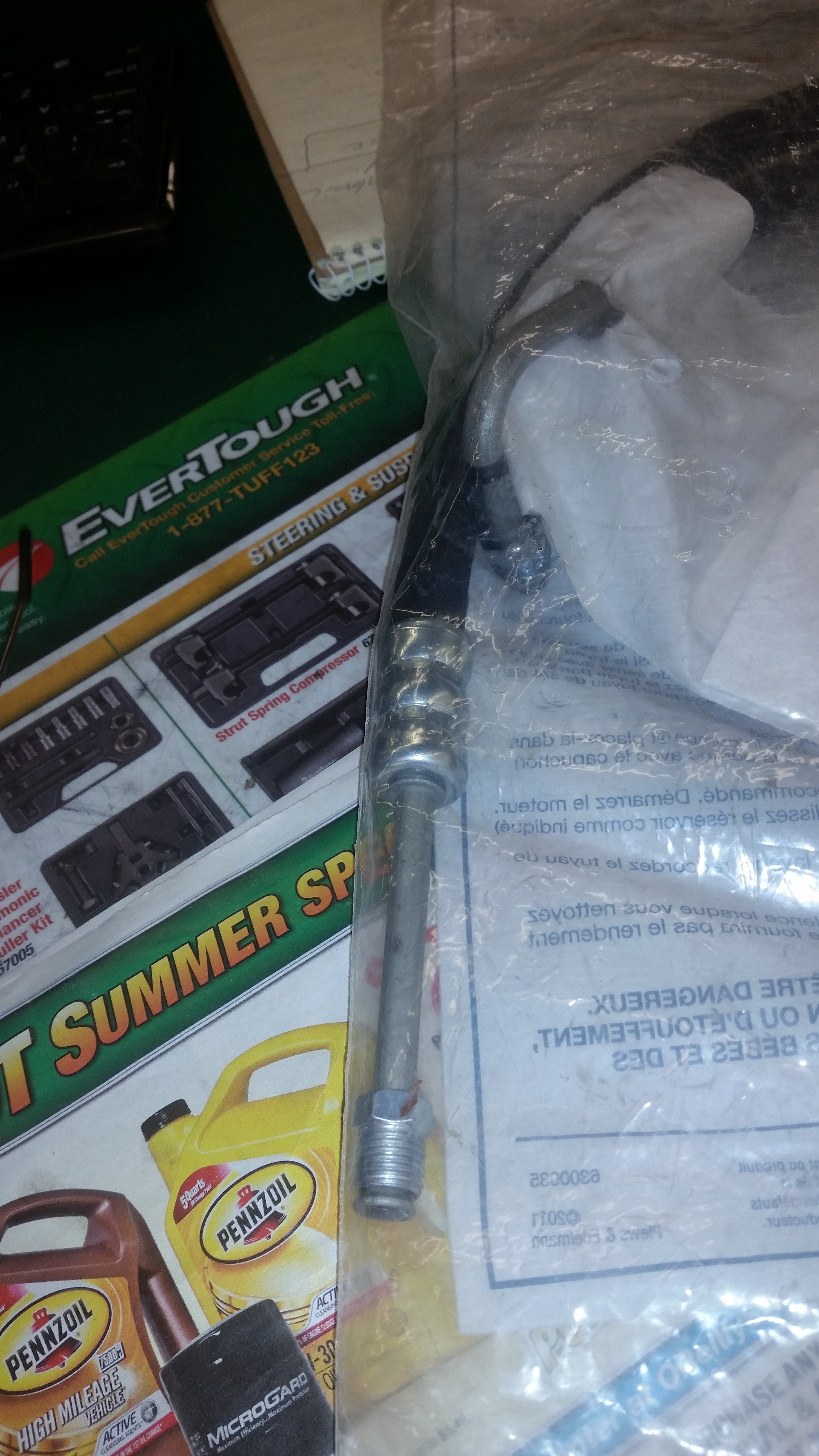

It will have some corrugated aluminum crimped on the rack end to protect it from exhaust pipe heat and 8" of steel pipe with a z-bend at the rack end.
Most aftermarket hoses like this: Beck/Arnley 109-3100 - Power Steering Hose-Pressure | O'Reilly Auto Parts
are about 6" too short, and have a short, straight pipe at the rack end. DO NOT BUY ONE OF THESE!
PLEASE buy the correct one. There is a short steel bracket (interlock) on each hose at the rack end with a curved cutout that fits over the other pipe to maintain proper alignment as the rack is jacked back into place.
Remove the left front tire. Remove the heat shield near the rack. Remove the 2 Posi-drive Phillips screws and clamps holding the metal tube to the cross-member. I disconnected the return hose at the power steering cooler to allow it enough slack to drop down further. You HAVE to unbolt and lower the rack, 6 shims will fall out. The steering shaft pinch bolt should be removed to allow the rack to drop enough to get to the fittings. Remove the return line 1st.
I had to support the rack on a floor jack pretty high up to enable the hoses to thread easily into the rack. Ensure that the interlocks line up as you tighten the fittings. Raise the rack and re-connect the steering pinch-bolt. If it's not lined up properly, you can't get the bolt to go thru. Use bolts to help insert the large fender washer shims as you press the rack back into the frame mounts. Use new #5 bolts and lock-nuts. Try to match the bolt heads and washers to the old circular washer marks on the mount slots so they maintain correct rack alignment. Use a torque wrench. (specs to follow)
Reconnect the return hose, cross-member clamps, and high pressure line at the PS pump. Replace the heat shield. Fill, start, allow it to bleed all the air out, then check and add again. Took me 4 hours, REALLY HARD and messy!
SNG Barratt - The Ultimate Jaguar Parts Specialist
and here:
Terry's Jaguar Parts: Mhe3985ba
It will have some corrugated aluminum crimped on the rack end to protect it from exhaust pipe heat and 8" of steel pipe with a z-bend at the rack end.
Most aftermarket hoses like this: Beck/Arnley 109-3100 - Power Steering Hose-Pressure | O'Reilly Auto Parts
are about 6" too short, and have a short, straight pipe at the rack end. DO NOT BUY ONE OF THESE!
PLEASE buy the correct one. There is a short steel bracket (interlock) on each hose at the rack end with a curved cutout that fits over the other pipe to maintain proper alignment as the rack is jacked back into place.
Remove the left front tire. Remove the heat shield near the rack. Remove the 2 Posi-drive Phillips screws and clamps holding the metal tube to the cross-member. I disconnected the return hose at the power steering cooler to allow it enough slack to drop down further. You HAVE to unbolt and lower the rack, 6 shims will fall out. The steering shaft pinch bolt should be removed to allow the rack to drop enough to get to the fittings. Remove the return line 1st.
I had to support the rack on a floor jack pretty high up to enable the hoses to thread easily into the rack. Ensure that the interlocks line up as you tighten the fittings. Raise the rack and re-connect the steering pinch-bolt. If it's not lined up properly, you can't get the bolt to go thru. Use bolts to help insert the large fender washer shims as you press the rack back into the frame mounts. Use new #5 bolts and lock-nuts. Try to match the bolt heads and washers to the old circular washer marks on the mount slots so they maintain correct rack alignment. Use a torque wrench. (specs to follow)
Reconnect the return hose, cross-member clamps, and high pressure line at the PS pump. Replace the heat shield. Fill, start, allow it to bleed all the air out, then check and add again. Took me 4 hours, REALLY HARD and messy!
Last edited by mkinn; 08-05-2015 at 04:28 PM. Reason: add photos
The following 2 users liked this post by mkinn:
Norfolk Enchants (12-31-2015),
TheWarlock (12-31-2015)
#2
The following 2 users liked this post by Grant Francis:
Doug (08-04-2015),
orangeblossom (08-05-2015)
#3
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,739
Received 10,749 Likes
on
7,100 Posts
I did battle with a V12 p/s hose once. It's a bitch of a job under the best of conditions. It was an replacement type that looked different but was 'supposed to work'.
Never again. The result was nothing short of abject misery.
Use an *exact* replacement or take your original hose to a hydraulics shop and have them make new one for you. Takes 20 minutes if you catch at the right moment or overnight if you don't.
Cheers
DD
Never again. The result was nothing short of abject misery.
Use an *exact* replacement or take your original hose to a hydraulics shop and have them make new one for you. Takes 20 minutes if you catch at the right moment or overnight if you don't.
Cheers
DD
#4

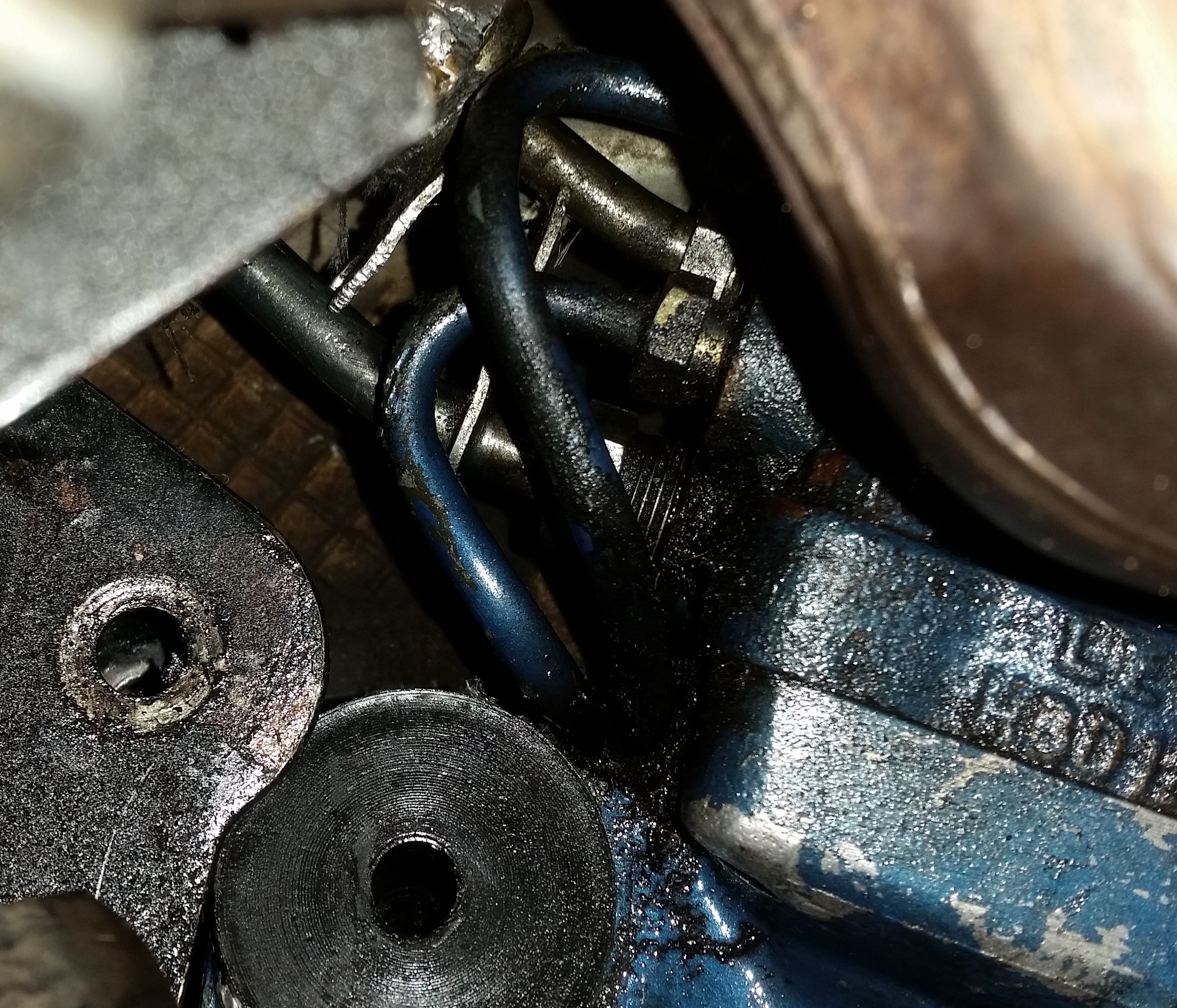

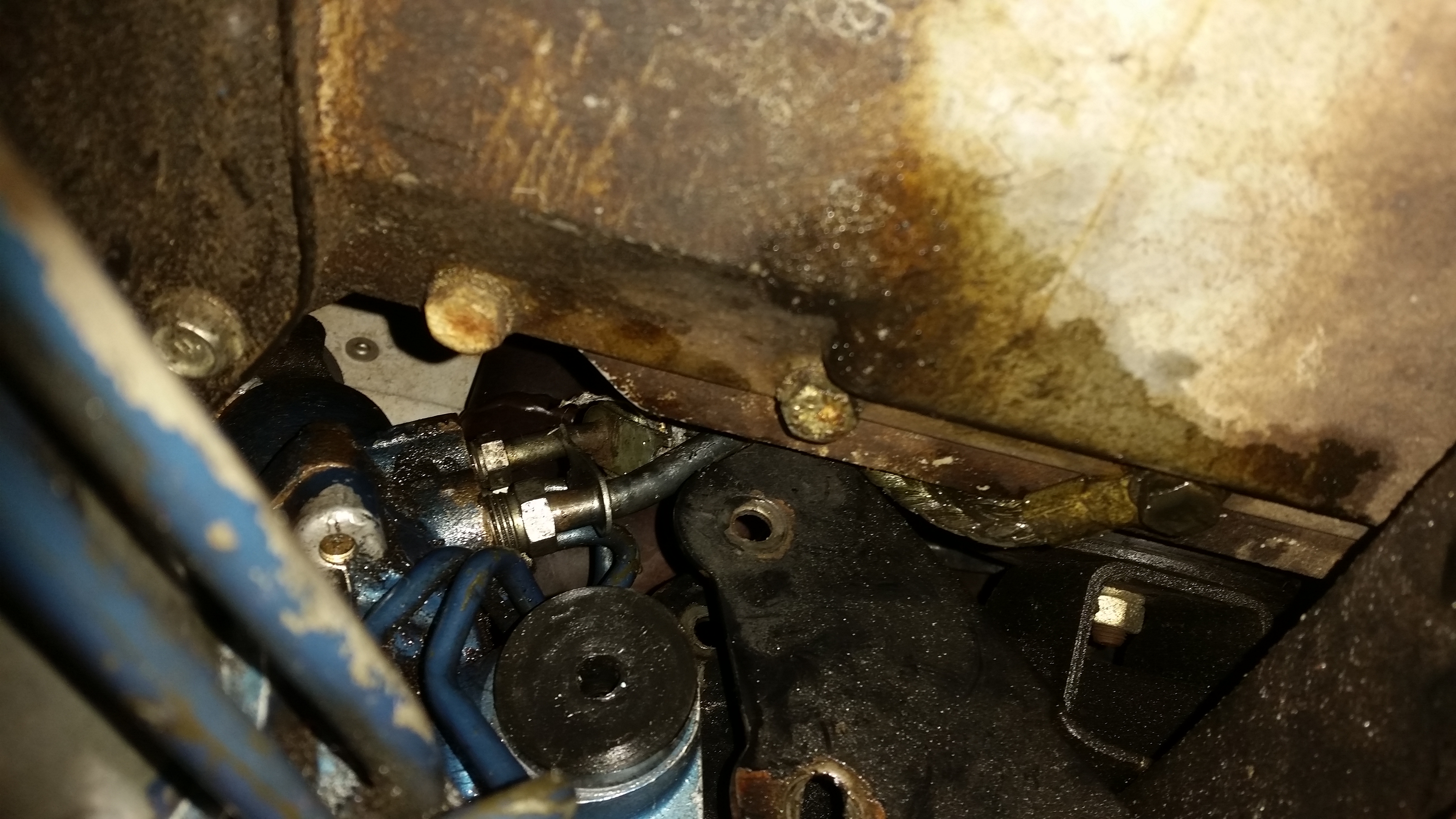

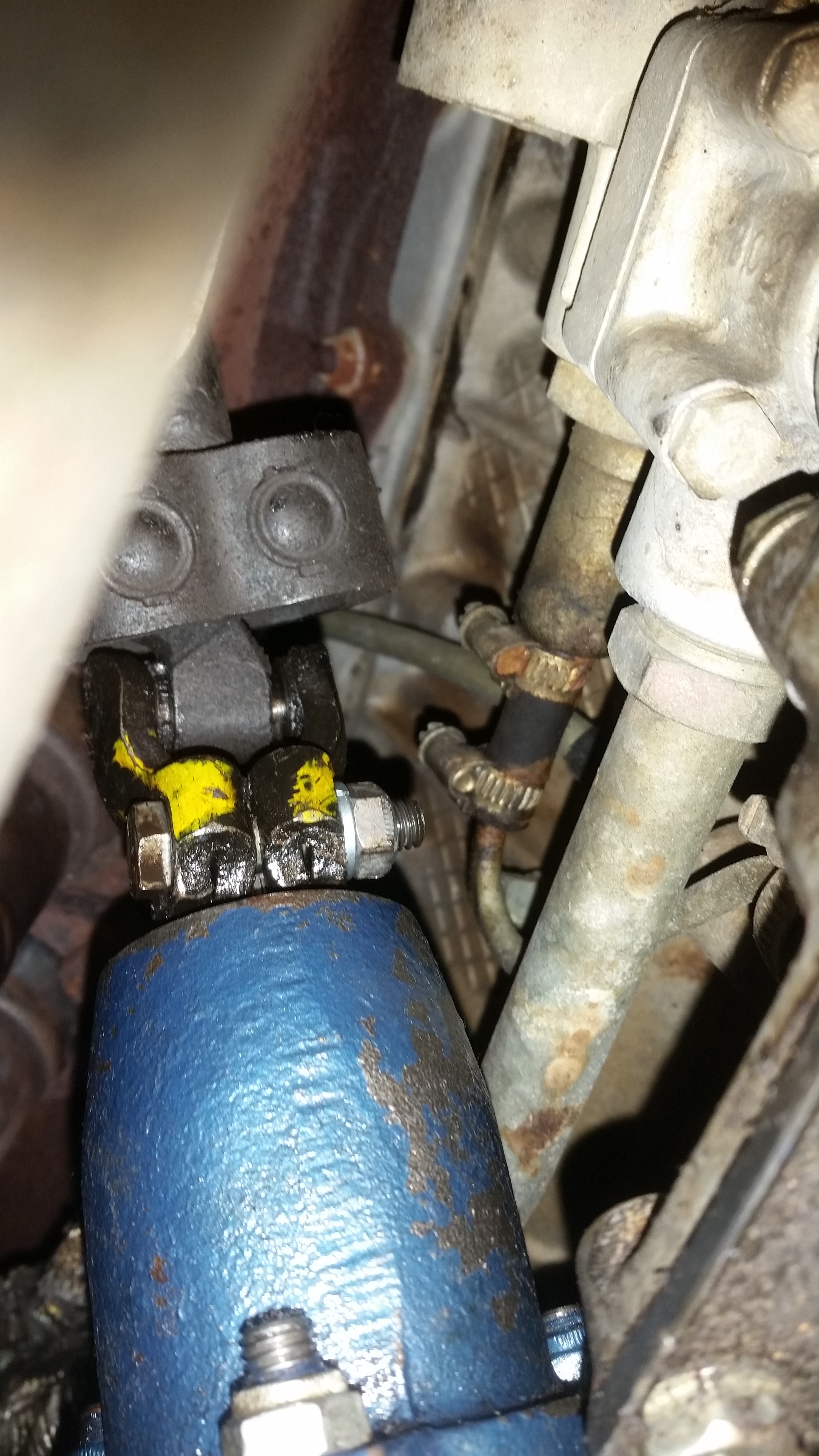

A few photos before re-assembly.

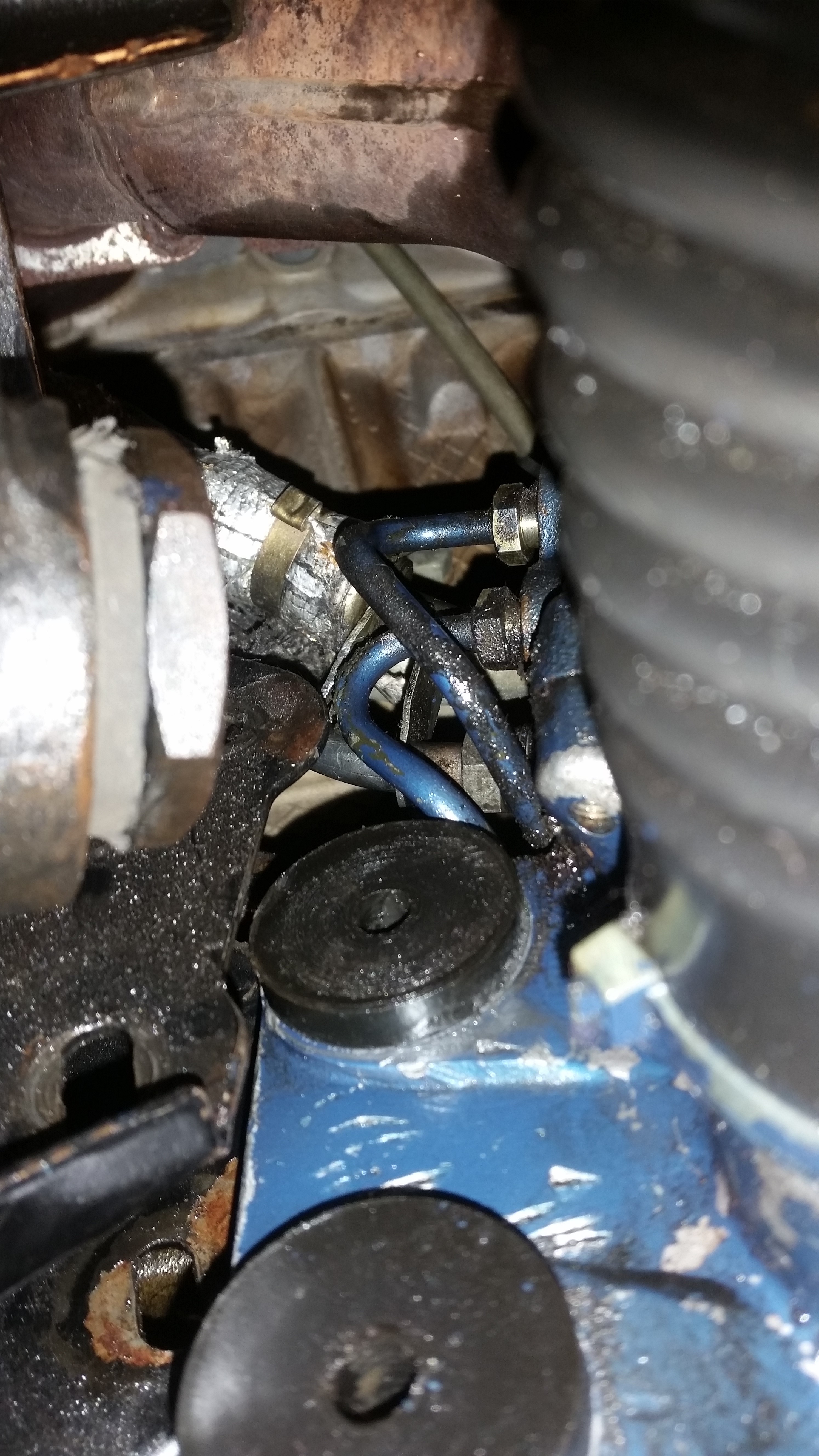

Notice the interlocks. I tightened the hose connections tight, then backed them off just enough to move the interlocks so they didn't actually touch the other pipes. Vibration might just wear a hole at the point of contact.
