You know how it is, it’s a lovely day, ideal for a drive in the XJS, wife agrees but it’s the last day of the test match and it is only broadcast on DAB, or your passenger wants his/her favourite music and no they don’t have it on CD (cassette, what’s that) because it’s on their phone like everything else. I decided it was time to upgrade the audio system, head unit and speakers. There is another long thread about radio upgrades but my experience with a 1995 Facelift car was a bit different so I thought I would share.

Head Unit:

I decided I wanted something that had DAB, would play digital files like MP3, FLAC etc, an aux input for my trusty Sony digital Walkman and have USB port(s) for phone connection and charging and Bluetooth. It also had to look period.

First choice was the Blaupunkt Bremen SQR46. This gets fab reviews and is late 1980’s style so ticks the boxes but beware IT DOES NOT FIT the Facelift cars. Basically it is too wide. The gap for the radio in the AC Controls facia of the facelift XJS is 187mm and the face plate on the Blaupunkt Bremen SQR46 is 189mm wide. I contacted Blaupunkt and they confirmed the Bremen dimensions and that the Blaupunkt Frankfurt RCM82 is 186mm wide. The original Blaupunkt Frankfurt was introduced in 1992 so this was ok for my 1995 car. Very good and prompt service from Blaupunkt by the way.

Getting the Jaguar Clarion unit out is simple, pull off the AC control knobs, the collar nuts on control shafts can be unscrewed with a small flat head screwdriver, the AC control facia pulls away after some gentle teasing with a plastic trim lever, then undo the 4 Philips head screws and pull out the unit.

Fitting the new unit is a bit more complicated. The Clarion is a DIN sized unit but it uses bespoke brackets to attach it to the centre console. The Blaupunkt Frankfurt body is DIN sized but the hole in the centre console is too big for the standard DIN cage and if you use this fixing method the radio is set back from the AC control facia and looks rubbish. The Clarion brackets don’t fit because a) the fixing holes in the Blaupunkt body are not in the same place and b) the brackets are recessed into the body on the Clarion unit so the brackets are too wide when used with the Blaupunkt. Another challenge is that the Clarion brackets have a curve in the facia mounting face so as not to foul the AC control mounting flanges.

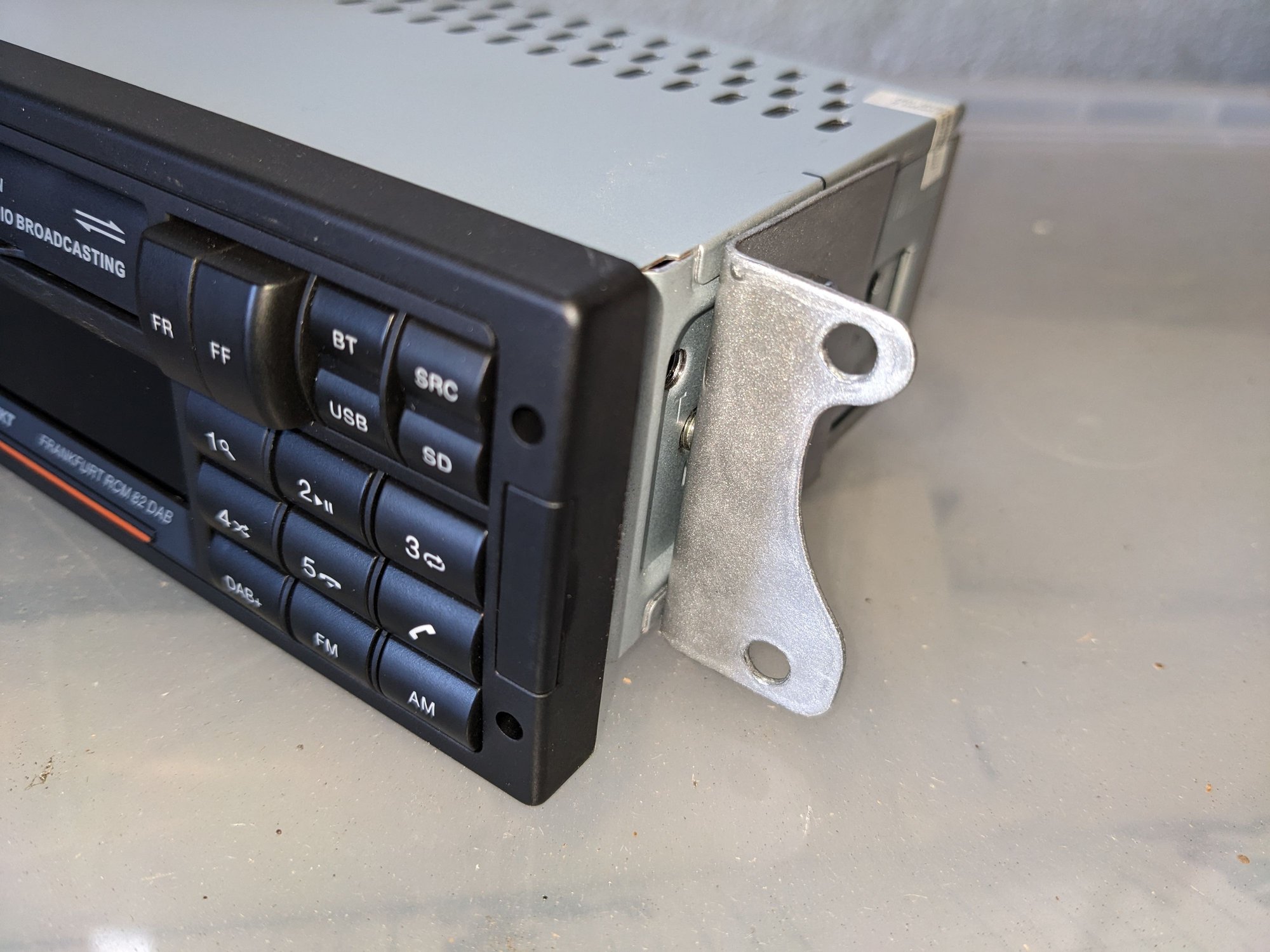

I decided to make some bespoke brackets for the Blaupunkt unit. This is not technically difficult but it does need very careful measuring. I started with a piece of 50mm x 50mm x 100mm x 1.2mm right angle steel, cut it into 2 pieces 50mm long and then used the plastic spacer that sits behind the faceplate of the Clarion unit to determine how far back the brackets needed to be and which Blaupunkt body mounting holes I could use. Having got those holes sorted I then scribed the curve from the front face of the original brackets to the new brackets and cut those out using a combination of hacksaw and Dremel grinding wheel. You need to make the new curved flange about 1.5mm narrower to balance the extra width due to the brackets not being recessed in the side of the radio body. When I was happy with the curve (attach brackets to radio and fit into AC control facia to test) I then determined the location of the top holes and just drew a vertical line down to get the bottom holes. It took the best part of a day to make these but I am slow and methodical.
I decided to paint the brackets as they were untreated mild steel and would rust with no provocation.


Painted brackets



The Clarion unit has a bespoke Jaguar electrical connector but you can get a 2 x ISO to Jaguar Block Connector adaptor on ebay and it works perfectly. The ground wire on the adaptor is free so I ran this to the ground connection behind the dashboard on the LHS above the knee roll. (I have a UK spec RHD car).

For DAB reception I bought a powered DAB splitter/amplifier from CEN in Nottingham rather than have a separate aerial stuck on the windscreen. To power this splitter I cut into the yellow +12VDC supply wire in the adaptor harness. It seems to work ok so far, I get FM and all the DAB stations I want.

The Blaupunkt has a flying USB port from the rear of the body. To use this, I bought a 1m USB extension cable with bulkhead mounting, cut a suitably sized hole in the front face of the central armrest storage, inserted the bulkhead mount, ran the cable back under centre console to the USB connector on the back of the radio. In this way I can charge phones while they are in the armrest storage. The plastic storage case in the armrest is a bit flimsy so if I did this again, I might add some reinforcement on the back of the plastic.

The body of the Blaupunkt radio is not as deep as the Clarion so there is plenty of space for the extension cable, harness adaptor, aerial amplifier/splitter and other connectors. The Blaupunkt has connectors for a remote mic but I have not used that as yet.

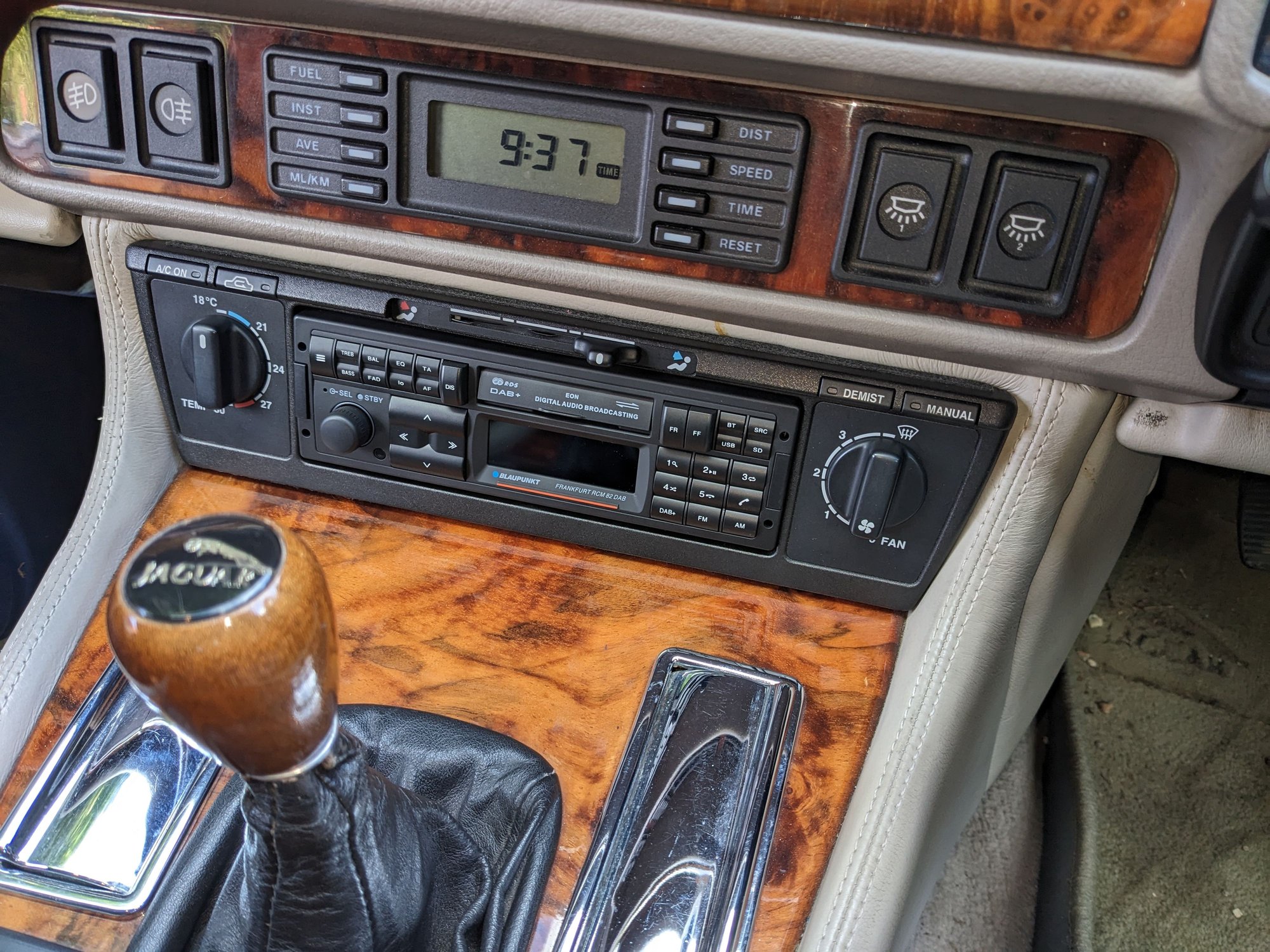

The finished installation

Speakers

Coincidently the driver’s door window was getting stuck so I decided that as I had the door panel and water shield off to get at the window runners, I would replace the speakers with something that could better handle the additional power of the Blaupunkt.

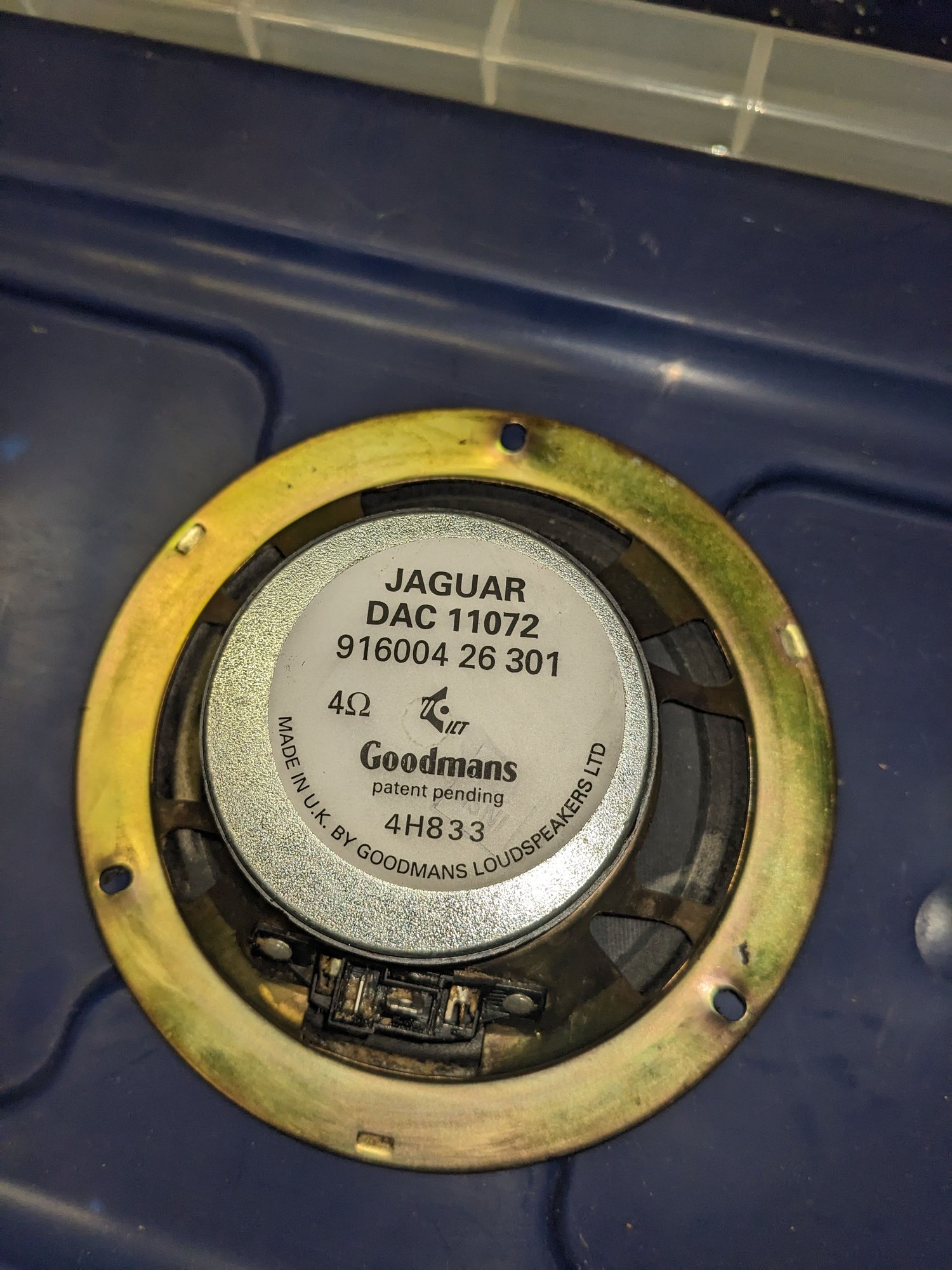

The Jaguar speakers are a bespoke 6 ¼ “ diameter (of course) but you can get 6 ½ ” speakers that will fit. You need to check the dimensions and design carefully as some new speakers have full width cages at the back so won’t fit. I went for Phoenix Gold Z65CXi units front and rear as they had a suitable power rating and lots of mounting options on the rim.

My Jaguar original speakers had a plastic connector and the new speakers will most likely have spade type connectors so you may have to change the wiring connectors as required. I assumed Black was ground and Black/White was +ve and this has worked fine.

The Jaguar speakers have three self-tapping fixings, my new speakers recommended 4 fixings. For the front speakers I drilled extra holes in the door panel so I had 4 fixings but at the rear I used the three original fixings as the material where the speaker mounts is a fibre board type material and there is not much to drill into. I also took the opportunity to add some sound deadening to the inside of the front doors.

Rear speakers – these are relatively easy to get at although the use of plastic trim levers is recommended to remove the trim panels. Lift up or lever off the arm rest then hook something behind the lower edge of the speaker grill panel and pull forward to release the clips. It has clips/studs at the bottom, the top just hooks behind the adjacent panel. All the trim panels in my car were reluctant to come out and I ended up breaking several of the fixing clips.
SNG Barratt and Jaguar say these clips/studs (Part Number AGU2519J) are no longer available but I did a search and found that the readily available Land Rover Discovery Mk1 & 2 door panel clips part number DKP5279L are exactly the same. With hindsight I would buy some of these in advance of doing the job.


Trim stud AGU2519J DKP5279L


Connecting up and fitting the speakers is using the existing fixings is straightforward and although the trim panels need a bit of encouragement to go back it is not that difficult.

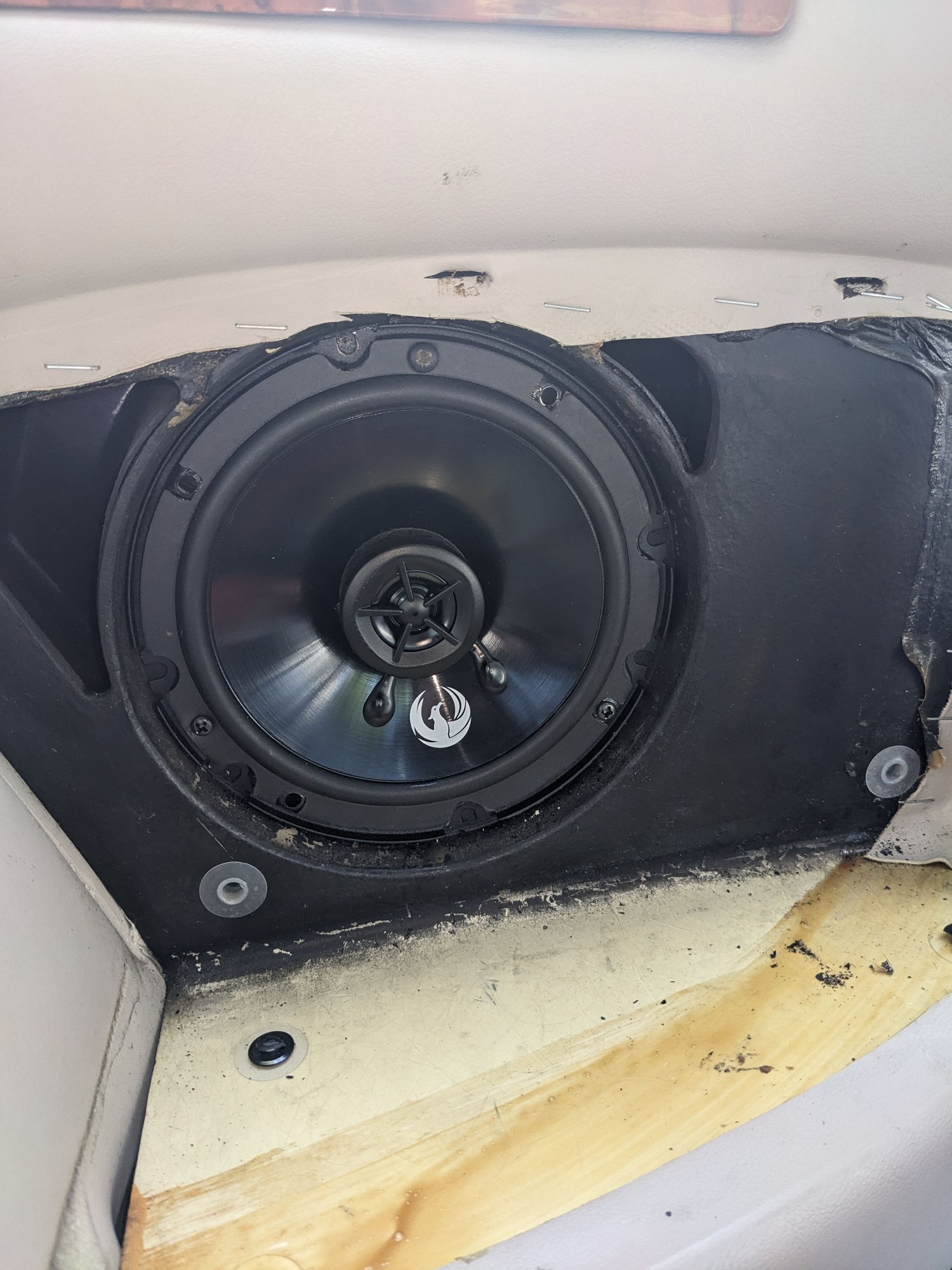

Phoenix Gold Z65CXi speakers installed in rear.
In the picture above you can see the broken stud(s) from removing the armrest.
