Electric fan install
#1
Electric fan install

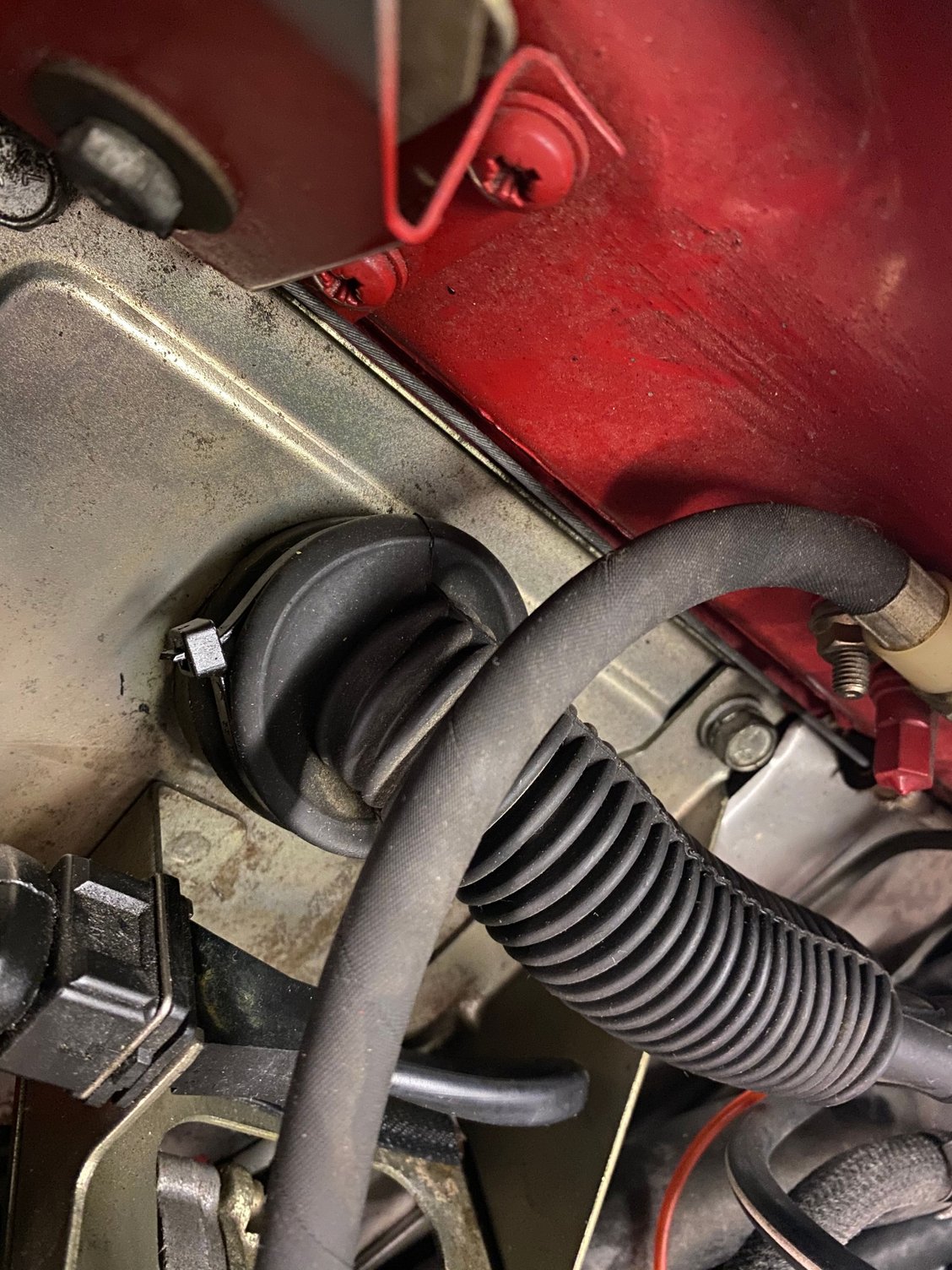

In the process of installing a 16" Derale Tornado fan. I was thinking about just running to a pigtail on the RH fuse box, but I discovered that the panel box diagram doesn't look anything like what's there - see pics. I think I can still probably do a pigtail, but thought i'd get as much info and tips as.possible before continuing.
#2
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,766
Received 10,795 Likes
on
7,118 Posts
The following users liked this post:
Timeisrelative (11-30-2020)
#3
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,766
Received 10,795 Likes
on
7,118 Posts
Getting wires into the cabin isn't the easiest thing on these cars. Not sure how you're planning to configure your wiring or how you want to trigger the fan but you can probably find everything you need in the engine bay. Constant voltage, switched voltage, ground, and a temperature switch.
Cheers
DD
Cheers
DD
The following 2 users liked this post by Doug:
Grant Francis (11-28-2020),
Timeisrelative (11-30-2020)
#4
#5
Getting wires into the cabin isn't the easiest thing on these cars. Not sure how you're planning to configure your wiring or how you want to trigger the fan but you can probably find everything you need in the engine bay. Constant voltage, switched voltage, ground, and a temperature switch.
Cheers
DD
Cheers
DD
#7
The following 2 users liked this post by baxtor:
Greg in France (11-29-2020),
Timeisrelative (11-30-2020)
Trending Topics
#8
Or maybe this thing here? Gonna have to break out the test gear...
Last edited by Pirk; 11-28-2020 at 06:25 PM.
#9
The following 2 users liked this post by baxtor:
Pirk (11-28-2020),
Timeisrelative (11-30-2020)
#10
Pirk
As Baxtor said, I ran a 12v from the firewall post (last pic in your photos) to an aftermarket fuse box, and from there to a high amperage tolerant relay too start the fan. As Grant explained to me, I trigger the relay with the OEM water pump inlet switch.
I found that in traffic the fan cycled on and off too much so i replaced the OEM switch with one that comes on at 88C and off at 85C, thus ensuring the fan did not keep cutting in and out with surges of cooler then hotter water as the car moved a bit in traffic.
Blue wire is feed from firewall post
70 amp Relay above radiator, 12v from the fuse box, triggered by the water pump inlet switch. OEM fan wired to be on with the aircon compressor.
As Baxtor said, I ran a 12v from the firewall post (last pic in your photos) to an aftermarket fuse box, and from there to a high amperage tolerant relay too start the fan. As Grant explained to me, I trigger the relay with the OEM water pump inlet switch.
I found that in traffic the fan cycled on and off too much so i replaced the OEM switch with one that comes on at 88C and off at 85C, thus ensuring the fan did not keep cutting in and out with surges of cooler then hotter water as the car moved a bit in traffic.
Blue wire is feed from firewall post
70 amp Relay above radiator, 12v from the fuse box, triggered by the water pump inlet switch. OEM fan wired to be on with the aircon compressor.
