Help. Front hub outer bearing


  #1
Old 06-14-2014, 02:15 PM
Bc xj's Avatar
Senior Member
Thread Starter
Join Date: Apr 2014
Location: Comox Valley, British Columbia
Posts: 816
Received 213 Likes on 167 Posts
Default Help. Front hub outer bearing

I need help. I tried to remove outer bearing race and it came out but it was attached to some kind of spacer. Do I remove race from spacer then locktite spacer back into hub? Is the hub shot? Is this normal?
I cant find outer bearing and seals locally as the cross reference guide is wrong. Does anyone have bearing and seal part numbers.

  #2
Old 06-14-2014, 02:55 PM
Veteran Member
Join Date: Jan 2012
Location: France
Posts: 9,032
Received 4,509 Likes on 2,880 Posts
Default

Originally Posted by Bc xj View Post
I need help. I tried to remove outer bearing race and it came out but it was attached to some kind of spacer. Do I remove race from spacer then locktite spacer back into hub? Is the hub shot? Is this normal?
I cant find outer bearing and seals locally as the cross reference guide is wrong. Does anyone have bearing and seal part numbers.
Can you post a photo of what you are describing, please?
Greg

  #3
Old 06-14-2014, 08:40 PM
Bc xj's Avatar
Senior Member
Thread Starter
Join Date: Apr 2014
Location: Comox Valley, British Columbia
Posts: 816
Received 213 Likes on 167 Posts
Default

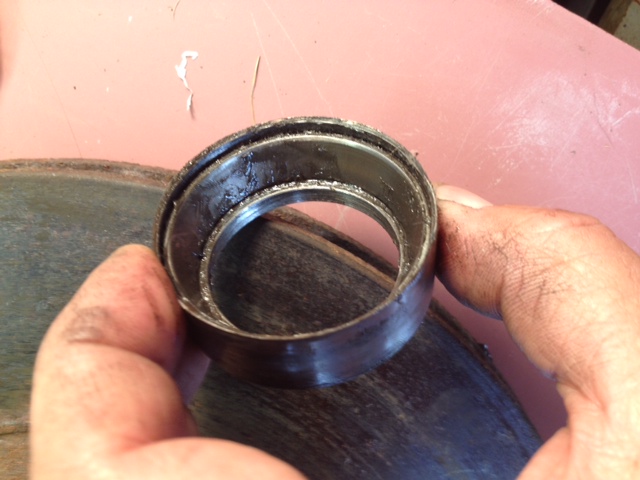

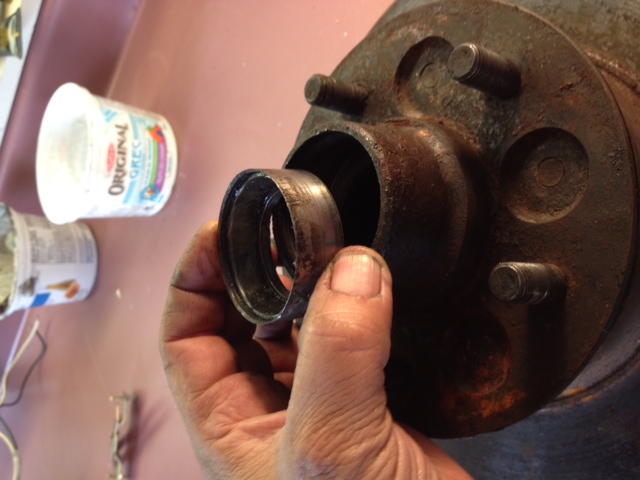

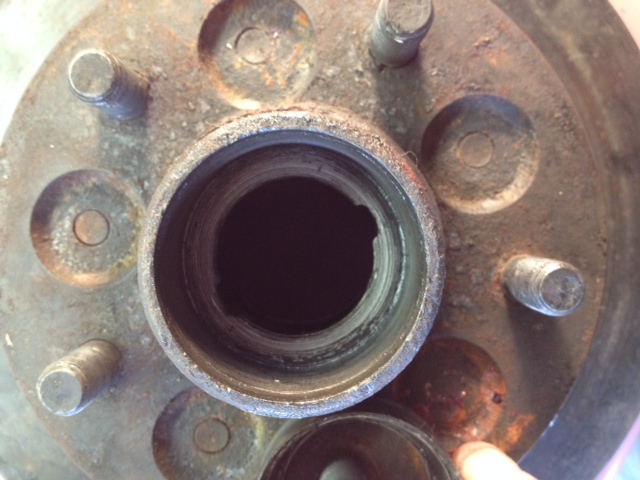

here are photos of the part. is this race in some kind of spacer? is this part of the bearing? Im confused.

Attached Thumbnails Help. Front hub outer bearing-photo-1.jpg   Help. Front hub outer bearing-photo-2.jpg   Help. Front hub outer bearing-photo-3.jpg
  #4
Old 06-14-2014, 10:38 PM
Join Date: Feb 2010
Location: Adelaide Stralia
Posts: 19,632
Received 5,826 Likes on 4,175 Posts
Default

Oh dear, I need a drink.

That bit in #2 looks like the cup of the bearing, and is ALWAYS a press/tight hammer fit in the hub. If that came out as easy as that, it has "spun" in the hub at some time in the past, and the hub is basically toast.

I have a Timken parts book somewhere, and when I finish the front wheel bearing on the S Type, I will look for you and post back.

  #5
Old 06-14-2014, 10:58 PM
Join Date: Feb 2010
Location: Adelaide Stralia
Posts: 19,632
Received 5,826 Likes on 4,175 Posts
Default

Found it.

Front Outer is Set12, which comprises LM12749 & LM12710 (same as Aussie Ford).
Front Inner is Set13, which comprises LM68149 & LM68110 (Jag specific for the LM68110).
Front seals = 473454.

Any half decent Parts mpb, bearing supplier, will have the bearings in stock, seals, dunno.

Your location I assume is USA?, so try SNG Barratt on here, in the USA, as they often have front wheel bearing kits, including seals for minimal $.

  #6
Old 06-15-2014, 12:40 AM
Bc xj's Avatar
Senior Member
Thread Starter
Join Date: Apr 2014
Location: Comox Valley, British Columbia
Posts: 816
Received 213 Likes on 167 Posts
Default

The inner bearing is a 13. The outer states a 12 but it doesn't fit. The inner diameter is just a bit to tight and the outer diameter is quite a bit smaller. My car is an 89 xjs with abs. Jagbits claims to have right part so I will try them.

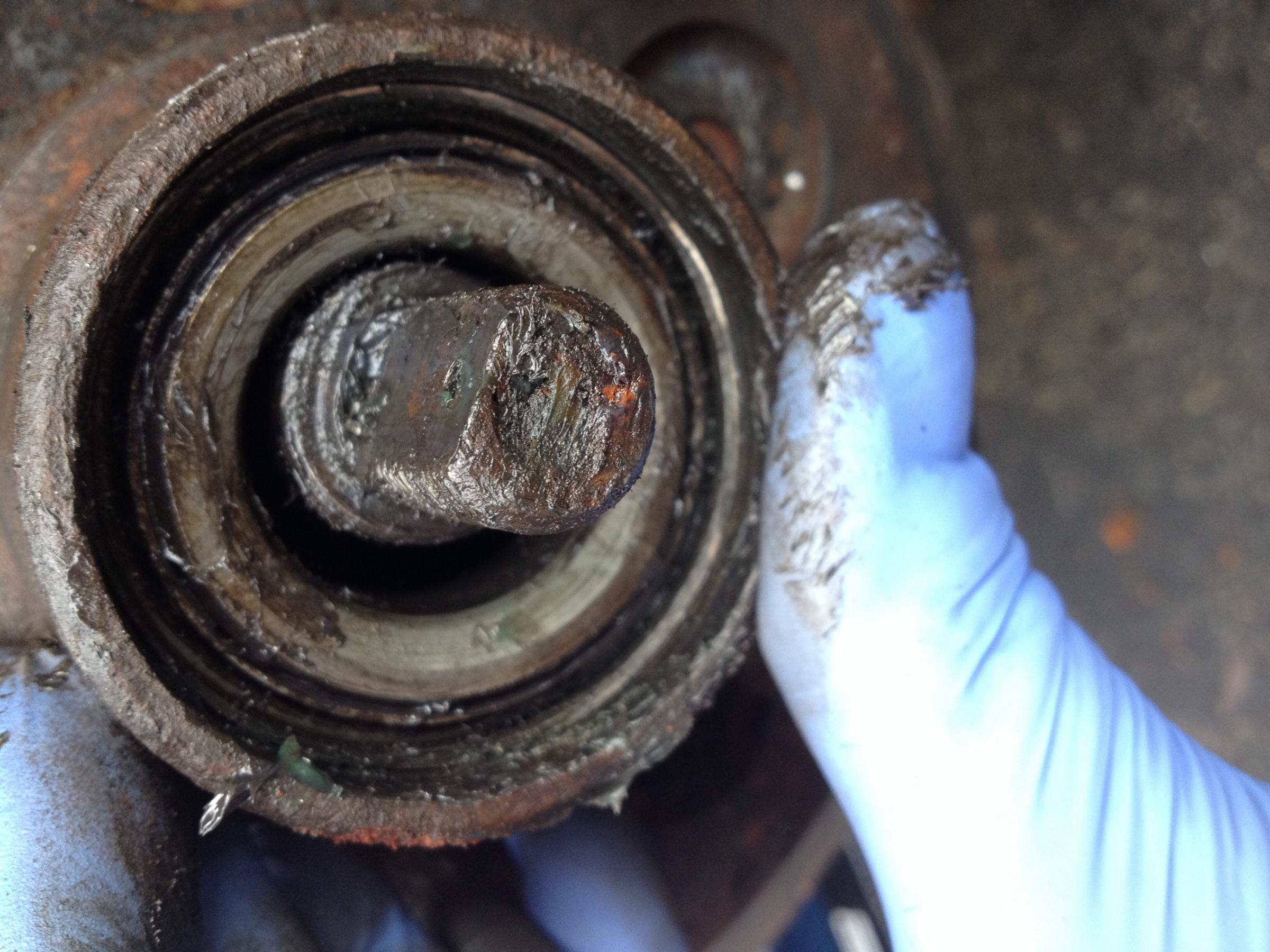

This pic is the bearing I found in there. The spindle is 2/3 s of bearing inner diameter. What were they thinking.

Attached Thumbnails Help. Front hub outer bearing-image.jpg
  #7
Old 06-15-2014, 02:19 AM
Veteran Member
Join Date: Jan 2012
Location: France
Posts: 9,032
Received 4,509 Likes on 2,880 Posts
Default

Originally Posted by Grant Francis View Post
That bit in #2 looks like the cup of the bearing, and is ALWAYS a press/tight hammer fit in the hub. If that came out as easy as that, it has "spun" in the hub at some time in the past, and the hub is basically toast.
Does this mean the hub should be replaced as well as the bearing, Grant?

Greg

  #8
Old 06-15-2014, 03:40 AM
Join Date: Feb 2010
Location: Adelaide Stralia
Posts: 19,632
Received 5,826 Likes on 4,175 Posts
Default

Greg,

If that bearing has spun in the hub, then YES. If the race has spun on the spindle, then the spindle needs replacing also. Sense of humour goes South real quick when a spindle breaks, and they do break.

The chart I used is for that year model, and is the same bearing combination right to, and including, X300. Did the Green Beast a few weeks ago. They went to "Hub Type Sealed" units from then on, big$.

I have refitted bearings into spun damaged hubs, purely as a get me home fix. Mainly on my Road Train (3 trailer semi trailer outfit unique to Aussie's). Never on a Jag. That Steel Stick stuff is a wonderful product, but not a permanent fix by any stretch of the imagination.


Last edited by Grant Francis; 06-15-2014 at 03:44 AM.
  #9
Old 06-15-2014, 06:39 AM
Senior Member
Join Date: Jan 2012
Location: Houston, TX
Posts: 124
Received 46 Likes on 27 Posts
Default

Fwiw, I'm doing my 90 abs front hubs at the moment, bearings were fortunately fine but needed new seals. As far as I can see, all parts houses list TIMKEN Part #473454**{#C45711} for this but it is incorrect. They are around 0.1 inch too large (I bought them and tried to fit). I think the ones you need are BECK/ARNLEY 0523413 (052-3413), I'll be getting these on Friday so will not be able to confirm until then.
Of course if you get the sng kit you won't have to worry about this.

  #10
Old 06-15-2014, 10:28 AM
Bc xj's Avatar
Senior Member
Thread Starter
Join Date: Apr 2014
Location: Comox Valley, British Columbia
Posts: 816
Received 213 Likes on 167 Posts
Default

So is this whole thing part of bearing race. It looks like the race was in this piece (photo 2)

  #11
Old 06-15-2014, 08:35 PM
Join Date: Feb 2010
Location: Adelaide Stralia
Posts: 19,632
Received 5,826 Likes on 4,175 Posts
Default

The wheel bearings are a 2 piece affair.

Commonly called "cup and cone".

The part with the tapered rollers also incorporates the "inner" section that fits over the spindle, then the mating "cone" sits into the hub. The 2 mate "cup and cone", with extremely fine tolerances to give the required support for the hub.

There is a cup and cone on the inner side of the hub (usually larger than the outer), and then the same arrangement on the outer (the one you show is the outer).

The parts drawing shows NO detail, so I have not attached it. I will look in a bearing book at work today, and if there is a better schematics will copy it and post back tonight.

  #12
Old 06-15-2014, 09:59 PM
Senior Member
Join Date: Jan 2012
Location: Houston, TX
Posts: 124
Received 46 Likes on 27 Posts
Default

Bernard Embden's excellent website has a good description of a front hub rebuild with photographs.
http://www.bernardembden.com/xjs/hub/index.htm

  #13
Old 07-24-2014, 06:10 AM
Senior Member
Join Date: Jan 2012
Location: Houston, TX
Posts: 124
Received 46 Likes on 27 Posts
Default

Originally Posted by texasscot View Post
Fwiw, I'm doing my 90 abs front hubs at the moment, bearings were fortunately fine but needed new seals. As far as I can see, all parts houses list TIMKEN Part #473454**{#C45711} for this but it is incorrect. They are around 0.1 inch too large (I bought them and tried to fit). I think the ones you need are BECK/ARNLEY 0523413 (052-3413), I'll be getting these on Friday so will not be able to confirm until then.
Of course if you get the sng kit you won't have to worry about this.

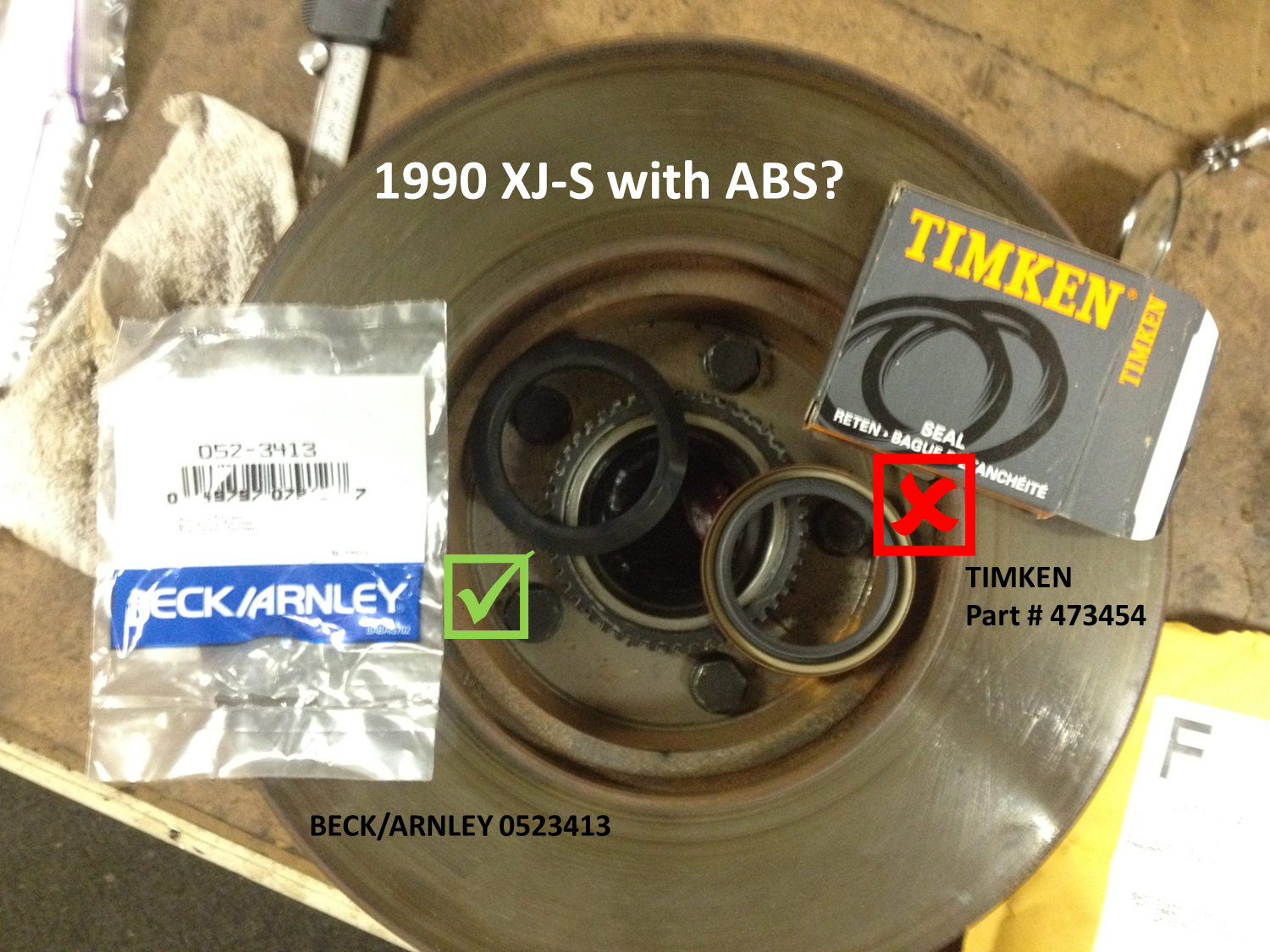

Just to round this off, here is a picture of the XJ-S 1990, with ABS, front hub seal information.
graham

Attached Thumbnails Help. Front hub outer bearing-picture2.png
The following 3 users liked this post by texasscot:
Bc xj (07-24-2014), bullittandy (05-01-2016), Dukejag (07-08-2019)
  #14
Old 07-08-2019, 02:44 AM
Senior Member
Join Date: May 2018
Location: Hunua - NZ
Posts: 257
Received 84 Likes on 58 Posts
Default

I had my front end up in the air over the weekend and checked for any play on the front wheels, nothing on one wheel and a small amount on the other.
But very noticeable.

So my choice is to tighten the wheel bearing, or try. Or replace both. 1988 XJS.

Front Outer is Set12, which comprises LM12749 & LM12710 (same as Aussie Ford).
Front Inner is Set13, which comprises LM68149 & LM68110 (Jag specific for the LM68110).
Front seals = 473454.
Or..........
BECK/ARNLEY 0523413 (052-3413)

  #15
Old 07-08-2019, 02:54 AM
Veteran Member
Join Date: Jan 2012
Location: France
Posts: 9,032
Received 4,509 Likes on 2,880 Posts
Default

Just tighten the loose one a touch; just up to "no play" and NO tighter.

The following 3 users liked this post by Greg in France:
Doug (07-08-2019), Dukejag (07-08-2019), Grant Francis (07-08-2019)
  #16
Old 07-08-2019, 05:25 AM
Veteran Member
Join Date: Jun 2013
Location: Australia
Posts: 1,226
Received 587 Likes on 451 Posts
Default

Originally Posted by Dukejag View Post
I had my front end up in the air over the weekend and checked for any play on the front wheels, nothing on one wheel and a small amount on the other.
But very noticeable.

So my choice is to tighten the wheel bearing, or try. Or replace both. 1988 XJS.

Front Outer is Set12, which comprises LM12749 & LM12710 (same as Aussie Ford).
Front Inner is Set13, which comprises LM68149 & LM68110 (Jag specific for the LM68110).
Front seals = 473454.
Or..........
BECK/ARNLEY 0523413 (052-3413)
Odds of worn stub axle are just as good as worn bearings. Try adjusting current bearings correctly and checking for play before going the new bearing route.

  #17
Old 07-08-2019, 06:26 AM
Veteran Member
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 20,147
Received 6,544 Likes on 4,856 Posts
Default

I'll ask this just on general principles because this routine service procedure is all too often neglected.....

When was the last time the hubs and bearings were removed for cleaning and re-packing?

Cheers
DD

  #18
Old 07-09-2019, 03:30 AM
Senior Member
Join Date: May 2018
Location: Hunua - NZ
Posts: 257
Received 84 Likes on 58 Posts
Default

Doug,
Not by me so no idea, only owned this car for one year... the list of repair / check stuff just gets longer and longer...LOL
I will report back after pulling the wheel and having a look.
Thanks all for the info.

  #19
Old 07-09-2019, 06:02 AM
leo_denmark's Avatar
Senior Member
Join Date: May 2016
Location: Middelfart
Posts: 583
Received 164 Likes on 111 Posts
Default

Hi

inspired by this thread I pulled LH front hub yesterday. Doesn’t look to bad, but my stub axle surely has wear at the underside at inner bearing.


Outer bearing


  #20
Old 07-09-2019, 07:07 AM
Veteran Member
Join Date: Jun 2013
Location: Australia
Posts: 1,226
Received 587 Likes on 451 Posts
Default

Originally Posted by leo_denmark View Post
Hi

inspired by this thread I pulled LH front hub yesterday. Doesn’t look to bad, but my stub axle surely has wear at the underside at inner bearing.


Outer bearing
If you reassemble and nip the bearings up all the way you may find you still have some 12 o'clock 6 o'clock play. It takes very little wear to the stub axle to upset the apple cart. I would not be afraid of using loctite on the inner bearing.

The following users liked this post:
leo_denmark (07-09-2019)
