Would it have made more packaging since to have placed the Air pump in the V the AC compressor where the alt was and the alt where the air pump was.......?
that would make the piping to the air injection very short and simple and the plugs easier to access
yes working on the AC compressor would be ----> ugly <----
Your Thoughts any one?
that would make the piping to the air injection very short and simple and the plugs easier to access
yes working on the AC compressor would be ----> ugly <----
Your Thoughts any one?
#2
The following 2 users liked this post by xjsv12:
Dr Quail (06-22-2016),
Jonathan-W (06-22-2016)
#3
I am in the process of adding a Whipple 3.3L supercharger to a 6L V12 for my 89 XJS convertible. I have the supercharger mounting in place, and am deleting the distributor, and moving the AC compressor. Not sure how all of this is going to turn out, but I HAVE to have my AC. The supercharger has been turned up on its side, and moved to the very rear of the engine in a effort to gain clearance. I really, really, really don't want to modify the hood.
The following users liked this post:
Jonathan-W (06-22-2016)
#4
Where the AC compressor is it keeps the hoses away from the exhaust manifolds. Air injection lines are smaller diameter ( the steels ones anyway) and can run closer to the manifolds.
Typically, air injection lines don't need servicing. The check valve isn't impossible to get to at the back for when those need occasional replacement.
Typically, air injection lines don't need servicing. The check valve isn't impossible to get to at the back for when those need occasional replacement.
#5
#7
Trending Topics
#8
[QUOTE=Jonathan-W;1486110]Would it have made more packaging since to have placed the Air pump in the V the AC compressor where the alt was and the alt where the air pump was.......?
that would make the piping to the air injection very short and simple and the plugs easier to access
yes working on the AC compressor would be ----> ugly
that would make the piping to the air injection very short and simple and the plugs easier to access
yes working on the AC compressor would be ----> ugly
#10
#11
[QUOTE=Grant Francis;1487026]

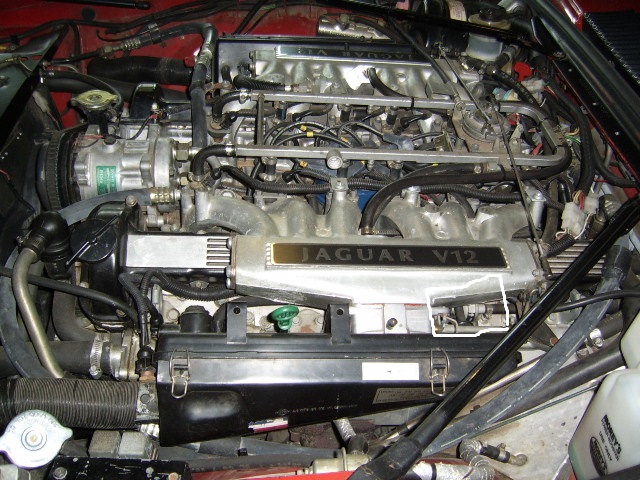

What I scribed did not transfer, so the photo sort of looks dumb, life goes on.
The original Black Monster a/c compressor would not fit anywhere else, so the V was the logical fitment place.
We no got air pumps, so a simple idler sits there.
The alternator is no big deal where it is. It is usually only removed every 20 odd years for rebuild, and comes out the top just fine.
Mine has the Sanden compact compressor, and sits in the OE position, and the 2 #1 spark plugs are easy to see and remove.
I also have E Fans, so one less belt to contend with.
Would it have made more packaging since to have placed the Air pump in the V the AC compressor where the alt was and the alt where the air pump was.......?
that would make the piping to the air injection very short and simple and the plugs easier to access
yes working on the AC compressor would be ----> ugly
that would make the piping to the air injection very short and simple and the plugs easier to access
yes working on the AC compressor would be ----> ugly
What I scribed did not transfer, so the photo sort of looks dumb, life goes on.
The original Black Monster a/c compressor would not fit anywhere else, so the V was the logical fitment place.
We no got air pumps, so a simple idler sits there.
The alternator is no big deal where it is. It is usually only removed every 20 odd years for rebuild, and comes out the top just fine.
Mine has the Sanden compact compressor, and sits in the OE position, and the 2 #1 spark plugs are easy to see and remove.
I also have E Fans, so one less belt to contend with.
The following users liked this post:
ronbros (06-25-2016)
#12
[QUOTE=Grant Francis;1487650]
What I scribed did not transfer, so the photo sort of looks dumb, life goes on.
The original Black Monster a/c compressor would not fit anywhere else, so the V was the logical fitment place.
We no got air pumps, so a simple idler sits there.
The alternator is no big deal where it is. It is usually only removed every 20 odd years for rebuild, and comes out the top just fine.
Mine has the Sanden compact compressor, and sits in the OE position, and the 2 #1 spark plugs are easy to see and remove.
I also have E Fans, so one less belt to contend with.
where can I pick up a Sanden compact compressor,? and which one is it?
What I scribed did not transfer, so the photo sort of looks dumb, life goes on.
The original Black Monster a/c compressor would not fit anywhere else, so the V was the logical fitment place.
We no got air pumps, so a simple idler sits there.
The alternator is no big deal where it is. It is usually only removed every 20 odd years for rebuild, and comes out the top just fine.
Mine has the Sanden compact compressor, and sits in the OE position, and the 2 #1 spark plugs are easy to see and remove.
I also have E Fans, so one less belt to contend with.
where can I pick up a Sanden compact compressor,? and which one is it?
#13
The following users liked this post:
Grant Francis (06-27-2016)
#14
As Greg said, and bear in mind I did all this back in 1995, and there would be many newer, more compact Sanden, Nippon, etc compressors out there that will fit.
I remember using a Toyota Corrolla comp on the real S Type 3.4ltr . and a Bosch alternator, a BMW power steer pump, a Hyundai steer rack, made my own inside ducting for the a/c, and simply assembled all the bits until it all worked just fine. All this because someone said that car could not be a/cond, or rack and pinion steer fitted, HA.
Outside of box thinking is mandatory here, and so was alcohol in those days.
I will look at my notes later and retreive the model number I used, but that unit is possibly obsolete by now, as I said above.
I remember using a Toyota Corrolla comp on the real S Type 3.4ltr . and a Bosch alternator, a BMW power steer pump, a Hyundai steer rack, made my own inside ducting for the a/c, and simply assembled all the bits until it all worked just fine. All this because someone said that car could not be a/cond, or rack and pinion steer fitted, HA.
Outside of box thinking is mandatory here, and so was alcohol in those days.
I will look at my notes later and retreive the model number I used, but that unit is possibly obsolete by now, as I said above.
Last edited by Grant Francis; 06-27-2016 at 03:36 AM.
#15
#16
[QUOTE=Jonathan-W;1488354]
ANY air con supplier in your area, or good old ?bay.
I used a Sanden SD7H15 with REAR DISCHARGE ports. It comes with TOP discharge, and the bonnet will NOT close with that configuration, so I swapped the end plate for rear discharge.

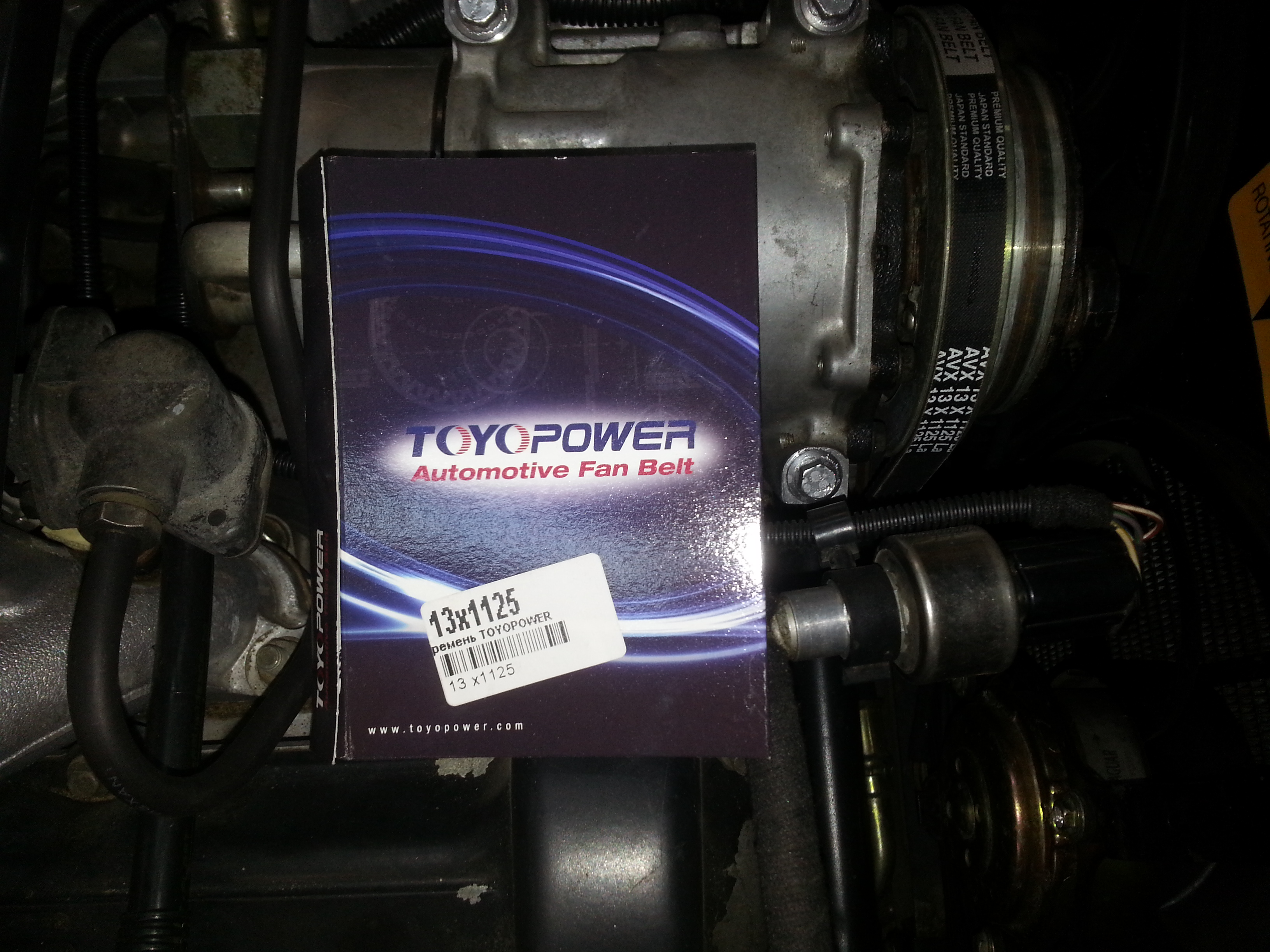

The belt is the same as the original, 13A1500 from memory.

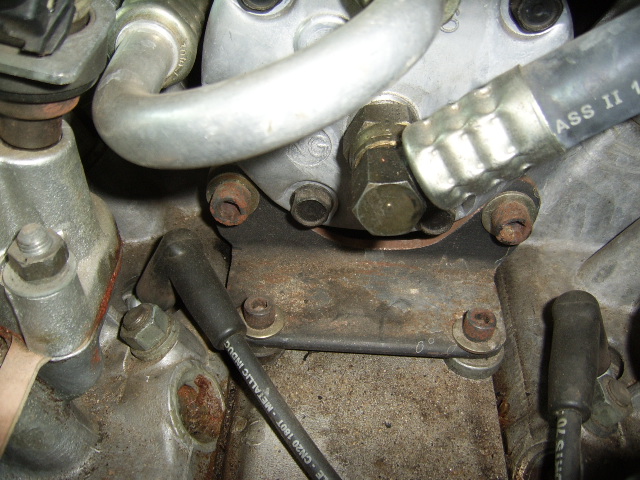

This is a snap of the rear showing the home made bracket (seriously needs painting), and the plumbing I used. The front bracket is the OLD one from the Black Monster, duly ground out to suit the Sanden.
I used a Sanden SD7H15 with REAR DISCHARGE ports. It comes with TOP discharge, and the bonnet will NOT close with that configuration, so I swapped the end plate for rear discharge.
The belt is the same as the original, 13A1500 from memory.
This is a snap of the rear showing the home made bracket (seriously needs painting), and the plumbing I used. The front bracket is the OLD one from the Black Monster, duly ground out to suit the Sanden.
The following users liked this post:
Jonathan-W (06-27-2016)
#17
In the trash, along with the balance pipe, AAV, overrun valves, engine driven fans, and shrouds etc, and all the other redundent rubbish I did not need.
Even machined the front "V" from the crankshaft pulley, as E Fans dont need that belt drive, so NO going back now.
Less weight, more speed, AHA.
Even machined the front "V" from the crankshaft pulley, as E Fans dont need that belt drive, so NO going back now.
Less weight, more speed, AHA.
Last edited by Grant Francis; 06-27-2016 at 03:38 AM.
#18
No, it wouldn't make more packaging sense to put the bigass AC lines all the way down the side of the engine compared to a few wires for the ALT. The ALT is just short enough to fit where it is, so I don't think much else would work down there. Air pump is nice because it pops right out for alt access and AC makes sense because of plumbing and the need for good support for the heavy A6.
The only complaint I have about those systems is that the rods for the tensioners are 9000 miles long so you can't get a socket on them. The belts take like a friggin hour to change on the V12 because of the stupid flat-by-flat tension system.
The only complaint I have about those systems is that the rods for the tensioners are 9000 miles long so you can't get a socket on them. The belts take like a friggin hour to change on the V12 because of the stupid flat-by-flat tension system.
#19
When I used to inform the wife that today was V belt day on the HE, she KNEW it was 6 hours at least, clever wife.
The following 2 users liked this post by Grant Francis:
Doug (07-31-2019),
Greg in France (06-28-2016)
#20
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,756 Likes
on
7,101 Posts
It isn't stupid. It's "an interesting design feature"
You need to get into the spirit of things. You're supposed to savor every turn of the wrench when working on a V12. The car knows when you're frustrated and puts up a fight just to mess with your head !
Cheeers
DD
The following 2 users liked this post by Doug:
Greg in France (08-01-2019),
jag-reflex (07-31-2019)
