Default Wiper motor, '86 XJS

On to the next item on the 'to do' list

Wiper motor not working.
New motor, New 35 Amp fuse in #9 Main fuse box.
No power at the plug
Possible causes: a) faulty relay, b) faulty stalk switch

Researched fuses in both my Service Manual and Genuine Parts Catalogue.
Cannot seem to identify the relay for the wiper motor.
We think it it is either the red or black one mounted vertically under the black plastic cover behind the drivers side headlights.

Thanks in advance, again.


Reply
Old Apr 22, 2025 | 07:07 PM
  #2
Doug's Avatar
Veteran Member
Liked
Loved
Community Favorite
Joined: Mar 2008
Posts: 25,520
Likes: 11,712
From: Pacific Northwest USA
Default

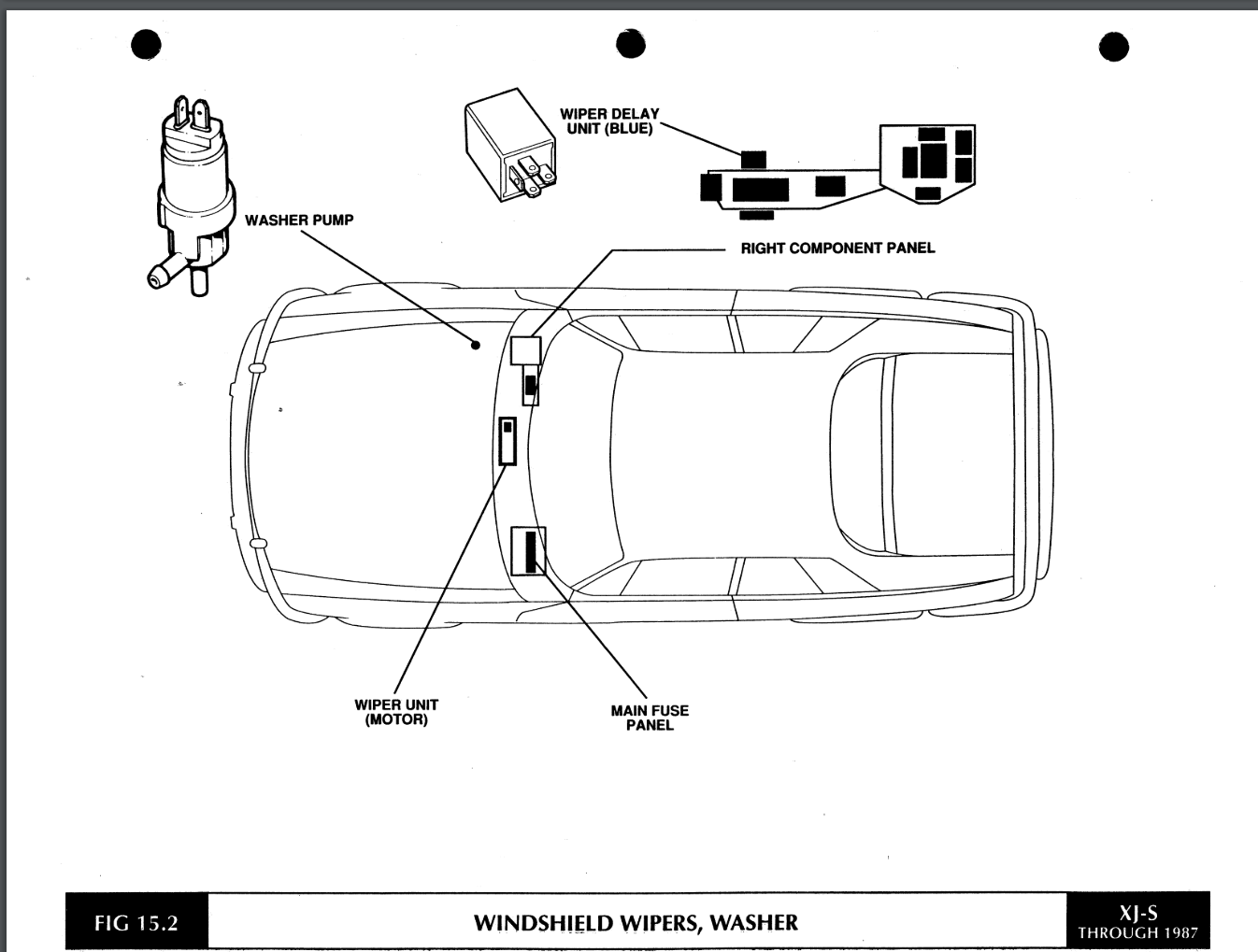

According to my S57 the relay is in the RH component panel behind the dash




































Reply
Old Apr 23, 2025 | 01:45 AM
  #3
Greg in France's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2012
Posts: 14,557
Likes: 10,743
From: France
Default

Doug is right.
