HI GUYS,
now I have time to look to the fault of my keyless entry.

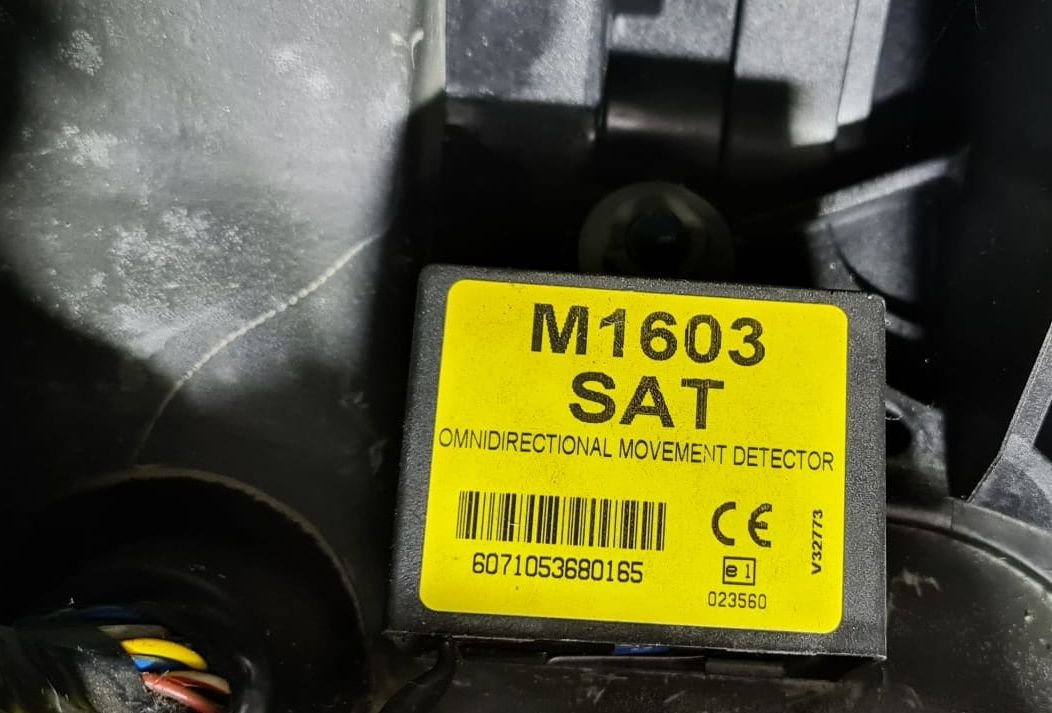

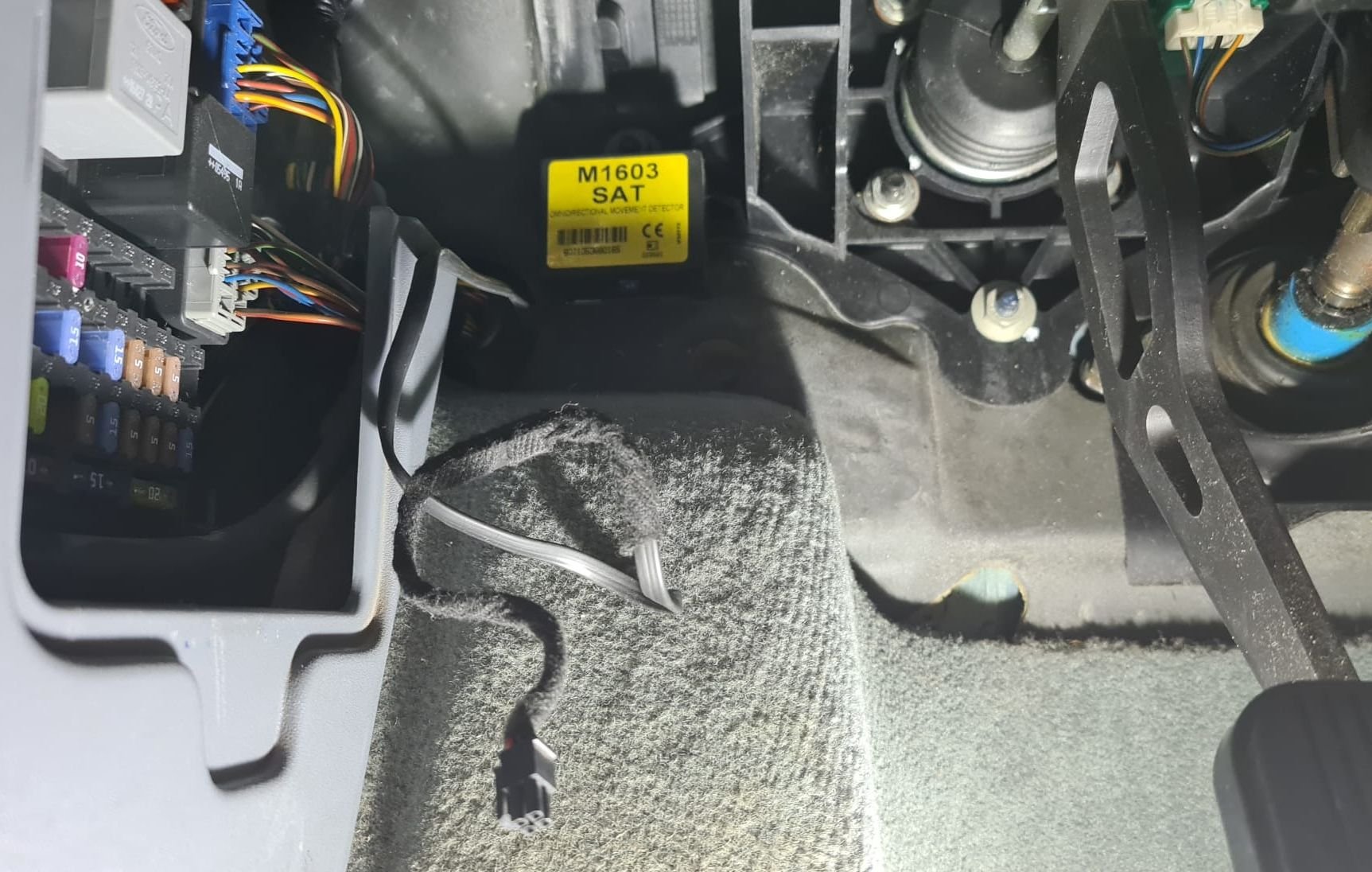

Under the instrument cluster I found a "M1603 SAT which is disconnected. I don't find this modul in the manuals.
Where must the connector go in?



It is part of an alarm system - may not be Jag installed.


Meta System M1603 position sensor

The M1603 position sensor with adjustable sensitivity is equipped with intelligent electronics, which remembers the exact position of the vehicle when the car alarm is switched on. Attempting to steal wheels, lift or tow a vehicle is safely detected and the car alarm in the vehicle is activated. The sensor is immune to shocks from passing vehicles, trams and the like.

Price 54.00 €

https://www.setech.sk/autoalarmy.html



Remote Keyless Entry (RKE) Module
Removal
NOTE:
This module is installed on the inside of the RH A-pillar above the footwell and does not change
with the hand of drive.
1 . Remove the cover and disconnect the battery ground cable.
For additional information, refer to
2 CAUTION: Removal of the clips is a delicate procedure, damage will occur if any
force is used.
Remove the RH side footwell trim panel.
Remove the 3 clips.
3 . Remove the keyless entry module.
Remove the 2 Torx screws.
Disconnect the



Consider checking the fuses first. Looks like you have a LHD car. Check fuses F3 (20 amp mini) and F19 (5 amp mini) in the Central Junction box.



Thank you,where did you find the informations?



Down load the XKR manual here Klaus:

http://www.mediafire.com/file/9uy78b...32752.pdf/file

Page 3118 in my manual.

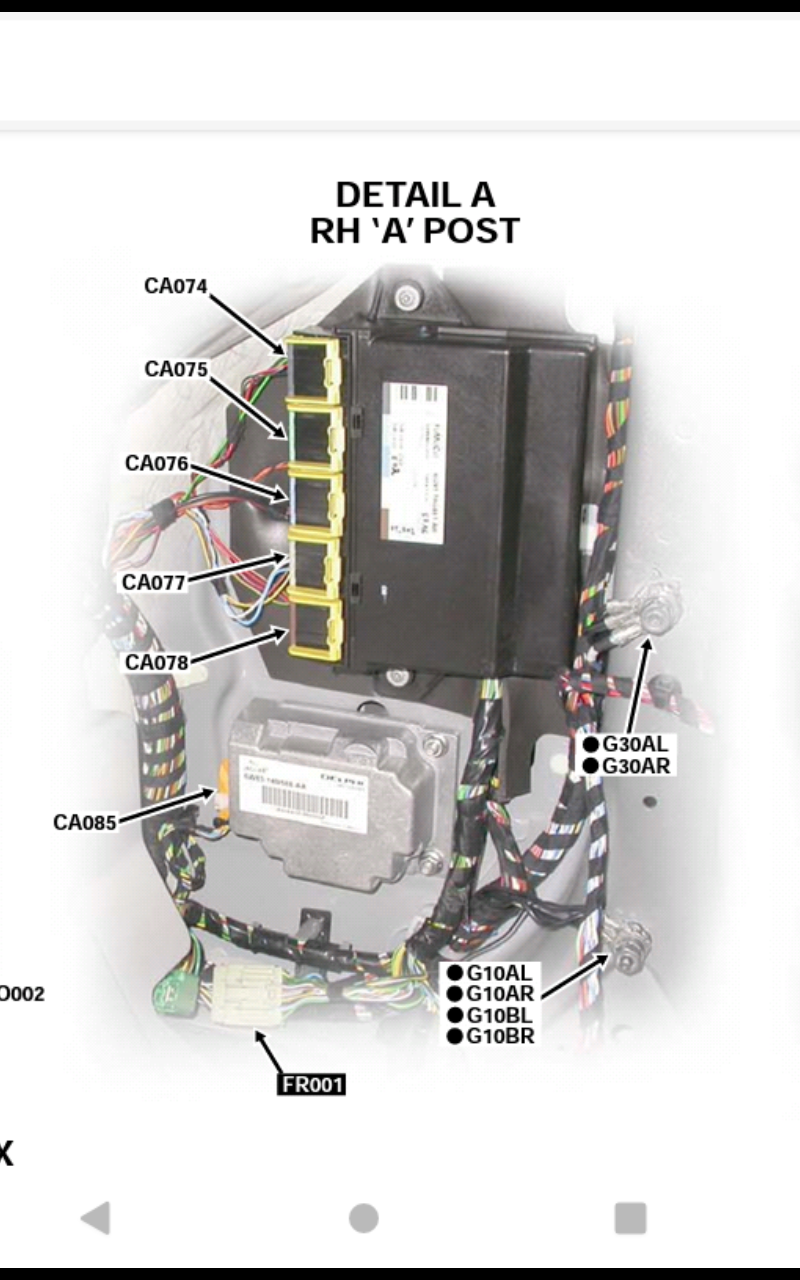

My car was stranded with a "smart key not found" message, which is probably related to your keyless entry issue. I accessed the module - behind the right side footwell panel. I unplugged and reinserted all connectors (CA074 through CA078)) and fault cleared. Don't know if fault was caused by oxidized contacts, or by module being rebooted. Don't care as issue hasn't recurred in a year.



Tracee - which manual did you get the pic from - Mac.



Thank you, I had the wrong manual.
Do you think the modul is fault?



And the left door window goes up and just down again, so I thought its the wiring harness between door and car.
I reseted the F5 fuse and let the windows up and down three times.
The right door window works correct.



Klaus - I see you have another thread on this:

https://www.jaguarforums.com/forum/x...t-work-251844/

So do you have one key fob that works ok?



"Tracee - which manual did you get the pic from - Mac"

From the "stickies" section at the head of this X150 forum. A wealth of information here.

Quote



After looking in the stickies I realized I have that two page document.



No, the XK only starts,if I take the key in the tunnel under the armrest. Opening only if I take the mechanicle key in the door. Then the alarm system run.
So I did he signalhorn cable away.

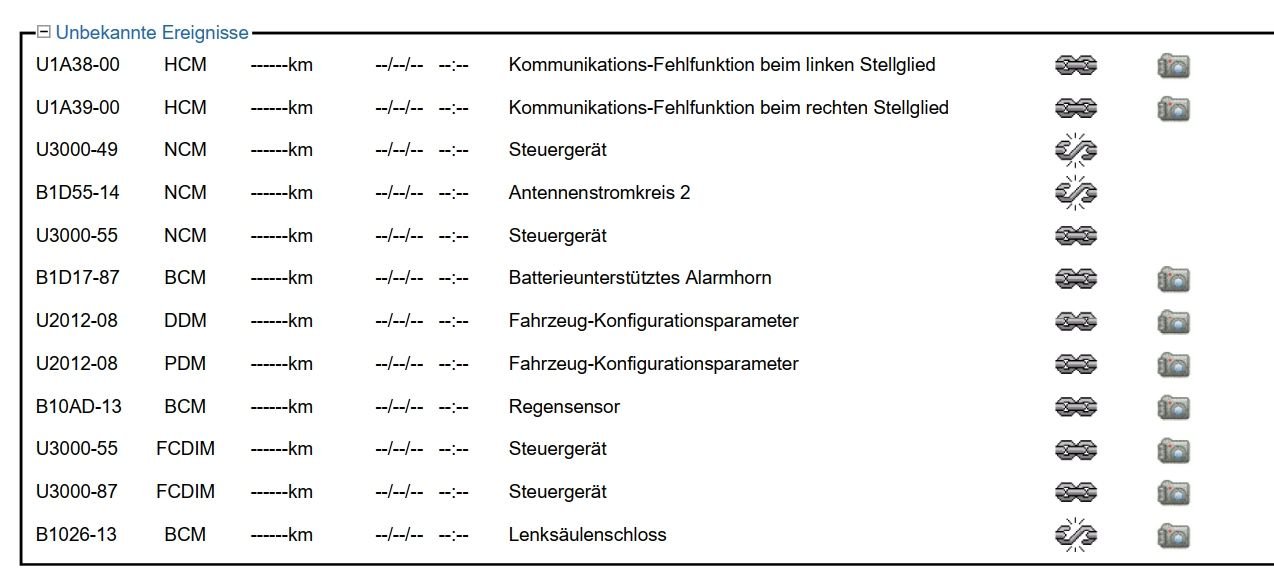

We diagnostice with SSD. These are the faults after reseting.

.
