Interesting observation on 5.0L oil cooler
#1
Interesting observation on 5.0L oil cooler
I had the car on the lift yesterday and while looking around I noticed looking into the lower grill how the oil cooler is mounted. Instead of being mounted vertical it is mounted horizontal. It runs the full length of the lower grill and it has a plastic deflector mounted on top to direct the airflow down. If you look under the nose you will see louvers where the air is expelled from the cooler. On most applications I have seen the cooler is usually vertical where the air flow is straight through the front.
#2
Hang on - the oil cooler sits in the V of the engine block, and is fed with cooled water from the main radiator (it's probably better described as a heat exchanger). What you've described is the auxiliary radiator, only fitted to the XKR:
The auxiliary radiator is connected in parallel with the (main) radiator to increase the engine cooling capacity on SC vehicles. The auxiliary radiator is mounted horizontally in an air deflector attached to the front of the charge air radiator. The two end tanks of the auxiliary radiator incorporate connections for the supply and return hoses that connect it to the main radiator.
#3
#5
#6
No correction intended. I'm glad you bought this subject up. Who would think the 5L SC had an internal engine oil cooler. My GT-R and Merc AMG both have external conventional direct air coolers which IMO would be more effective and safe.
In another diagram in the shop manual it shows a separate line coming from the water pump going to the oil cooler after the water was cooled from the radiator. Our water pumps are also known to have been revised several times because of a design defect. This may add significantly to an engine overheating rapidly when a warning message appears "over heating". I would take any warning message about overheating very seriously with this design.
Last edited by DGL; 06-27-2014 at 08:24 AM.
#7
No correction intended. I'm glad you bought this subject up. Who would think the 5L SC had an internal engine oil cooler. My GT-Rs and Merc AMG both have external conventional direct air coolers which IMO would be more effective and safe.
In another diagram in the shop manual it shows a separate line coming from the water pump going to the oil cooler after the water was cooled from the radiator. Our water pumps are also known to have been revised several times because of a design defect. This may add significantly to an engine overheating rapidly when a warning message appears "over heating". I would take any warning message about overheating very seriously.
In another diagram in the shop manual it shows a separate line coming from the water pump going to the oil cooler after the water was cooled from the radiator. Our water pumps are also known to have been revised several times because of a design defect. This may add significantly to an engine overheating rapidly when a warning message appears "over heating". I would take any warning message about overheating very seriously.
Trending Topics
#8
Picture of water pump with separate outlet to oil cooler. If this fails everything will heat up super quick. DO NOT IGNORE "OVER HEATING" WARNING! Jaguar should, also, release a bulletin to owners to not ignore "over heating" warning if they are not going to recall the defective pump.
It's no secret the original water pump is defective and will fail. Some members have lost their engines from over heating. The water pump is obviously a critical component to safe guard the 5L engine because it feeds the engine and oil cooler. IMO Jaguar should recall cars manufactured with the defective water pump and have the new designed water pump installed. I will surely install the new water pump on my XKR if I still have it when it goes out of warranty. It's not really a big job and can save your engine.
It's no secret the original water pump is defective and will fail. Some members have lost their engines from over heating. The water pump is obviously a critical component to safe guard the 5L engine because it feeds the engine and oil cooler. IMO Jaguar should recall cars manufactured with the defective water pump and have the new designed water pump installed. I will surely install the new water pump on my XKR if I still have it when it goes out of warranty. It's not really a big job and can save your engine.
Last edited by DGL; 06-27-2014 at 09:24 AM.
#9
#11
#12
#14

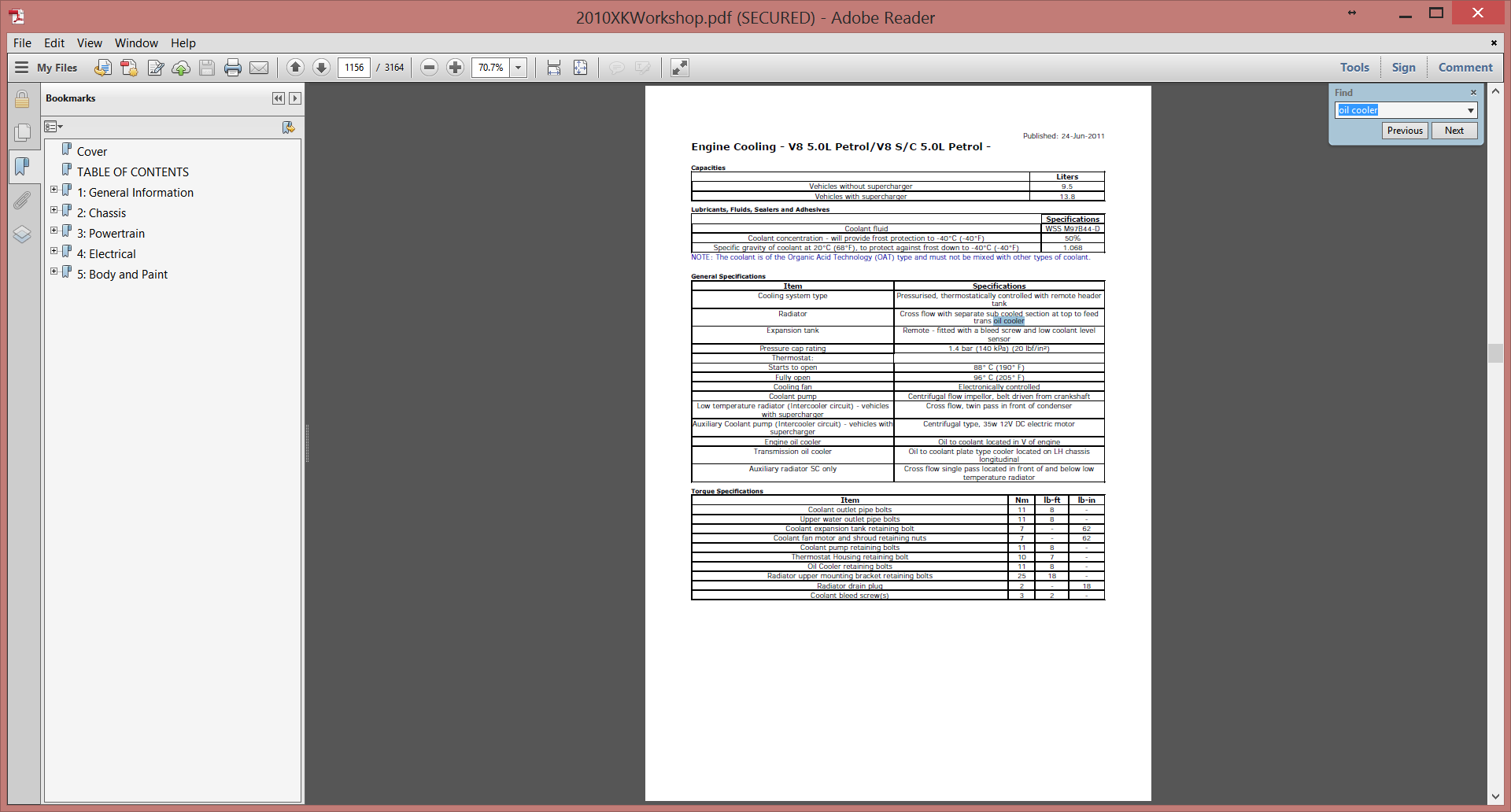

I bought mine off eBay, but apparently most of those are bootlegs of one of the forum member's work:
