Originally Posted by peterv8 View Post
I wonder why these wouldn't work for brake light and turn signal, anybody tried?
Canbus decoder

Would be alot easier!:-)
Because there are no bulbs in the 2010-onward rear lights, so where are you gonna plug that in exactly?

Those are just resistors in boxes with plugs on them, the exact same end result as adding ballast resistors to the wires.

  #22
Old 08-13-2018, 09:52 PM
kj07xk's Avatar
Veteran Member
Join Date: Jan 2015
Location: Naperville, Illinois USA
Posts: 3,015
Thanked 730 Times in 593 Posts
Default

Originally Posted by Cambo View Post
Because there are no bulbs in the 2010-onward rear lights, so where are you gonna plug that in exactly?

Those are just resistors in boxes with plugs on them, the exact same end result as adding ballast resistors to the wires.
I guess IF the resistance values are correct, you could snip the connectors off, and use the boxes instead of ‘rolling your own’ per the George Kale PDF.

  #23
Old 08-13-2018, 11:10 PM
peterv8's Avatar
Senior Member
Thread Starter
Join Date: Aug 2017
Location: Södra Sandby, Sweden
Posts: 419
Thanked 58 Times in 54 Posts
Default

Originally Posted by Cambo View Post
Because there are no bulbs in the 2010-onward rear lights, so where are you gonna plug that in exactly?

Those are just resistors in boxes with plugs on them, the exact same end result as adding ballast resistors to the wires.
Originally Posted by kj07xk View Post

I guess IF the resistance values are correct, you could snip the connectors off, and use the boxes instead of ‘rolling your own’ per the George Kale PDF.
Okay, so I need to know the resistance of these boxes anyway. I have now read about 3 different values of the resistors to get it to work so thought this might work differently.
Cambo used a 6, 8 and a 12 Ohm resistors while George used 35 and a 50 Ohm resistor and another used around 9 Ohm resistors. You read load, cheramic and wirewound resistors which confuses me.

  #24
Old 08-15-2018, 01:31 AM
MarkyUK's Avatar
Senior Member
Join Date: Feb 2013
Location: Somerset UK
Posts: 616
Thanked 127 Times in 93 Posts
Default

Can I ask what year LED rears became standard on the rear, noticed 2010 mentioned but was that 2011 MY?

Ask as am looking at buying a 2010 portfolio, which may/not have them?

The downside of LED cluster lights has always been the comparative hike in price compared to just normal filament bulbs should they fail.

  #25
Old 08-15-2018, 01:39 AM
Cee Jay's Avatar
Veteran Member
Join Date: Apr 2013
Location: Kaysville, Utah, US
Posts: 5,038
Thanked 1,032 Times in 774 Posts
Default

UK years are one less than the US cars. A 2010 5.0 is the same as a 2009 UK 5.0 and the first year of the X150 body was 2006 in UK, 2007 in USA.

  #26
Old 08-15-2018, 01:48 AM
MarkyUK's Avatar
Senior Member
Join Date: Feb 2013
Location: Somerset UK
Posts: 616
Thanked 127 Times in 93 Posts
Default

OK Cee Jay, so your saying my 2010 UK car will have them, thank you

The Following User Says Thank You to MarkyUK For This Useful Post:
Cee Jay (08-15-2018)
  #27
Old 08-16-2018, 03:28 PM
Senior Member
Join Date: Feb 2017
Location: hull
Posts: 228
Thanked 23 Times in 15 Posts
Default

Originally Posted by peterv8 View Post
Would 2013 rear lights fit my 2006? I know wiring is different but duable myself I think.
I have just done this myself a few months ago (see my pics on recent post).
The full kit isn't cheap (over £1000) but cheaper to source the lights yourself and buy the harness kit from adamesh for a few of hundred I seem to remember.
If your pretty competent you should be able to follow the wiring instructions. I rang up to clarify a couple of small things but Geoff was very helpful and was worth buying the kit than try and source the bits myself.
The other resistor method will work I'm sure but they can overheat? and takes longer to do! This kit mounts trailer tail lights behind the side panels so you don't see them and works by getting the right resistance so no error codes.
Looks great though so go for it!

  #28
Old 08-16-2018, 07:05 PM
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,194
Thanked 3,540 Times in 2,121 Posts
Default

Updating with LED rear lights?-photo468.jpgUpdating with LED rear lights?-photo407.jpgUpdating with LED rear lights?-photo540.jpg

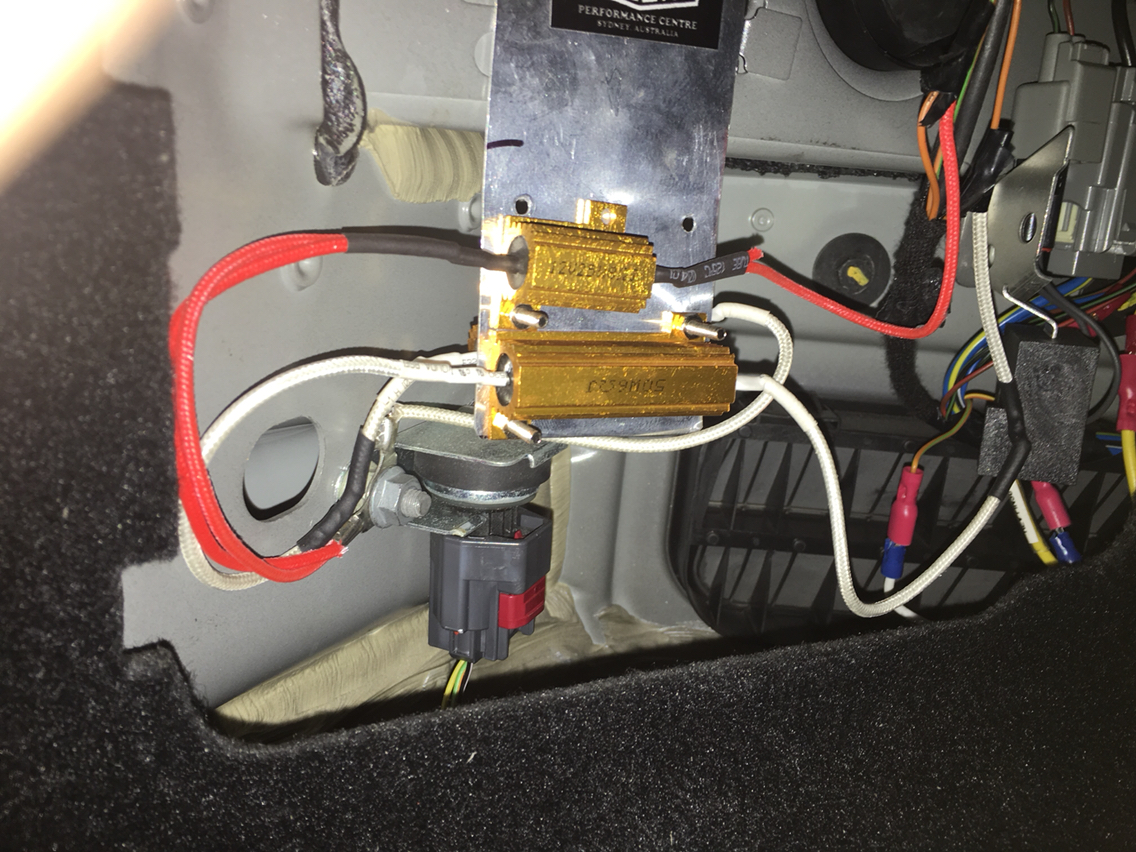

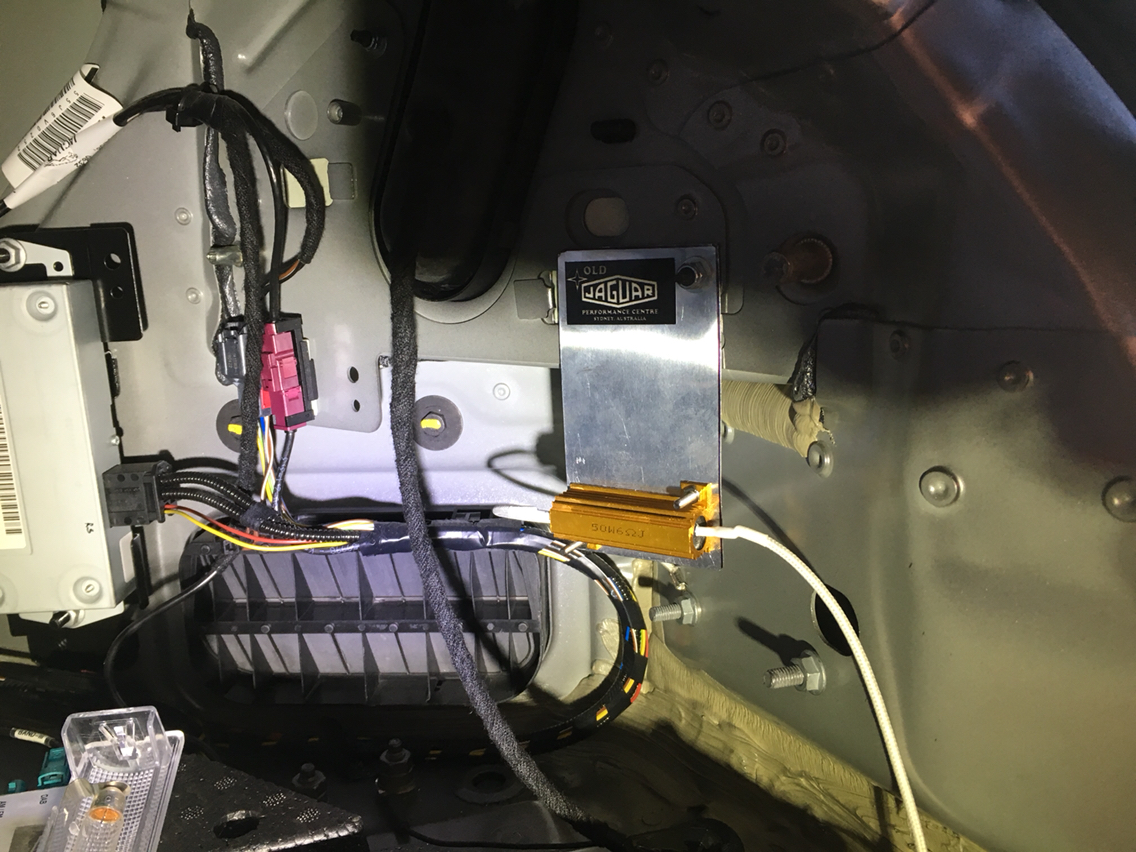

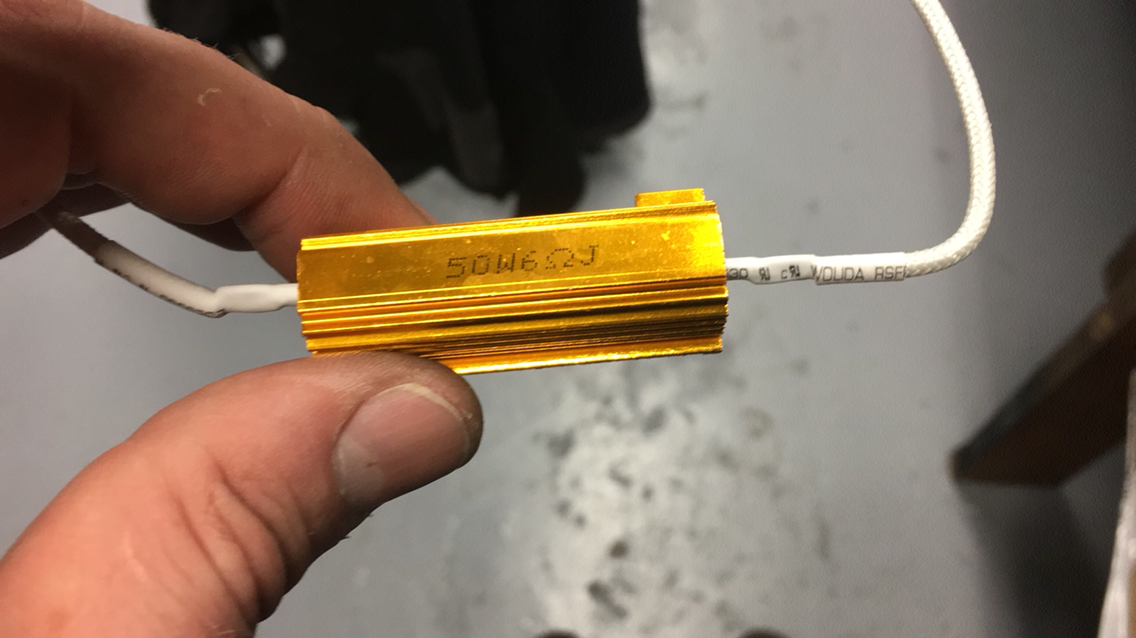

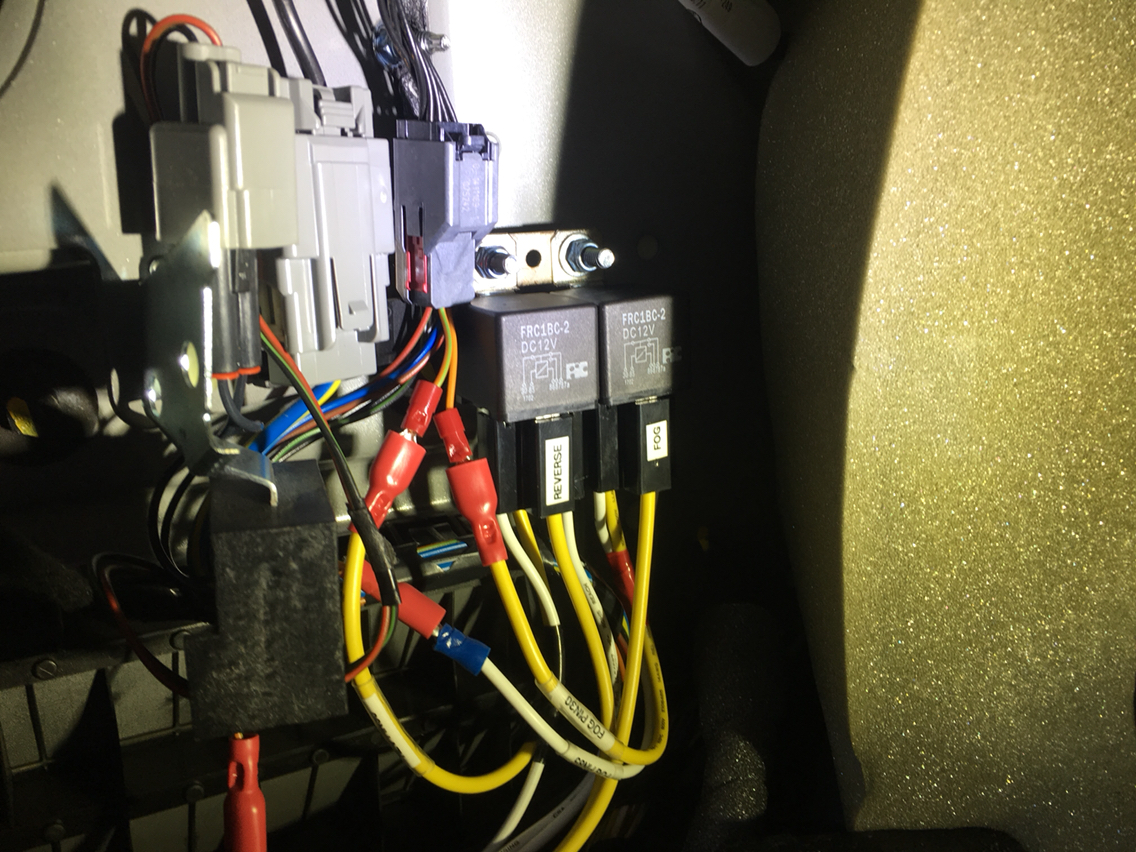

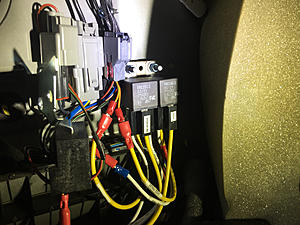

This is how I mounted the resistors, on plates so they are in the air, the heat is not a problem.

Using bulbs is a bit of a hack in my opinion...

Updating with LED rear lights?-photo375.jpg


Last edited by Cambo; 08-16-2018 at 07:08 PM.
The Following 2 Users Say Thank You to Cambo For This Useful Post:
Cee Jay (08-16-2018), Ranchero50 (08-18-2018)
  #29
Old 08-16-2018, 08:16 PM
kj07xk's Avatar
Veteran Member
Join Date: Jan 2015
Location: Naperville, Illinois USA
Posts: 3,015
Thanked 730 Times in 593 Posts
Default

Originally Posted by Cambo View Post
Attachment 216801Attachment 216800Attachment 216799
This is how I mounted the resistors, on plates so they are in the air, the heat is not a problem.

Using bulbs is a bit of a hack in my opinion...

Attachment 216802
+1

  #30
Old 08-16-2018, 09:57 PM
jahummer's Avatar
Veteran Member
Join Date: Dec 2008
Location: Florida
Posts: 3,570
Thanked 587 Times in 426 Posts
Default

And what happens when a bulb fails that you can't see? I know, easy to replace but not necessarily so obvious at first. I made my own harness and used resistors as well. The resistors get extremely hot but I've had them for a few years and no issues thus far.

  #31
Old 08-24-2018, 01:25 PM
MR-tin's Avatar
Junior Member
Join Date: Jul 2018
Location: Netherlands
Posts: 10
Thanked 0 Times in 0 Posts
Exclamation

I was planning to install the newer led rearlights on my '06 XK, but sold the car unexpectedly yesterday.
I'm left with the lights now, so if anyone reading this might be interested, i'm asking 700 Euro (thats about 800dollar or 630pound).
Located in the Netherlands but i can ship worldwide no problem.
Lights are in brandnew condition, only missing the wiringharness to make them work correctly.



  #32
Old 09-01-2018, 03:35 AM
peterv8's Avatar
Senior Member
Thread Starter
Join Date: Aug 2017
Location: Södra Sandby, Sweden
Posts: 419
Thanked 58 Times in 54 Posts
Default

They are on the car and working! As different people here give different resistance on resistors I choose to go the bulb way. I used T10 socket with 16w bulbs, made a bracket and works! Really easy to change a bulb if one should brake but how often do they break?
As for the connector I couldn't get the pins out to relocate them so I cut the connector off and also cut the connector off inside the car where I connected it all together.



The fog/reverse lights are not connected yet, my plan was to cut the connector on the lights open and solder on the wires but allways a change of breaking one so am search ing for the OEM connectors. No scrapyard in Sweden has a car standing so was wondering if anybody on here knows of a scrapper with a 2010+ car where one can get the connectors? I don't think a scrapper bothers if I emailed them for such a tiny item so was hoping someone on here knows of one nearby and can cut them off and send them to me, I got Paypal to pay for it.:-)

  #33
Old 09-01-2018, 09:39 AM
hafren's Avatar
Senior Member
Join Date: Sep 2014
Location: Dayton, Ohio USA
Posts: 482
Thanked 133 Times in 88 Posts
Default

For connectors & terminals you don't need to just look for an XK you'll find other Jaguars with similar connectors & even Ford & Volvo - remember who owned Jag when your car was made. I had success walking a scrap yard and even asking an ebay seller to remove the connector from the window switch he was selling & sell it to me independently of the switch . Good luck.

  #34
Old 09-02-2018, 02:31 AM
peterv8's Avatar
Senior Member
Thread Starter
Join Date: Aug 2017
Location: Södra Sandby, Sweden
Posts: 419
Thanked 58 Times in 54 Posts
Default

Originally Posted by hafren View Post
For connectors & terminals you don't need to just look for an XK you'll find other Jaguars with similar connectors & even Ford & Volvo - remember who owned Jag when your car was made. I had success walking a scrap yard and even asking an ebay seller to remove the connector from the window switch he was selling & sell it to me independently of the switch . Good luck.
Thanks but trying to find such a small connector on another Jag or Volvo is like finding a needle in a haystack!:-)

  #35
Old 02-10-2019, 05:10 AM
peterv8's Avatar
Senior Member
Thread Starter
Join Date: Aug 2017
Location: Södra Sandby, Sweden
Posts: 419
Thanked 58 Times in 54 Posts
Default

Couldn't find a car of which I could get the connectors so I soldered the wires directly.


I've read you need relays for it to work cause they will flicker and turn off if you connect both fog lights directly due to bigger load with 2 lights. Today I tested connecting the fog lights directly to the car and they lid up just fine, no flickering or turning off!? I haven't tried the reverse side yet as the car is of the road and didn't want to start the car to get it into reverse.
Will I get the problem or does it differ between cars that some work and some need relays?

  #36
Old 02-10-2019, 07:10 AM
kj07xk's Avatar
Veteran Member
Join Date: Jan 2015
Location: Naperville, Illinois USA
Posts: 3,015
Thanked 730 Times in 593 Posts
Default

Originally Posted by peterv8 View Post
Couldn't find a car of which I could get the connectors so I soldered the wires directly.


I've read you need relays for it to work cause they will flicker and turn off if you connect both fog lights directly due to bigger load with 2 lights. Today I tested connecting the fog lights directly to the car and they lid up just fine, no flickering or turning off!? I haven't tried the reverse side yet as the car is of the road and didn't want to start the car to get it into reverse.
Will I get the problem or does it differ between cars that some work and some need relays?
I think even George Kale said that you may or may not need the relays. Mine needed them, as they would turn off without them (although I was testing with the backup lights).
So you may be lucky, but you won’t be sure until you check the backup lights.
