2006 xk8 backup sensors
#2
As noted in thread searches, Start car, put car in reverse after setting parking brake and turn off ignition switch. Exit car with key still in run position and go to rear of car. A stethoscope is helpful in listening for a clicking sound coming from each of the 4 sensors (assuming same as earlier mdls). If any one is not clicking, it is defective. If all click, another problem exists such as unplugged sensor, control module defect or the alert warning device (Buzzer) is defective. These are some suggestions I discovered when my alert was not working. It had a bad sensor. This is a common sensor on Ford, BMW and Other European cars. Two center
sensors are straight type and 2 corner are angle type. The China vendor I used on E-bay had a sensor stamped Made In Germany. Figure that?
sensors are straight type and 2 corner are angle type. The China vendor I used on E-bay had a sensor stamped Made In Germany. Figure that?
Last edited by kstevusa; 06-28-2016 at 06:04 PM.
The following 2 users liked this post by kstevusa:
muskox3437 (08-09-2018),
Salu498 (06-28-2016)
#3
+1 on the function check.
If there's no clicking and the fuse is OK, next check connections to the Module (item 8) and Speaker (item 5).

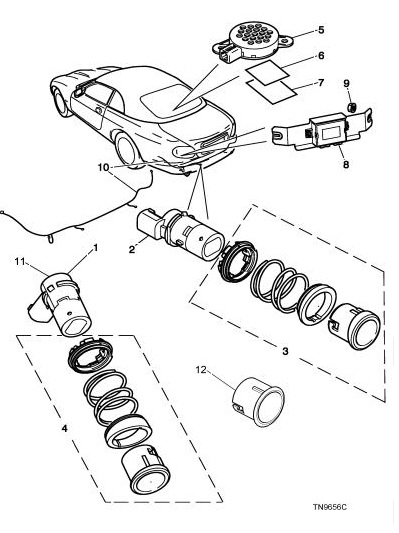

(click on the image to enlarge it)
The Module is in the corner of the Luggage Compartment next to the spare wheel. The Speaker is inside the rear of the Centre Console.
Graham
If there's no clicking and the fuse is OK, next check connections to the Module (item 8) and Speaker (item 5).
(click on the image to enlarge it)
The Module is in the corner of the Luggage Compartment next to the spare wheel. The Speaker is inside the rear of the Centre Console.
Graham
The following users liked this post:
Salu498 (07-23-2016)
#4
Hello Salu498,
Did you get your backup sensors to sound? Mine are all clicking when I listen with the stethoscope but no warning is sounded. Does that mean they are all functioning properly and I should be looking at the module or the speaker? Or is there still a potential problem with one of the sensors?
Bob
2000 S type
Did you get your backup sensors to sound? Mine are all clicking when I listen with the stethoscope but no warning is sounded. Does that mean they are all functioning properly and I should be looking at the module or the speaker? Or is there still a potential problem with one of the sensors?
Bob
2000 S type
#7
Hello Salu498,
Did you get your backup sensors to sound? Mine are all clicking when I listen with the stethoscope but no warning is sounded. Does that mean they are all functioning properly and I should be looking at the module or the speaker? Or is there still a potential problem with one of the sensors?
Bob
2000 S type
Did you get your backup sensors to sound? Mine are all clicking when I listen with the stethoscope but no warning is sounded. Does that mean they are all functioning properly and I should be looking at the module or the speaker? Or is there still a potential problem with one of the sensors?
Bob
2000 S type
Last edited by astromorg; 08-11-2018 at 12:12 PM.
Trending Topics
#8
S type? He has an XK8 correct?
Anyway I believe the buzzer/beeper thingy is on the rear of the centre console. Hang on I will see if I can find you a picture.
Ok this is my article on fixing a 'Green Shower' replacing the hydraulic hoses, yes I know it does not sound relevant. However if you follow the link. Keep scrolling down the pages quite a way you will see the bit where I remove the cover at the centre console and release that buzzer/sounder thingy. Just look for the picture with the large blue plastic lever thingy. You will know it when you see it. Here is the link. https://www.jaguarforum.com/showthre...=1#post1094300
Hope it helps.
Anyway I believe the buzzer/beeper thingy is on the rear of the centre console. Hang on I will see if I can find you a picture.
Ok this is my article on fixing a 'Green Shower' replacing the hydraulic hoses, yes I know it does not sound relevant. However if you follow the link. Keep scrolling down the pages quite a way you will see the bit where I remove the cover at the centre console and release that buzzer/sounder thingy. Just look for the picture with the large blue plastic lever thingy. You will know it when you see it. Here is the link. https://www.jaguarforum.com/showthre...=1#post1094300
Hope it helps.
Last edited by frankc; 08-11-2018 at 04:21 AM.
#11
Hi Frank and astromorg.
It is an S type. I thought that backup sensors would be fairly similar model to model. I can't tell an S type from an X type from the rear in these early 2000 models and I figured the sensors would be common to both models. Regardless, I am now looking hard at the module because I have a CATS system fault that emanated from the neighbouring module on the trunk wall and this car suffered water entry sometime in its history. I had a look at the connector but it seems to be good and clean. The module and its mount have white stains on them probably from water.

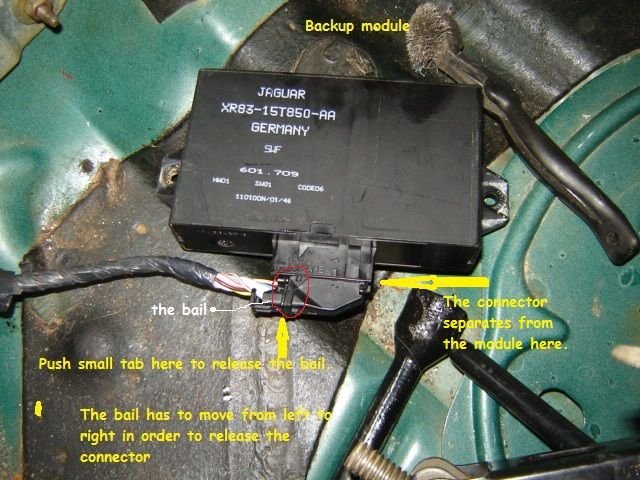

I had my usual problem removing the connector---it seems that every connector has a secret as to how it should be removed. I will attempt to show the pictures I took of the connector for other dullards like me who have never met such a collection of connectors before. As per usual I broke a little of the plastic off before I found the secret on this connector. I have managed to upload the pictures of the connector removal for those like me.
Thank you both for you help. Much appreciated.
Bob
