HVAC blower fan micro relay(s) location
#1
HVAC blower fan micro relay(s) location
Greetings ,

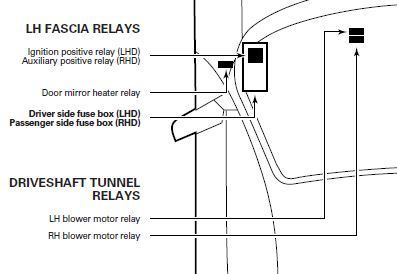

I'm scratchin my head here, all doc's indicate there should be 2 micro relays for the hvac blower fans
located in footwell on drivers side LHD (along trans tunnel) but I'll be damn if I can find 'em on the ol' '98 XK8
Our XJ8 they are behind rearseat panel so its apparent they should exsist since
its basically the same system.
These are not the finned resistors mounted on the blower housings but rather 20A relays wired to each
Any guidance will be most graciously appreciated!!
Cheers
I'm scratchin my head here, all doc's indicate there should be 2 micro relays for the hvac blower fans
located in footwell on drivers side LHD (along trans tunnel) but I'll be damn if I can find 'em on the ol' '98 XK8
Our XJ8 they are behind rearseat panel so its apparent they should exsist since
its basically the same system.
These are not the finned resistors mounted on the blower housings but rather 20A relays wired to each
Any guidance will be most graciously appreciated!!
Cheers
#2
#3
#5
Thank you all for the replies, I completely removed drivers knee bolster,
center console, removed center temp controls, radio, pulled carpet , etc no sign of these little buggers
i'm either blind or they really screwed up (guess which it is)
and ALL the cars other relay are within relatively conceivable access -
Zonks!
center console, removed center temp controls, radio, pulled carpet , etc no sign of these little buggers
i'm either blind or they really screwed up (guess which it is)
and ALL the cars other relay are within relatively conceivable access -
Zonks!
#6
Found 'em!!
they are behind floor vent plastic tucked up on a brace more
by steering column then on trans tunnel ( more over pedals )
but only way i was able to finally spot them was in wrecking yard and there
was a car w/o steering column then u can easily spot
whew glad thats over PM me if u like pic
they are behind floor vent plastic tucked up on a brace more
by steering column then on trans tunnel ( more over pedals )
but only way i was able to finally spot them was in wrecking yard and there
was a car w/o steering column then u can easily spot
whew glad thats over PM me if u like pic
Last edited by ukcat90; 08-07-2015 at 03:22 PM.
#7
Trending Topics
#8
Rt side blower completely dead, but I had a spare transistor to try , put it in , still nothing but getting 12v up to fuse box
wired before relay, so before ordering new resistor want to be double dog sure thats what it
And boy they did a great job snookering me by hiding those relays
like that ,
Update - you gotta be a midget (oops little person) to get to these with everything in place but it
can be done and YES one for right blower was shot , I now have a N'oreaster inside my car
If your A/C & Heater seem weak- your down one blower trust me
wired before relay, so before ordering new resistor want to be double dog sure thats what it
And boy they did a great job snookering me by hiding those relays
like that ,
Update - you gotta be a midget (oops little person) to get to these with everything in place but it
can be done and YES one for right blower was shot , I now have a N'oreaster inside my car
If your A/C & Heater seem weak- your down one blower trust me
Last edited by ukcat90; 08-07-2015 at 06:28 PM.
The following users liked this post:
test point (08-07-2015)
#9
On the chance pictures of the blower relays may still be available I would like them. My '98 XK8 driver side blower is inop and I'm just starting to troubleshoot it. All I have done so far is check the fuses and remove some trim to try to access it. I looked briefly for the relays but didn't see anything I identified as relays. Looks like a real pain and I can't find anything on how to remove the blower assy. Thanks
