Power Seat Circuit Board
#1
Power Seat Circuit Board
My drivers power seat options quit functioning so after searching the forum, I swapped the drivers side module and it is working again.
My old eyes are not so good at examining those small traces on the circuit board so I put it on my flat bed scanner and did a high resolution scan.
I thought some might find it interesting to see just what and where the failure mode is. After looking the board over I checked theses areas with an ohmmeter to check for open circuits but even those the traces look suspect there does not seen to be a break. I will have to continue trying to find the problem.

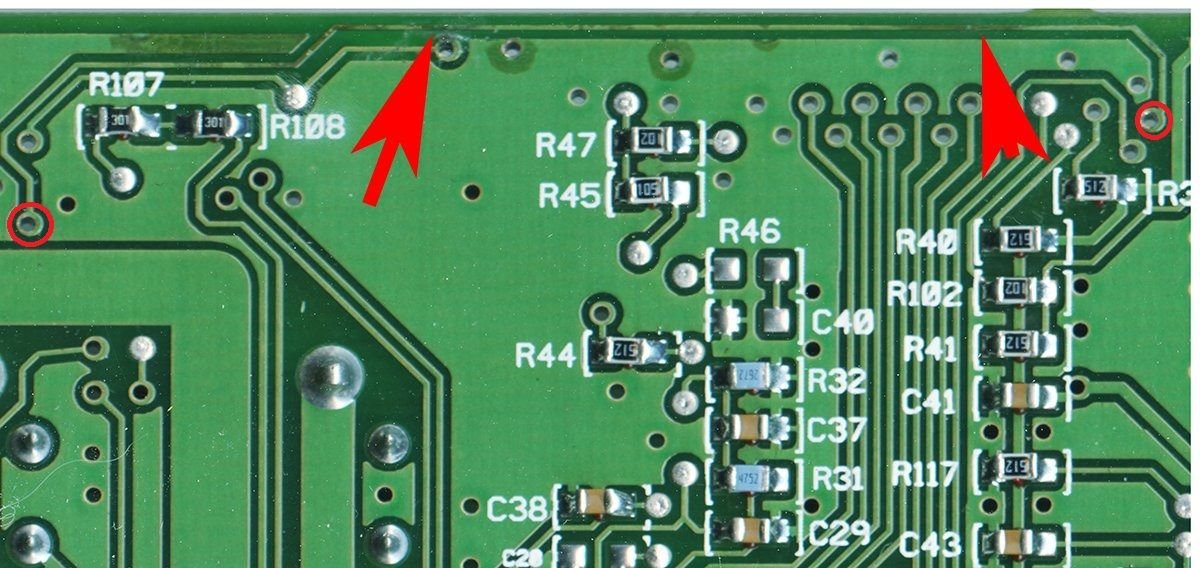

Scan of suspect circuit board. Zooming in will show the corrosion areas.
My old eyes are not so good at examining those small traces on the circuit board so I put it on my flat bed scanner and did a high resolution scan.
I thought some might find it interesting to see just what and where the failure mode is. After looking the board over I checked theses areas with an ohmmeter to check for open circuits but even those the traces look suspect there does not seen to be a break. I will have to continue trying to find the problem.
Scan of suspect circuit board. Zooming in will show the corrosion areas.
#2
Join Date: Apr 2014
Location: Jersey, Channel Islands
Posts: 4,077
Received 2,291 Likes
on
1,503 Posts
Daro,
The outer tracks are the usual suspects: it's possible that the board checks out OK when removed as it's not being flexed, although I agree it looks OK.
Try running a thin wire jumper between the two points I've circled.
Is your scanner up to capturing the whole circuit board - both sides?
The outer tracks are the usual suspects: it's possible that the board checks out OK when removed as it's not being flexed, although I agree it looks OK.
Try running a thin wire jumper between the two points I've circled.
Is your scanner up to capturing the whole circuit board - both sides?
