How do I do this? Undo two 8mm bolts take out underscuttle (is how one other member described it). Note I have an 2001 XKR coupe.
JITS say Withdraw the underscuttle upper fasteners from their locations in the fascia panel. Ok where are these ? top? bottom middle cant be seen thats for sure!! From their diagram looks like they have the whole fascia off and the fasters are behind that! My car screws came of fine then under scuttle wasnt going anywhere and I dont want to damage it!
Can someone give me a detailed description. Remember I dont have the Jaguar magic wand LOL. I did get the plastic underside of the steering column of ok.
Note I'm trying to fix the sticking up/down steering problem but that thread just says undo two bolts and take out underscuttle like its going to drop out. Guess being a Jaguar those two bolts might hold the engine in as well LOL!!
Thanks
Simon
JITS say Withdraw the underscuttle upper fasteners from their locations in the fascia panel. Ok where are these ? top? bottom middle cant be seen thats for sure!! From their diagram looks like they have the whole fascia off and the fasters are behind that! My car screws came of fine then under scuttle wasnt going anywhere and I dont want to damage it!
Can someone give me a detailed description. Remember I dont have the Jaguar magic wand LOL. I did get the plastic underside of the steering column of ok.
Note I'm trying to fix the sticking up/down steering problem but that thread just says undo two bolts and take out underscuttle like its going to drop out. Guess being a Jaguar those two bolts might hold the engine in as well LOL!!
Thanks
Simon
#2
How do I do this? Undo two 8mm bolts take out underscuttle (is how one other member described it). Note I have an 2001 XKR coupe.
JITS say Withdraw the underscuttle upper fasteners from their locations in the fascia panel. Ok where are these ? top? bottom middle cant be seen thats for sure!! ..................
JITS say Withdraw the underscuttle upper fasteners from their locations in the fascia panel. Ok where are these ? top? bottom middle cant be seen thats for sure!! ..................

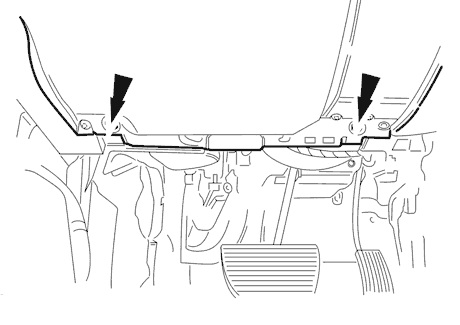

2. the two fasteners are at the top on either side (RH arrowed in black):

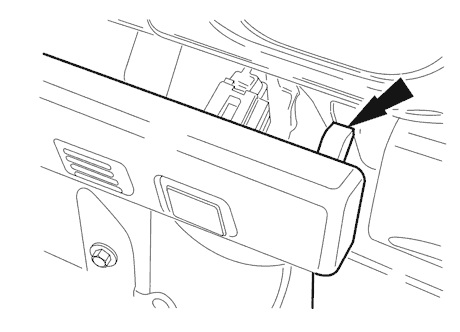

They are a press fit into the slots (RH slot arrowed in red):
3. hold the underscuttle panel on either side and pull toward you and slightly down to free the two top securing clips.

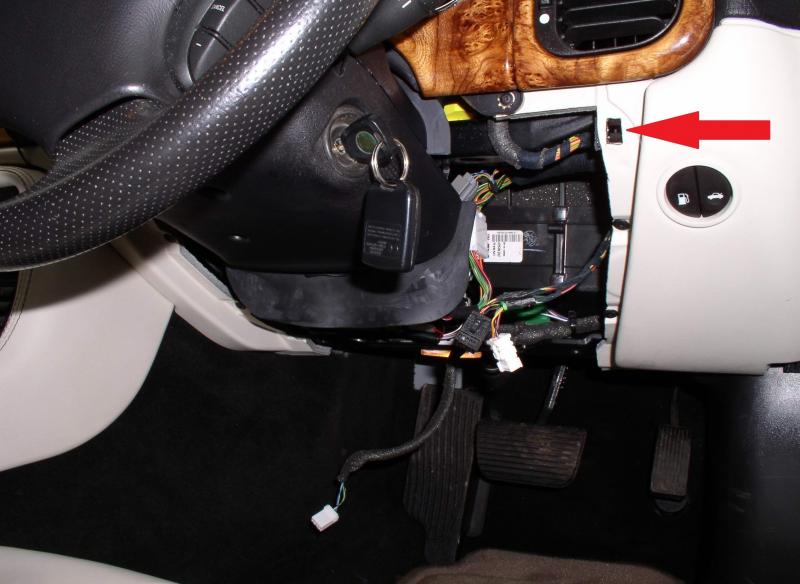

4. detach the two harness connectors (labelled 1 and 2) behind the panel before lifting it out of the way:
Harness connector 2 has a tab on the side which has to be pressed to release the connector.
Graham
Last edited by GGG; 01-11-2013 at 06:21 PM.
The following 2 users liked this post by GGG:
LedZepplin (01-11-2013),
sklimii (01-11-2013)
