What I've been working on today (for the past month really) is learning how to use Fusion 360 to design and print a replacement to this piece of junk:

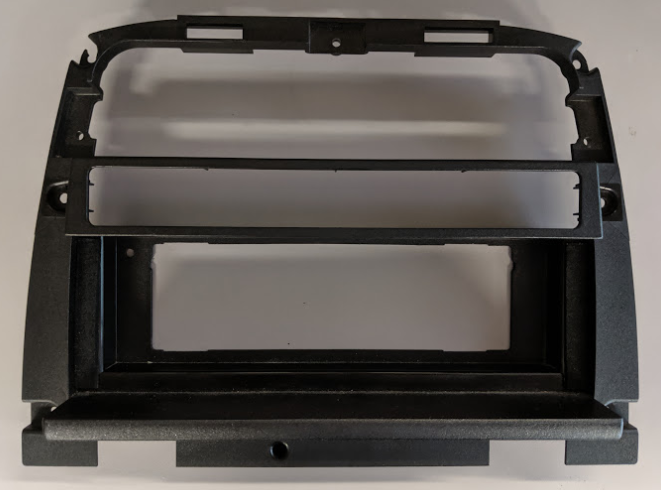

Attachment 225269

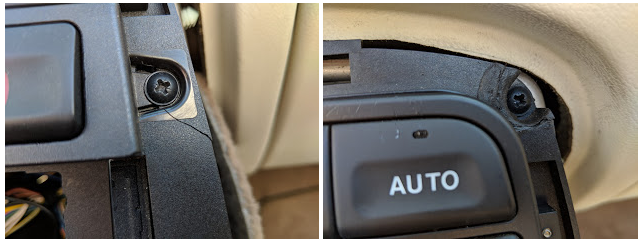

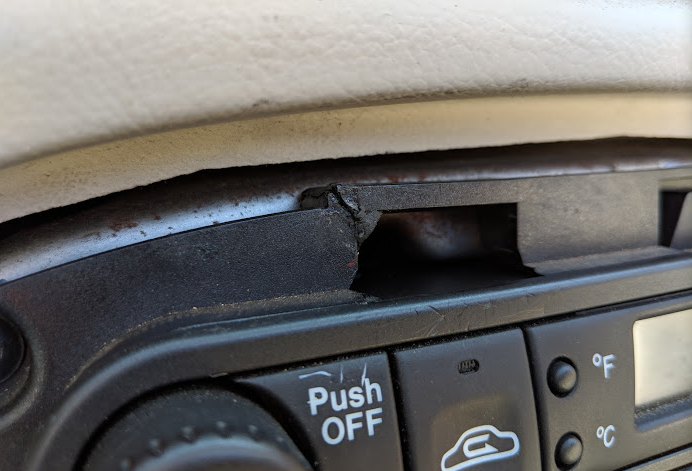

Chances are, if you've ever done any work on your center console, you'll find it's incredibly easy to crack or damage this piece since it's so very, very thin. I've got two of the original pieces now - I'd been damaging my own every time I removed / replaced it in order to take measurements and do test fittings, so I bought one in rougher shape from the classifieds section of these forums. I believe it was in better shape when the seller shipped it to me, but it arrived with the top piece completely broken off, so I patched it with Sugru.
Attachment 225270
Attachment 225271
Anyways, at the start of this project I had no idea how to use Fusion 360, nor how to use a 3D printer, but I've been picking it up as I go with help from my local MakerSpace.
What followed was a series of the following:
Attachment 225279
Ultimately I'm not aiming to make a 1:1 replacement, rather, something that is an improvement over the original design for my purposes. This is why the 1-DIN gap is not as recessed as it is in the original, and why I have not yet included the bottom "chin" piece that juts out a few inches. The final plan is to use that "chin" area to house an antenna raise/lower switch (something I've already wired in elsewhere), and to conceal the aftermarket 1-DIN stereo with a motorized retracting door, finished with a walnut veneer and switched to the accessories line. That way, when the car is parked, you don't have to look at the gaudy thing.
Anyways, work in progress! I'll keep you all posted.
Attachment 225269
Chances are, if you've ever done any work on your center console, you'll find it's incredibly easy to crack or damage this piece since it's so very, very thin. I've got two of the original pieces now - I'd been damaging my own every time I removed / replaced it in order to take measurements and do test fittings, so I bought one in rougher shape from the classifieds section of these forums. I believe it was in better shape when the seller shipped it to me, but it arrived with the top piece completely broken off, so I patched it with Sugru.
Attachment 225270
Attachment 225271
Anyways, at the start of this project I had no idea how to use Fusion 360, nor how to use a 3D printer, but I've been picking it up as I go with help from my local MakerSpace.
What followed was a series of the following:
- Remove piece from vehicle

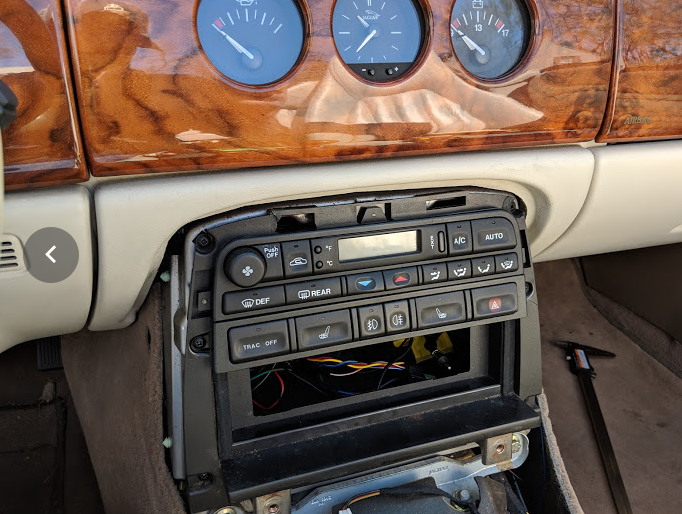

Attachment 225272 - Design all (or a part) of the piece

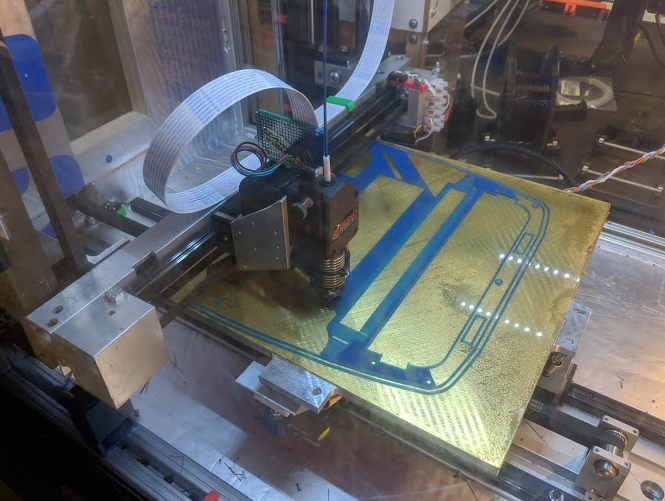

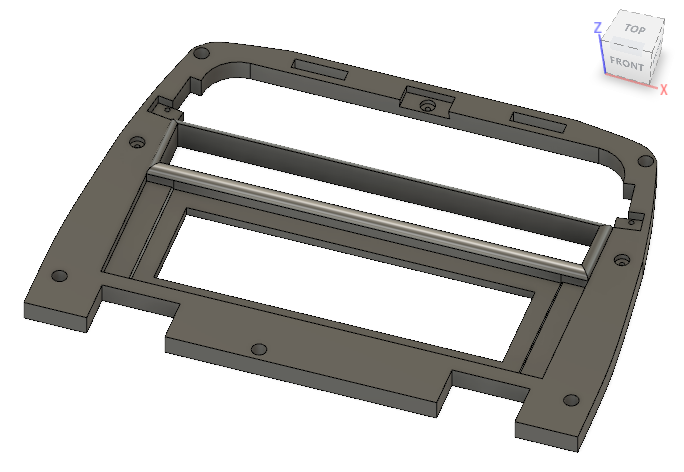

Attachment 225273 - Print

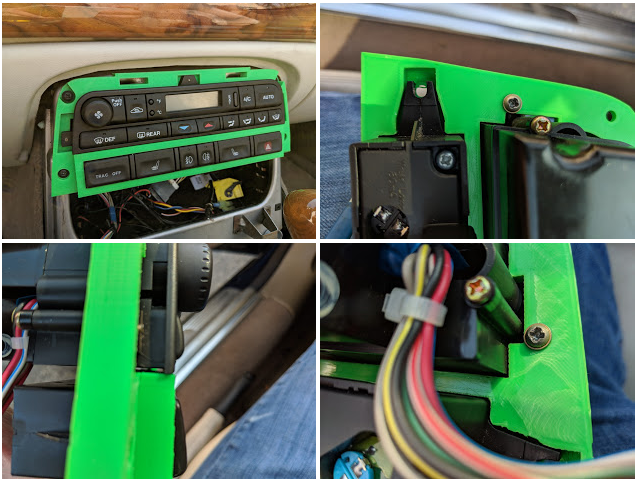

Attachment 225274 - Test-fit, make more measurements
Attachment 225275 - Repeat 1-4 many times
Attachment 225276 - Iterate design...

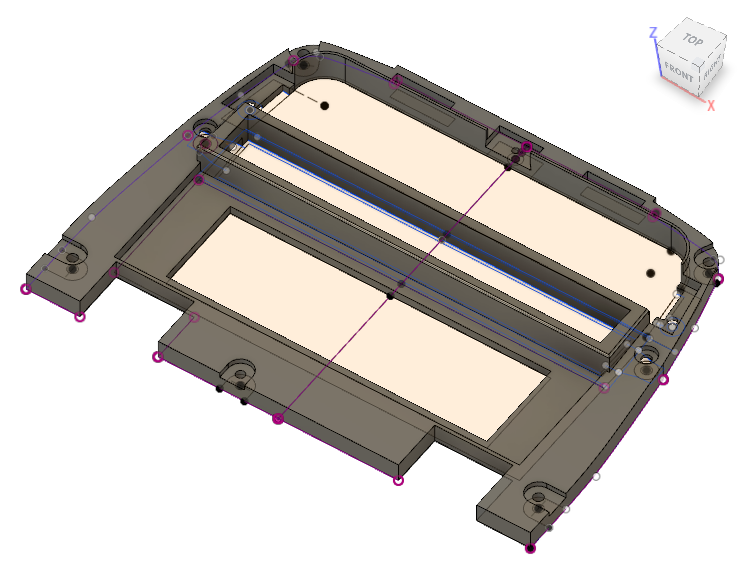

Attachment 225277
Attachment 225278
Attachment 225279

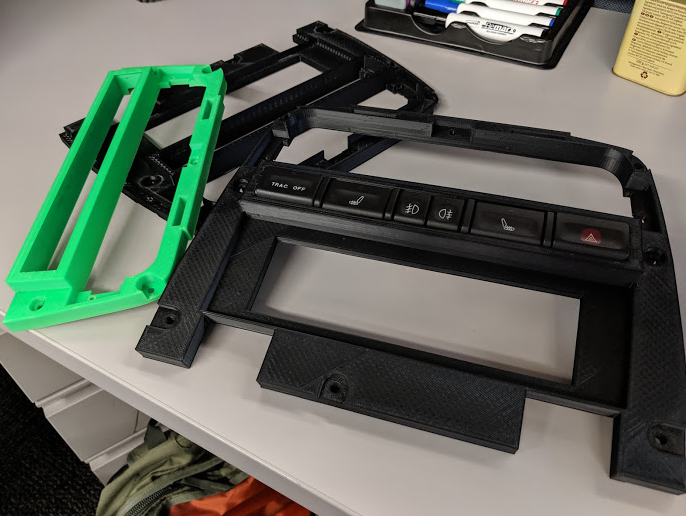

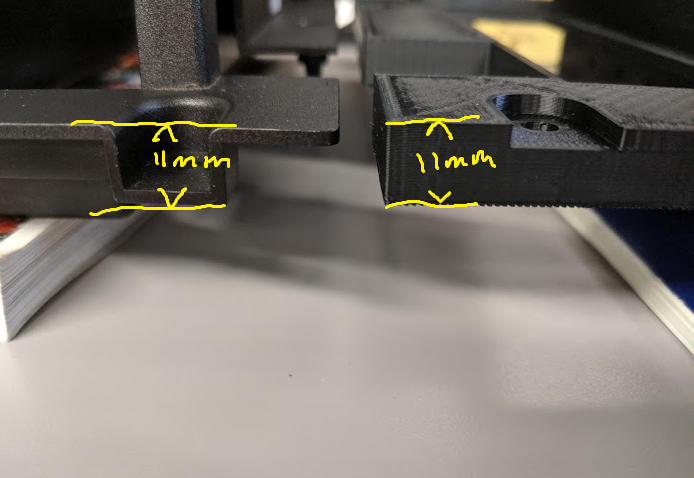

Ultimately I'm not aiming to make a 1:1 replacement, rather, something that is an improvement over the original design for my purposes. This is why the 1-DIN gap is not as recessed as it is in the original, and why I have not yet included the bottom "chin" piece that juts out a few inches. The final plan is to use that "chin" area to house an antenna raise/lower switch (something I've already wired in elsewhere), and to conceal the aftermarket 1-DIN stereo with a motorized retracting door, finished with a walnut veneer and switched to the accessories line. That way, when the car is parked, you don't have to look at the gaudy thing.
Anyways, work in progress! I'll keep you all posted.
#2
The following 2 users liked this post by test point:
Abby's Guy (04-28-2022),
Zalastar (02-14-2023)
#3
The following 3 users liked this post by brgjag:
#4
F150 didn't want to start, figured either solenoid or starter, $17 on firewall verses $169 under truck and raining. Hand me that solenoid. That was it,, but since we left the house you have to go by the grocery store, AHHHHHH. 54 years and counting. She gives me pills every day and best I figure, one is arsenic and one is Viagra and she will be glad if either one takes effect.
Wayne
Wayne
#5
Howdy Folks:
I would like to see this thread continue, as I enjoy what you all are into.
Having recently replaced my front upper shock mounts, as a last ditch effort to save my front (inner cupped) tires, I ground the high points off the inner ribs. While not perfect, it drove much smoother and has corresponding much better front footprints. (I hope time proves it to be a success)
I had not had it out of the garage since last Nov. Needless to say, I got the fever right quick. My goal now is to get it detailed hopefully for "The Gathering" at Shelton Vineyards in April. (kind of a "Queen's English for the southeast, maybe some of you on the west coast could talk Jay Leno into "dropping in"
I have had mine 4 1/2 years and love it more now than the day I bought it.
Enough about me, what's going on?
I would like to see this thread continue, as I enjoy what you all are into.
Having recently replaced my front upper shock mounts, as a last ditch effort to save my front (inner cupped) tires, I ground the high points off the inner ribs. While not perfect, it drove much smoother and has corresponding much better front footprints. (I hope time proves it to be a success)
I had not had it out of the garage since last Nov. Needless to say, I got the fever right quick. My goal now is to get it detailed hopefully for "The Gathering" at Shelton Vineyards in April. (kind of a "Queen's English for the southeast, maybe some of you on the west coast could talk Jay Leno into "dropping in"
I have had mine 4 1/2 years and love it more now than the day I bought it.
Enough about me, what's going on?
Last edited by Dr. D; 03-13-2015 at 09:00 PM. Reason: spelling
#6
Had a guy repair a rip in the driver's side seat bolster. Also cleaned up a few scratches and rubbed the whole thing black. The XK8 isn't registered (going to sell it next week after the A/C lines get replaced and A/C charged) so I had to take the seat out and bring it to the fellow. Turned out much better than it was.
#7
Had a guy repair a rip in the driver's side seat bolster. Also cleaned up a few scratches and rubbed the whole thing black. The XK8 isn't registered (going to sell it next week after the A/C lines get replaced and A/C charged) so I had to take the seat out and bring it to the fellow. Turned out much better than it was.
I just took my seat in a few days ago also, for a very similar repair. I'm fortunate to have a true craftsman here locally that does quite a few cars for me, and has always been very reasonably priced. he doesn't seem to like working on Euro cars, but said it should cost me about $220.00 . is that in the ballpark for what yours was? apparently the leather is fully glued to the foam in these cars.
Russ
The following users liked this post:
powell (09-02-2020)
Trending Topics
#8
#9
Spent some time reviewing JTIS in preparation for helping Wayne (cjd777) and Rick (joycesjag) pull Wayne's leaking top hydraulic rams on Monday morning at his home shop so they can be sent off for refurbishment. Then, a big homemade spaghetti lunch (courtesy of my wife) will follow for the three of us and Wayne's charming wife Christine. Hilarity will ensue and I'm greatly looking forward to it....
The following 3 users liked this post by Jon89:
#11
So where is the "done" pic???
I just took my seat in a few days ago also, for a very similar repair. I'm fortunate to have a true craftsman here locally that does quite a few cars for me, and has always been very reasonably priced. he doesn't seem to like working on Euro cars, but said it should cost me about $220.00 . is that in the ballpark for what yours was? apparently the leather is fully glued to the foam in these cars. Russ
I just took my seat in a few days ago also, for a very similar repair. I'm fortunate to have a true craftsman here locally that does quite a few cars for me, and has always been very reasonably priced. he doesn't seem to like working on Euro cars, but said it should cost me about $220.00 . is that in the ballpark for what yours was? apparently the leather is fully glued to the foam in these cars. Russ
The following 6 users liked this post by Cee Jay:
Abby's Guy (06-13-2022),
AZCLAUDE (10-05-2021),
beachbumfl (12-20-2020),
eljefe1951 (10-02-2019),
Goldwing (06-05-2021),
and 1 others liked this post.
#12
It was dark and I didn't want to get chilly in this Northern Utah (Best Snow on Earth) winter, it went from 69f all the way down to 47 last night! Anyway, evidently the same spot had been repaired before I bought the car so it didn't quite turn out as good as it could have, but still not TOO bad. Repairing the hole was $95 and there were two long cracks that needed repair, and the guy also sprayed and polished the whole seat for an additional $20. So, $115 plus tax and guaranteed for three years.
#13
Obsessed over my problem resulting from the badge removal on the nose (see my other thread), then took her out for a long drive; the first in a month or two. Reminded me how much I love this car. When the weather improves (if it ever does around here), I plan to try to find a cooler set of 17"rims that I can afford, install RealGauge, a backup distance alarm to make it easier to park, and maybe even the steering wheel motors. Can't be Spring fast enough for me.
#14

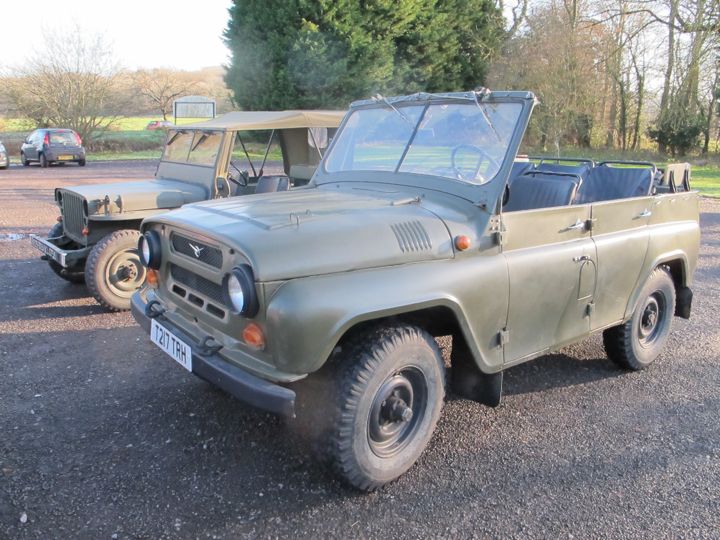

Have been trying to get the fuel system on a UAZ 469B to work properly. Here she is on a recent run with the local military vehicle club:
