E-Type Outside Mirrors
My name is Craig S. Nelson, US Navy (ret). I am currently a 5th year senior at McPherson College in Kansas and will graduate in May 2016 with a B.S. in Automotive Restoration Management and a B.S. in Automotive Restoration Technology.
I am currently interning at a shop for the summer, started last month, and must depart in early August. The goal is to finish the electrical and final assembly before I leave on a '67 E-Type Series 1.5 OTS with the 4.2L engine.

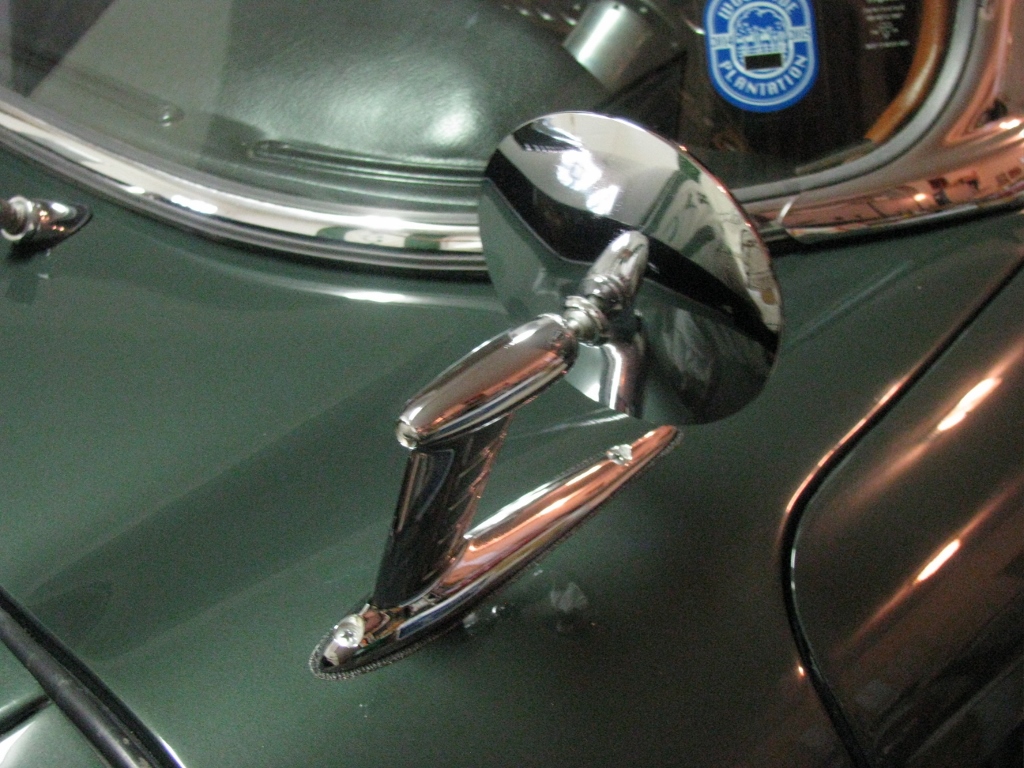

In the attached picture, it shows an E-Type with the bullet style outer mirrors mounted on the body panel between the door and bonnet. Our customer is inquiring into also using this mirror setup versus mounting in the doors or the bonnet.
My question is what is considered correct? It is my understanding that E-Types never came with outside mirrors and were a dealer installed option.
My other question is how the hell do you mount the mirrors in that location? The other pics show that access to mount it is almost non-existent. We would need the arm and hand size of a small child to reach into that cavity all the way to tighten any hardware.
I can always be reached at (619) 944-8971 or nelscra@bulldog.mcpherson.edu.
I am currently interning at a shop for the summer, started last month, and must depart in early August. The goal is to finish the electrical and final assembly before I leave on a '67 E-Type Series 1.5 OTS with the 4.2L engine.
In the attached picture, it shows an E-Type with the bullet style outer mirrors mounted on the body panel between the door and bonnet. Our customer is inquiring into also using this mirror setup versus mounting in the doors or the bonnet.
My question is what is considered correct? It is my understanding that E-Types never came with outside mirrors and were a dealer installed option.
My other question is how the hell do you mount the mirrors in that location? The other pics show that access to mount it is almost non-existent. We would need the arm and hand size of a small child to reach into that cavity all the way to tighten any hardware.
I can always be reached at (619) 944-8971 or nelscra@bulldog.mcpherson.edu.
#2
Mirrors
Wing mirror part number C19909 was available as an option for front fender mounting from 1961 on.
With the introduction of the S1.5, the US specification cars came fitted with a driver's side side view mirror, and I believe to be an item specified by the US safety regulations. Many S2, RHD cars are seen without any exterior mirrors, so it was not supplied for all markets.
If you want to fit the incorrect mirrors shown in your attached pictures to the cowl, you should be able to gain access to that area through where the door hinge attaches (with the hinge removed of course).
Did the answers supplied by the various Forum members help with your wiring and dash panel issue? Its helpful to others following the Threads to know if the advice is rubbish or not.
Regards,
Brent
With the introduction of the S1.5, the US specification cars came fitted with a driver's side side view mirror, and I believe to be an item specified by the US safety regulations. Many S2, RHD cars are seen without any exterior mirrors, so it was not supplied for all markets.
If you want to fit the incorrect mirrors shown in your attached pictures to the cowl, you should be able to gain access to that area through where the door hinge attaches (with the hinge removed of course).
Did the answers supplied by the various Forum members help with your wiring and dash panel issue? Its helpful to others following the Threads to know if the advice is rubbish or not.
Regards,
Brent
#3
For my car, it was even simpler. The dealer in 1966 seems to have just grabbed a J.C. Whitney (or was it a 1958 GM product) mirror off the shelf that had exposed mounting screws and attached it, exposed screws and all. It is a really funky, original, 50 year old mirror that still looks great, and I am too fond of it to ever replace it (plus it has an excellent field of view).
Here's what mine looks like:
#4
Wing mirror part number C19909 was available as an option for front fender mounting from 1961 on.
With the introduction of the S1.5, the US specification cars came fitted with a driver's side side view mirror, and I believe to be an item specified by the US safety regulations. Many S2, RHD cars are seen without any exterior mirrors, so it was not supplied for all markets.
If you want to fit the incorrect mirrors shown in your attached pictures to the cowl, you should be able to gain access to that area through where the door hinge attaches (with the hinge removed of course).
Brent
With the introduction of the S1.5, the US specification cars came fitted with a driver's side side view mirror, and I believe to be an item specified by the US safety regulations. Many S2, RHD cars are seen without any exterior mirrors, so it was not supplied for all markets.
If you want to fit the incorrect mirrors shown in your attached pictures to the cowl, you should be able to gain access to that area through where the door hinge attaches (with the hinge removed of course).
Brent
Martin Robey
Is the mirror in Craig's pic a bullet mirror or no? Honestly, just seeking clarification.
You also mention 'fender mounting', so I presume that means mounted to the bonnet. Just trying to be as correct as I can be before the drill comes out!
Is door mounting acceptable in concours judging? Bullet or flat? I have read the judging guide and remain unclear on the topic.
Thanks so much in advance.
#5
Just a thought. Since the E-Type's outside mirror opens up a can of worms, why not be just like the factory for every S1 E-Type sent to the US: just have no outside mirror - that is truly original. With the evident quality of this restoration, the car will probably not be driven in commuter traffic, so perhaps an outside mirror is not needed? On the street, on a fine day, an outside mirror is not required with the top dropped - just look over each shoulder before making a lane change.
Last edited by SCMike; 08-05-2015 at 07:26 AM.
#6
Just a thought. Since the E-Type's outside mirror opens up a can of worms, why not be just like the factory for every E-Type sent to the US: just have no outside mirror - that is truly original. With the evident quality of this restoration, the car will probably not be driven in commuter traffic, so perhaps an outside mirror is not needed? On the street, on a fine day, an outside mirror is not required with the top dropped - just look over each shoulder before making a lane change.
Thumbs up or down on 'acceptable correctness' on this ->
#7
If you want pure originality and safety there are mirrors that clip on to the chrome window track. The ones from Tex Automotive are popular in the e-type world. The MQO4 and MQR4 are very period. I understand they need a bit of trimming so the mount doesnt interfere with the window in the track.
Good luck,
Jim
Good luck,
Jim
