F-Type ( X152 ) 2014 - Onwards

Rear Valance part #


  #1
Old 06-18-2019, 05:41 PM
Jmo
Jmo is offline
Junior Member
Thread Starter
Join Date: Mar 2019
Location: South Florida
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Default Rear Valance part #

Anyone know the part # for the gloss black rear valance on a 2016 v6 without parking sensors? Thought it was T2R17428 but that one has larger openings for the fog/reverse lights than I have. Mine is matte black and I want to change it to gloss. Thanks for any help.

  #2
Old 06-18-2019, 08:15 PM
Tp10XKR's Avatar
Senior Member
Join Date: Nov 2018
Location: North Wales, PA. USA
Posts: 134
Received 64 Likes on 39 Posts
Default

Have you thought about removing your part and having it painted. I just did it to the lower defuser on my car as the part alone is $1,600.00.

  #3
Old 06-18-2019, 08:27 PM
Jmo
Jmo is offline
Junior Member
Thread Starter
Join Date: Mar 2019
Location: South Florida
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Default

Yes, iím starting to think either having it wrapped or painted is probably going to be the easier way.

  #4
Old 06-18-2019, 08:49 PM
OzXFR's Avatar
Veteran Member
Join Date: Feb 2014
Location: Adelaide, South Australia
Posts: 4,089
Received 1,155 Likes on 963 Posts
Default

As far as I know the US versions of this part all came with the small/narrow fog/reverse lights (the "two in one" set up) so I suspect part # T2R17428 is what you are after and it's just that the diagram shows the larger openings in error.
For example see here: https://parts.jaguarreno.com/oem-par...Y2LWdhcw%3D%3D


The linked part is only $303.75 US so probably cheaper than getting your existing valance painted or wrapped, maybe worth contacting Reno Jag to see if it has the narrow or the wide light openings.

  #5
Old 06-18-2019, 09:12 PM
Unhingd's Avatar
Veteran Member
Join Date: Dec 2014
Location: Maryland, US
Posts: 13,818
Received 3,260 Likes on 2,454 Posts
Default

Originally Posted by OzXFR View Post
As far as I know the US versions of this part all came with the small/narrow fog/reverse lights (the "two in one" set up) so I suspect part # T2R17428 is what you are after and it's just that the diagram shows the larger openings in error.
For example see here: https://parts.jaguarreno.com/oem-par...Y2LWdhcw%3D%3D


The linked part is only $303.75 US so probably cheaper than getting your existing valance painted or wrapped, maybe worth contacting Reno Jag to see if it has the narrow or the wide light openings.
Those online catalogue diagrams are frequently to scale or or even to shape. If the year, model and description is right, the part will be right.

  #6
Old 06-18-2019, 11:36 PM
Jaggyx's Avatar
Veteran Member
Join Date: Aug 2008
Location: SF Bay Area
Posts: 1,479
Received 119 Likes on 99 Posts
Default

I'd buy a new piece for $300. Wrapping give it an ugly orange peel texture and painting will most likely cost a min of $200 and will no doubt have imperfections.

  #7
Old 06-19-2019, 06:10 AM
Jmo
Jmo is offline
Junior Member
Thread Starter
Join Date: Mar 2019
Location: South Florida
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Default

I did order T2R17428 in hopes of avoiding the above mentioned issues with wrapping/painting. It arrived yesterday and has the large openings for the lights. Im trying to arrange an exchange but am not sure what the correct part is. Im hoping to hear from the parts dept today but i was hoping someone might know the part number so I can make sure i get it right this time.

  #8
Old 06-19-2019, 07:06 AM
Unhingd's Avatar
Veteran Member
Join Date: Dec 2014
Location: Maryland, US
Posts: 13,818
Received 3,260 Likes on 2,454 Posts
Default

Bad news: Looking at the parts explosion, the fog light part numbers for the satin are different than those for the gloss valence. You will need to paint or wrap since those lights are $250 each.

  #9
Old 06-19-2019, 10:23 AM
Jmo
Jmo is offline
Junior Member
Thread Starter
Join Date: Mar 2019
Location: South Florida
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Default

On another thread I found someone suggested part # T2R17435, but when I look that up I see no description or picture. Anyone know which one that is?

  #10
Old 06-19-2019, 10:24 AM
Jmo
Jmo is offline
Junior Member
Thread Starter
Join Date: Mar 2019
Location: South Florida
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Unhingd View Post
Bad news: Looking at the parts explosion, the fog light part numbers for the satin are different than those for the gloss valence. You will need to paint or wrap since those lights are $250 each.
I saw that. Was considering upgrading the fog lights but not for 500 bucks.

  #11
Old 06-20-2019, 07:33 AM
Senior Member
Join Date: May 2018
Location: South Carolina
Posts: 530
Received 109 Likes on 85 Posts
Default

This link piqued my curiosity regarding fog lights so I checked mine out. They occupy the same unit as the backup lights--I did not know that. Very clever these Brits.

The following users liked this post:
scm (06-20-2019)
  #12
Old 06-25-2019, 11:01 AM
Jmo
Jmo is offline
Junior Member
Thread Starter
Join Date: Mar 2019
Location: South Florida
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Default

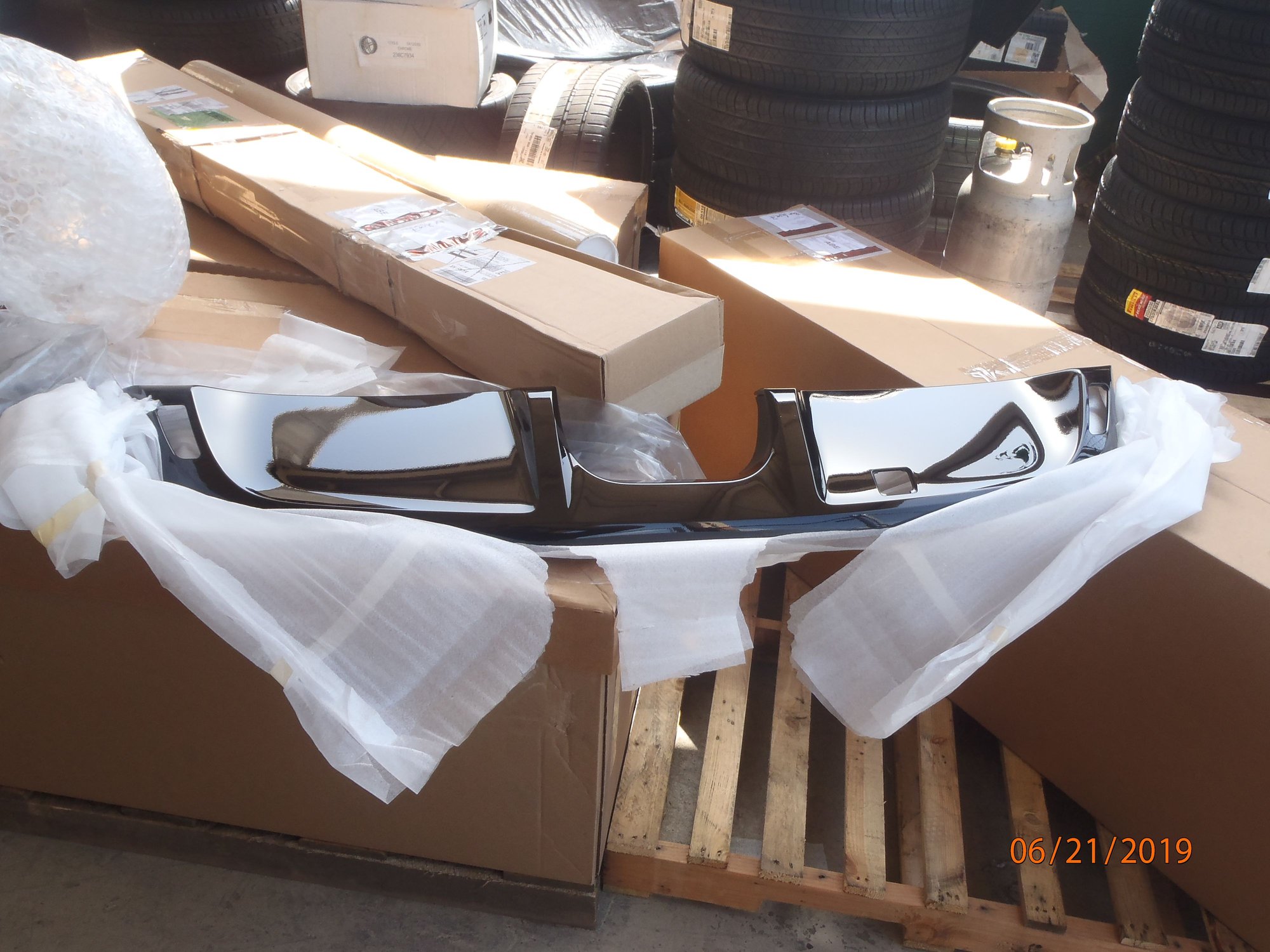

So, in case anyone else is wondering T2R17435 is the part number for gloss black rear valance panel with the small fog/reverse light openings for V6 cars without parking sensors.
