You are correct, and they are a tight fit !


It's easier to take the cover off and then put it over the pipes, you will really struggle pushing the 2 through the hole.



Hi,
Im restoring a MK2 3.8.The car was in bits when I got it Where and how is the Servo Tank situated please?



Hi All,
Im new here so sorry if this has been covered before. Im Restoring a MK2 3.8, the car was in bits when I got it! Where and how is the servo tank situated under the fr.wing does anyone have a diagram or any photos please?
Cheers
Ray



No photos I am afraid at the moment but the servo tank sits upright on the front chassis cross member right behind the front lights. It is bolted to the cross member with two bolts.



Cheers,
That's useful, I could really do with a photo or a measurement from the flitch panel if anyone has one



I will take a photo tomorrow for you and post it I just don't have one in the library.



Ray,
As I said in the other thread there is very little you won't find on Lin's valvechatter thread/blog regarding restoring a Mk2. Lin listed & photographed & diagrammed the entire process. Learn to navigate his blog by clicking main headings & all will open up. https://valvechatter.com/?p=2116

Brakes:
https://valvechatter.com/?p=4213













Good luck & enjoy! Shout if you need help. Don't hesitate.



Cheers Glyn,
This is very useful, I cant seem to navigate the other site but Ill try again (maybe get one of the grandkids to do it!)
Regards
Ray



That's fine. Then ask here & we will chase it up for you. Lot's of combined knowledge here. Cass & I have large libraries but they are mainly S Type.

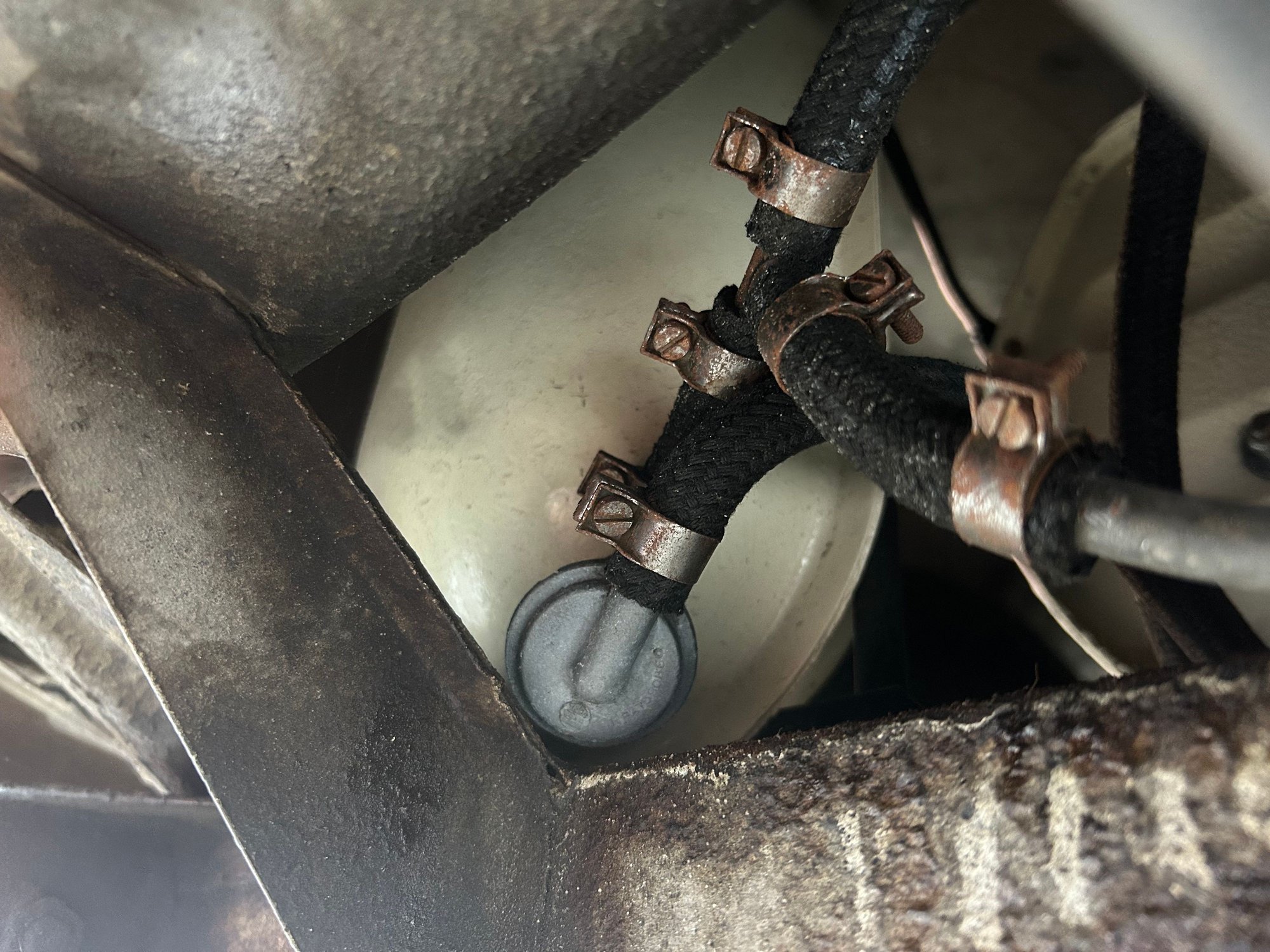

Here's another view



Thank you all, this has been extremely useful! Now can anyone post a picture of complete engine bay minus engine so that i can see where all of the wiring, brake pipes, fuel lines etc, are located into which clips etc It would be very much appreciated!
Thanks in advance
Ray



Jumping on this thread.... I have a servo, i have a single pipe to nowhere... I looked in the driver side wheel arch and i cant find the vacuum tank (62 Mk II) I eventually found it behind the passenger (right) side lamps... so where does this pipe go?



Hard to be sure, but it looks to me like the hose to the vacuum line from the inlet manifold. Have a look at the drawing in post no. 8 above.



Suspect you are correct - its very "brittle" does anyone know the internal diameter and I might replace with rubber hose?



I believe the inner diameter is 8mm. I'll have to look where I bought my replacement hose. I think it was from a Porsche parts seller. If you look under the front of the car where the reservoir is mounted you should see a valve the controls where the air goes. You can get a measurement off of one of the ports. If you don't have the valve I've got an extra one you can have.



You will also need the T that is part of the system. The diagram above shows how everything is correctly plumbed.



This is the hose I bought.

https://www.jbugs.com/product/N203761.html

Couldn't find any 8mm ID hose that was cloth braided. This stuff works fine, hose clamps keeps it tight since the ports are just over 9mm in diameter. Three feet was a perfect length for all the connections



Next step is to jack it up and have a propper look. I just got the head back from the Machine Shop.

Thank you for your advice.



dont forget the short metal rod at the top of the booster/servo cover that connects to that large vacuum tank to keep the vibrations down
