Dreaded fault codes

  #1
Old 09-23-2018, 03:01 PM
Member
Thread Starter
Join Date: May 2011
Location: OK
Posts: 39
Thanked 0 Times in 0 Posts
Default Dreaded fault codes

Good day all! I'm hoping someone can point me in the right direction. I did some searching, and I'm a bit confused. We had some heavy rains and flooding the other day, and my wife drove through some high water. After that, the car began stuttering, running what I would call rich, and is in limp? mode (it won't go above 3K RPM). I'm hoping I can work toward a fix on my own, rather than take it to the mechanic, but it may not be that easy, and I don't want to just throw parts at it hoping something will stick. I feel like the driving through the water and the codes are no coincidence. What I don't know is if they have anything in common.

As far as I can tell I'm getting multiple cylinder misfires on cylinders 1, 3, and 5 (codes below) and the other codes are due to the misfires.Is there something that would cause cylinders 1, 3, and 5 to go down at once? Is it really possible that all 3 coils went down at the same time? I can't imagine all 3 plugs fouled at the exact same time, but I guess it's a possibility too.

Any ideas?

The codes I'm getting are: P0300 P0301 P0303 P0305 P1313 P1316

Thanks!

  #2
Old 09-23-2018, 04:00 PM
iownme's Avatar
Veteran Member
Join Date: May 2011
Location: Upstate NY
Posts: 1,369
Thanked 115 Times in 105 Posts
Default

of course they are the hard to get at cylinders next to the bulkheas requiring removal of the intake manifold to examine.

just throwing out some thoughts for now....
each crank has its own sensor so it could be a bad bank 1 camshaft sensor or connector or the wiring that controls those 3 coils

The Following User Says Thank You to iownme For This Useful Post:
Paynecountry (09-23-2018)
  #3
Old 09-23-2018, 04:03 PM
iownme's Avatar
Veteran Member
Join Date: May 2011
Location: Upstate NY
Posts: 1,369
Thanked 115 Times in 105 Posts
Default

how high was water?

The Following User Says Thank You to iownme For This Useful Post:
Paynecountry (09-23-2018)
  #4
Old 09-23-2018, 04:06 PM
Veteran Member
Join Date: Mar 2017
Location: Utah
Posts: 2,033
Thanked 220 Times in 206 Posts
Default

1,3,5 are firewall side cylinders. 1313 is catalyst damage (in other words don't drive it AT ALL until fixed) 1316 is catalyst high emissions.

1313 and 1316 : NOTE: This DTC will flag ONLY
when accompanied by an
individual cylinder misfire DTC:
P0300 – P0306

Driving (I assume fairly quickly) through standing water is dandy, smh. OF COURSE IT'S RELATED.

Unfortunately because this is the hardest bank to access, diagnosis is harder. Could be as simple as water still standing in wells (had this on my BMW when dealer steamed the engine bay), could be it fried the coils, could be wiring shorts or fried wiring from water egress. Could be other things as well but start with standing water in firewall side wells.

The Following User Says Thank You to Dell Gailey For This Useful Post:
Paynecountry (09-23-2018)
  #5
Old 09-23-2018, 04:15 PM
iownme's Avatar
Veteran Member
Join Date: May 2011
Location: Upstate NY
Posts: 1,369
Thanked 115 Times in 105 Posts
Default


pointing to camshaft sensor

camshaft sensor on left side of head just below cam cover

  #6
Old 09-23-2018, 04:52 PM
Member
Thread Starter
Join Date: May 2011
Location: OK
Posts: 39
Thanked 0 Times in 0 Posts
Default

Originally Posted by iownme View Post
of course they are the hard to get at cylinders next to the bulkheas requiring removal of the intake manifold to examine.

just throwing out some thoughts for now....
each crank has its own sensor so it could be a bad bank 1 camshaft sensor or connector or the wiring that controls those 3 coils
One of my search results said the same thing, the camshaft sensor. Do you know if I swap the rear and front sensor if it would change the faults so I can prove (or disprove) the sensor?

Originally Posted by iownme View Post
how high was water?
I wasn't with my wife, but she said it was like 4 inches deep.

Originally Posted by Dell Gailey View Post
1,3,5 are firewall side cylinders. 1313 is catalyst damage (in other words don't drive it AT ALL until fixed) 1316 is catalyst high emissions.

1313 and 1316 : NOTE: This DTC will flag ONLY
when accompanied by an
individual cylinder misfire DTC:
P0300 P0306

Driving (I assume fairly quickly) through standing water is dandy, smh. OF COURSE IT'S RELATED.

Unfortunately because this is the hardest bank to access, diagnosis is harder. Could be as simple as water still standing in wells (had this on my BMW when dealer steamed the engine bay), could be it fried the coils, could be wiring shorts or fried wiring from water egress. Could be other things as well but start with standing water in firewall side wells.
I figured it was related :-) I have no idea how fast she was going. I assume it was relatively quickly, but she's not a speed demon, so it was probably more of a case that the depth of the water caught her off guard.

I'll definitely look for standing water in the wells in short order! That's a relatively easy one to start with.

I will report back. Thanks, guys!

  #7
Old 09-23-2018, 05:57 PM
iownme's Avatar
Veteran Member
Join Date: May 2011
Location: Upstate NY
Posts: 1,369
Thanked 115 Times in 105 Posts
Default

bear in mind that womens knowledge of inches varies greatly, especially when its cold

The Following User Says Thank You to iownme For This Useful Post:
Paynecountry (09-23-2018)
  #8
Old 09-23-2018, 05:59 PM
iownme's Avatar
Veteran Member
Join Date: May 2011
Location: Upstate NY
Posts: 1,369
Thanked 115 Times in 105 Posts
Default

i imagine the sensors are the same so you could try swapping them over

The Following User Says Thank You to iownme For This Useful Post:
Paynecountry (09-23-2018)
  #9
Old 09-23-2018, 06:05 PM
iownme's Avatar
Veteran Member
Join Date: May 2011
Location: Upstate NY
Posts: 1,369
Thanked 115 Times in 105 Posts
Default

the spark plug wells are not easy to access at all.
in an ideal world, the rubber "seals" on the coils would stop water from entering the well, but the aluminum rim of the well rots with age and does not always make any kind of a seal, so to check the wells requires removal of the intake manifold and the 3 coils.
get back if you need help wih that

deteriated spark plug well rim


Last edited by iownme; 09-23-2018 at 06:07 PM.
The Following User Says Thank You to iownme For This Useful Post:
Paynecountry (09-23-2018)
  #10
Old 09-23-2018, 07:38 PM
Member
Thread Starter
Join Date: May 2011
Location: OK
Posts: 39
Thanked 0 Times in 0 Posts
Default

Thanks! I'll get back after I swap the cam sensor and test. I want nothing to do with taking off the intake. I was under the impression I'd see water sitting on it and could blow it out. I'm new :-D

  #11
Old 09-23-2018, 09:12 PM
Veteran Member
Join Date: Mar 2017
Location: Utah
Posts: 2,033
Thanked 220 Times in 206 Posts
Default

Front yeah, but not rear unfortunately. Curse of the transverse engine.

The Following User Says Thank You to Dell Gailey For This Useful Post:
Paynecountry (09-24-2018)
  #12
Old 09-23-2018, 09:18 PM
Veteran Member
Join Date: Mar 2017
Location: Utah
Posts: 2,033
Thanked 220 Times in 206 Posts
Default

Because of the transverse engine, you'll see descriptions of left and right for the part(s). To us it's really front and rear. Both are the same part number.

Jaguar X Type Camshaft Position Sensors

The Following User Says Thank You to Dell Gailey For This Useful Post:
Paynecountry (09-24-2018)
  #13
Old 09-23-2018, 10:05 PM
iownme's Avatar
Veteran Member
Join Date: May 2011
Location: Upstate NY
Posts: 1,369
Thanked 115 Times in 105 Posts
Default

the rear bank next to the firewall/bulkhead is bank 1 and houses cylinders 1 (left) 3 (center) 5 (right)

the bank closest to you when in front of the engine is bank 2 and houses cylinders 2 (left) 4 (center) 6 (right)

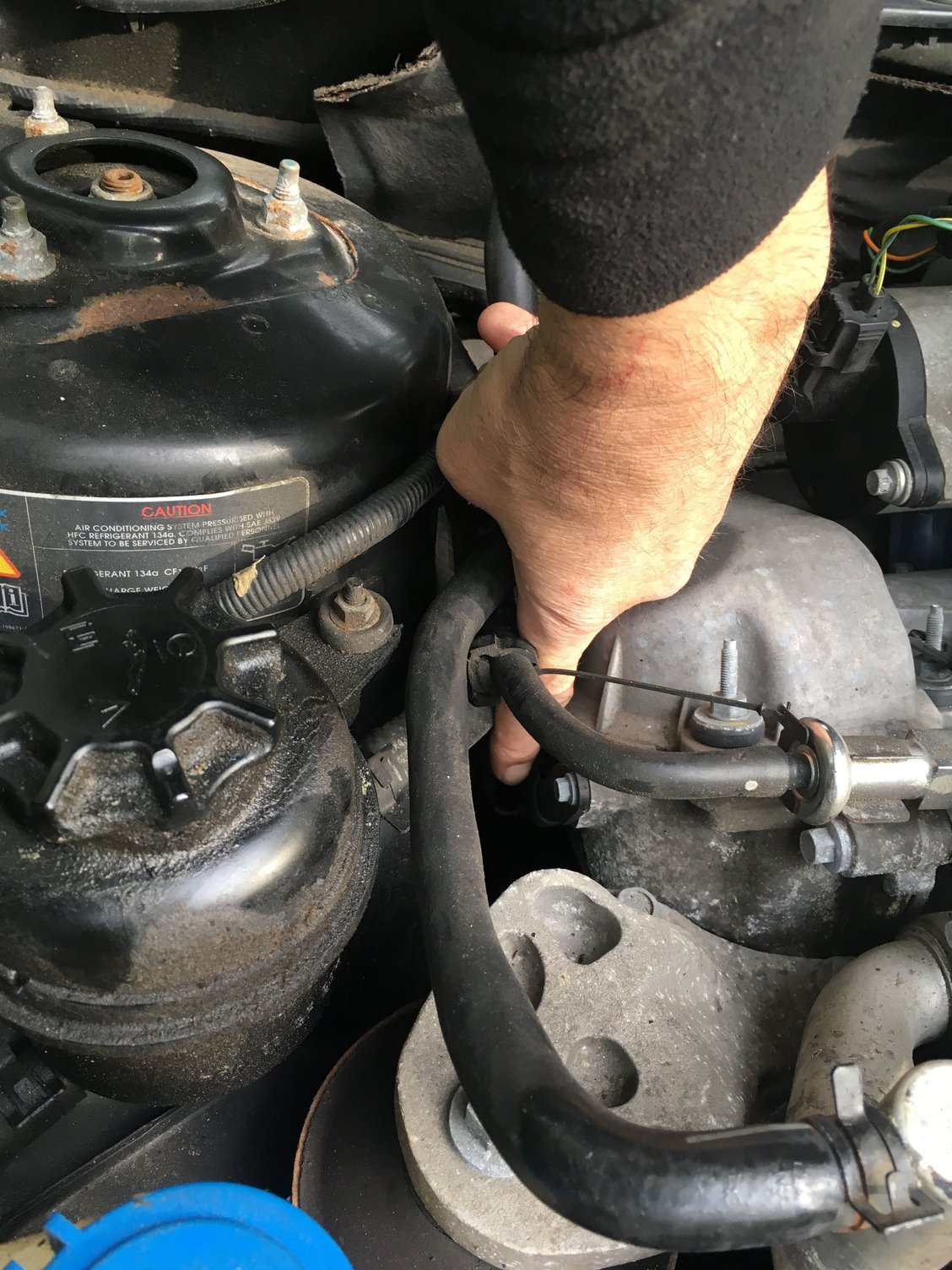

although you cant easily get to the plug wells... there is a 1" or so depression along the bank where the coil heads sit.
from the left side of intake you can likely see in there or perhaps feel...you will be able to see the head of coil cyl #1... so just feel around there to see if theres any standing water


Last edited by iownme; 09-23-2018 at 10:09 PM.
The Following User Says Thank You to iownme For This Useful Post:
Paynecountry (09-24-2018)
  #14
Old 09-23-2018, 10:11 PM
iownme's Avatar
Veteran Member
Join Date: May 2011
Location: Upstate NY
Posts: 1,369
Thanked 115 Times in 105 Posts
Default

in case you need to remove the intake at all....its not hard and does mot take long or involve much

The Following User Says Thank You to iownme For This Useful Post:
Paynecountry (09-24-2018)
  #15
Old 09-24-2018, 10:17 AM
Member
Thread Starter
Join Date: May 2011
Location: OK
Posts: 39
Thanked 0 Times in 0 Posts
Default

Thanks, guys! I plan on getting back on this after work today, so I'll revert back once I do some more troubleshooting. I really do appreciate it!

  #16
Old 09-25-2018, 07:04 AM
Member
Thread Starter
Join Date: May 2011
Location: OK
Posts: 39
Thanked 0 Times in 0 Posts
Default

Current update:

Swapping the cam position sensors had no effect, the same cylinders are reflecting misfires.
The wiring does not appear to be brittle or damaged.
The coils and boots I can see look to be in good serviceable condition.

Is there any way to validate that the coils did indeed short out or something else and are bad, short of pulling the intake? As you can see, I'm concerned about pulling the intake :-)

Thanks again!

  #17
Old 09-25-2018, 03:00 PM
Veteran Member
Join Date: Mar 2017
Location: Utah
Posts: 2,033
Thanked 220 Times in 206 Posts
Default


Of course ours are not out in the easy to access open.


Check the easy access front ones (that you show no codes as misfiring) to get a baseline.


This next video is terrible camera work and explanation but, if coils tested this way show they fire, then the fault would be wiring or ECM signal =
