Oops, i did it again!! customize boot Plinth on a 2004 X-type

Thread Tools

Search this Thread

  #41
Old 08-19-2015, 08:41 PM
mad_mike's Avatar
Member
Thread Starter
Join Date: Jan 2012
Location: El Paso/Socorro, Texas
Posts: 48
Received 35 Likes on 7 Posts
Default

I used a small dremel tool to drill out the area. Also to answer the question on the side mirror flashers. You can see them from the rear. I'll try and post up a picture later on tonight.

  #42
Old 08-19-2015, 08:45 PM
mad_mike's Avatar
Member
Thread Starter
Join Date: Jan 2012
Location: El Paso/Socorro, Texas
Posts: 48
Received 35 Likes on 7 Posts
Default

I live in Texas and so far I haven't been pulled over. But then again, the lights aren't as bright to be mistaken by the reverse lights. I have gotten pulled over for my window tint being too dark.

  #43
Old 10-22-2015, 12:47 PM
Chris Jenkins's Avatar
Junior Member
Join Date: Jun 2015
Location: Clearwater, Fl
Posts: 24
Received 1 Like on 1 Post
Default

Oh man, I want this.

  #44
Old 11-14-2015, 05:46 AM
iownme's Avatar
Veteran Member
Join Date: May 2011
Location: Upstate NY
Posts: 1,439
Received 126 Likes on 114 Posts
Default

Originally Posted by Chris Jenkins
Oh man, I want this.
I believe Thermo did this a while back using red lights.
From what i remember, to make it water tight (and look good) he placed tape over the front of the plinth, then applied clear silicone to the back. After the silicone was dry, the tape is removed leaving a super smooth and clear finish

  #45
Old 04-01-2016, 01:31 PM
wa3ra's Avatar
Senior Member
Join Date: Jul 2014
Location: Dunmore, PA
Posts: 954
Received 149 Likes on 138 Posts
Default

I've been busy lately with the little details; just updated the console to a later model with the two cup holders instead of the one--looks good with the later model wood/leather steering wheel.


My replacement boot plinth popped up in the mail yesterday, so I'll get the letters cut out and the LED lighting in behind it over the weekend (70ºF today and tomorrow, accumulating snow tomorrow night into Sunday...gotta love the Pocono Mountains!)


Some quick checking on the lights; since the plinth also contains the license light, which in my state must be white, the letter lighting is simply considered spill from the license light and not a violation, as long as the lighting is indirect. All I need to do is ensure that the LED is not directly aimed through one of the cutouts and I'm golden!




Just swapped all of the lugnuts out again, too. The set I got from Toyota two years ago had bad chrome plating; warranty replacement, so good there!

  #46
Old 04-02-2016, 06:32 PM
Paulc732's Avatar
Senior Member
Join Date: Oct 2012
Location: Lititz PA
Posts: 607
Received 183 Likes on 149 Posts
Default

Originally Posted by wa3ra
Some quick checking on the lights; since the plinth also contains the license light, which in my state must be white, the letter lighting is simply considered spill from the license light and not a violation, as long as the lighting is indirect. All I need to do is ensure that the LED is not directly aimed through one of the cutouts and I'm golden!
Dr Dome and I experimented with RGB LED`s connected to the top of the plinth(for indirect illumination) and connected to the break lights for RED reverse for White and a resistor in line for dimmer red running lights.
using relays from amazon
http://www.amazon.com/GERI-4-Channel-Module-Optocoupler-Arduino/dp/B00VND5ZPI/ref=sr_1_36?ie=UTF8&qid=1459639438&sr=8-36&keywords=12+v+relays http://www.amazon.com/GERI-4-Channel-Module-Optocoupler-Arduino/dp/B00VND5ZPI/ref=sr_1_36?ie=UTF8&qid=1459639438&sr=8-36&keywords=12+v+relays

or

http://www.amazon.com/SMAKN%C2%AE-Channel-Isolated-Optocoupler-Trigger/dp/B00PFA83RW/ref=pd_bxgy_469_img_2?ie=UTF8&refRID=17V9JZCM7HWC97C8FMBH http://www.amazon.com/SMAKN%C2%AE-Channel-Isolated-Optocoupler-Trigger/dp/B00PFA83RW/ref=pd_bxgy_469_img_2?ie=UTF8&refRID=17V9JZCM7HWC97C8FMBH

I am in the Philippines for a couple of weeks on my return i will post the circuit diagram if you need it.


Last edited by Paulc732; 04-02-2016 at 06:36 PM. Reason: added 2 channel relay
  #47
Old 04-02-2016, 07:19 PM
Larry-Cleveland's Avatar
Senior Member
Join Date: Sep 2015
Location: Cleveland, Ohio
Posts: 345
Received 46 Likes on 43 Posts
Default

Hi Paul,

Yes please tell me how you did this mod as it is on my to do list.

I was in the Philippines one....

  #48
Old 04-16-2016, 05:58 AM
Paulc732's Avatar
Senior Member
Join Date: Oct 2012
Location: Lititz PA
Posts: 607
Received 183 Likes on 149 Posts
Default

As promised here is the electrical drawing.
I have simplified it and the connections are as they are on the relay block.



The following users liked this post:
wa3ra (04-16-2016)
  #49
Old 04-16-2016, 10:40 AM
Larry-Cleveland's Avatar
Senior Member
Join Date: Sep 2015
Location: Cleveland, Ohio
Posts: 345
Received 46 Likes on 43 Posts
Default

Questions:

1) is the black squeegee line to the left of the "COM" on relay # 4 a mistake or a resistor?

2) how are you turning off the red LED when relay #3 is on for reverse? It looks to me like you are turning on relay #1 on (red) with reverse with the jumper on triggers 1 and 3?

3) on the car junction block 5 looks to be reverse, what are 2 and 3?

  #50
Old 04-17-2016, 09:15 AM
Paulc732's Avatar
Senior Member
Join Date: Oct 2012
Location: Lititz PA
Posts: 607
Received 183 Likes on 149 Posts
Default

Originally Posted by Larry-Cleveland
Questions:

1) is the black squeegee line to the left of the "COM" on relay # 4 a mistake or a resistor?

Mistake

2) how are you turning off the red LED when relay #3 is on for reverse? It looks to me like you are turning on relay #1 on (red) with reverse with the jumper on triggers 1 and 3?

3) on the car junction block 5 looks to be reverse, what are 2 and 3?


3 is tail light (R on with 100 ohm resistor in Series)
2 is reverse (RGB on makes white)
5 is Stop (R on )

If i remember correctly i also put a 100 ohm resistor on the "running light" leg to have a dimmer red for running then Brake


Last edited by Paulc732; 04-17-2016 at 09:18 AM.
  #51
Old 04-17-2016, 12:20 PM
Larry-Cleveland's Avatar
Senior Member
Join Date: Sep 2015
Location: Cleveland, Ohio
Posts: 345
Received 46 Likes on 43 Posts
Default

More questions:

1) are all of the commons tied to (-) ground? (hard to see)

2) are you switching (+) hot on with the key on (motor running)?

3) it looks like the "running" light will be on by relay #2. With the LED being on NC, it will be lit at all times till the brakes are hit?

4) what then make the brighter break light come on?

5) how are you compensating for multiple things happening at the same time? (tail lights on, in reverse and you step on the brakes)

  #52
Old 04-17-2016, 06:44 PM
Paulc732's Avatar
Senior Member
Join Date: Oct 2012
Location: Lititz PA
Posts: 607
Received 183 Likes on 149 Posts
Default

Originally Posted by Larry-Cleveland
More questions:

1) are all of the commons tied to (-) ground? (hard to see)

Yes we are switching the ground

2) are you switching (+) hot on with the key on (motor running)?

Yes I took the HOT from the loom that supply's the AMP

3) it looks like the "running" light will be on by relay #2. With the LED being on NC, it will be lit at all times till the brakes are hit?

The NC is for always on the NO is if you want it switched

4) what then make the brighter break light come on?

The relays switch the signals bypassing the resistor for Brighter LED

5) how are you compensating for multiple things happening at the same time? (tail lights on, in reverse and you step on the brakes)

The relays do this one relay on for tail one on for Stop and the other for reverse.

as we are using an RGB LED strip it has constant +12V and we switch the -(ground) for desired colour with all tree R+G+B makes white
I am heading to England for a couple of weeks on my return I will make one and take detailed pics for you.

  #53
Old 04-17-2016, 08:21 PM
Larry-Cleveland's Avatar
Senior Member
Join Date: Sep 2015
Location: Cleveland, Ohio
Posts: 345
Received 46 Likes on 43 Posts
Default

Thanks and have a good trip.

I will order the parts and see how it works on the bench.

  #54
Old 04-24-2016, 02:15 AM
wa3ra's Avatar
Senior Member
Join Date: Jul 2014
Location: Dunmore, PA
Posts: 954
Received 149 Likes on 138 Posts
Default

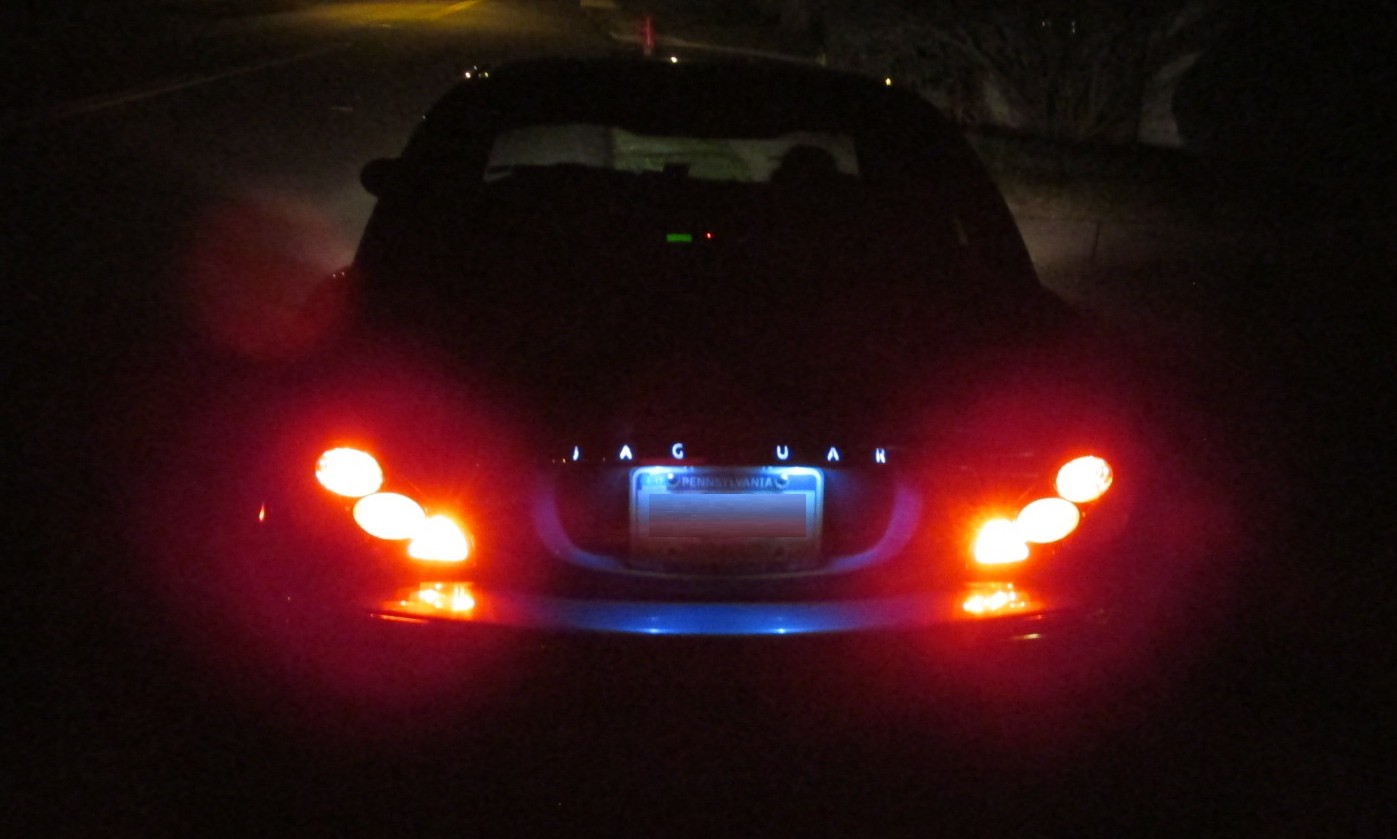

Got the regular plinth on today, just whites at the moment. Backfilled the letter openings with clear plastic casting resin.

I grabbed a strip of multicolor LEDs (in theory, 64k colors at 20 different brightness levels), looking at the controller now. If it can set different combinations for different trigger inputs, that will do the multi-scene mix that we need.

Can't see it being difficult...we've been doing that with stage lighting for a couple of years now. A light show that used to take 1400 PAR cans, a zillion gels, one controller for each group of 4 cans, and three tractor trailers to move (NOT counting the chain hoists!) is down to 120 cans that weight next to nothing, because every color combination that we needed can be programmed into any and every can in the rig instantly...

Attached Thumbnails Oops, i did it again!! customize boot Plinth on a 2004 X-type-img_1493.jpg
The following users liked this post:
Msteiner (06-30-2016)
  #55
Old 04-24-2016, 08:34 AM
iownme's Avatar
Veteran Member
Join Date: May 2011
Location: Upstate NY
Posts: 1,439
Received 126 Likes on 114 Posts
Default

Originally Posted by wa3ra
Got the regular plinth on today, just whites at the moment. Backfilled the letter openings with clear plastic casting resin.

I grabbed a strip of multicolor LEDs (in theory, 64k colors at 20 different brightness levels), looking at the controller now. If it can set different combinations for different trigger inputs, that will do the multi-scene mix that we need.

Can't see it being difficult...we've been doing that with stage lighting for a couple of years now. A light show that used to take 1400 PAR cans, a zillion gels, one controller for each group of 4 cans, and three tractor trailers to move (NOT counting the chain hoists!) is down to 120 cans that weight next to nothing, because every color combination that we needed can be programmed into any and every can in the rig instantly...
Id be interested in buying a ready made one when its all figured out ;@)

  #56
Old 05-02-2016, 09:18 PM
A14LN C's Avatar
Junior Member
Join Date: May 2010
Location: Glasgow
Posts: 16
Received 0 Likes on 0 Posts
Default

Originally Posted by iownme
Id be interested in buying a ready made one when its all figured out ;@)
As he said, I'm in Glasgow, Scotland and I too would love this on my 2006 Silver X Type, I think it would look real sweet especially for cars following behind on our dark country roads


Last edited by A14LN C; 05-03-2016 at 08:00 PM.
  #57
Old 05-03-2016, 04:26 PM
Patterson's Avatar
Senior Member
Join Date: Jun 2010
Location: Scottsdale, AZ
Posts: 674
Received 55 Likes on 45 Posts
Default

A ready made electronics kit would be great. Legal in all 50 states!

  #58
Old 05-04-2016, 02:03 PM
Larry-Cleveland's Avatar
Senior Member
Join Date: Sep 2015
Location: Cleveland, Ohio
Posts: 345
Received 46 Likes on 43 Posts
Default

I have all the parts in house now. I will start to play with the wiring first then work on how to install everything. I should be able to make them or just a kit for you.

The following users liked this post:
wa3ra (05-04-2016)
  #59
Old 05-05-2016, 06:54 AM
iownme's Avatar
Veteran Member
Join Date: May 2011
Location: Upstate NY
Posts: 1,439
Received 126 Likes on 114 Posts
Default

Originally Posted by Larry-Cleveland
I have all the parts in house now. I will start to play with the wiring first then work on how to install everything. I should be able to make them or just a kit for you.
Just remember.... I asked first ;@)

  #60
Old 07-09-2016, 03:56 PM
Join Date: Jun 2016
Location: CA
Posts: 70
Received 3 Likes on 3 Posts
Default

Any updates on a kit for this set up? I would love to get this mod going on my Jag. So subtle and gorgeous.
