I am looking for a plastic partition that fills in 'fence' around break booster. It is missing from my car, letting some engine noise in.
I was looking on many catalogues and can't find it.

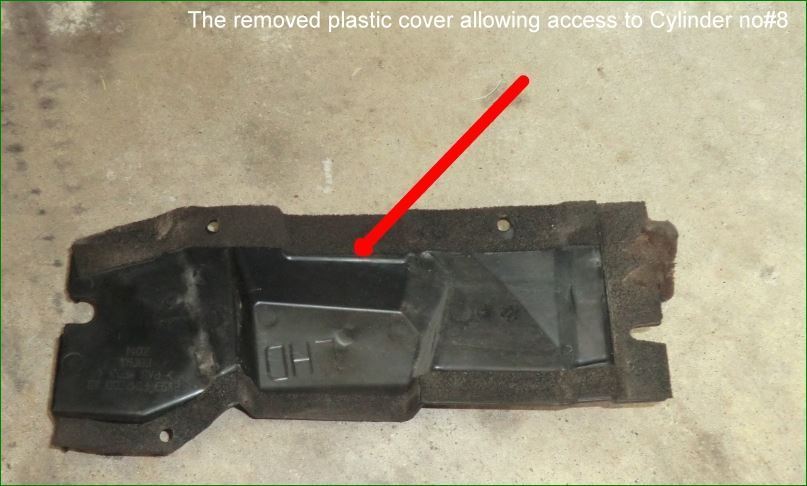

I 'stole' picture of it from another member on this forum:

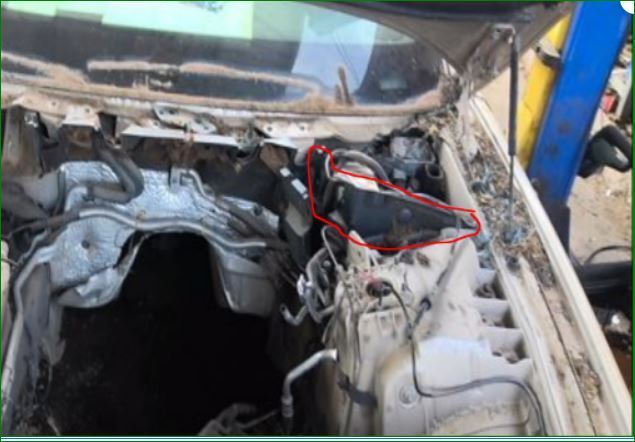

It's location in car shown here (car is not mine!) outlined is 'the fence':
Appreciate any help
I sharpened the image but still couldn't quite read the part number. I can tell you it's upside down.
Does the source of your picture have a higher resolution?
Sorry but the answer is no.
But that is the parts list from Classic Jaguar site
Bulkhead is the plastic, at the rear of the engine compartment.
There to isolate the sound of the motor???
As well as hiding the works from the owner.
So when they open the hood.
All they see is plastic panels.
That give an intimidating finished look.
Honda did this to the Gold Wing in 1988.
Covered everything with EXPENSIVE plastic panels
Not hard to break off an IMPORTANT small interlocking piece.
Read it had as many parts in total, as the Accord did.
It does, it holds sound deadening as well. If I tape off this area with duct tape and carpet pad motor sounds much quiter. I do not want jury rig things.I do not have any x350 in junk yards in the area. There are a lot salvage operators on e-bay, but they all want part number!
Appreciate everybody's willing to help.
One point is that the LHD and RHD parts are quite different in this area.
The engine bay insulation panels are in the Jaguar Land Rover Classic page in the Interior trim and linings - Insulation / liners section.
One point is that the LHD and RHD parts are quite different in this area.
The engine bay insulation panels are in the Jaguar Land Rover Classic page in the Interior trim and linings - Insulation / liners section.
Pete M
Hi, Pete,
I am staring at this digram for good part of 6 months and for the life of me could not figure what is what on that diagram. In your opinion, Pete, it is Item #4 on the diagram, isn't it? As you pointed out this is RHD shown.
I guess I can ask seller on e-bay to send me a picture of what they have.to be sure.
Thanks, Pete
I am staring at this digram for good part of 6 months and for the life of me could not figure what is what on that diagram. In your opinion, Pete, it is Item #4 on the diagram, isn't it? As you pointed out this is RHD shown.
I guess I can ask seller on e-bay to send me a picture of what they have.to be sure.
Thanks, Pete
Hi Big Koshka,
Here is the diagram, but flipped. The LHD won't be the same as RHD. Our heating pipes have to cross over to the left of the car as the brake booster is on the right. Under bonnet and bulkhead parts are 3, 4, 5, 6, 10, 11, 12, 13.
No. 10 is the one that is in the middle. The notch on the bottom fits over the brake pipes from the booster on the right hand side of ours. We don't have a spark plug door. I'm not sure the door is available separately.
Looking at your photo of the car, I wonder if the door is the part just to the left of the part outlined in red?

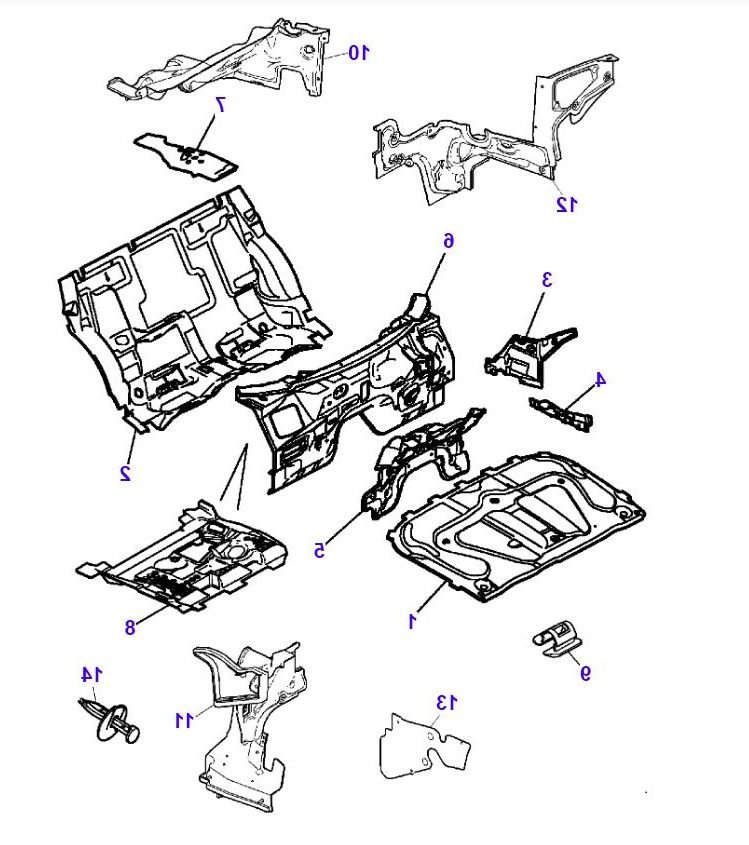

Pete M Diagram reversed - may help for LHD part identification
Hi, Pete,
Here is detailed description of process of changing spark plugs: https://www.jaguarforums.com/forum/x...gs-how-104935/
You can see detail I 'stole' picture of a partition from.
That is what I am after. all the components on the'insulation' diagram are the insulaton pieces, not the pieces that insulation attaches to.
I just learned that SNG Barratt US is just 30 min away from where I am! I will pay them a visit on Monday.
Regards!
Anybody can help with part number?!
