XJR6 O2 sensor replacement
#1
XJR6 O2 sensor replacement
Dear All,
Quick question. My Jag is running rich and scan tool shows both O2 sensors not switching (stuck around 0 V) and fault codes relating to their heater circuit. I checked the fuses under the hood on the right hand side and all ok. I have read that you can try cleaning o2 sensors in petrol - is that a waste of time? I was thinking of just buying two new sensors, but plan to check / clean the wiring connectors first. Anything else I should do /test?
I believe replacement sensors should be 'orientated' by someone with the correct software and I had that done on my last Jag when I replaced the sensors on that over ten years ago. Is the orientation necessary as on other cars we have just fitted a new senor and run fine, passes emissions etc.?
Thanks,
John
Quick question. My Jag is running rich and scan tool shows both O2 sensors not switching (stuck around 0 V) and fault codes relating to their heater circuit. I checked the fuses under the hood on the right hand side and all ok. I have read that you can try cleaning o2 sensors in petrol - is that a waste of time? I was thinking of just buying two new sensors, but plan to check / clean the wiring connectors first. Anything else I should do /test?
I believe replacement sensors should be 'orientated' by someone with the correct software and I had that done on my last Jag when I replaced the sensors on that over ten years ago. Is the orientation necessary as on other cars we have just fitted a new senor and run fine, passes emissions etc.?
Thanks,
John
#2
How old are the sensors? If you don't know, you should just replace them.
Orientation should not be necessary if you replace the sensors one at a time and do not cross plugs.
I believe you have 4 sensors. The downstream ones are the ones that do the heavy lifting, but I would replace all 4...one at a time.
Orientation should not be necessary if you replace the sensors one at a time and do not cross plugs.
I believe you have 4 sensors. The downstream ones are the ones that do the heavy lifting, but I would replace all 4...one at a time.
The following users liked this post:
Lady Penelope (01-08-2018)
#3
Thanks, I have a UK car, so luckily only two sensors, downstream of the down pipe cats. I cant remember if I have replaced the sensors on this car as I have owned it over ten years. I did remove the sensors to repair/ modify the exhaust early last year so maybe they didn't like being disturbed. I did mark them up to avoid mixing them. If they were reading the wrong bank then the fueling would out of control regardless. I will buy the sensors and see how it gets on.
#4

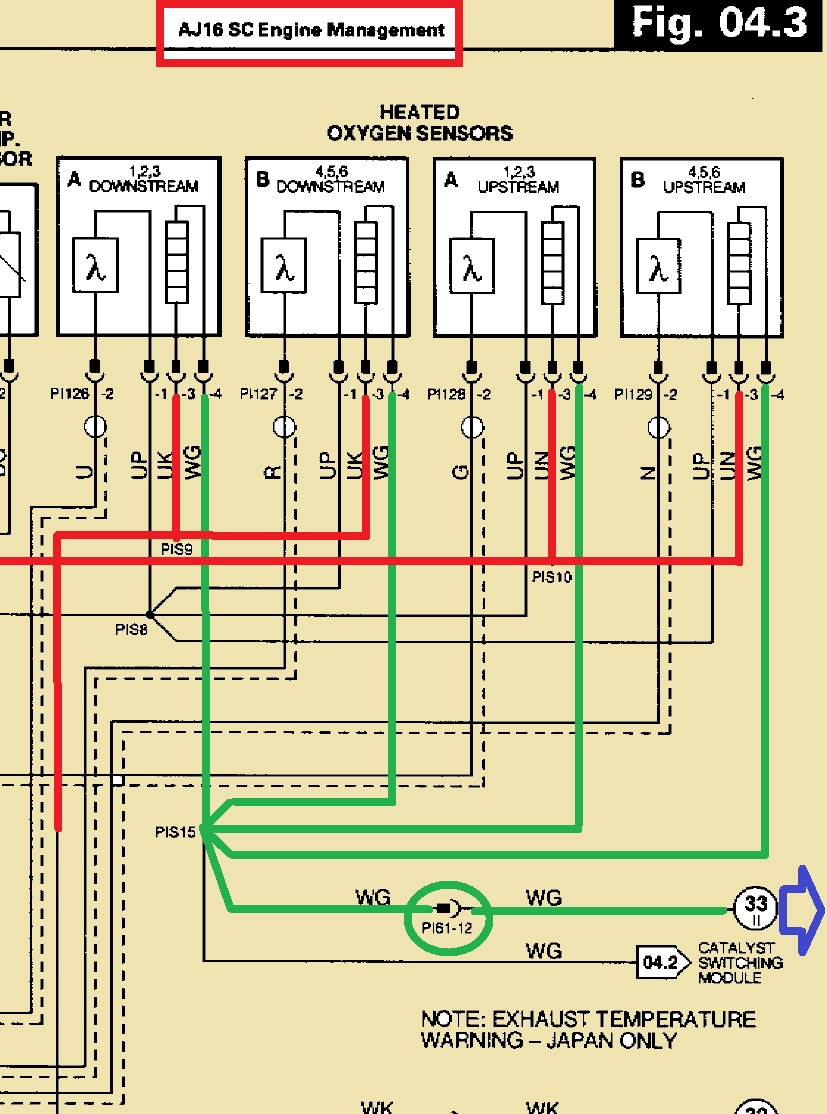

All O2 sensors heaters fuse # 14 / 10 amp Right Engine fuse box . According to the wiring guide all S/C engines have 4 sensors . Mine is a N/A engine . Check for corrosion on the Papa Indy 61 connector pin 12 white / green wire as it has a history of going bad . Also check on the 4 wire 4 sensors connectors for corrosion as I found on mine especially the aft connectors .
Upstream Sensors :
Bank 1 Sensor 1: Green wire
Bank 2 Sensor 1: Brown
Downstream Sensors :
Bank1 Sensor 2: Blue
Bank2 Sensor 2: Red
Upstream Sensors :
Bank 1 Sensor 1: Green wire
Bank 2 Sensor 1: Brown
Downstream Sensors :
Bank1 Sensor 2: Blue
Bank2 Sensor 2: Red
Last edited by Lady Penelope; 01-10-2018 at 11:14 AM.
#6
With the only 2 sensors , where are they located with reference to the forward catalytic converter ?
The Papa Indy 1 and 61 connectors are located aft behind right headlights below the blue washer fluid fill cap . There was a TSB addressing the location causing corrosion . For future reference if you need the part number and source I have them but I just cut mine out and spliced the wires with environmental splices .
The Papa Indy 1 and 61 connectors are located aft behind right headlights below the blue washer fluid fill cap . There was a TSB addressing the location causing corrosion . For future reference if you need the part number and source I have them but I just cut mine out and spliced the wires with environmental splices .
Last edited by Lady Penelope; 01-11-2018 at 10:19 AM.
#7
With the only 2 sensors , where are they located with reference to the forward catalytic converter ?
The Papa Indy 1 and 61 connectors are located aft behind right headlights below the blue washer fluid fill cap . There was a TSB addressing the location causing corrosion . For future reference if you need the part number and source I have them but I just cut mine out and spliced the wires with environmental splices .
The Papa Indy 1 and 61 connectors are located aft behind right headlights below the blue washer fluid fill cap . There was a TSB addressing the location causing corrosion . For future reference if you need the part number and source I have them but I just cut mine out and spliced the wires with environmental splices .
Trending Topics
#8
Never could determain with the different 2 or 4 Cat configurations which set is the regulating Cats and which set is the comparison for code 420 and 430 efficiency . The different ECU's part numbers in different parts of the world don't make it easier . I don't have much information on the inside of the ECU's but am slowly cracking the code .
#9
Never could determain with the different 2 or 4 Cat configurations which set is the regulating Cats and which set is the comparison for code 420 and 430 efficiency . The different ECU's part numbers in different parts of the world don't make it easier . I don't have much information on the inside of the ECU's but am slowly cracking the code .
#10
All 4 sensors are exactly alike
The heaters in the sensors can be checked with a meter and they should compare close to the same resistance for all 4
Without the sensors heated up to a certain point the sensor will not read correctly or not at all
3.5 volts is what I have gathered from reading but the 801S doc is different
Bosch # 13789 is a connector ready replacement and to fabricate one as a universal probably could not be done as the wires are galvanized coated and can't wick solder
The wires are brittle, and care must be observed to not twist the wires as are you spin the sensor in
On mine from the previous owner the wires were broken and sticking out of the insulation from poor craftmanship
The hex is a 17 mm and the copper crush washer is smaller then that of the X300 spark plug , but can be obtained if missing from a cheap 12 MM spark plug
The heaters in the sensors can be checked with a meter and they should compare close to the same resistance for all 4
Without the sensors heated up to a certain point the sensor will not read correctly or not at all
3.5 volts is what I have gathered from reading but the 801S doc is different
Bosch # 13789 is a connector ready replacement and to fabricate one as a universal probably could not be done as the wires are galvanized coated and can't wick solder
The wires are brittle, and care must be observed to not twist the wires as are you spin the sensor in
On mine from the previous owner the wires were broken and sticking out of the insulation from poor craftmanship
The hex is a 17 mm and the copper crush washer is smaller then that of the X300 spark plug , but can be obtained if missing from a cheap 12 MM spark plug
The following users liked this post:
LaggyJaggy (08-31-2023)
