XJS ( X27 ) 1975 - 1996 3.6 4.0 5.3 6.0

Brown wire location anybody.

Thread Tools

Search this Thread

  #21
Old 12-10-2018, 11:11 PM
baxtor's Avatar
Veteran Member
Join Date: Jun 2013
Location: Australia
Posts: 1,882
Received 1,123 Likes on 731 Posts
Default

Originally Posted by brinny



The car is a non runner at the moment so I can’t check if everything is working. I know what you mean though about jaguar and their wiring and you may well be right. This wire wasn’t marked up by me when I removed the engine also. Thanks for your input and it may have to wait until I can get her running and see what doesn’t work.
In case it helps later on. On my car the small harness which contains that wire begins at a plug close to the firewall in the centre of the engine V. It then splits in Y with one leg going to what l think is vacuum valve low down at rear of RH intake manifold and other leg is wire you have which on mine goes on to supplimenary air valve.

  #22
Old 12-11-2018, 12:31 AM
Jagboi64's Avatar
Veteran Member
Join Date: Jan 2013
Location: Calgary
Posts: 4,760
Received 3,060 Likes on 2,034 Posts
Default

From what I can see on the photo it isn't a solid brown wire. Their appear to be dots of colour along it, rather than the old style tracer stripe. Narrow down that colour and you can determine function.

Could be supplemental air valve, cruise dump valve or something going to another harness. I'm not familiar with the European emissions components, but there were a number of solenoids etc.in that area.

  #23
Old 12-11-2018, 02:54 AM
baxtor's Avatar
Veteran Member
Join Date: Jun 2013
Location: Australia
Posts: 1,882
Received 1,123 Likes on 731 Posts
Default

Originally Posted by Jagboi64
From what I can see on the photo it isn't a solid brown wire. Their appear to be dots of colour along it, rather than the old style tracer stripe. Narrow down that colour and you can determine function.

Could be supplemental air valve, cruise dump valve or something going to another harness. I'm not familiar with the European emissions components, but there were a number of solenoids etc.in that area.
The wire is brown with slate trace rings spaced at about 40mm along it's length.
It is shown in wiring diagrams (81-88 engine performance pdf) as connecting to 45 second timer via plug CP8 and running to vacuum solenoid valve, supplimentary air valve and other options depending on market requirements.
What is strange is the fact it seems to be present on some cars and not others even though they are the same MY.

  #24
Old 12-11-2018, 03:30 AM
warrjon's Avatar
Veteran Member
Join Date: May 2010
Location: Vic Australia
Posts: 4,638
Received 2,576 Likes on 1,712 Posts
Default

I looked at the engine performance info and it looks like there is a NS wire to the vacuum valve (which my car does not have) this is connected to the air injection and vacuum advance. Your car looks like a Marelli from that coil in the left of the pic, but if it had/has air injection I suspect this wire goes to the vacuum valve solenoid.

The following users liked this post:
Greg in France (12-11-2018)
  #25
Old 12-11-2018, 07:23 AM
brinny's Avatar
Veteran Member
Thread Starter
Join Date: Sep 2015
Location: Yorkshire U.K.
Posts: 1,296
Received 424 Likes on 251 Posts
Default

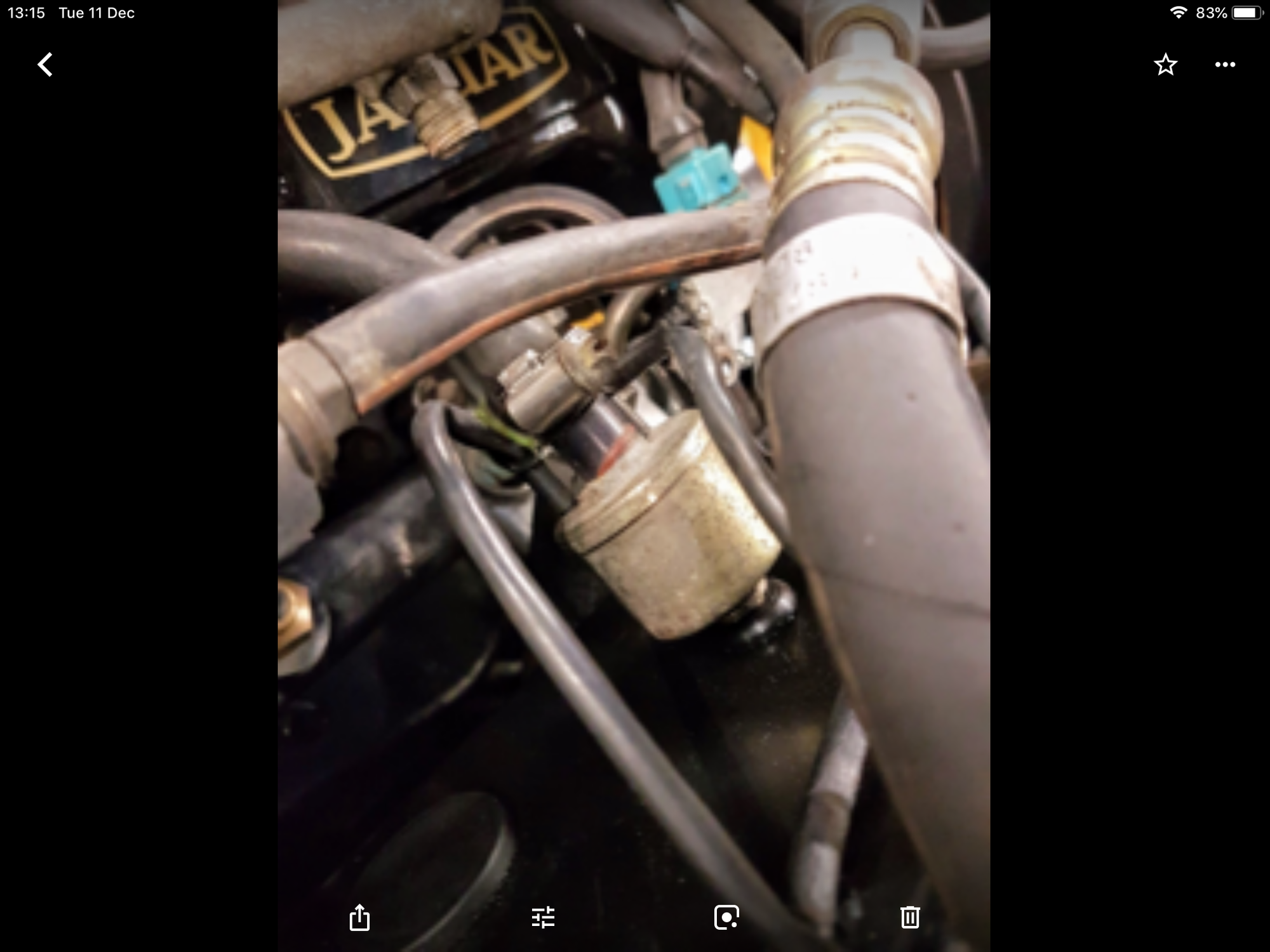

It is a marelli car but doesn’t have air injection. I do think it has a vacuum solenoid , if it is blue in colour with 2or3 vacuum pipes coming off it? Towards the driver on A bank? To the front of the picture is what I think is the supplementary air valve? If that is correct then these wires are connected ok.
