steering rack bushings and adjustment nut
#1
steering rack bushings and adjustment nut
I was reading Palm's description of the steering rack bushings and, since I have the front of the car on jacks for another purpose I thought I'd have a look.

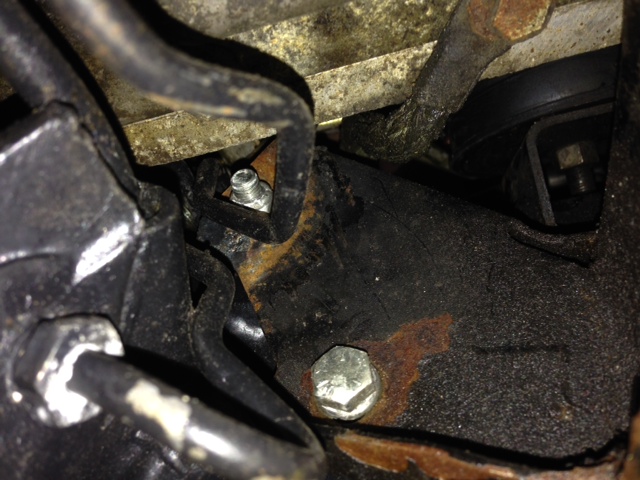

I took the photos from under (more or less) the steering rack, with one photo looking towards the left (single bolt in it) and one towards the right (two bolts in it). It's a LHD car.
Am I correct that these are the three bolts that hold the steering rack in place, and that the questionable bushings are on these bolts?
I had the steering rack replaced just over a year ago, but I wasn't sophisticated enough at the time to ask if they were using OEM bushings or after market.
A few questions...
Is there a way to test for a steering rack issue, either by driving it, or when the front end is on jacks? The only knows steering issue I have is that when I let go of the wheel the car will slightly veer to the right with the steering wheel doing the same. It's not really a "problem" (yet) but if I knew what the fix was I would fix it.
In one photo you can see a large nut with a screw thread in it that adjusts something (it's on the bottom of the steering rack). What does this adjust?
Thanks,
John
1987 XJ-S V12
63,000 miles
I took the photos from under (more or less) the steering rack, with one photo looking towards the left (single bolt in it) and one towards the right (two bolts in it). It's a LHD car.
Am I correct that these are the three bolts that hold the steering rack in place, and that the questionable bushings are on these bolts?
I had the steering rack replaced just over a year ago, but I wasn't sophisticated enough at the time to ask if they were using OEM bushings or after market.
A few questions...
Is there a way to test for a steering rack issue, either by driving it, or when the front end is on jacks? The only knows steering issue I have is that when I let go of the wheel the car will slightly veer to the right with the steering wheel doing the same. It's not really a "problem" (yet) but if I knew what the fix was I would fix it.
In one photo you can see a large nut with a screw thread in it that adjusts something (it's on the bottom of the steering rack). What does this adjust?
Thanks,
John
1987 XJ-S V12
63,000 miles
#2
#3
Am I correct that these are the three bolts that hold the steering rack in place, and that the questionable bushings are on these bolts?
YES
I had the steering rack replaced just over a year ago, but I wasn't sophisticated enough at the time to ask if they were using OEM bushings or after market.
FYI the best bushings IMO are the JaguarSport bushings. They will not allow 'slop' (unlike the standard ones) and are more compliant than poly bushes.
A few questions...
Is there a way to test for a steering rack issue, either by driving it, or when the front end is on jacks?
The standard Jaguar bushings, if they are worn/old, allow the rack to move, instead of the wheels, when the steering wheel is turned, as the bushings do not hold the rack firmly to the subframe. If your bushings are worn, when you turn the wheel slightly, the wheels do not move, so the car does not turn to begin with. This is the test.
The only knows steering issue I have is that when I let go of the wheel the car will slightly veer to the right with the steering wheel doing the same. It's not really a "problem" (yet) but if I knew what the fix was I would fix it.
When the rack is rebushed the wheel alignment has to be redone, and the rack centred - this latter is most important. Pulling one way slightly is not a symptom of worn rack bushings, more of poor alignment, OR, correctly aligned wheels but the rack not centred, so the power steering self centering tends to want to steer the car against the straight line of the wheel geometry.
In one photo you can see a large nut with a screw thread in it that adjusts something (it's on the bottom of the steering rack). What does this adjust?
I am pretty sure that this is a factory set backlash adjuster which is used to set up the rack/pinion clearance and should not be touched.
Thanks,
John
1987 XJ-S V12
63,000 miles
#4
In one photo you can see a large nut with a screw thread in it that adjusts something (it's on the bottom of the steering rack). What does this adjust?
I am pretty sure that this is a factory set backlash adjuster which is used to set up the rack/pinion clearance and should not be touched.
as far as I can see by Bernard Embden's Website the big nut with the plug in the middle is for rack centring just the middle plug, I have never done this though.
I am pretty sure that this is a factory set backlash adjuster which is used to set up the rack/pinion clearance and should not be touched.
as far as I can see by Bernard Embden's Website the big nut with the plug in the middle is for rack centring just the middle plug, I have never done this though.
#5
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
#6
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
In one photo you can see a large nut with a screw thread in it that adjusts something (it's on the bottom of the steering rack). What does this adjust?
I am pretty sure that this is a factory set backlash adjuster which is used to set up the rack/pinion clearance and should not be touched.
as far as I can see by Bernard Embden's Website the big nut with the plug in the middle is for rack centring just the middle plug, I have never done this though.
I am pretty sure that this is a factory set backlash adjuster which is used to set up the rack/pinion clearance and should not be touched.
as far as I can see by Bernard Embden's Website the big nut with the plug in the middle is for rack centring just the middle plug, I have never done this though.
Right. If you remove the small plug in the center you can insert a small screwdriver or similar to "center" the rack. This would be done when performing a wheel alignment and/or centering the steering wheel
Cheers
DD
The following users liked this post:
rgp (11-18-2013)
#7
Thanks for all that! The "crack" is actually just a shadow caused by the camera flash...I just crawled under it to confirm, so there is no cracking.
The steering wheel seems to be centered properly, so I'll just leave the center adjustment alone.
The car still wants to pull to the right a bit when I take my hands off the wheele...I suppose I need to drive on the other side of the road to see if it's the slope of the pavement that is causing it.
Thanks,
John
1987 XJ-S V12
63,000 miles
The steering wheel seems to be centered properly, so I'll just leave the center adjustment alone.
The car still wants to pull to the right a bit when I take my hands off the wheele...I suppose I need to drive on the other side of the road to see if it's the slope of the pavement that is causing it.
Thanks,
John
1987 XJ-S V12
63,000 miles
Trending Topics
#8
#9
Multi lane roads are best to check for alignment as the camber tends to be less than narrower roads (at least here in Sydney). Checking the alignment is very easy. I did mine with 2 poles and string, or just take it to a shop and have the alignment checked.
