My XKR has been sitting in the shop, apart, since November when I began the supercharger rebuild. Now I'm putting it back together, and can't remember where all the vacuum lines and coolant hoses at the throttle body end of the engine all go. JTIS doesn't seem to have good diagrams (unless I'm just not searching it correctly) Does anyone have good diagrams on these?

-David



I think there is one on a label in the shock towers.



Not on mine, but thanks for the tip.



Cabel,

Maybe this might help with the coolant hoses at the bulkhead. Note: Part no.1 is the infamous octopus with the main feed and return into/out of the Valley.

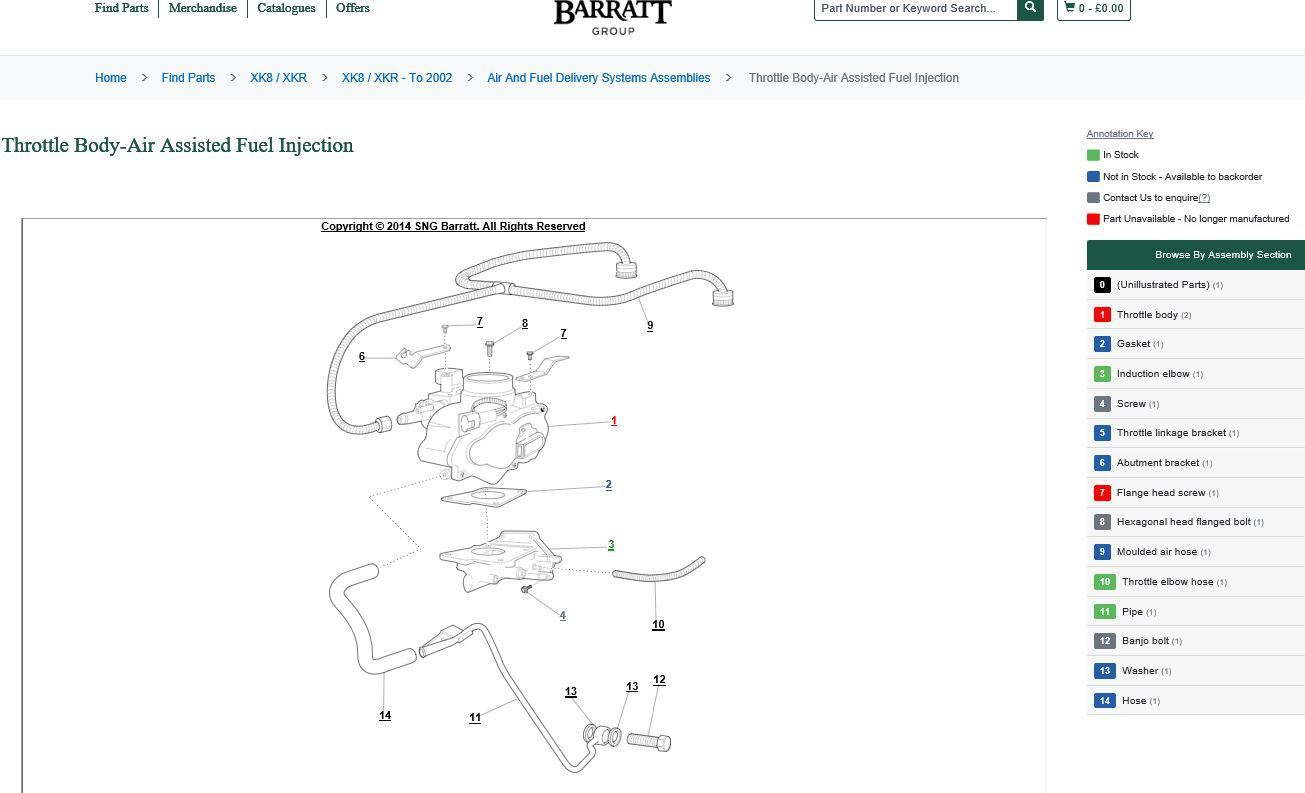

Was looking at SNG Barratt and here's a link to their hoses to the throttle body.

https://www.sngbarratt.com/English/#/uk/FindParts/Families/XK8%20~2F%20XKR/11/XK8%20~2F%20XKR%20-%20To%202002/46/AIR%20AND%20FUEL%20DELIVERY%20SYSTEMS/11007/assembly/10100

For convenience, here's the figure

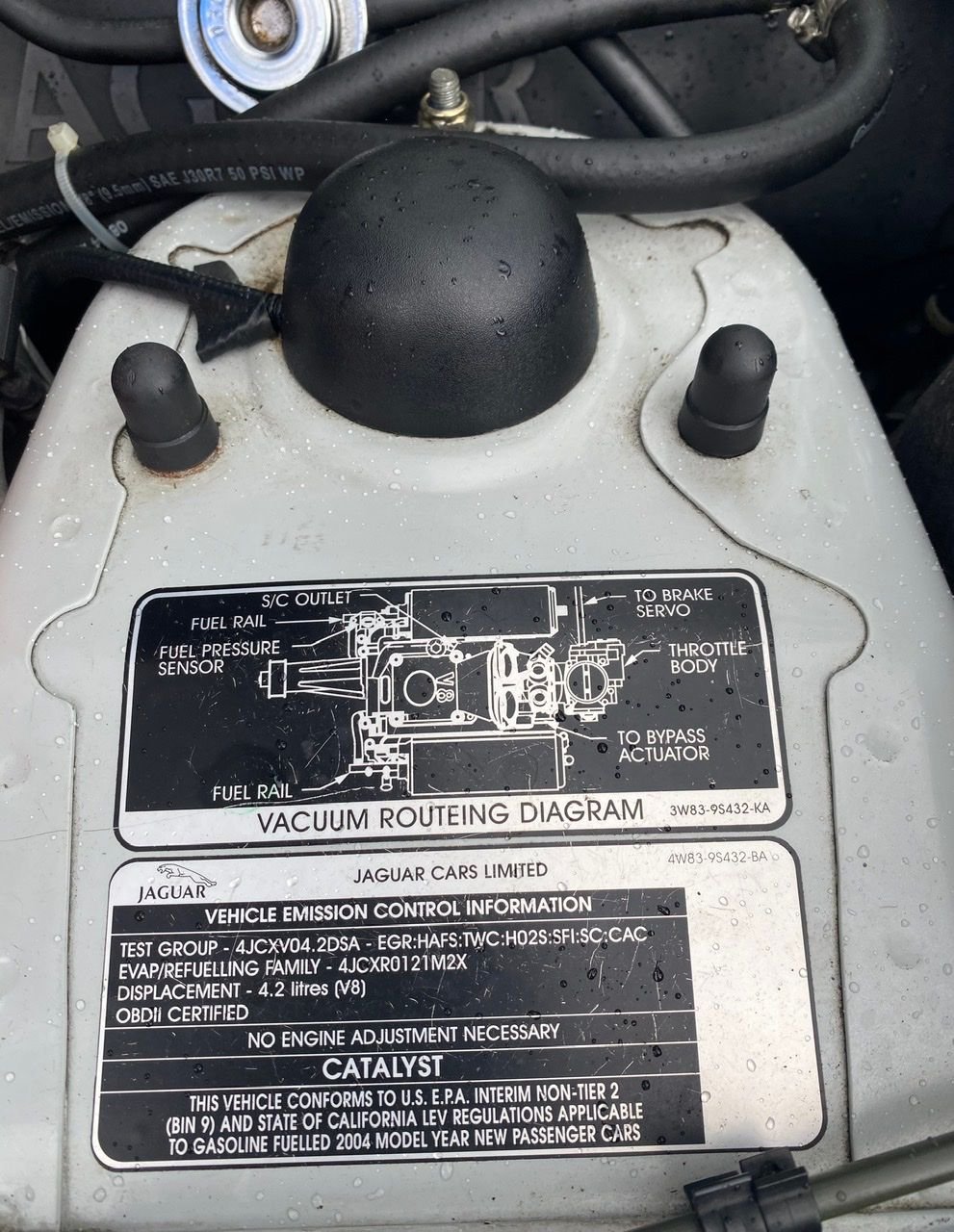

I found it odd when you said yours didn’t have the vacuum routing diagram on the shock tower. Mine has it in the left hand side shock tower.

However, after looking at it, I have to admit it is the most basic diagram ever.



Giandanielxk8,

I should have been clearer, yes, mine has the sticker, agree it doesn't show much. There's more vacuum lines around the TB than shown on that "diagram".



On the throttle body, near the brake boost hose there's a small port, and another opposite. Any idea what lines go there?
