electronic plug location
#1
#2
The OG (Orange/Green) feed from the Instrument Pack is grounded via the BK (Black) to display the warning.
For circuit test purposes with the ignition ON, disconnecting the brown harness plug from the coolant sensor in the Expansion Tank should have the low coolant warning OFF. Connecting the OG to BK terminals in this harness plug should have the warning ON. If it works like this, the circuit is OK and the fault is in the sensor.
Graham
For circuit test purposes with the ignition ON, disconnecting the brown harness plug from the coolant sensor in the Expansion Tank should have the low coolant warning OFF. Connecting the OG to BK terminals in this harness plug should have the warning ON. If it works like this, the circuit is OK and the fault is in the sensor.
Graham
The following users liked this post:
toaster (06-20-2018)
#3
#4
The OG (Orange/Green) feed from the Instrument Pack is grounded via the BK (Black) to display the warning.

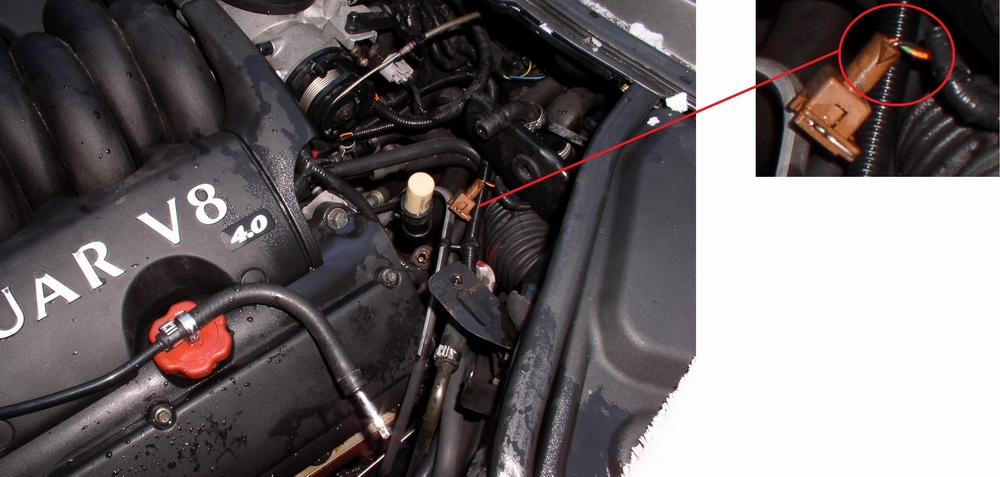

Attachment 216517
For circuit test purposes with the ignition ON, disconnecting the brown harness plug from the coolant sensor in the Expansion Tank should have the low coolant warning OFF. Connecting the OG to BK terminals in this harness plug should have the warning ON. If it works like this, the circuit is OK and the fault is in the sensor.
Graham
Attachment 216517
For circuit test purposes with the ignition ON, disconnecting the brown harness plug from the coolant sensor in the Expansion Tank should have the low coolant warning OFF. Connecting the OG to BK terminals in this harness plug should have the warning ON. If it works like this, the circuit is OK and the fault is in the sensor.
Graham
I replaced the sensor and have the same symptom. While checking, I shorted the sensor plug leads together with the ignition switch on, but this did not turn the lite off. Either I have a bad connection on the instrument module, a broken lead from the module to the sensor or a bad logic ground on the other side of the sensor. According to the schematic the logic ground is controlled by the ignition switch being in the on position. I am trying to find a logic ground I can tap into and wire it to the switch to see if this fixes the problem. If it doesn't then I have a bad connection or broken wire going to the module. Thanks for your input these wiring problems are a pain in the you know what!
#5
I'm an amateur in electrikery but could you just connect the "logic ground" side of the circuit to a "proper" ground like the battery negative terminal. If the light stays on, that would tend to suggest that it's the "instrument" side of the circuit that is faulty. If it goes off, then it's the connection to logic ground that doesn't work. I can't see why this could do any harm, or do any damage.
#6
I'm an amateur in electrikery but could you just connect the "logic ground" side of the circuit to a "proper" ground like the battery negative terminal. If the light stays on, that would tend to suggest that it's the "instrument" side of the circuit that is faulty. If it goes off, then it's the connection to logic ground that doesn't work. I can't see why this could do any harm, or do any damage.
The following users liked this post:
DevonDavid (06-23-2018)
