side 1/4 windows wont operate HELP


  #1
Old 05-13-2019, 08:02 PM
Junior Member
Thread Starter
Join Date: May 2015
Location: port richey
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Default side 1/4 windows wont operate HELP

OK, The convert top hydr line going to the latch broke... (so whats new!) I learned how to bypass the relays to lower my 1/4 windows. Ok, today, great Florida weather so I loosened the petcock on the hydr top system to manually lower the top. All fine so far.. Now the rains are here, I need to raise the top, but the 1/4 windows are up and I can not lower them by bypassing the relay. What's the problem? is there another switch to bypass?

  #2
Old 05-13-2019, 08:15 PM
giandanielxk8's Avatar
Veteran Member
Join Date: Oct 2012
Location: Puerto Rico
Posts: 1,923
Received 274 Likes on 200 Posts
Default

Originally Posted by isuralife View Post
OK, The convert top hydr line going to the latch broke... (so whats new!) I learned how to bypass the relays to lower my 1/4 windows. Ok, today, great Florida weather so I loosened the petcock on the hydr top system to manually lower the top. All fine so far.. Now the rains are here, I need to raise the top, but the 1/4 windows are up and I can not lower them by bypassing the relay. What's the problem? is there another switch to bypass?

Do you hear any sounds from the rear window regulators?

  #3
Old 05-13-2019, 09:20 PM
DavidYau's Avatar
Senior Member
Join Date: Jan 2019
Location: Bahrain
Posts: 597
Received 164 Likes on 121 Posts
Default If 1/4 windows regulators wonít engage, then itís another switch

First, I take it youíve tried the Centre console roof switch up/down in conjunction with the manual opening/closing of the roof. The system might be confused on the sequencing.

If that didnít work, try jumping the relays at the trunk box in the right cycle sequence timing. Ie lowering quarter windows is the first operation when you lower the hood. Last operation is windows up when raising.

If the roof is up and latched, you will need access to the switch connector on the bottom of the RHS cylinder ram behind the rear quarter music panel.

  #4
Old 05-14-2019, 12:33 AM
DavidYau's Avatar
Senior Member
Join Date: Jan 2019
Location: Bahrain
Posts: 597
Received 164 Likes on 121 Posts
Default A few pics

Not sure what MY XK8 you have but this is the electrical diagram of the relays in the trunk of my 1999 XK8. There are specific relays for the quarter windows for both up/down. Did you jump these?

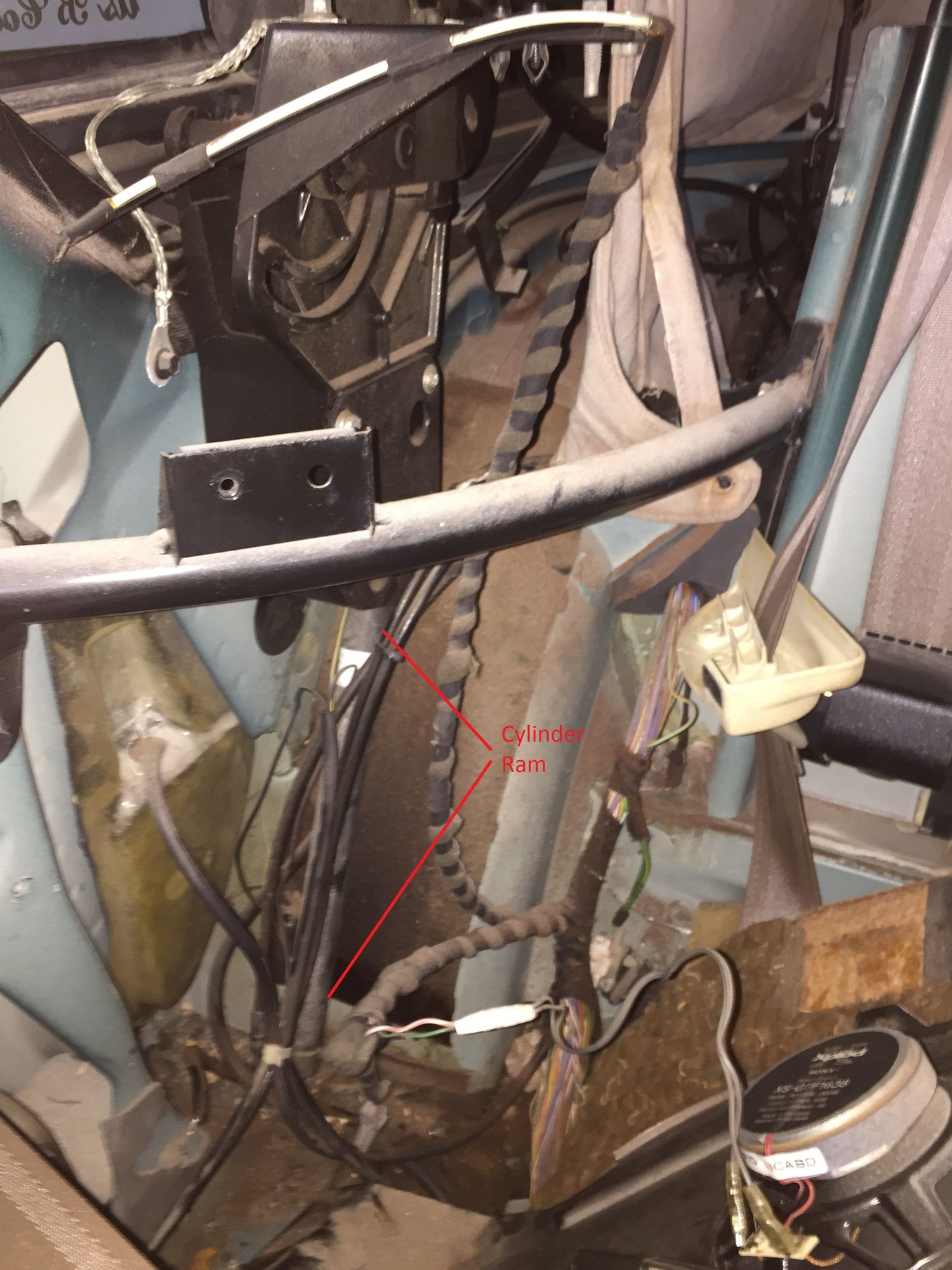

If you are digging behind the rear right quarter panel, this is what you'll see.

It's not too bad getting access behind the panel and relatively straight forward.

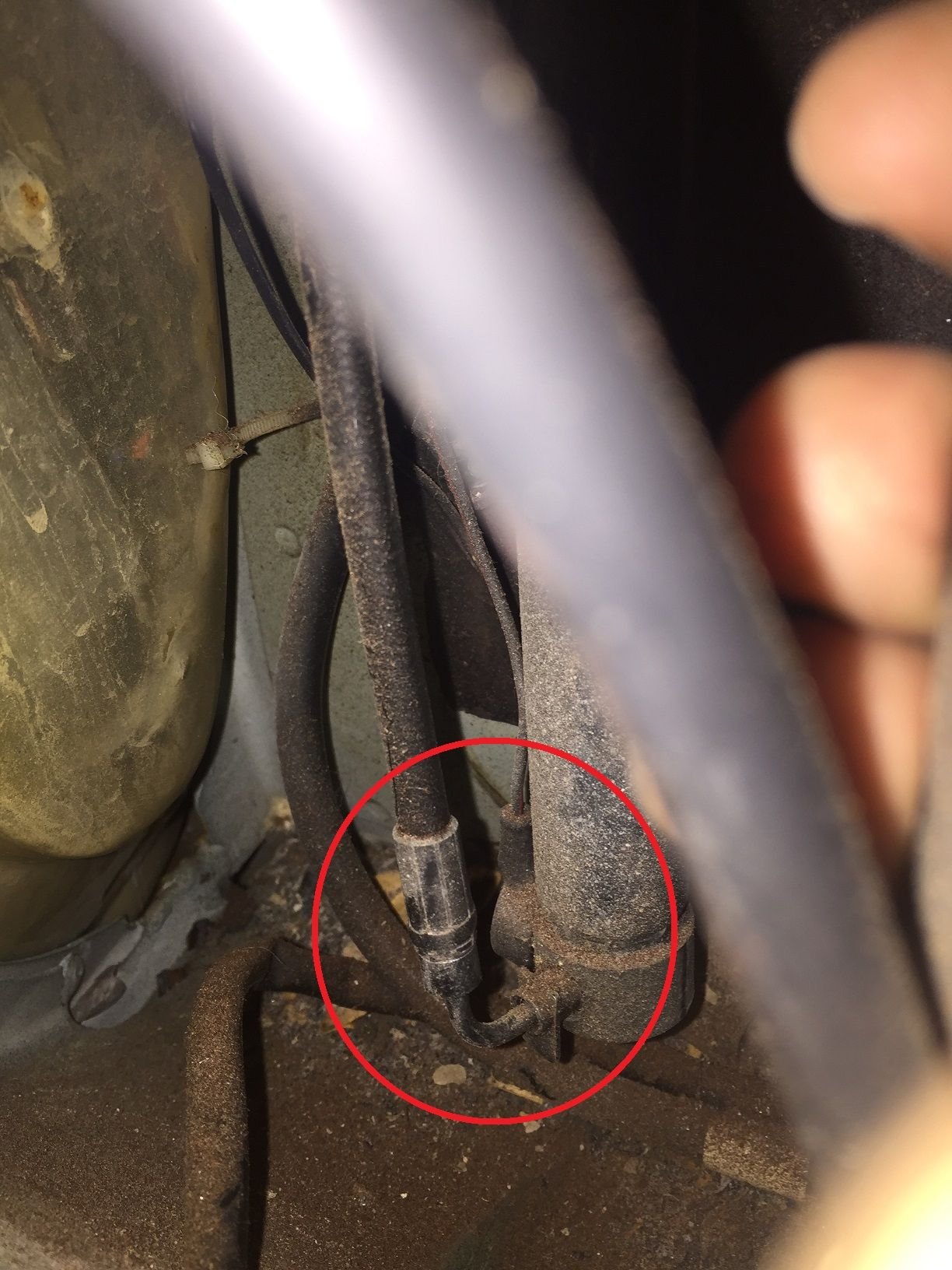

Here's a pic of the actual hydraulic cylinder ram RHS with the electrical connector on the bottom.

The following users liked this post:
frankc (05-14-2019)
  #5
Old 05-17-2019, 02:19 PM
Junior Member
Thread Starter
Join Date: May 2015
Location: port richey
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Default Double Help side windows wont work with top down

Double Help!! I asked the question before, I got some great help, but upon reopening the thread, my mouse jumped and I hit delete thread..
Here's my issue: Top hydrl broke..(so what' else is new). thus the Top was disabled in a locked closed position, the top down switch ceased to work, I assume due to fluid pouring out of the top lock mechanism, I got the bright idea of lowering the top manually. The rear windows were in an up position. I opened the petcock allowing the rams to move fluid or air and lowered the top. Ok, it's now supposed to rain in Florida so I need to put the top up and lock it. I can manually raise the top, but rear windows prevent it from getting close enough to lock. I try jumping the window relays but no go.. How do I activate the rear windows.. Is there another switch someplace??
Someone sent me an answer, but it was deleted with the original thread..

HELP!! Thank you!!

  #6
Old 05-17-2019, 06:37 PM
cjd777's Avatar
Veteran Member
Join Date: Dec 2011
Location: Spencer, NC
Posts: 2,017
Received 407 Likes on 332 Posts
Default

This should give you enough to get them down and even add a switch.

https://www.jaguarforums.com/forum/x...op-down-37826/

  #7
Old 05-17-2019, 07:11 PM
Join Date: Oct 2007
Location: PHX some of the time
Posts: 101,612
Received 4,742 Likes on 4,261 Posts
Default

It wasn't deleted, I've merged both threads.

  #8
Old 05-19-2019, 11:14 AM
Junior Member
Thread Starter
Join Date: May 2015
Location: port richey
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by giandanielxk8 View Post
Do you hear any sounds from the rear window regulators?
No sound what so ever.. I am trying to jump power at the trunk locate relays. There must be a switch in between the relays and the windows.. is there??

  #9
Old 05-19-2019, 11:17 AM
Junior Member
Thread Starter
Join Date: May 2015
Location: port richey
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Default

THank you ever so much!!

  #10
Old 05-19-2019, 11:21 AM
Junior Member
Thread Starter
Join Date: May 2015
Location: port richey
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Default

David... Thank you so much for your info. Currently the roof is nearly up, but not latched. (the interference of the 'up' windows prevents the roof from being close enough to lock close) At the trunk relays, I have power but when I jump them, they do not operate the windows. Will I need to ground that wire at the bottom of the cylinder to make the circuit work?
I get no noise from the motors, so I am sure it's a circuit issue

  #11
Old 05-19-2019, 11:43 AM
Junior Member
Thread Starter
Join Date: May 2015
Location: port richey
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by cjd777 View Post
This should give you enough to get them down and even add a switch.

https://www.jaguarforums.com/forum/x...op-down-37826/
Thank you! I'll give it a try!
Thank you again!!
